Description
ELP 360 Degree Camera Full Circle View 1080P CMOS OV2710 Fisheye 120FPS High Speed USB Webcam Module for Unmanned Aerial Vehicle
Package includes:
1) 1pcs 2mp usb camera module with full circle view fisheye lens
2) 1pcs 1m usb cable (2/3/5m optional)

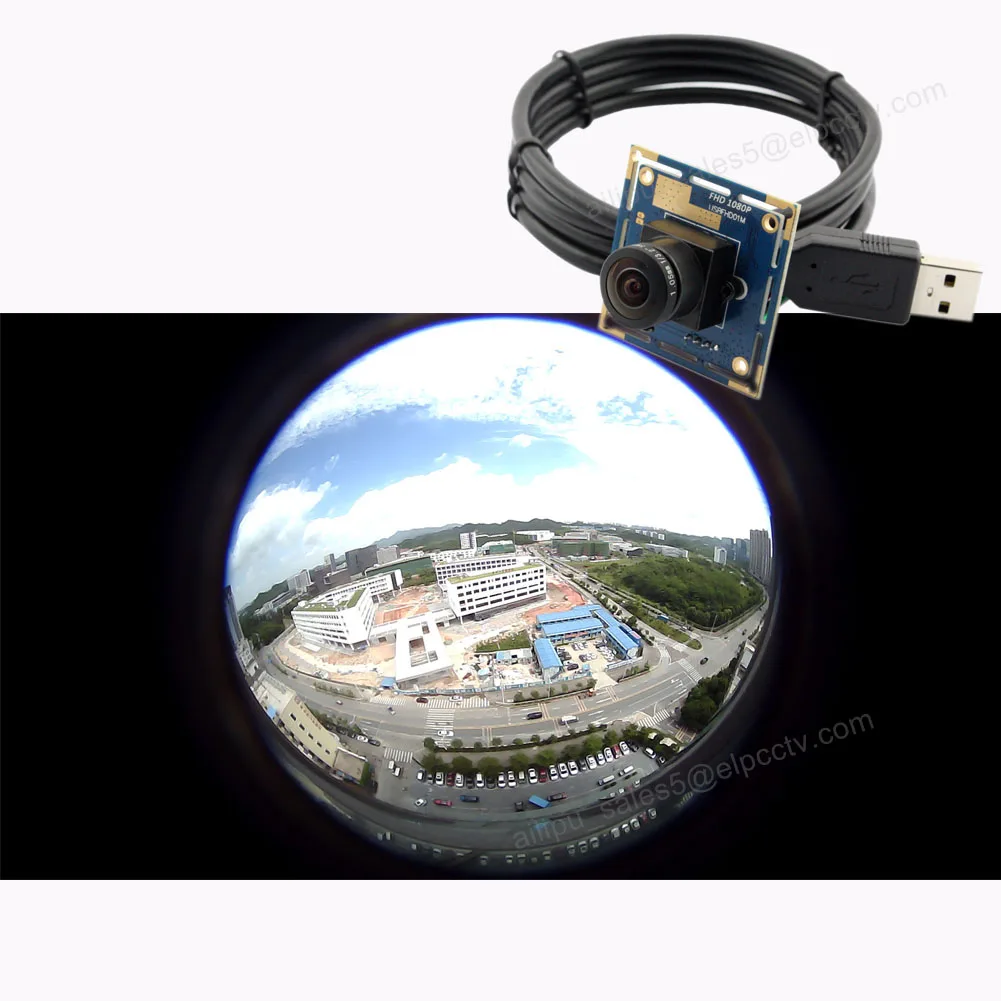

-360 Degree Wide-Angle Fisheye Webcam Module HFOV about 185 degree
-CMOS 1/2.7inch OV2710 sensor for high quality image and low power consumption.
-High pixel technology for sharp image and accurate color reproduction.
-High speed USB 2.0 interface for high resolution PC camera interface.

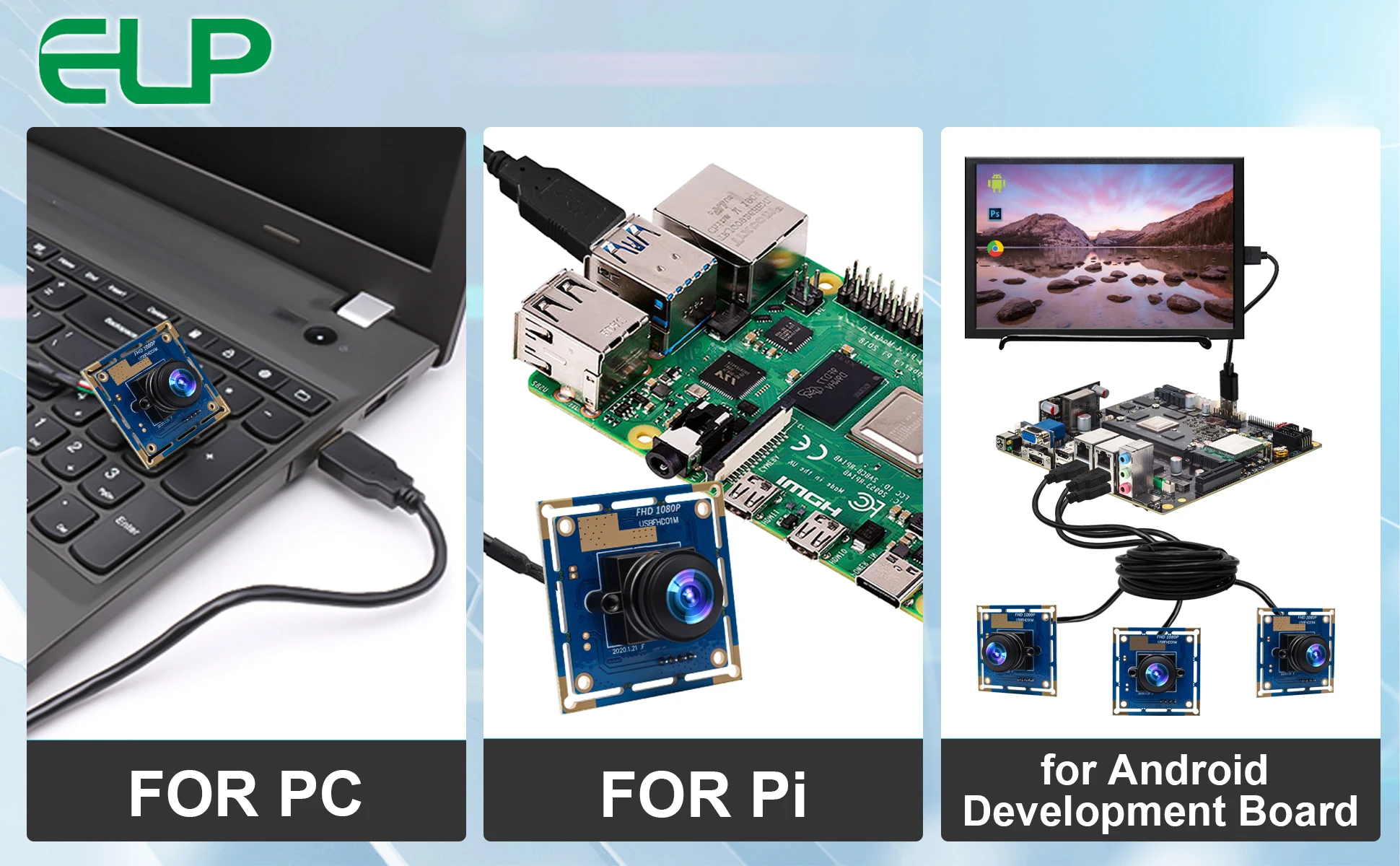

-Support OTG, can connect to your mobilephone, Tablet, mini PC via OTG Cable

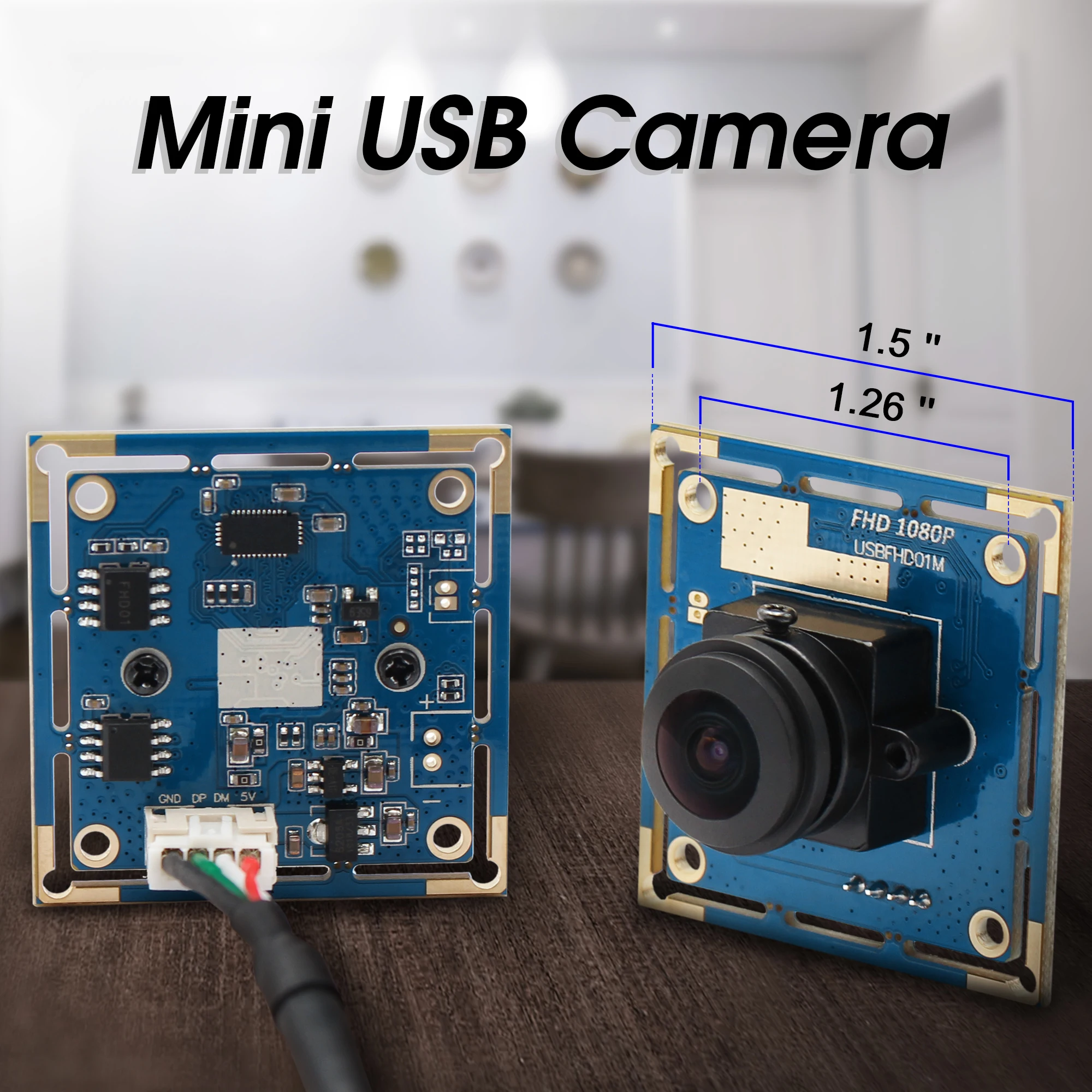

-Super small outline and thin profile for embedded applications.Mini size :32*32mm/38*38mm, customization available.

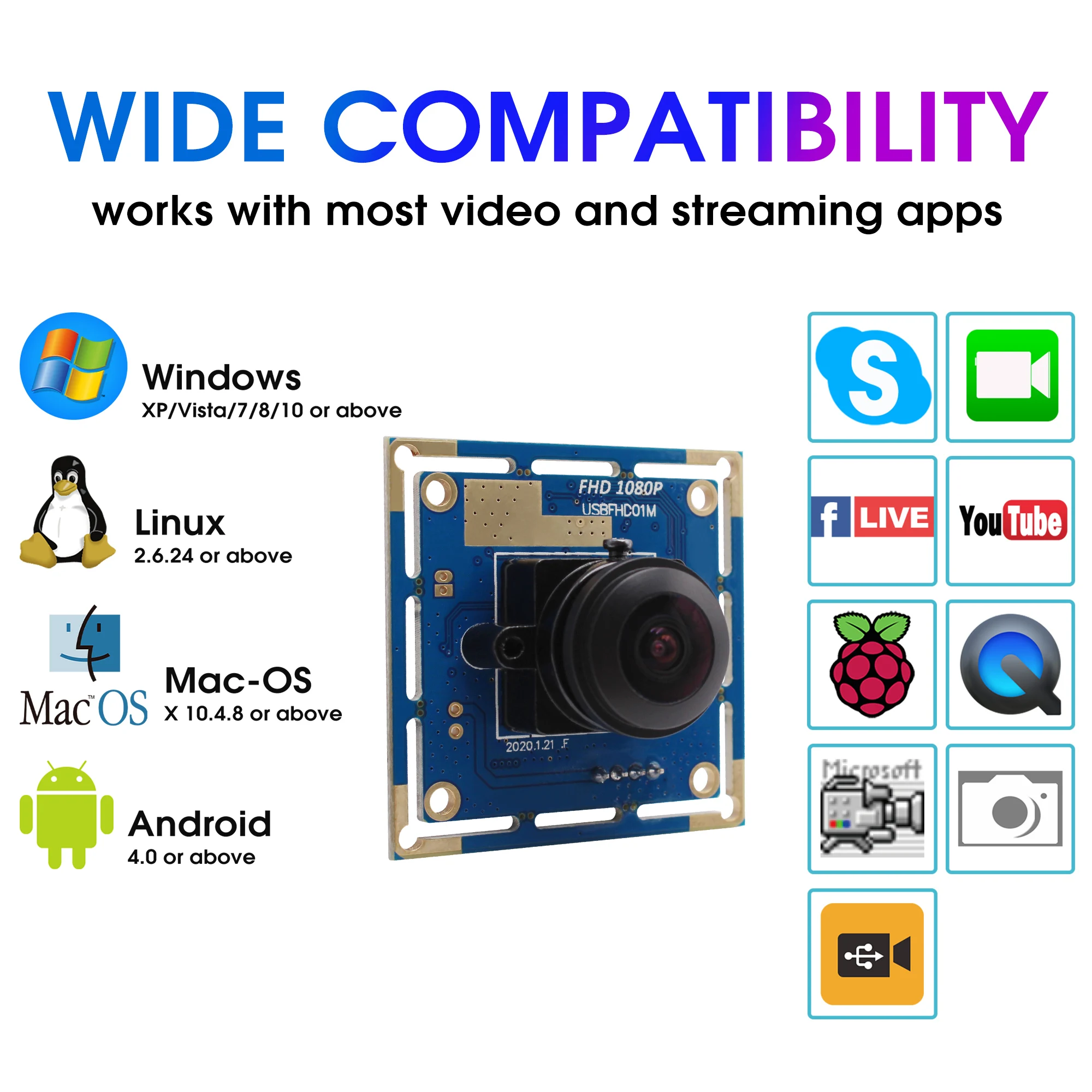

-UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
|
Model |
ELP-USBFHD01M-L105 ( 1.05mm fisheye lens, HFOV about 185 degree, full circle view) |
|
Sensor |
1/2.7 inch OV2710 |
|
Pixel Size |
3.0um X 3.0um |
|
Image area |
5856 µm x 3276 µm |
|
Max. Resolution |
FULL HD 1920(H)X1080(V) |
|
Compression format |
MJPEG / YUV2（YUYV） |
|
Resolution & Frame Rate |
320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps 640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps 1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps 1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps |
|
Special function |
Lens correction/ Defective pixel correction/ Black sun cancellation |
|
Min illumination |
0.05lux |
|
Shutter Type |
Electronic rolling shutter / Frame exposure |
|
Sensitivity |
3.7V/lux-sec@550nm |
|
Connecting Port type |
USB2.0 High Speed（Support USB2.0 HS/FS, USB2.0 OTG） |
|
USB Protocol |
USB2.0 HS/FS USB1.1/USB1.0 |
|
Connecting Port type |
USB2.0 High Speed |
|
OTG Protocol |
USB2.0 OTG |
|
Free Drive Protocol |
USB Video Class（UVC） |
|
AEC |
Support |
|
AWB |
Support |
|
AGC |
Support |
|
Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure |
|
Lens Parameter |

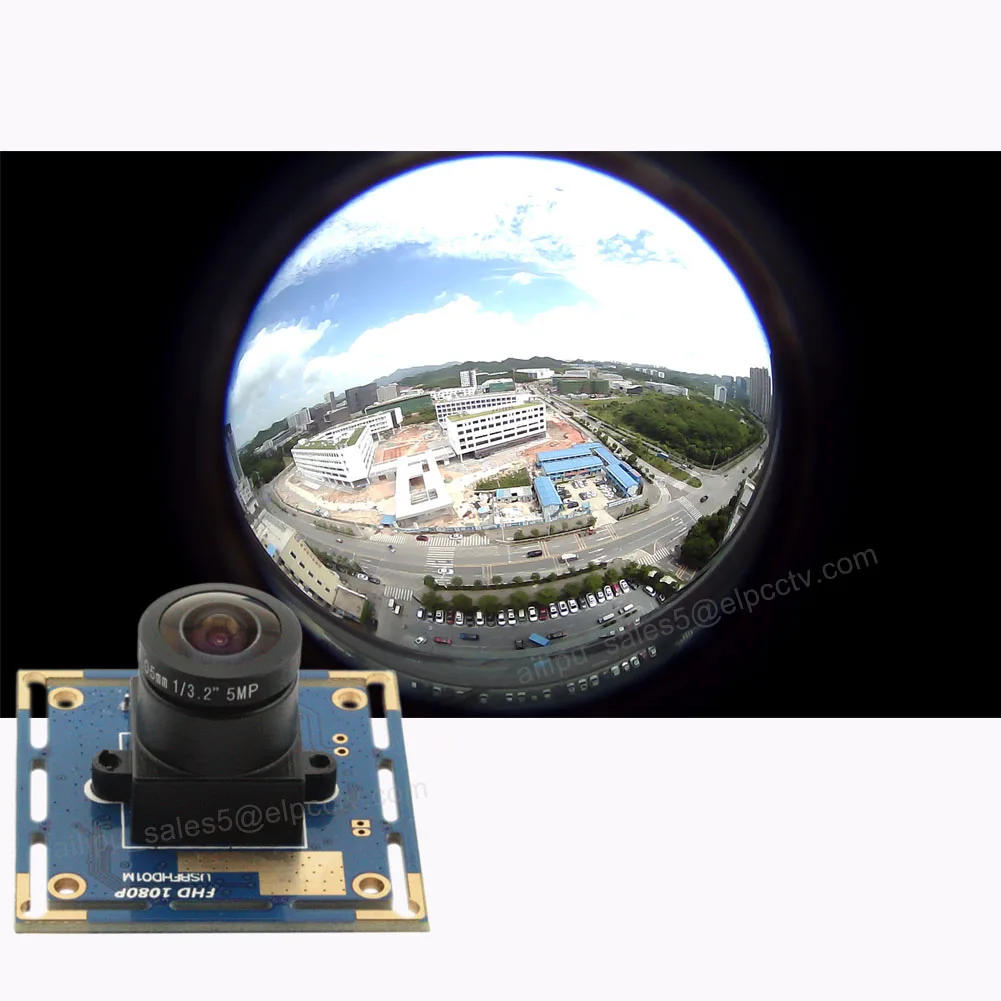

1.05mm fisheye lens, HFOV about 185 degree, can get 360 degree full circle view, Lens changeable,optional lenses like 2.1/2.8/6/8/12mm, No distortion lens,Fisheye lens with different FOV |
|
Night vision |
Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board |
|
LED board power connector |
Support 2P-2.0mm socket |
|
Power supply |
USB BUS POWER 4P-2.0mm socket |
|
Operating Voltage |
DC5V |
|
Working current |
120mA~220mA |
|
Working temperature |
0～60℃ |
|
Storage temperature |
-20～75℃ |
|
Board size /Weight |
38X38mm (Compatible 32X32mm)/ about 30g |
|
Cable |
Standard 1M (optional 2M,3M,5M) |
|
Operating system request |
WinXP/Vista/Win7/Win8/Win10/Win11 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
ELP Full HD 1080P Resolution USB Camera Module which can provides you with the professional and clear videos.
Well used for High Speed- sports photography, AI object recognition, Industrial inspection, Video applications, Industrial automation, robotics, or scientific imaging, Industrial water detection, Robot mobile shooting, Gesture recognition, High-speed mobile capture, Mobile car shooting, Loom shooting, Water drop detail shooting, Sports security capture, Augmented and virtual reality, Eye tracking, Depth and motion detection…. and so on.
