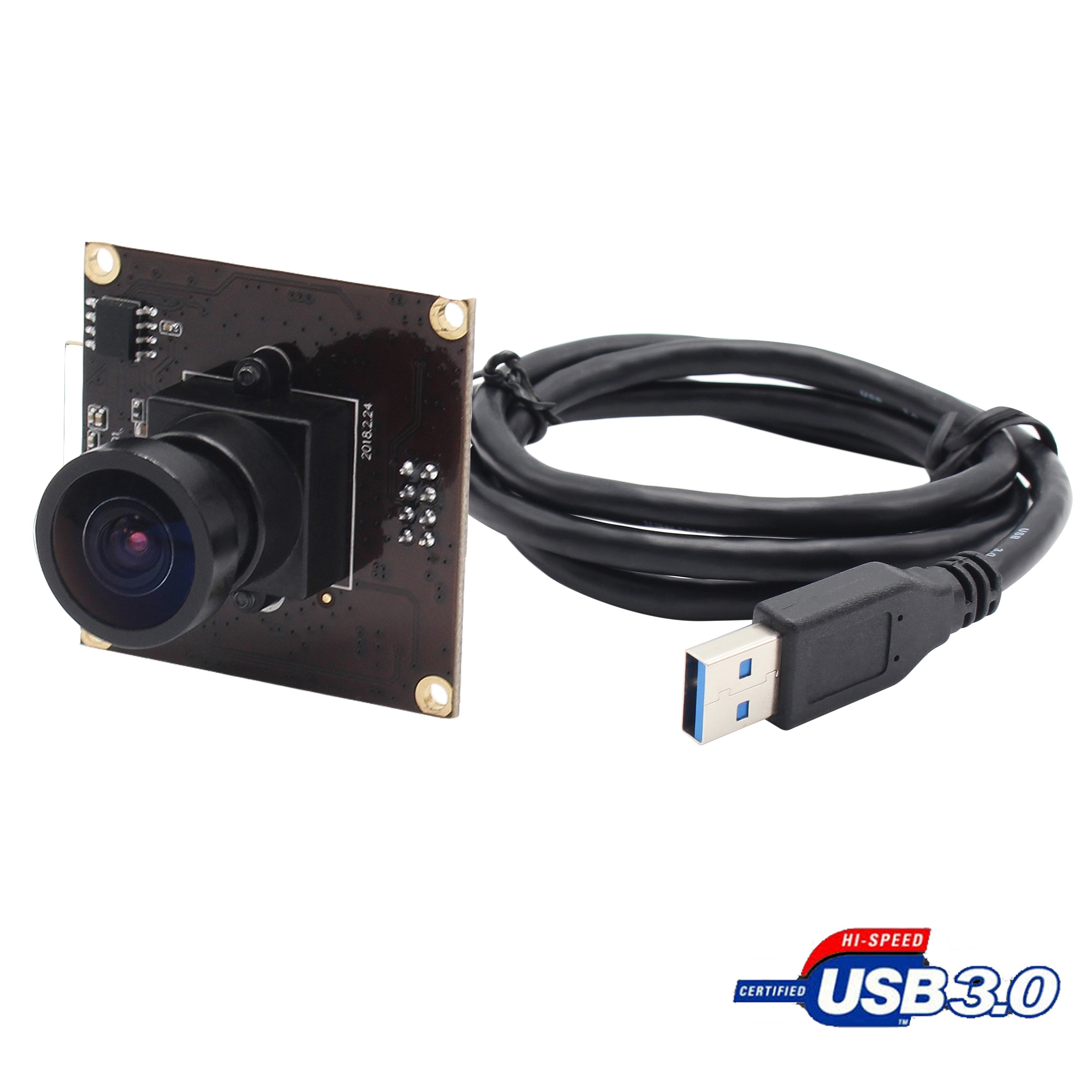

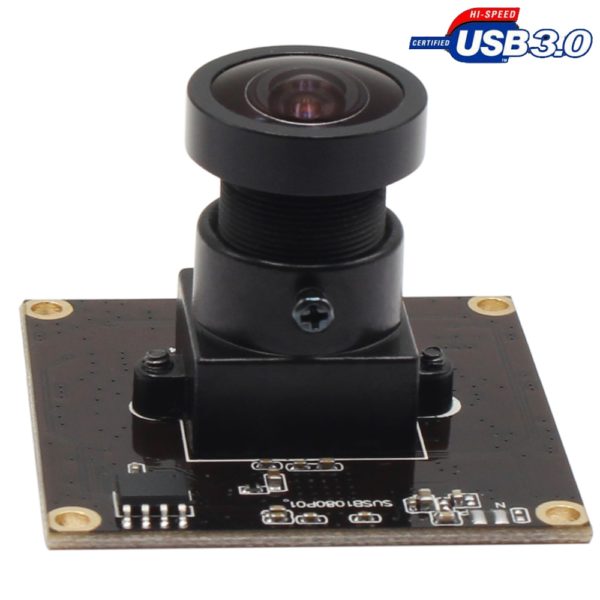

1920X1080P 50fps USB3.0 Camera Plug Play 2MPixels Sony IMX291 Camera Module USB 3.0 With Wide Angle Lens (SUSB1080P01-L29)

98.90$ 63.80$

Features:

  • 1080P USB 3.0 Camera Module with 12.9mm wide angle lens
  • 1/2.8 SONY IMX291 Color CMOS Sensor for high quality image
  • High speed USB 3.0 interface for high resolution PC camera interface.
  • Super small outline 38*38mm and thin profile for embedded applications.
  • High frame rate– deliver 50 fps in 1920X1080 resolution.
  • UVC compliance for use in OS Windows, Linux, Android
  • OTG support

Description

Specification:

Model ELP-SUSB1080P01-L29
Sensor IMX291
Lens Size 1/2.8 inch
Pixel Size 2.9µm X 2.9µm
Max. Resolution 1920(H)X1080(V)
Compression format MJPEG  / YUV2(YUYV)
Resolution & frame 1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps
1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps
640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps
S/N Ratio 40dB
Dynamic Range 65dB
Sensitivity 1900mV/lux-sec@550nm
Mini illumination 0. 01lux
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB3.0 High Speed
Free Drive Protocol USB Video Class(UVC)
AEC Support
AEB Support
AGC Support
Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens Parameter Standard 2.9mm lens,optional 2.8/3.6/6/8/12mm lens,

FOV 170/180Degree,

FOV100 degree no distortion lens
Power supply USB BUS POWER
Operating Voltage DC5V
Working current 170mA~210mA
Working temperature 0~70℃
Board size /Weight 38*38mm
Cable Standard  1M
Operating system request Win8 or above
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

Additional information

Weight 0.3 kg
Dimensions 12 × 10 × 8 cm
Resolution

2megapixles, max resolution 1920*1080
