Description
8 megapixel Micro Digital Sony IMX179 USB 8MP hd Webcam High Speed USB 2.0 CCTV USB Camera Board with 75degree No Distortion Lens
is nice to used in Linux equipment, or those equipment which come with windows,linux,Android system etc.
Features

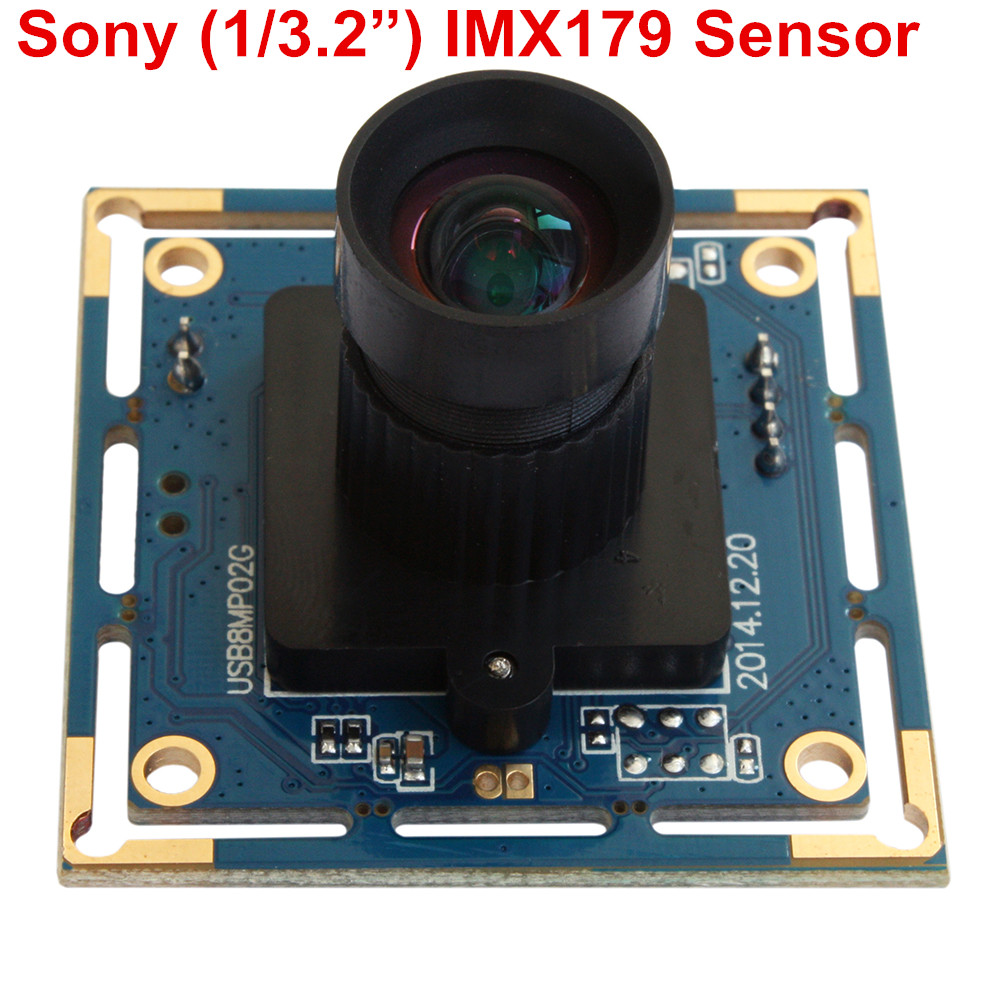

1. 1/3.2 inch Sony IMX179 USB webcam
2. 8 megapixel high resolution Mjpeg USB camera
3. UVC usb camera, Support windows, linux, Mac with UVC, also for android system.
Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.

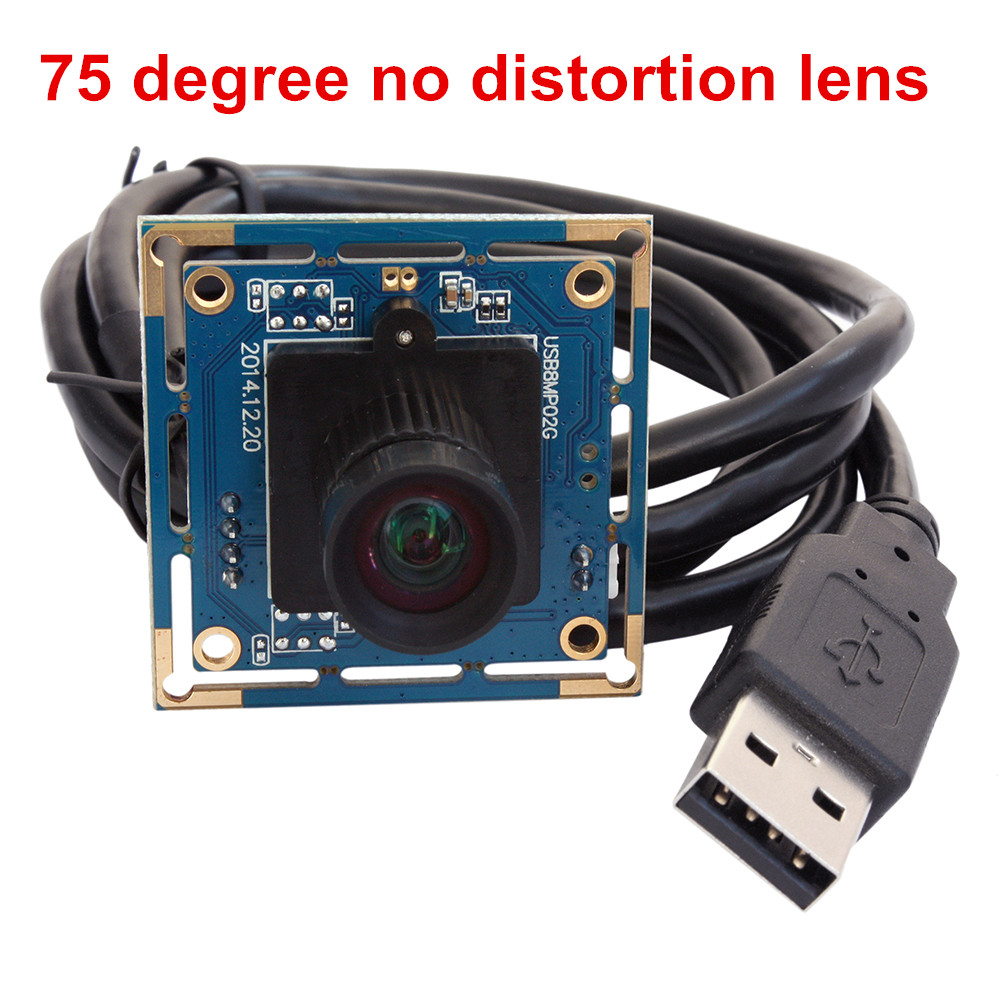

4. Webcam USB with no distrortion lens

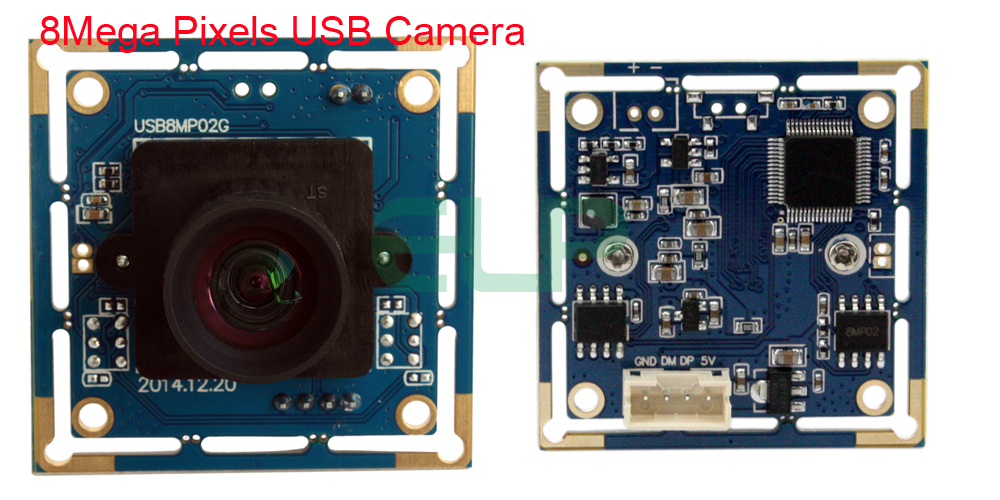

5. 38×38/32x32mm mini micro usb board camera
6. USB webcam, well used in many machines, atm machine, medical machine, automatic vending machine, industry machine..
7. USB camera module Parameters changable (Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure…)
Spcifications
| Model | USB8MP02G-L75 |
| Sensor | SONY IMX179 |
| Lens Size | 1/3.2inch |
| Pixel Size | 1.4um |
| image area | 6.18mm x 5.85mm |
| Max. Resolution | 3264(H) X 2448(V) 8Megapixel |
| Compression format |
MJPEG / YUV2（YUYV） |
| Resolution & frame |
3264X2448 @ 15fps / 2592X1944@ 20fps 2048X1536 @ 20fps / 1600X1200@ 20fps 1280X960 @ 20fps / 1024X768@ 30fps 800X600 @ 30fps / 640X480@ 30fps |
| S/N Ratio | 34dB |
| Dynamic Range | 72.5dB |
| Sensitivity | 0.65V/lux-sec@550nm |
| Mini illumination | 0.5lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
|
Connecting Port type |
USB2.0 High Speed |
|
Free Drive Protocol |
USB Video Class（UVC） |
|
OTG protocol |
USB2.0 OTG |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Button camera |
Support |
|
Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
|
Lens Parameter |
no distortion lens, options other M12 Mount lens |
|
LED board control interface |
Support 2P-1.25mm socket |
|
LED board power connector |
Support 2P-2.0mm socket |
|
Power supply |
USB BUS POWER 4P-2.0mm socket |
|
Operating Voltage |
DC5V |
|
Working current |
150mA~240mA |
|
Working temperature |
-10～70℃ |
|
Storage temperature |
-20～85℃ |
|
Board size |
38X38mm（compatible 32X32mm） |
|
Operating system request |
WinXP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
