Description
ELP 1080P 2MP CMOS Night Vision IR Camera with High Speed Frame 30/60/120fps Optional Mini Industrial Webcam IR USB Camera
Package include:
1) 1 pcs IR usb camera module with 3.6 mm lens (2.1/2.8/6/8/12mm lens optional ）

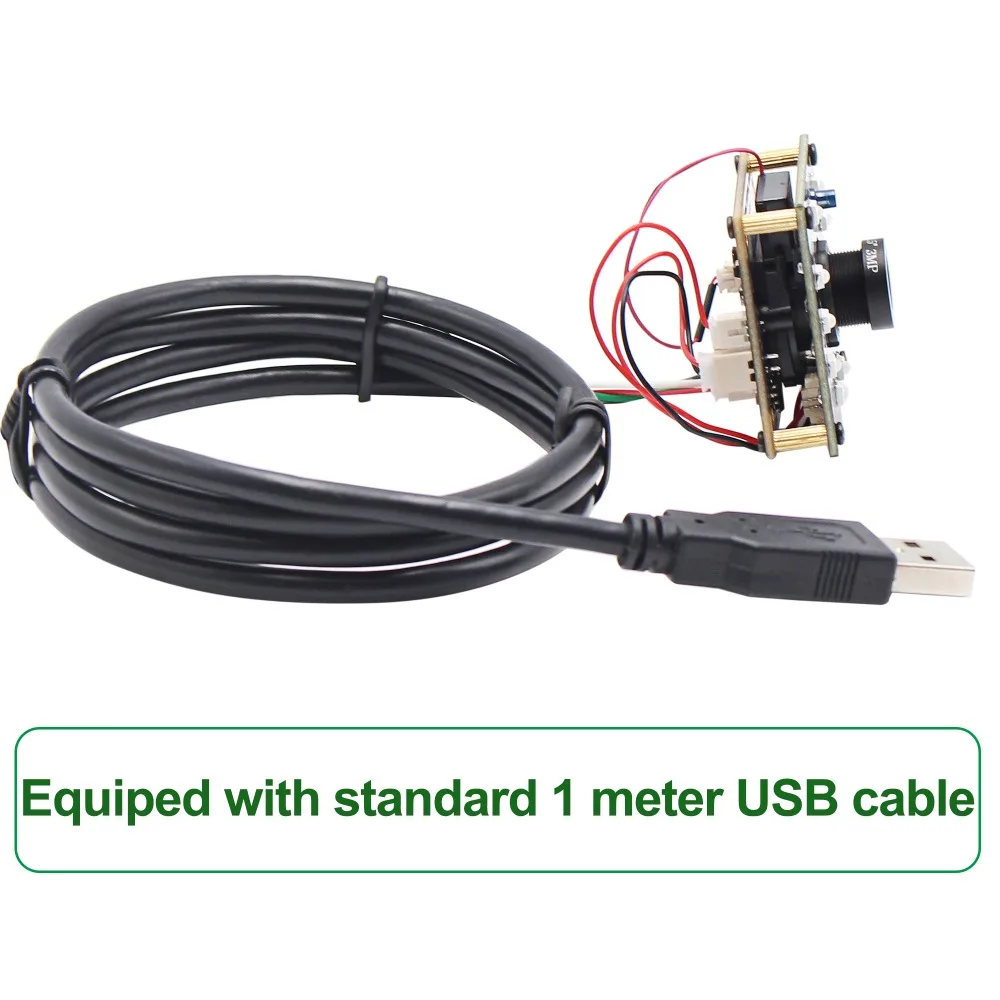

2) 1pcs 1m usb cable (2m/3m/5m optional)
*High Speed 1080P HD USB Camera

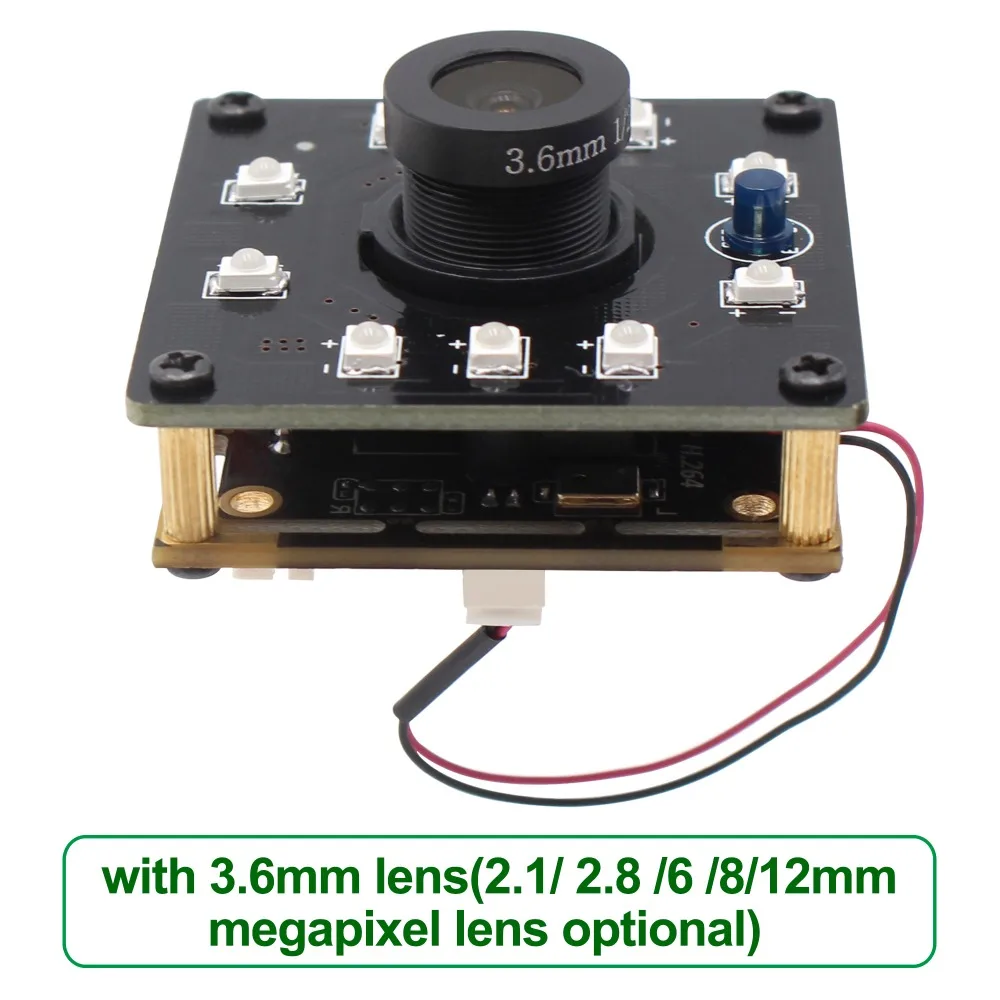

*Equiped with 3.6mm lens(2.1/2.8/6/8/12mm lens optional)

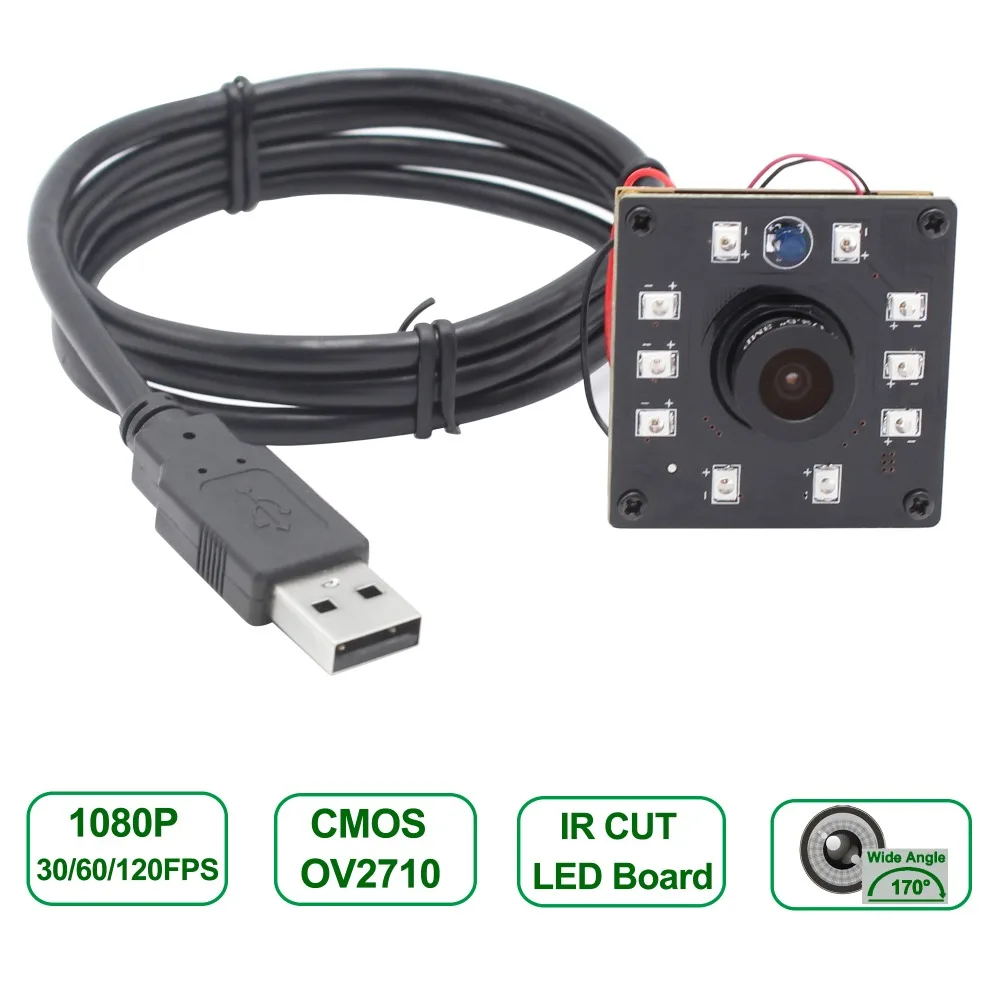

*Can drive 30fps@1080P and 60fps@720p,120fps@480P
*CMOS OV2710 1080P sensor for high quality image and low power consumption.

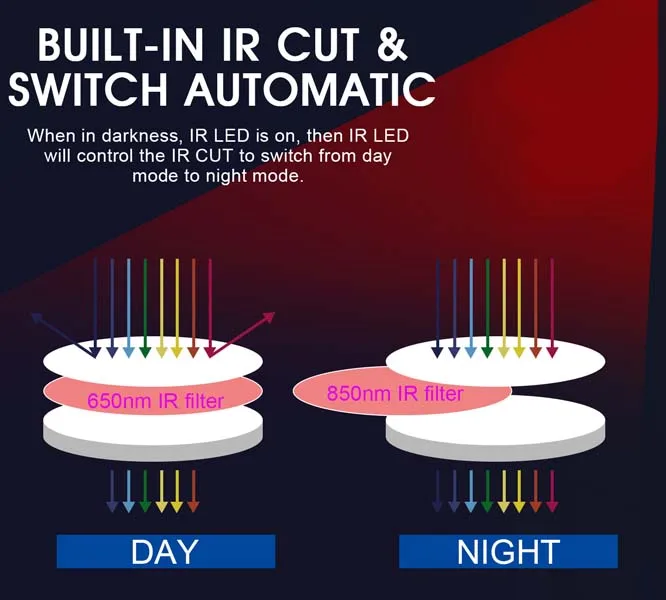

*With 850nm IR LED and IR Cut for day and night vision

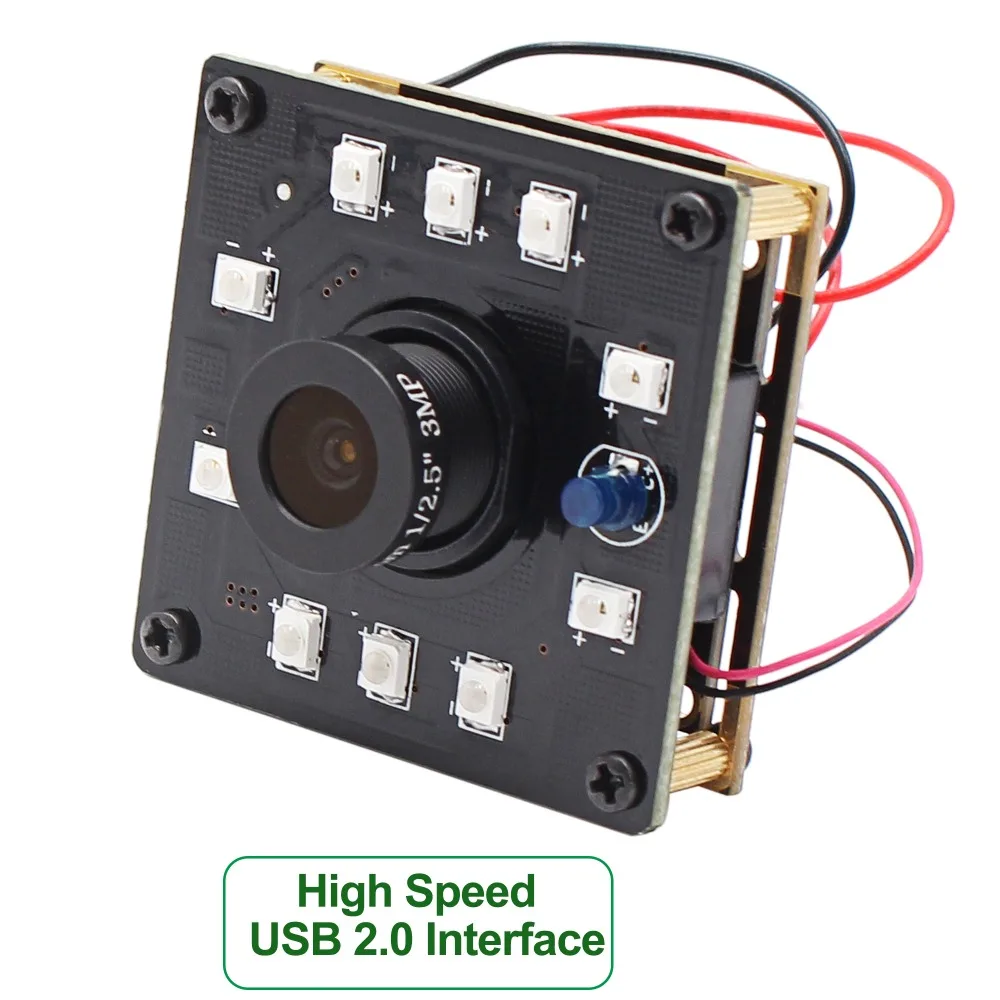

*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
|
Model |
ELP-USBFHD05MT-KRL36 (3.6mm lens, FOV 92 degree) Optional: ELP-USBFHD05MT-KRL21 (2.1mm lens, FOV 118 degree) ELP-USBFHD05MT-KRL28 (2.8mm lens, FOV 114 degree) ELP-USBFHD05MT-KRL60 (6mm lens, FOV 55 degree) ELP-USBFHD05MT-KRL80 (8mm lens, FOV 43 degree) ELP-USBFHD05MT-KRL12 (12mm lens, FOV 26 degree) |
|
Sensor |
OV2710 |
|
Lens Size |
1/2.7 inches |
|
Pixel Size |
3.0um X 3.0um |
|
image area |
5856 µm x 3276 µm |
|
Max. Resolution |
FULL HD 1920(H)X1080(V) |
|
Compression format |
MJPEG / YUV2(YUYV) |
|
Resolution & frame |
320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps |
|
640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps |
|
|
1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps |
|
|
1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps |
|
|
Special function |
Lens correction/ Defective pixel correction/ Black sun cancellation |
|
Min. illumination |
0.05lux |
|
Shutter Type |
Electronic rolling shutter / Frame exposure |
|
Sensitivity |
3.7V/lux-sec@550nm |
|
Connecting Port type |
USB2.0 High Speed(Support USB2.0 HS/FS, USB2.0 OTG) |
|
USB Protocol |
USB2.0 HS/FS USB1.1/USB1.0 |
|
Connecting Port type |
USB2.0 High Speed |
|
OTG Protocol |
USB2.0 OTG |
|
Free Drive Protocol |
USB Video Class(UVC) |
|
AEC/AEB/AGC |
Support |
|
Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure |
|
Lens Parameter |
With M12 lens, optional 2.1/2.8/3.6/6/8/12mm lenses |
|
Night vision |
With IR CUT and 10pcs IR LEDs, support day and night vision |
|
LED board power connector |
Support 2P-2.0mm socket |
|
Power supply |
USB BUS POWER 4P-2.0mm socket |
|
Power supply |
DC5V |
|
Operating Voltage |
120mA~220mA |
|
Working current |
0~60℃ |
|
Working temperature |
-20~75℃ |
|
Size |
38*38mm |
|
Cable |
Standard 1M (optional 2M,3M,5M) |
|

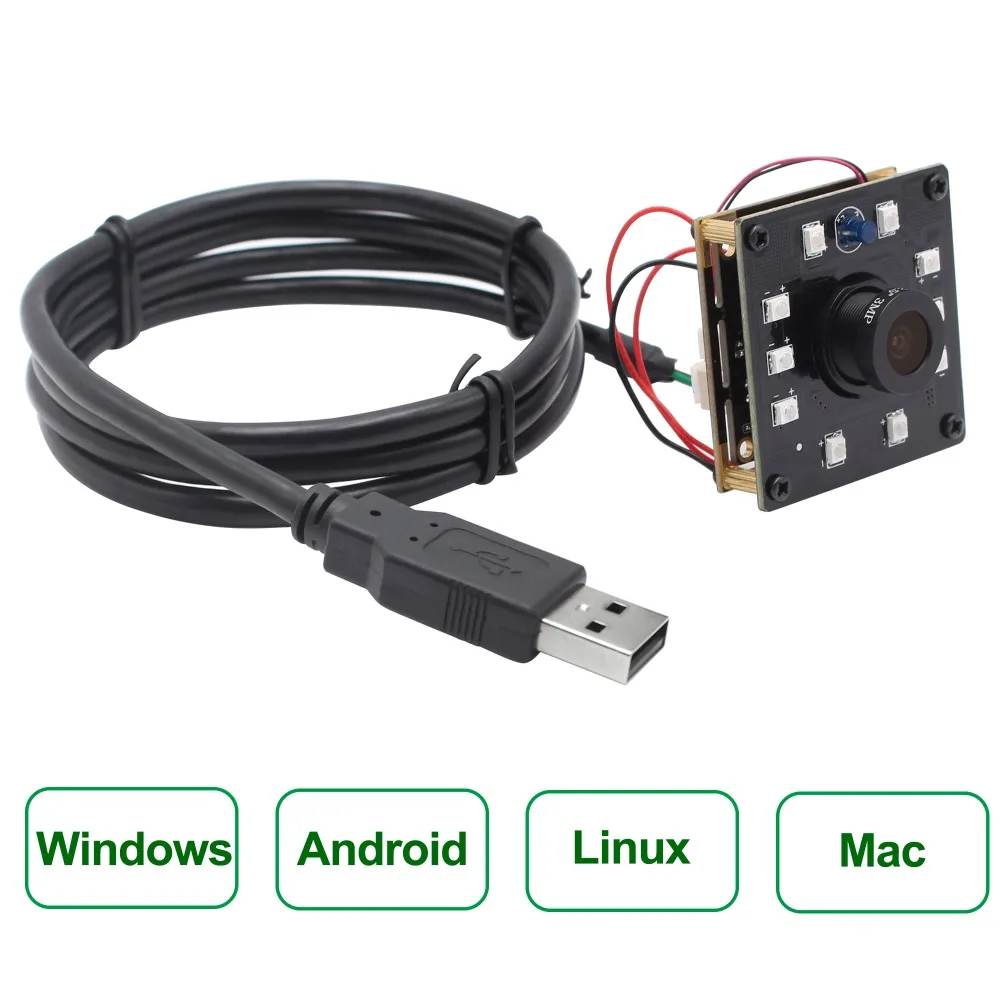

Operating system request |
WinXP/Vista/Win7/Win8/Win10/Win11 |
|
Linux with UVC(above linux-2.6.26) |
|
|
MAC-OS X 10.4.8 or later |
|
|
Wince with UVC |
|
|
Android 4.0 or above with UVC |
Outdoor /Indoor true and undistorted color image:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
