ELP 12MP USB Camera Module CMOS IMX577 High Speed 1080P 120FPS 4K 30FPS Mini Industrial Low Light Web Camera Module for Intelligent Vehicles

Description

ELP 12MP USB Camera Module CMOS IMX577 High Speed 1080P 120FPS 4K 30FPS Mini Industrial Low Light Web Camera Module for Intelligent Vehicles



Package included:

1) 1pcs 12mp usb camera with wide angle 118° no distortion lens (71°/88°/102°/118°/120° optional)

2) 1pcs 1m usb cable, (2/3//5m length optional)

Description:

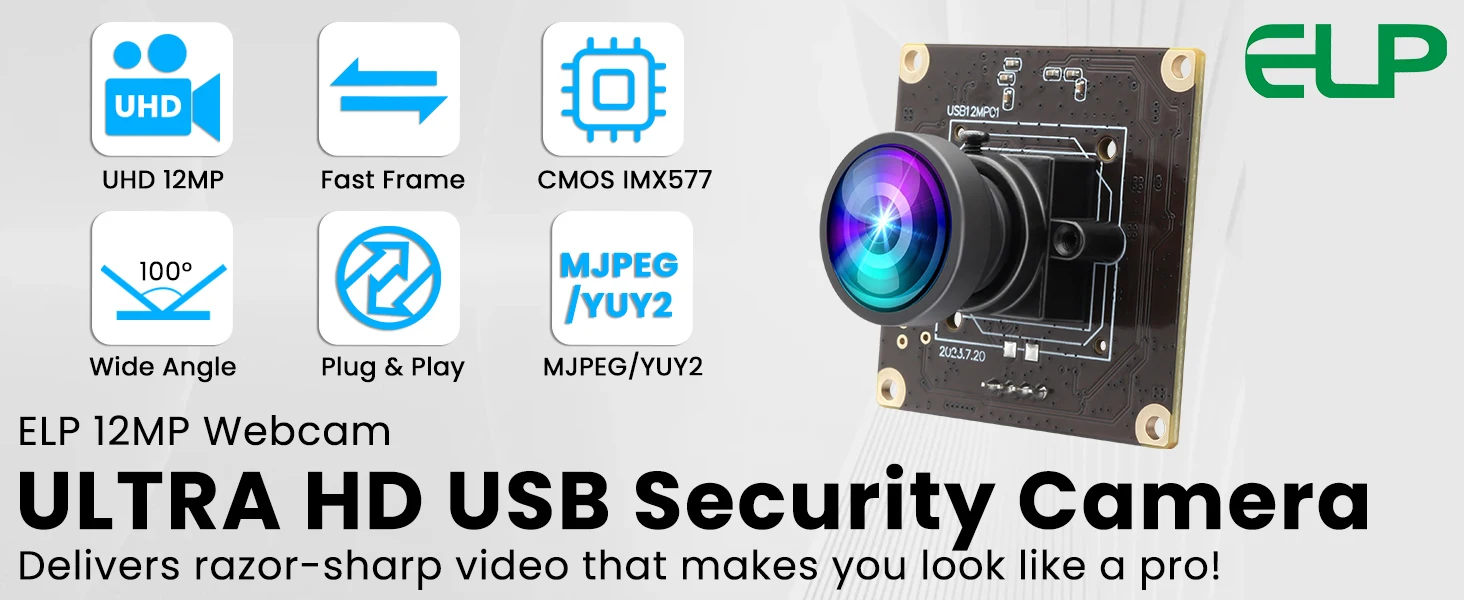

       This 12MP USB 2.0 camera boasts a maximum resolution of 3840X3040 utilizing the advanced IMX 577 image sensor. Users can capture incredibly detailed images, real color reproduction, without interpolation. And its 0.1 Lux Low Illumination features makes it suitable for low light and weak light condition. Moreover, the camera’s frame rate can reach up to 120fps@1080P, 4K@30fps ensuring smooth and fluid video capture. With its high quality no distortion lens offering wide angle viewing for shooting. This camera captures stunningly accurate images. ELP’s latest 12MP USB High Speed camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows, Linux, Android, Mac OS, no additional drivers are needed, simplifying the setup process.

​

* Camera Type— 11.6 Megapixel 4K 30FPS 1080P 120FPS USB Camera

* Sensor—1/2.3″ SONY IMX577 Sensor

* 12MP High Resolution— Max resolution up to 3840*3040 for sharper and more detailed images

* High Speed 120FPS— 1080P 120FPS, 4K 30FPS

* Low Illumination Sensor— 0.1 Low Lux sensor suitable for low light or weak light condition

* High color reproduction and delicate imag e rendering— contribute to a more immersive, engaging, and visually pleasing experience

* Wide Angle No Distorton Lens— 118 degree wide angle no distortion lens, always delivers clear and precise images

* Adjustable Features —many parameters adjustable and saved, allows you customize the camera’s performance according to your need

* UVC support, Ease of Use — Free driver,simply connect to a USB port then Plug & Play immediately. No need additional hardware, driver

* Mini Compact Webcam — 38*38mm mini Size for Embedded Application

* Operating Systems — seamlessly integrate with many operating systems like Android, Windows, Linux. Mac OS etc.

* High Compatibility — compatible with a wide range of applications and platforms, for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc

* OTG Support— Easy connect to Android tablet, Android Smartphone via OTG cable.

​

Model NO.:	ELP-USB12MP01-H110     (H100 Lens, HFOV 118degree) Optional Model: ELP-USB12MP01-V100     (V100 Lens, HFOV 88 degree ) ELP-USB12MP01-LC1100  (LC1100 Lens, HFOV 71 degree ) ELP-USB12MP01-H100     (H110 Lens, HFOV 102 degree ) ELP-USB12MP01-H120     (H120 Lens, HFOV 129 degree )
Image Sensor	SONY IMX577 (1/2.3” )
Max. Resolution	3840(H) *3040 (V)
Sensor Size/ Image Size	10.7mmX8.5mm/ 5.95mmX4.71mm
Default. Resolution	3840(H) *2880(V)
Compression Format	MJPEG / YUY2(YUYV)
Resolution & Frame Rate	3840X3040 MJPEG@20fps YUY2@1fps ​3840X2880 MJPEG@20fps YUY2@1fps 3840X2160 MJPEG@30fpsYUY2@1fps ​2592X1944 MJPEG@30fps YUY2@1fps ​2048X1536 MJPEG@30fps YUY2@3fps ​1600X1200 MJPEG@30fps YUY2@5fps 1920X1080 MJPEG@120fpsYUY2@5fps ​1280X960 MJPEG@120fps YUY2@5fps ​1280X720 MJPEG@120fps YUY2@5fps ​1024X768 MJPEG@120fps YUY2@5fps ​960X720 MJPEG@120fps YUY2@5fps ​800X600 MJPEG@120fps YUY2@20fps ​640X480 MJPEG@120fps YUY2@30fps ​320X240 MJPEG@120fps YUY2@30fps
Center Definition	1000LW/PH (Center)
S/N Ratio	24dB
Sensitivity	0.65V/lux-sec@550nm
Minimum illumination	0.1lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
AEC/ AWB/ AGC	Support
Focus	Fixed focus, supportrotate the lens to manually adjust the focus
Adjustable Parameters	Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, WhiteBalance, Exposure
Lens Parameter	Wide angle no distortion lens, 71°/88°/102°/118°/120° optional
Power Supply& Connector	USB BUS POWER 4P-2.0mm socket
Power Voltage	DC 5V
Power Current	240mA

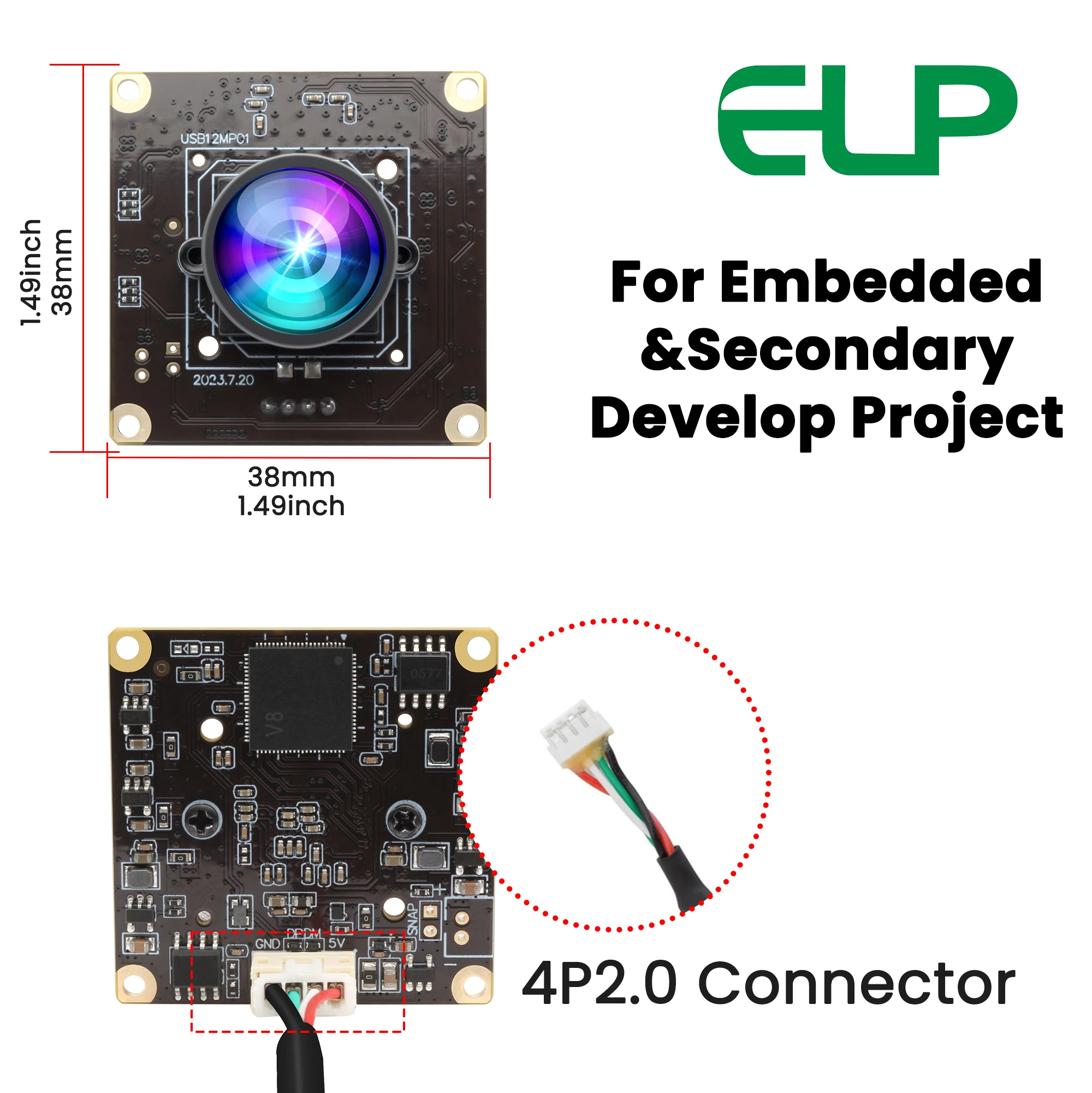

Board Size	38mm × 38mm
Storage Temperature	-20°C to 85°C
Working Temperature	-10°C to 65°C
USB Cable	1M(2M/3M/5M optional)
Operating System Support	Win XP/Vista/Win7/Win8 /Win9/Win10/Win11 etc. ​Linux with UVC（above linux-2.6.26） ​MAC-OS X 10.4.8 or later ​Android 4.0 or above with UVC

Ultra HD 12MP USB Camera Module: The 12mp UHD usb camera with 1/2.3”CMOS sensor features a resolution of up to 3840*3040,shows every detail clearly and delivers crisp and realistic video. Live broadcasting and streaming distribution are possible without delay or distortion

Ultra HD 12MP USB Camera Module: The 12mp UHD usb camera with 1/2.3”CMOS sensor features a resolution of up to 3840*3040,shows every detail clearly and delivers crisp and realistic video. Live broadcasting and streaming distribution are possible without delay or distortion

​

120FPS High Frame Rate web Camera: With this high-speed UVC camera, you can enjoy programmable frame rates, with the potential to reach up to 120fps at 1920X1080 , 30FPS at 3840X2160 20FPS at 3840X3040 Resolution

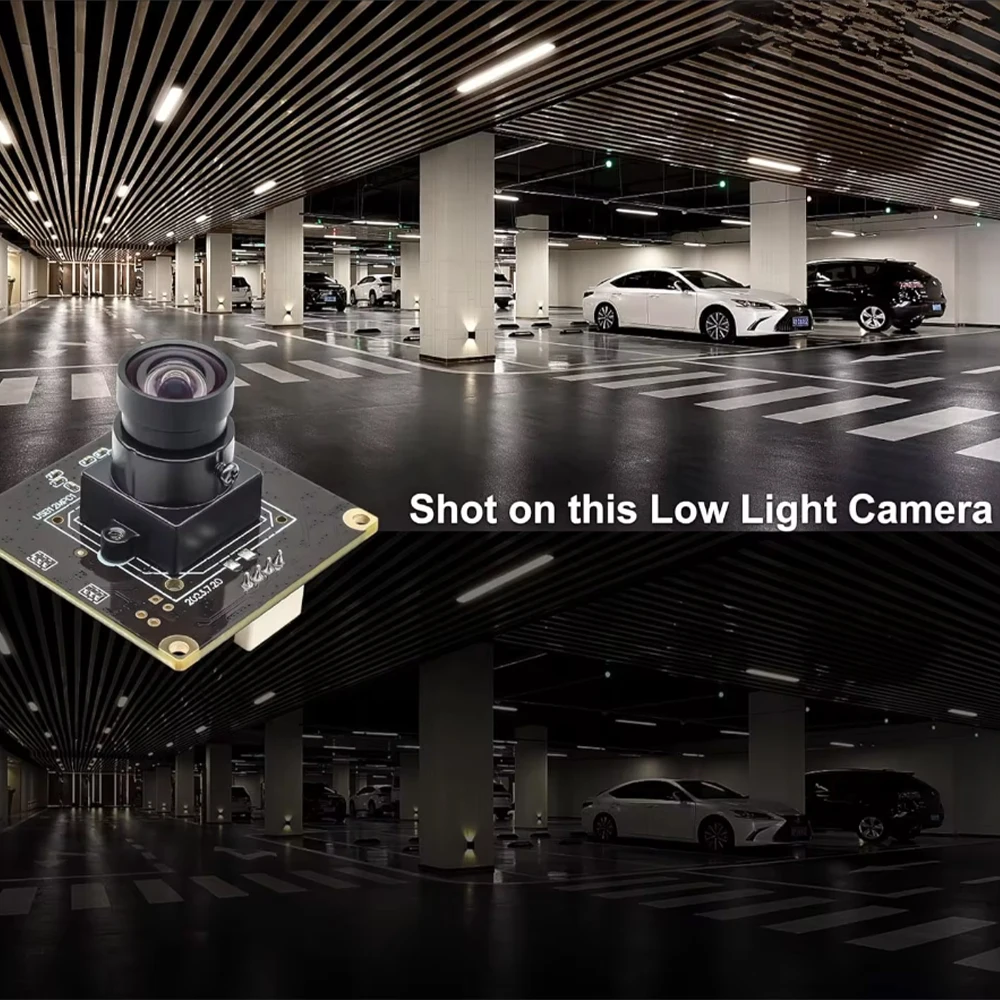

0.1Lux Low Illumination Sensor Mini embedded webcam module, Suitable for Low light or weak Light Condition

​

HD Megapixel wide angle 102 degree Low distortion lens, wide angle of viewing range, always delivers clear and precise images

High color reproduction and delicate image rendering PC Camera – contribute to a more immersive, engaging, and visually pleasing experience

Mini Compact Webcam – 38*38mm mini Size for Embedded Application, Like ATM, Kiosk, Lightburn camera, Laser engraver, Robot vision

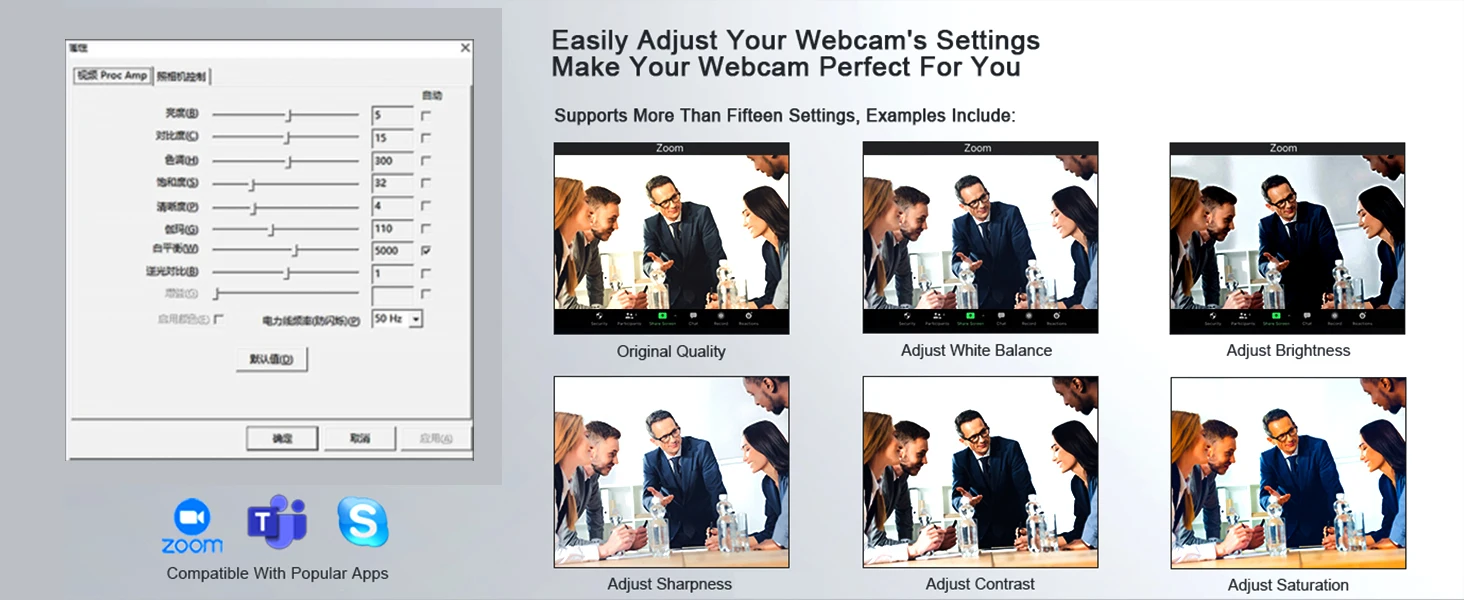

Adjustable Features – many parameters adjustable and saved, allows you customize the camera’s performance according to your needs.  Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Exposure

Easy Integration – seamlessly integrate with many operating systems like Android, Windows, Linux. Mac OS etc.

High Compatibility – compatible with a wide range of applications and platforms, including video chat software, video recording software and social media platforms, like OpenCV, Ubuntu, Facetime, PotPlayer, Skype, Android TV, XBOX ONE, Zoom, Facebook etc.

-Mini OTG USB Webcam Module for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc

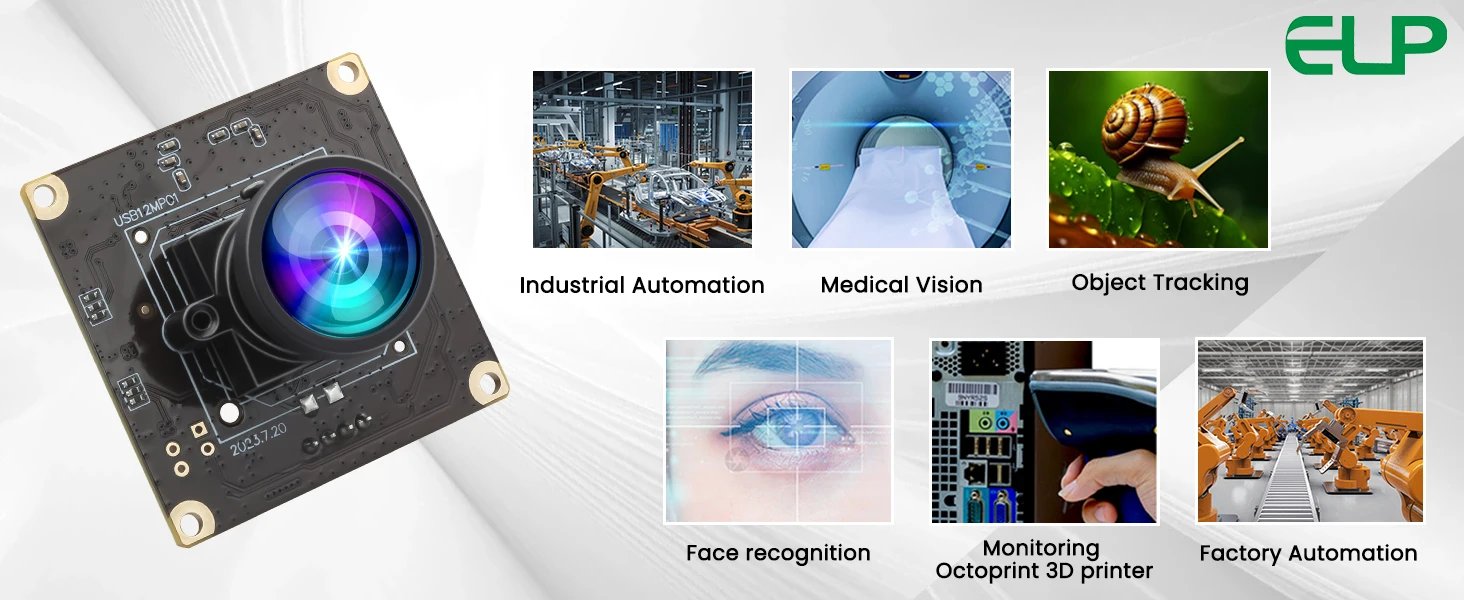

This 12mp usb camera module can be well used for PC Webcam,video recording,industrial and computer vision, sports analysis. Such as high-speed sports scene shooting, microscope field of rapid shooting, industrial inspection, medical imaging and other fields, Face recognition, iris recognition,3D scanning, product barcode scanning,Drones,Computer vision AI,biometrics,Robotics, eye tracking,,Automotive camera,Industrial control …

1. Sports Analysis enable capturing fast-paced sports actions, such as golf swings, tennis strokes, or soccer kicks, in slow motion for detailed analysis. Coaches, athletes, and sports commentators can study the mechanics of movements, identify flaws, and provide insightful commentary.

2. Motion Analysis and Biomechanics: help capture and analyze human and animal movements, study gait analysis, evaluate athletic performance, and understand the mechanics of various movements.

3. Industrial Inspection: for quality control and inspection in industrial settings.

4. Robotics and Automation: provide real-time visual feedback for robot navigation, object detection, and motion tracking. allows robots toreact quickly to changes in the environment and perform precise actions, enhancing their efficiency and accuracy.

5. Scientific Research: enable the study of fast events and phenomena, such as chemical reactions, fluid dynamics, combustion processes, or material testing.

6. Entertainment and Media Production: for film production, special effects, and virtual reality applications.
