Description
ELP 12X Auto Zoom USB Camera with Remote Control Motorized Autofocus 4K 30FPS 1080P 60FPS HDMI USB Webcam H.264 H.265 HD Video Camera for Church Broadcast Live Streaming Online Teaching
Package Includes:
1) 1*12X zoom hdmi usb camera
2) 1*IR remote control
3) 1*USB-type c cable
4) 1*HDMI cable
5) 1*User manual
This is a groundbreaking and new HDMI+USB dual-interface optical zoom camera. Bid farewell to cumbersome cable constraints, the 2.4G wireless infrared remote control allows you to easily control camera functions anytime, anywhere. It adopts Sony color CMOS sensor, built-in new ISP processor, boasting Ultra HD 4K resolution paired with high frame rate 30FPS@4K 60FPS@1080P, delivering images with excellent quality in smooth details. Supporting H.264, H.265, and Mjpeg output formats, which meets diverse needs.With TOF laser rapid focusing technology, it highly improves the image quality and stability, fast focus speed about 200ms. Equipped with a 12x zoom lens, including 10x optical zoom and 1.2x digital zoom, whether it’s distant scenery or close-up details, they can all be easily presented. Besides, it has some advanced features for more freedom in your DIY video creation.
Why HDMI?
“HDMI” stands for High-Definition Multimedia Interface.It allows for the transmission of crisp, clear visuals; It is a digital transmission, so no loss of quality;It supports a wide range of resolutions and refresh rates, including 1080p, 4K, and even 8K resolutions, as well as various frame rates for smooth video playback and gaming.Except these advantages, it also has wide compatibility and great versatility,simply setup and reduces cable clitter.HDMI provides a seamless way to enjoy high-quality multimedia contentacross different devices.
Why Remote Control?
Shooting with a wireless remote control adds more flexibility and creativity to your options, whether it’s auto focus/auto zoom or manual focus/manual zoom, allowing you to focus very accurately for high-speed capturing or recording.Bid farewell to cumbersome cable constraints,this camera’s 2.4G wireless infrared remote control allows you to easily control camera functions anytime, anywhere, all at your fingertips!
【Sensor】Adopt Sony 1/2.8 inch CMOS Image Sensor, built-in new ISP processor;
【4K Utra HD Resolution】USB video output supports max. 3840X2160, HDMI video output support max. 1920X1080;
【High Speed 60fps/30fps】 USB video output up to 4K@30fps MJPEG, 1080P@60fps MJPEG, 1080p@30fps H.265/H.264, HDMI video output up to 1080P@60fps;
【12X Zoom 】2X digital zoom+10X optical zoom, with motorized zoom Lens, support automatic or manual zoom in and out by remote control or software for more details;
【Focus Mode & Zoom Mode】Support Auto/Manual Focus, Auto/Manual Zoom;
【Fast Auto Focus & Zoom Speed】With TOF laser rapid focusing technology, highly improves the image quality and stability, fast focus speed about 200ms, zoom speed about 2.6s-3s;
【Multiple Compression Format】 Support MJPEG/ H.264/ H.265 video compression formats, which provides high-quality video images at the low bit rate as well as the low bandwidth;
【HDMI and USB Dual Output】Support three display modes:USB & HDMI display simultaneously, USB display, HDMI display;

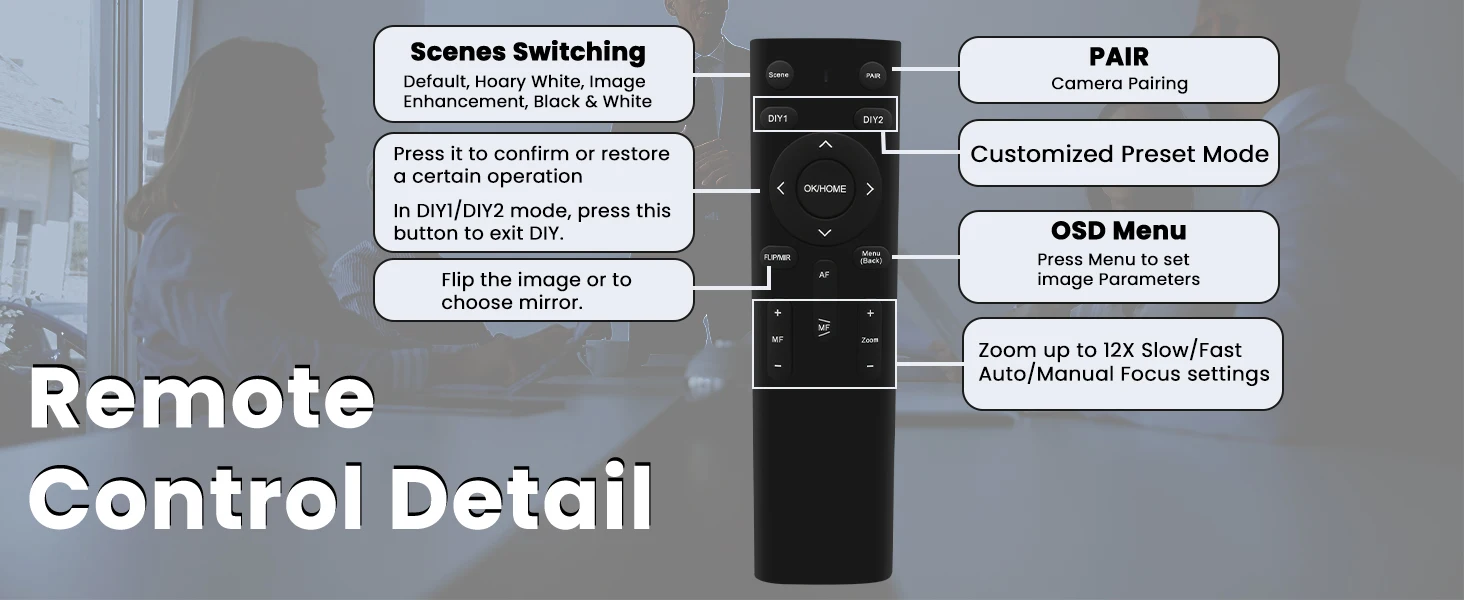

【Remote Control】 With 2.4G infrared remote control, allows you to easily control camera functions anytime, anywhere;
【Advanced Functions】Auto/Manual focus dual switching; Four scene switching; Support customized image switching; One-touch image restore & exit from customized modes; Support Mirror Imaging, Flipping; White balance auto calibration in CB Mode;
【Free Driver,Plug & Play】 UVC compliant – No need additional driver, HDMI built-in operating systems, connect to your PC, laptop, desktop, monitor, display or smart TV to start video directly;
【Superior Compatibility】Support different operating systems like Windows, Linux, Mac OS, Android, Ubuntu, Raspberry Pi,Jetson Nano, etc.
【Wide Applicaion】Widely used in video conference, live streaming, online teaching, live church broadcasting, telemedicine, remote training, remote interviews, security surveillance, visual inspection, quality control, 3D scanning,crop monitoring… etc.
| Model No.: | ELP-USB4KCAM06ZF-12 ELP-USB4KCAM06ZF-B12 |
ELP-USB4KCAM06ZF-21 ELP-USB4KCAM06ZF-B21 |
|
| Zoom Range | 12X Zoom (10X Optical Zoom, 1.2X Digital Zoom) |
21X Zoom (18X Optical Zoom, 1.2X Digital Zoom) |
|
| Sensor | Image Sensor | SONY 4K 1/2.8 inch CMOS Sensor | |
| Pixel Size | 2.0µm X 2.0µm | ||
| Scanning System | 4:3/16:9 Progressive Scan | ||
| Synchronization System | Internal Synchronization | ||
| Effective Resolution | 3840(H)X2160(V) | ||
| Min. illumination | 0.2 LuX | ||
| Horizontal Resolution | 1000TVL | ||
| HDMI Output | HDMI | 1920×1080@60FPS | |
| USB Output | MJPEG | 3840×2160@30FPS 2560×1440@30FPS 1920×1080@60FPS 1280×720@60FPS 640×480@60FPS |
|
| H264/ H265 | 1920×1080@30FPS 1280×720@30FPS 640×480@30FPS |
||
| Optical | Lens | 10X Optical Zoom F=4.8mm-48.2mm | 18X Optical Zoom F=5.4mm-97.2mm |
| Zoom Speed | Wide~Tele：About 3.0s Tele~Wide：About 2.6s | Wide~Tele：About 4.2s Tele~Wide：About 3.8s | |
| Focus Mode | Auto/Manual | Auto/Manual | |
| Focus Range | About 10cm~∞（Wide） About 50cm~∞（Tele） |
About 10cm~∞（Wide） About 120cm~∞（Tele） |
|
| Field of | About 72°(Wide) About 7.2°(Tele) | About 65°(Wide) About 3.6°(Tele) | |
| View Angle | |||
| Function | Automatic Aperture | Auto/Manual | |
| Exposure | Auto/Manual | ||
| White Balance | Auto/Manual | ||
| Electronic Rolling Shutter | 1/2~1/10000（s） | ||
| Remote Control | 2.4G wireless remote control | ||
| Menu | Function menu in Chinese and English | ||
| Noise Reduction | 2D&3D noise reduction | ||
| Other Functions | Gamma,mirror image,flips,anti-flicker | ||
| Communication Mode | UVC Protocol | Standard UVC protocol | |
| Working Temperature | -20°C~60°C | ||
| Power Supply | DC 5V, 2A | ||
【4K Ultra HD 30FPS/60FPS High Speed HDMI USB Camera】
It adopts Sony color CMOS sensor, built-in new ISP processor, boasting Ultra HD 4K resolution paired with high frame rate 30FPS@4K/60FPS@1080P in USB mode, 60FPS@1080P in HDMI mode, delivering images with excellent quality in smooth details.
【12X Auto/Manual Zoom Motorized Camera】
Equipped with a 12x motorized zoom lens, including 10x optical zoom and 1.2x digital zoom, whether it’s distant scenery or close-up details, they can all be easily presented, letting you enjoy a visual feast!
【4K Fast Auto/Manual Focus Zoom Camera】
Adopting TOF laser rapid focusing technology, with 200ms fast focusing, it allows you to easily capture clear and stable images in rapidly changing environments!
【Multiple Output Formats to Meet Diverse Needs】
Supporting H.264, H.265, Mjpeg and HDMI output formats for ultra smooth uploading experience, can work in real-time communication application low-latency and low rate bit mode, whether you’re a professional video producer or an ordinary user, you can easily find the output method that suits you!

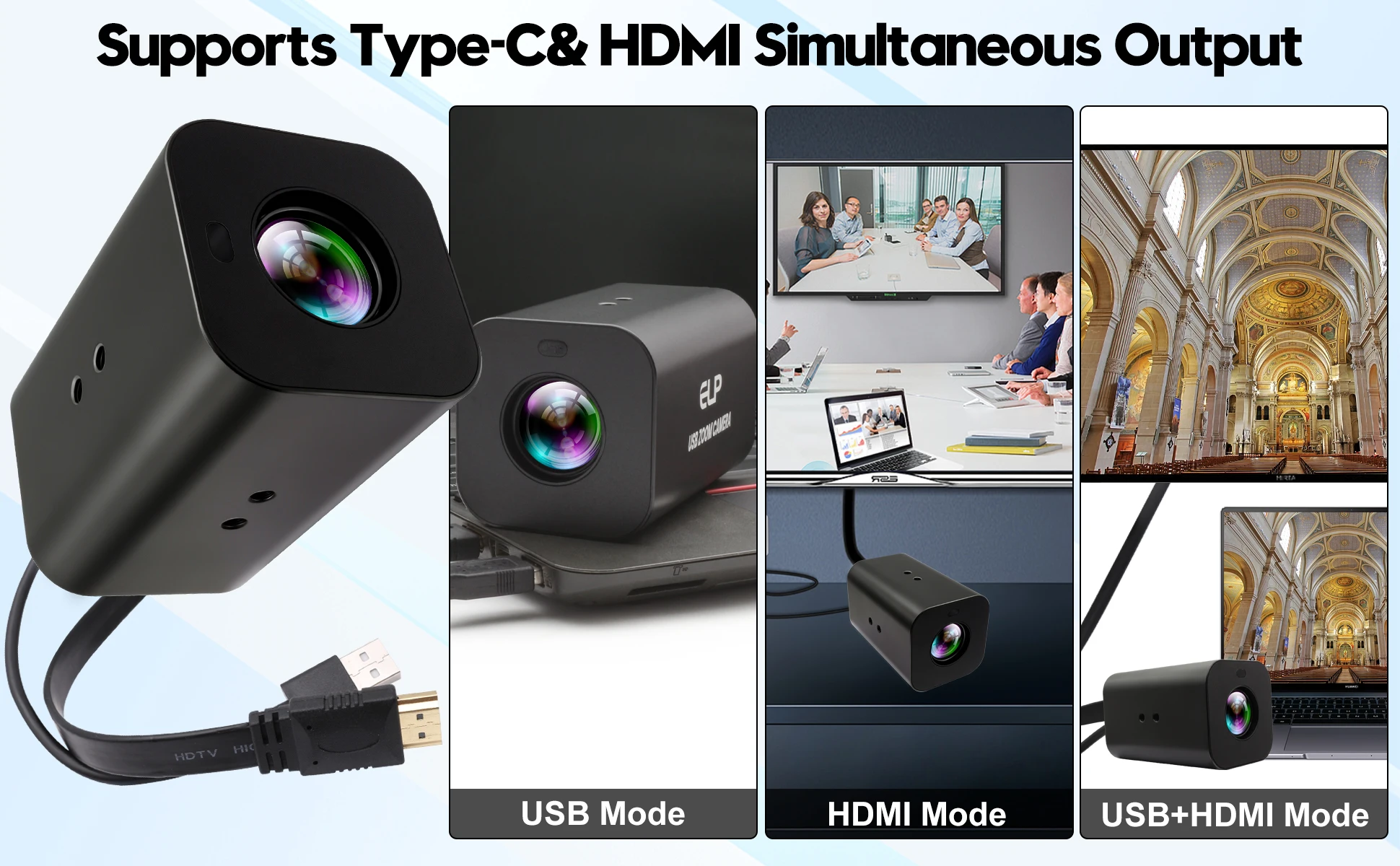

【HDMI+USB dual-interface Optical Zoom Camera】
Supporting USB and HDMI simultaneously dual output, with three Working Modes: USB Mode/HDMI Mode/USB+HDMI simultaneously output Mode.
-

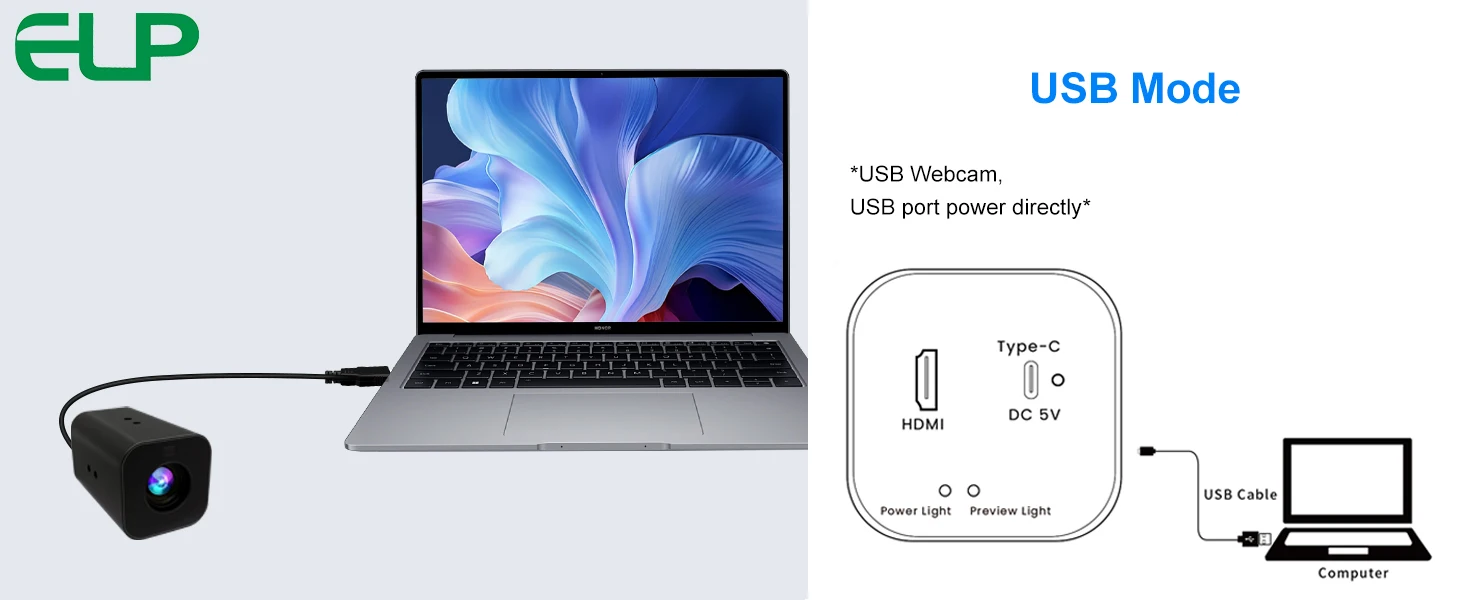

USB Output:
Connect USB Type C cable to PC, the camera plugs and plays;
-

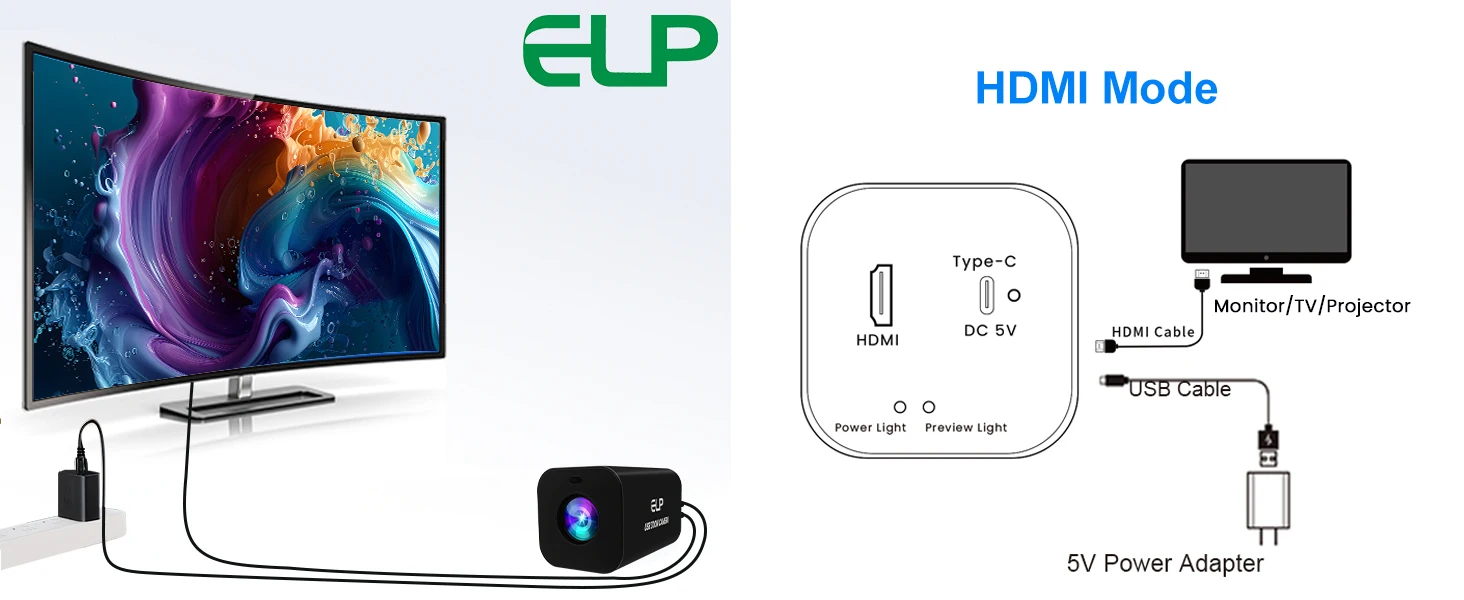

HDMI Output:
No need PC systems, with USB Type C cable the camera is powered and can transfer the image directly to the monitor, projector… etc.
-

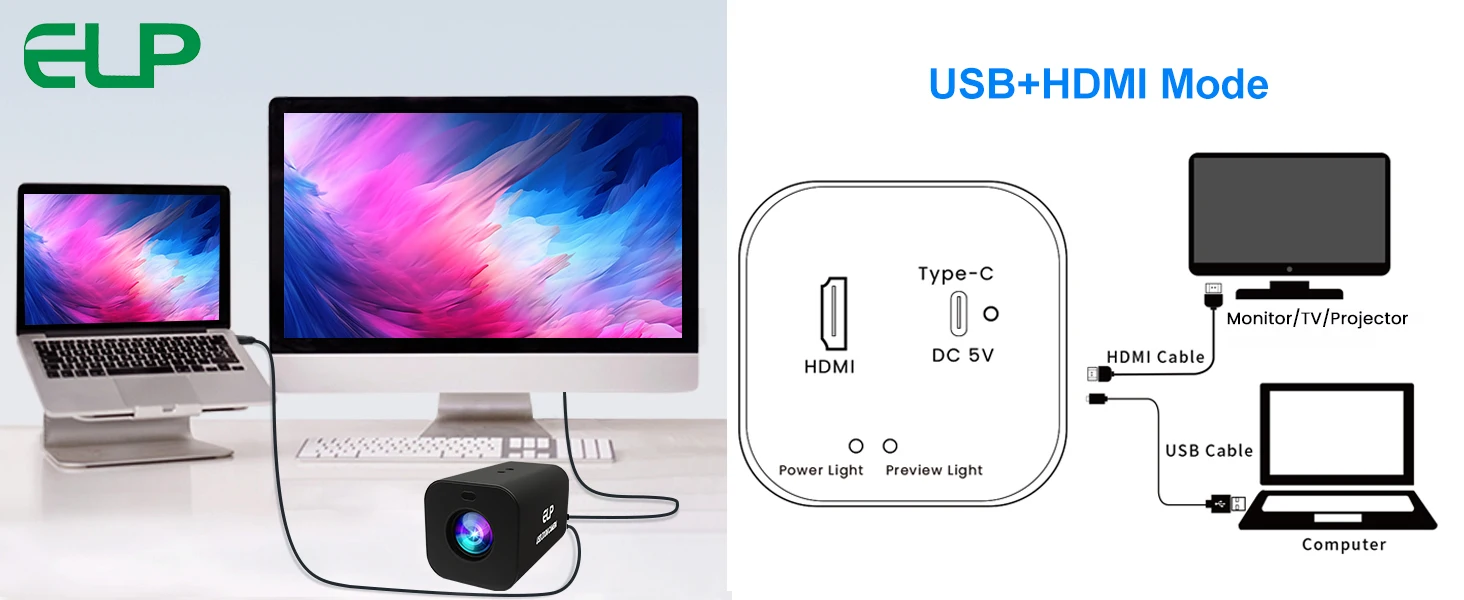

USB & HDMI Output simultaneously:
Connect USB Type C Cable to PC, and connect HDMI cable to the monitor with HDMI Port or projector… Then the camera can display simultaneously both on PC and monitor, projector…etc.
【Advanced Features for More Freedom in Creation】
With autofocus and manual focus switching, 4 scene settings, custom image switching, one-click restore and exit custom mode, support for mirroring, flipping, and automatic white balance correction, your creation becomes more free and convenient!
High compatibility with most OS systems like Windows, Linux, Andorid, Mac, Raspberry Pi, Jetson Nano, etc. Can work with Computer PC Laptop, Android Develop Board, etc. No driver needed, just plug and play.
, such as wall, tripod, ceiling, desktop, monitor, etc.(Notes:The mount or bracket in pictures and video is not included )
This 4K USB HDMI Zoom Camera is widely used in lots of fields like Commericial, Industrial, Medical,Automobile, Astronomical, Biological Field, etc. Can be widely used for application like Online-Teaching, Webcast, industrial camera, Video Conferencing, Live Streaming, Security, Medical device,Industrial Inspection, Scientific research and development, Education and Training, High Resolution Document Scan, High-speed photographic apparatus, Photo scanner etc.
