ELP 2MP CMOS AR0330 USB Camera with Fisheye Lens Wide Angle 1080P H.264 30FPS Mini IR night Vision Infrared USB Webcam Web Camera

53.03$

Model: ELP-USBFHD04H-KL156IR

256 in stock

Description

ELP 2MP CMOS AR0330 USB Camera with Fisheye Lens Wide Angle 1080P H.264 Mini IR night Vision Infrared USB Webcam Web Camera

Package includes:

1) 1pcs 2mp usb camera with box case and 1.56mm 5MP wide angle fisheye lens;

2) 1pcs 3m usb cable (1/2/5m optional).

Description:

       This model ELP-USBFHD04H-KL156IR is a main member of ELP’s USB camera family. It’s a 2MP, night vision, high speed, wide angle, UVC-compliant, USB 2.0 camera. This USB camera is based on the 1/2.7” CMOS OV2710 image sensor. No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed. With 10pcs 850nm IR LEDs, and equip with IR CUT filters, automatically swtiches between day mode and night mode, works in both day light and night vision.

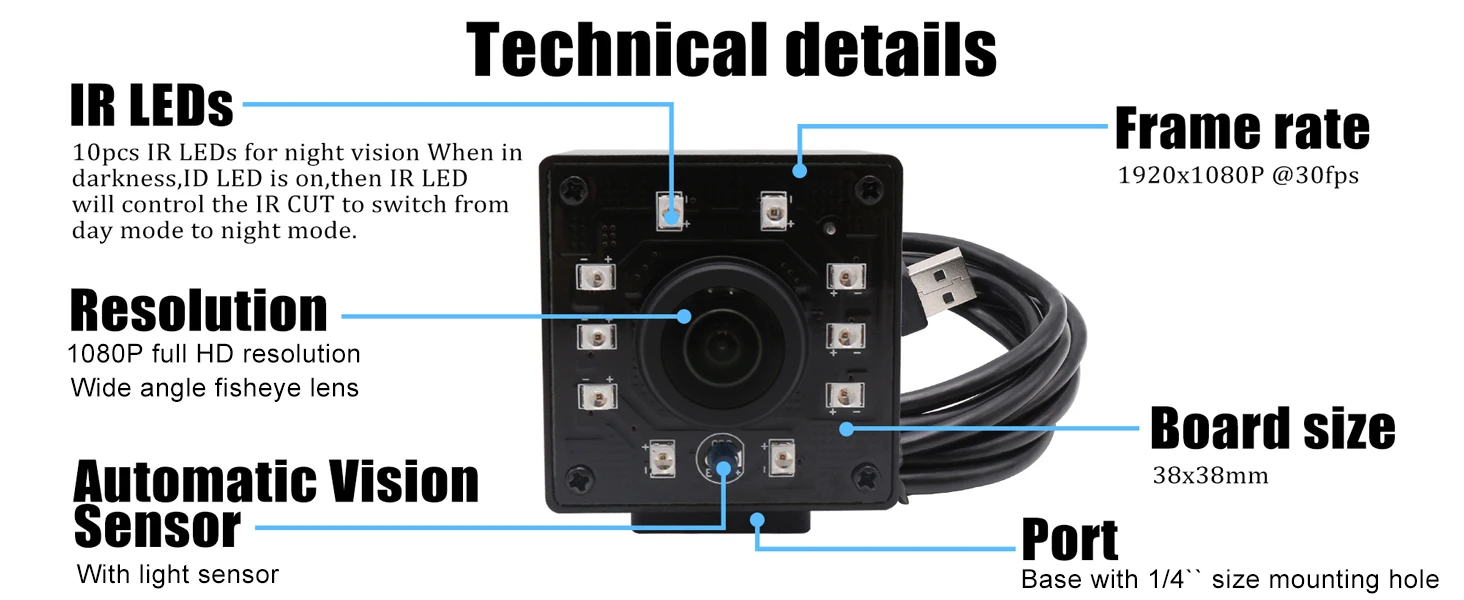

Features:

*High Speed IR Infrared 1080P HD USB Camera;

*Adopt high quality 1/3″ AR0330 cmos image sensor;

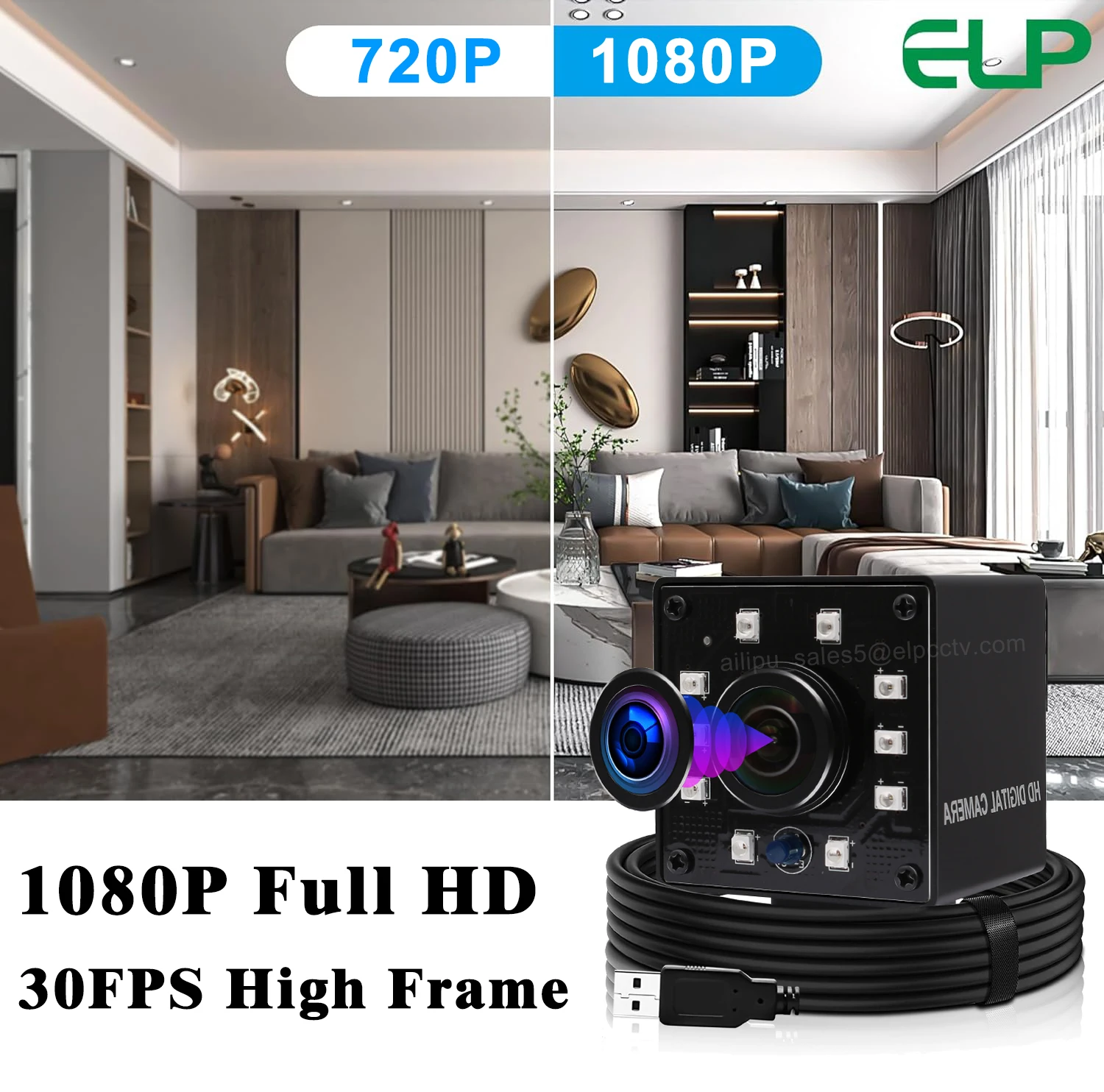

*Full HD, max resolution:1920(H)*1080(V);

*High frame rate- deliver 30 fps in 1920*1080 resolution;

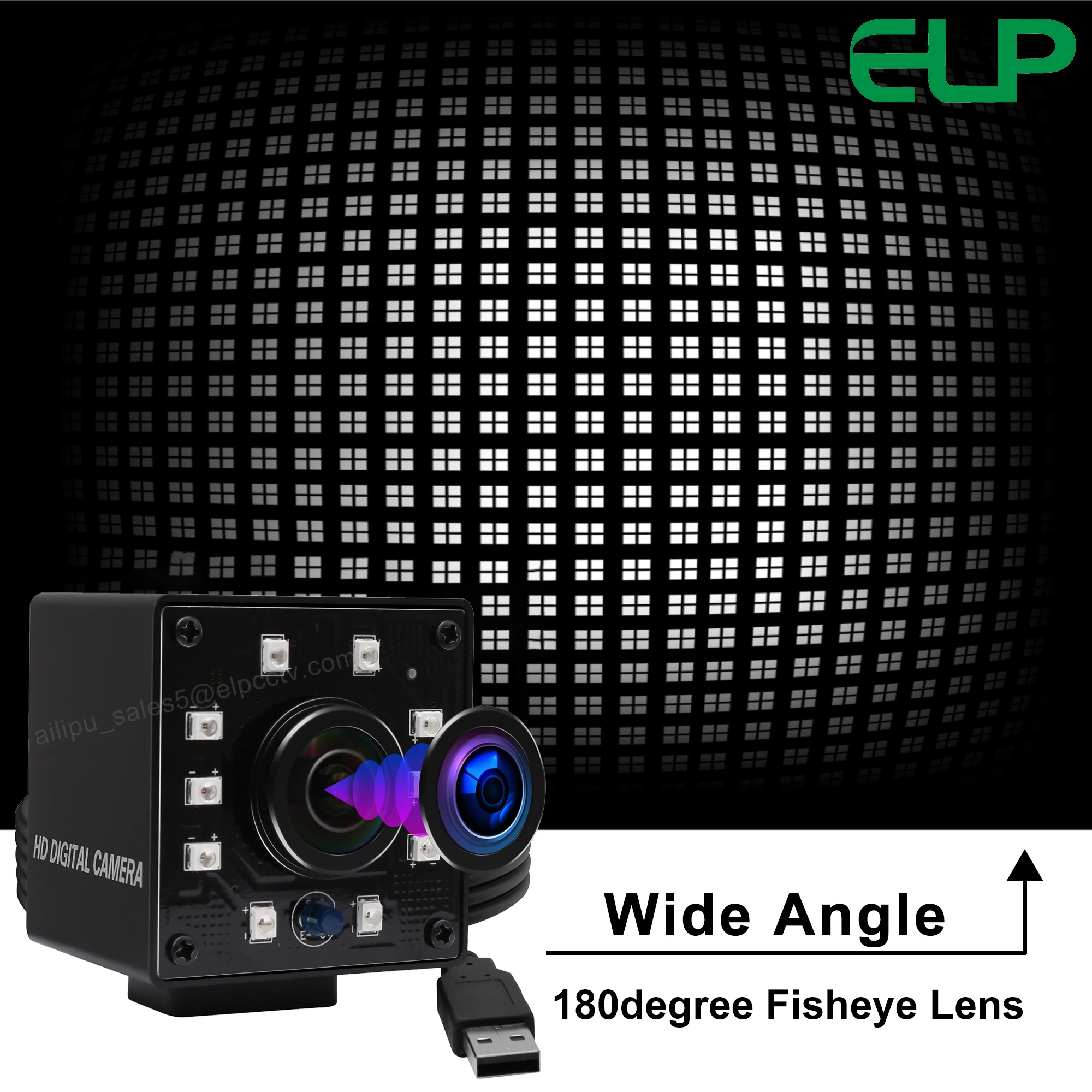

*Equiped with 1.56mm 5mp wide angle fisheye lens;

*H.264,Mjpeg/YUY2 compression format optional;

*With 10pcs 850nm IR LEDs and IR CUT for day and night vision;

*Low power consumption- ideal for portable equipment;

*White balance Function: Resolve color reduction and tone processing issues;

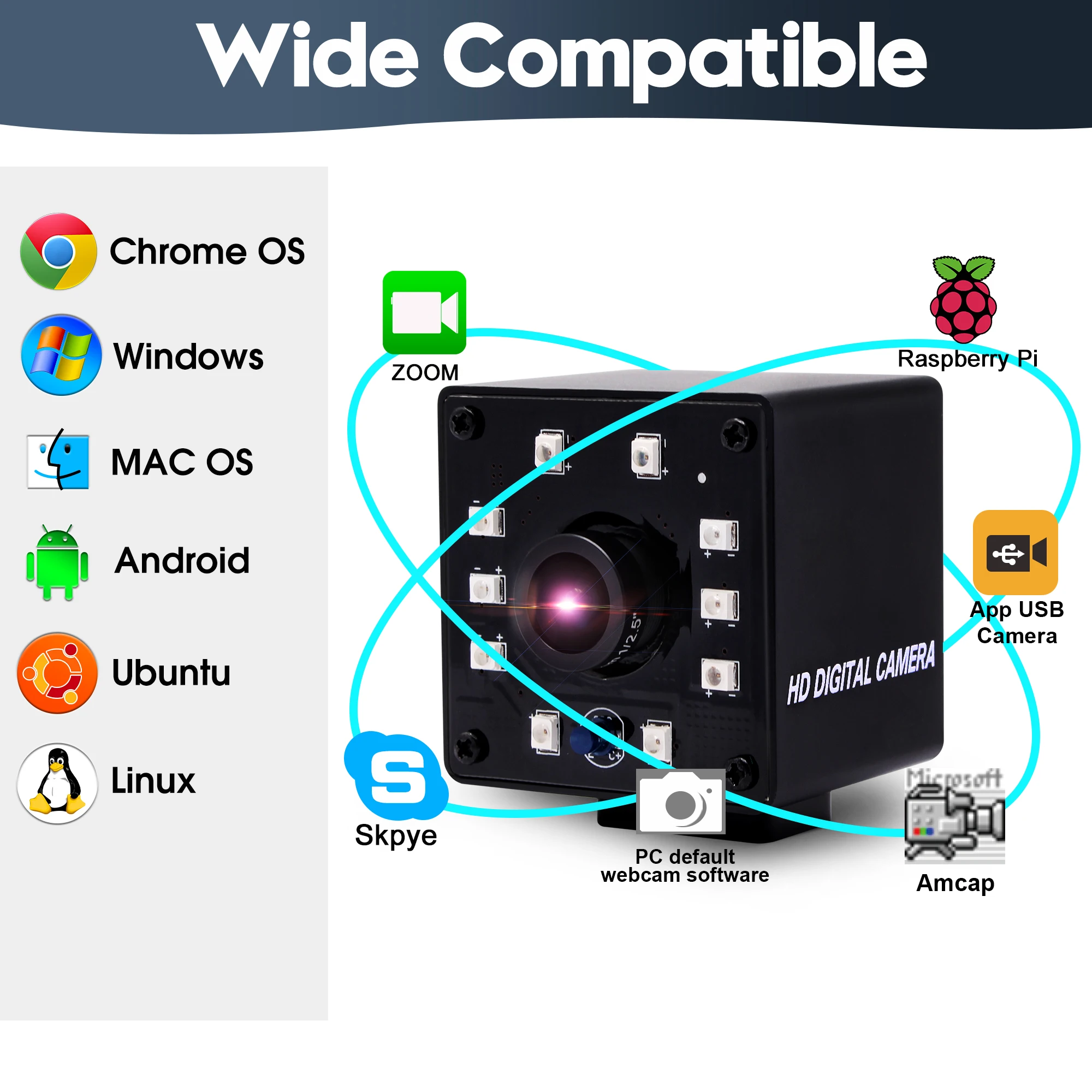

*Camera with UVC for Windows,Linux,Mac,Raspberry Pi,etc.;

*High speed USB 2.0 interface for high resolution PC camera interface;

*High pixel technology for sharp image and accurate color reproduction;

*With mini metal housing, built-in 1/4“ screw hole for mounting purpose and adjustable holder.

Model ELP-USBFHD04H-KL156IR
Sensor AR0330
Lens Size 1/3 inches
Pixel Size 2.2um X2.2um
Max. Resolution 1920(H)X1080(V)
Compression format H.264 /MJPEG / YUV2(YUYV)
Resolution & frame H.264/MJPEG:320X180@ 30fps /320X240@ 30fps /640X360@ 30fps /640X480@ 30fps /1280X720@ 30fps/1920X1080@ 30fps
YUYV:320X180@ 30fps /320X240@ 30fps /640X360@ 30fps /640X480@ 30fps /1280X720@ 5fps/1920X1080@ 5fps
S/N Ratio 39dB
Dynamic Range 72.4dB
Responsivity 1.9 V/lux-sec
Min illumination 0. 05lux
Shutter Type ERS and GRR
Connecting Port type USB2.0 High Speed
Free Drive Protocol USB Video Class(UVC)
Support OTG Protocol USB2.0 OTG
AEC/AEB/AGC Support
Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure
Lens Parameter Wide angle 1.56mm fisheye lens, FOV 180 degree
Digital audio Built-in microphone, support single, dual channel
Nigh Vision With 10pcs 850nm IR LEDs, and equip with IR CUT, work in both day and night
IR CUT Connector 2P-1.25mm socket
LED board power connector Support 2P-2.0mm socket
Power supply USB BUS POWER 4P-2.0mm socket
Operating Voltage DC5V
Working current 130mA~190mA
Working temperature  -10~70℃
Storage temperature  -20~85℃
Size 41*41*36mm
Cable Standard 3M / optional 1M,2M,5M
Operating system request WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC

Additional information

Weight 0.25 kg
Dimensions 13 × 10 × 9 cm
