ELP 2MP Global Shutter USB Camera Board 90fps High Speed Webcam Module with Distortion-Free 120 Degree Wide Angle Slow Motion Camera 1920×1200 AR0234 for Computer, Laptop, Android Device

Description

ELP 2MP 1200P 1080P AR0234 Color Global Shutter USB Camera Module 90fps Mini USB2.0 Webcam Board with Wide Angle No Distortion Lens for Laptop Raspberry Pi

New ELP USB Global Shutter Camera

        This model is a new member of ELP’s USB camera family. It’s a 2MP, based on the 1/2.6″ global shutter Aptina AR0234 image sensor, UVC compliant, high speed, low distortion USB 2.0 camera. No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed. The global shutter sensor’s excellent low-light sensitivity makes it crisp, sharp, and accurate colorful images even for high-speed moving objects.

Why Global Shutter Cameras?

A global shutter camera can captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.It can avoid smearing when when capturing high-speed motion.

Difference between Rolling Shutter and Global Shutter

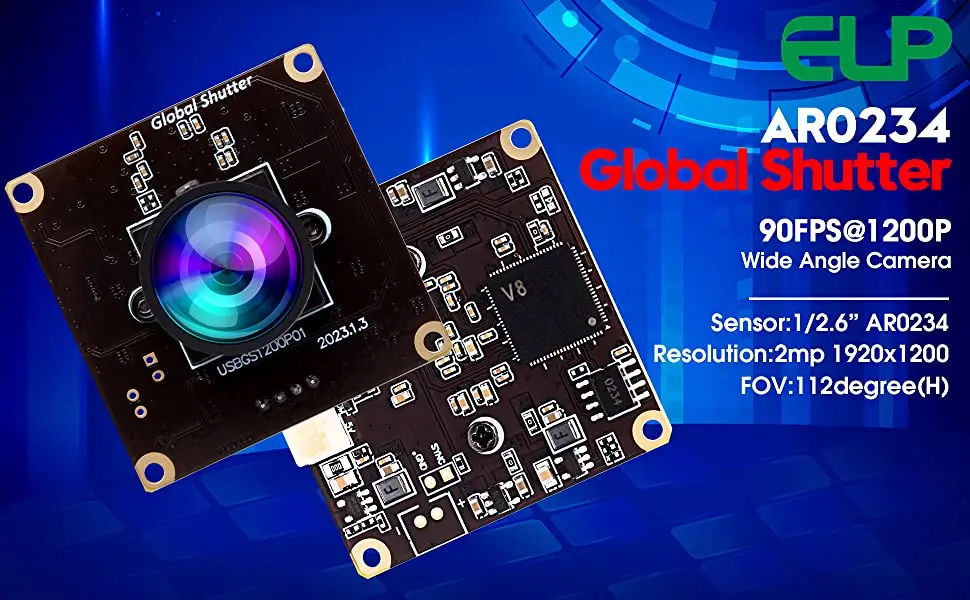

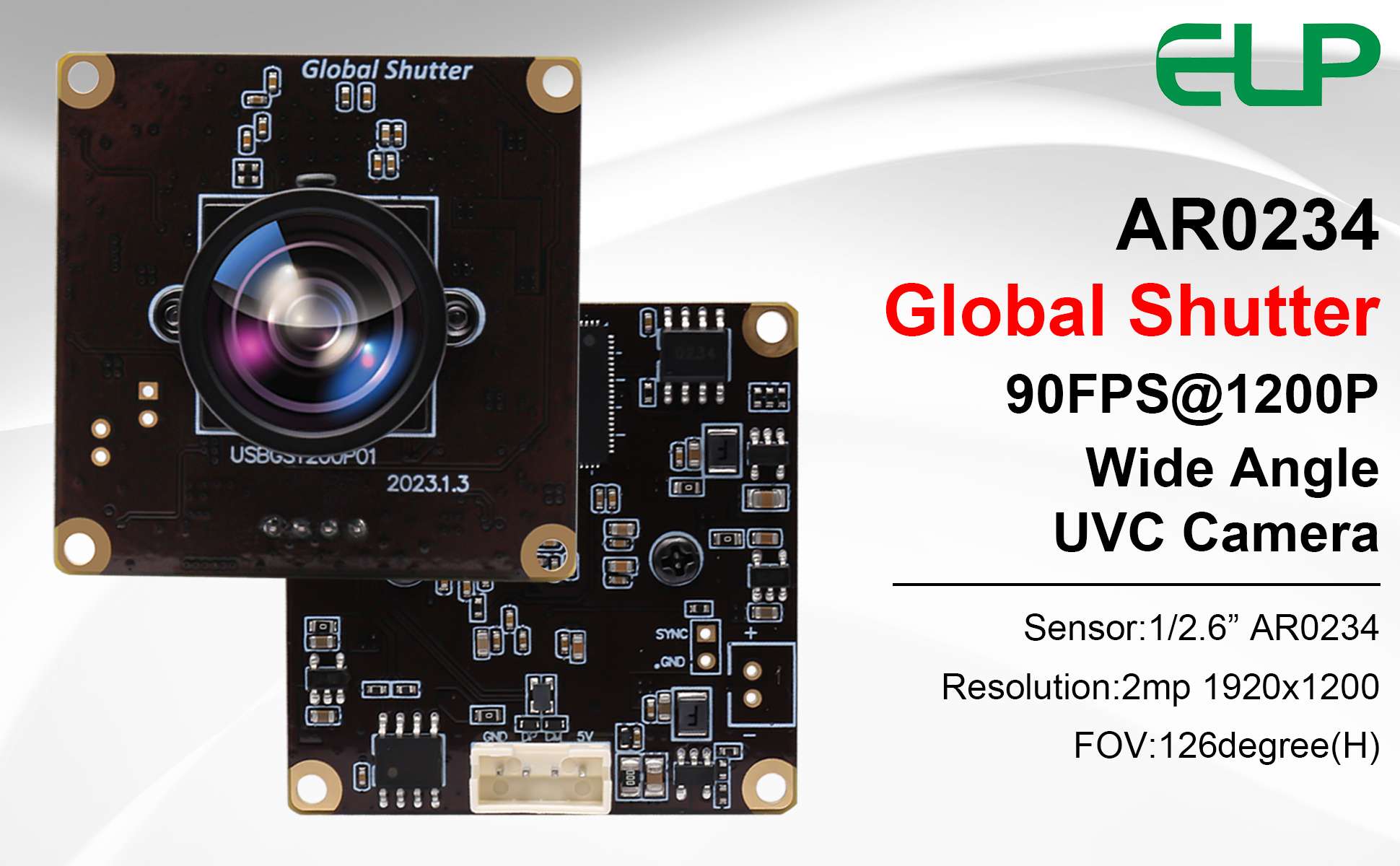

1.Sensor: With industrial grade high quality Aptina AR0234 (1/2.6”) Sensor;

2.Resolution: Full HD 1920*1200 High Resolution 2.3MP Global Shutter USB Camera;

3.High Speed: Mjpeg 90FPS@1920*1200, Mjpeg 90FPS@1920*1080,Mjpeg 90FPS@1600*1200, Mjpeg 90FPS@1280*960*1200, etc.;

4.Megapixel Lens: High Quality lenses with M12 mount, View angle from 12 degree to 200 degree available;

5.High Quality Image: Super Image reality, real color reproduction, without interpolation;

6.UVC Support: Free Driver , Plug and Play, easily used on different systems;

7.Support Systems: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…;

8.OTG Support: can be used on Android smartphone, recommended app “USB Camera”.

9.Wide Application: Well used for High Speed- sports photography, AI object recognition, Industrial inspection, Video applications, Industrial automation, robotics, or scientific imaging. Some can also be used for Augmented and virtual reality, gesture and eye tracking, depth and motion detection…. and so on.

(Note please, we will send the H120 model by default, if you need other model, please leave message when you ordering, or email to the seller first.)

Model	ELP-USBGS1200P01-H120 (HFOV about 126 degree) Optional models: ELP-USBGS1200P01-V100 (HFOV about 85 degree) ELP-USBGS1200P01-LC1100 (HFOV about 68 degree) ELP-USBGS1200P01-H100 (HFOV about 101 degree) ELP-USBGS1200P01-H110 (HFOV about 112 degree)
Sensor	Aptina AR0234 (1/2.6”) Global Shutter
Max Resolution	1920 (H) *1200 (V)
Sensor Size	1/2.6 inch (4:3)
PixelSize	3.0μm
Compression Format	MJPEG/YUV2 (YUYV)
Resolution& Framerate	1920×1200 @ 90fpsMJPEG/ 1920×1080 @ 90fps MJPEG 1600×1200 @ 90fps MJPEG/ 1280×960 @ 90fps MJPEG 1280×720 @ 90fps MJPEG/ 1024×768 @ 90fps MJPEG 960×720 @ 90fps MJPEG/ 800×600@ 90fps MJPEG 640×480 @ 90fps MJPEG/ 320×240 @ 90fps MJPEG
Surface Mount Technology	SMT
Focus	Fixed
Central Definition	600LW/PH (Center)
S/N Ratio	37dB
DynamicRange	70dB
Sensitivity	1.4V/lux-sec@550nm
MiniIllumination	0.3lux
Shutter	Global Shutter
Interface	USB2.0 High Speed
AEC	Support
AWB	Support
AGC	Support
AdjustableParameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Whitebalance, BacklightCompensation, Exposure
Lens Parameters	HD 3.6mmlens Optional 2.1mm/2.8mm/2.9mm/6mm/8mm/12mm/16mm/25mm… No DistortionLens(FOV65~130 degreeoptional) Fisheyelens 150 degree /180 degree etc.
LED board power connector	Support 2P-2.0mm socket
Power Supply	USBBUSPOWER4P-2.0mm socket
Operating Voltage	DC5V
WorkingCurrent	160mA- 190mA
Dimension	38mm x 38mm
Storage Temperature	-20°Cto80°C
Working Temperature	0°C to 60°C
USBCable	1M(2M/3M/5M … Optional )
OperatingSystemRequest	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux withUVC(abovelinux-2.6.26) MAC-OS X 10.4.8 orlater Android4.0 or above with UVC

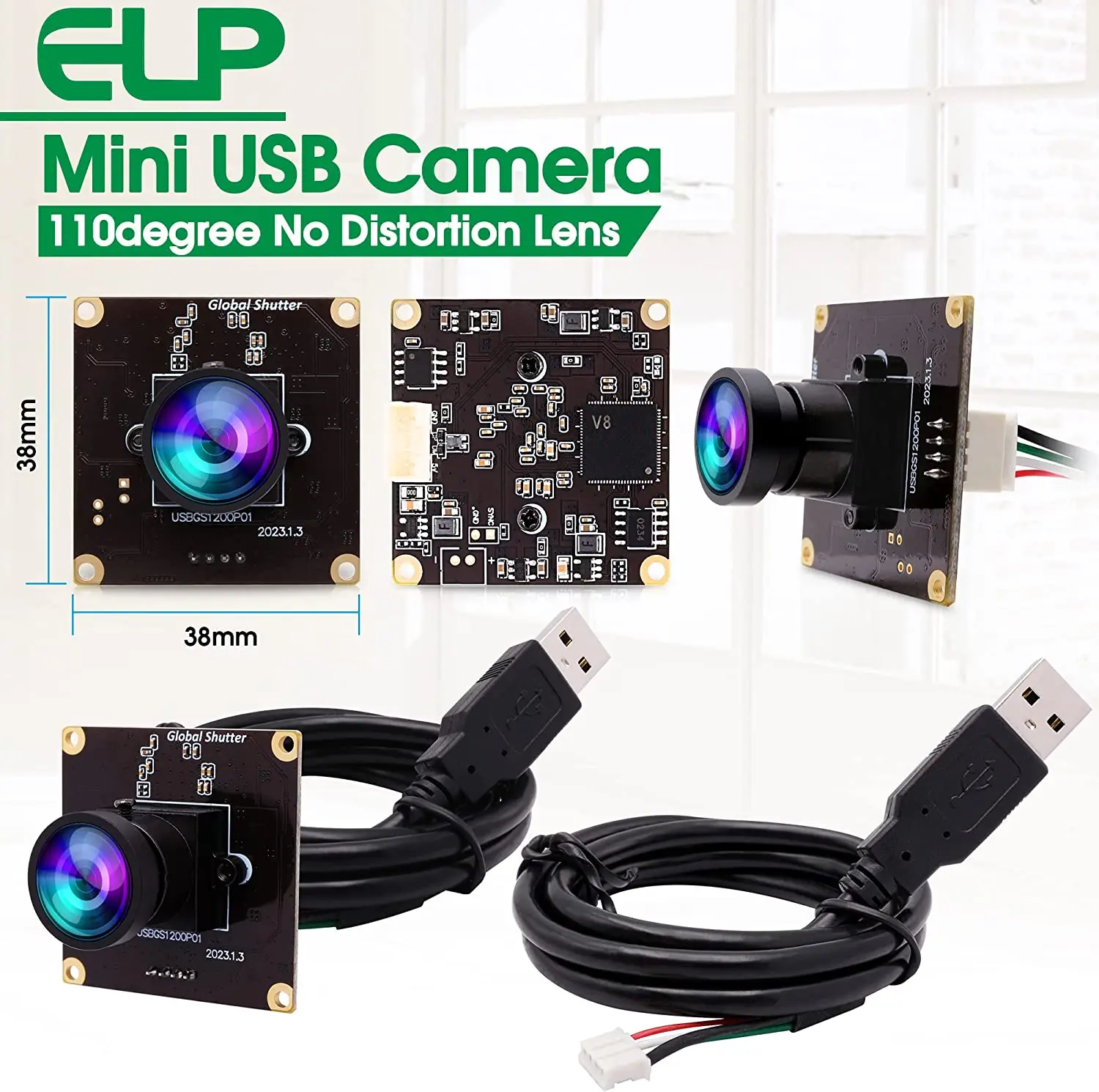

Mini 38mmx38mm camera board can be installed in most hidden and narrow position

2.3 Megapixel 1200P Global Shutter USB Camera with high pixel technology Aptina AR0234 sensor for sharp image and accurate color reproduction.

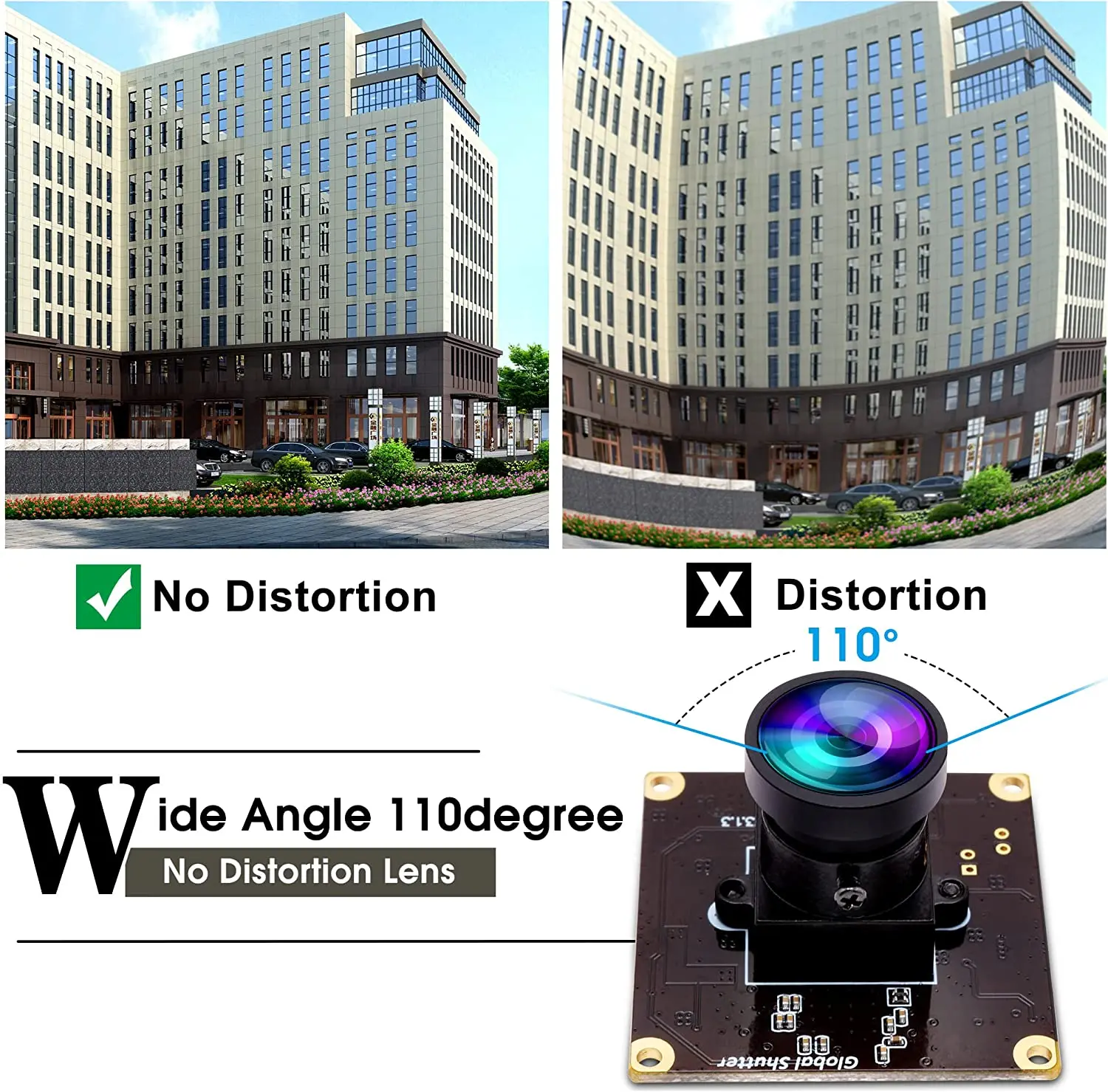

Mini USB camera with none-distortion lens, HFOV is about 110degree. Wide angle view usb camera.

Global shutter high frame 1080P@90fps usb camera board, can shoot high-speed moving objects in crisp sharp images



• Global Shutter Camera is Exposing entire sensor at one time,free of distortion.
• Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.

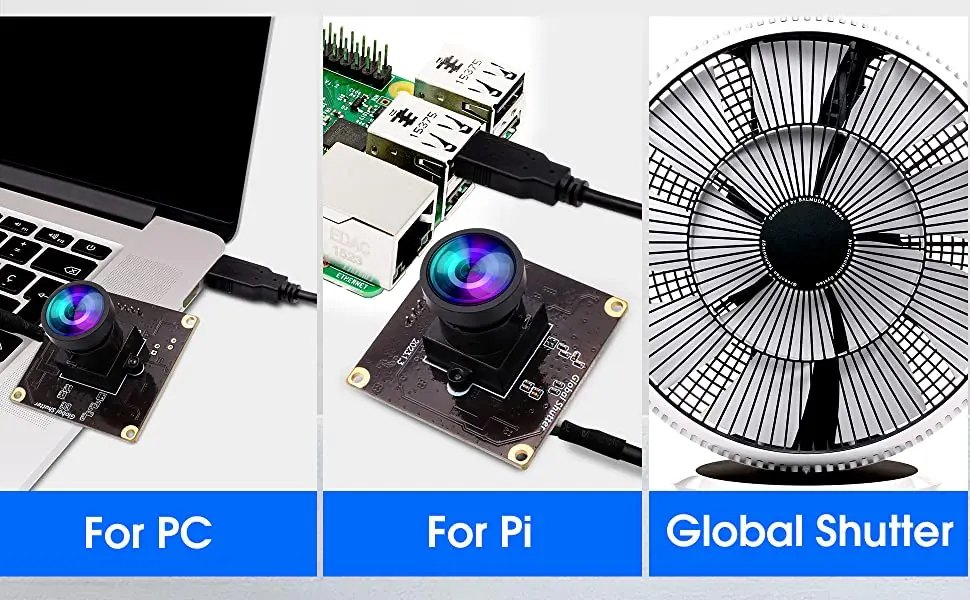

Super mini light weight usb camera board for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc

FOR RASPBERRY PI:

• It can work with already preinstalled camera software instead of builtin camera.
• Support Android development board,Raspberry Pi development board,Jetson Nano,etc.

FOR PC:

• Support windows,linux,mac,Android,raspberry Pi.
• Very easy to use,UVC compliant,free driver,just plug in and go.

Well used for High Speed- sports photography, AI object recognition, Industrial inspection, Video applications, Industrial automation, robotics, or scientific imaging, Industrial water detection, Robot mobile shooting, Gesture recognition, High-speed mobile capture, Mobile car shooting, Loom shooting, Water drop detail shooting, Sports security capture, Augmented and virtual reality, Eye tracking, Depth and motion detection…. and so on.
