ELP 30fps 4K USB Webcam IMX415 Ultra HD Mini Video Camera 8MP Live Streaming Zoom Camera with Manual Varifocal Lens

96.81$

Model: ELP-USB4K03-MF40

256 in stock

Categories: , ,

Description

ELP 30fps 4K USB Webcam IMX415 Ultra HD Mini Video Camera 8MP Live Streaming Zoom Camera with Manual Varifocal Lens

Package Includes:

1) 1pcs 4K USB Camera with CS Lens(4/6/8/12mm lens/2.8-12mm lens/5-50mm lens optional)

2) 1pcs 3m usb cable (1/2/5m usb cable optional)

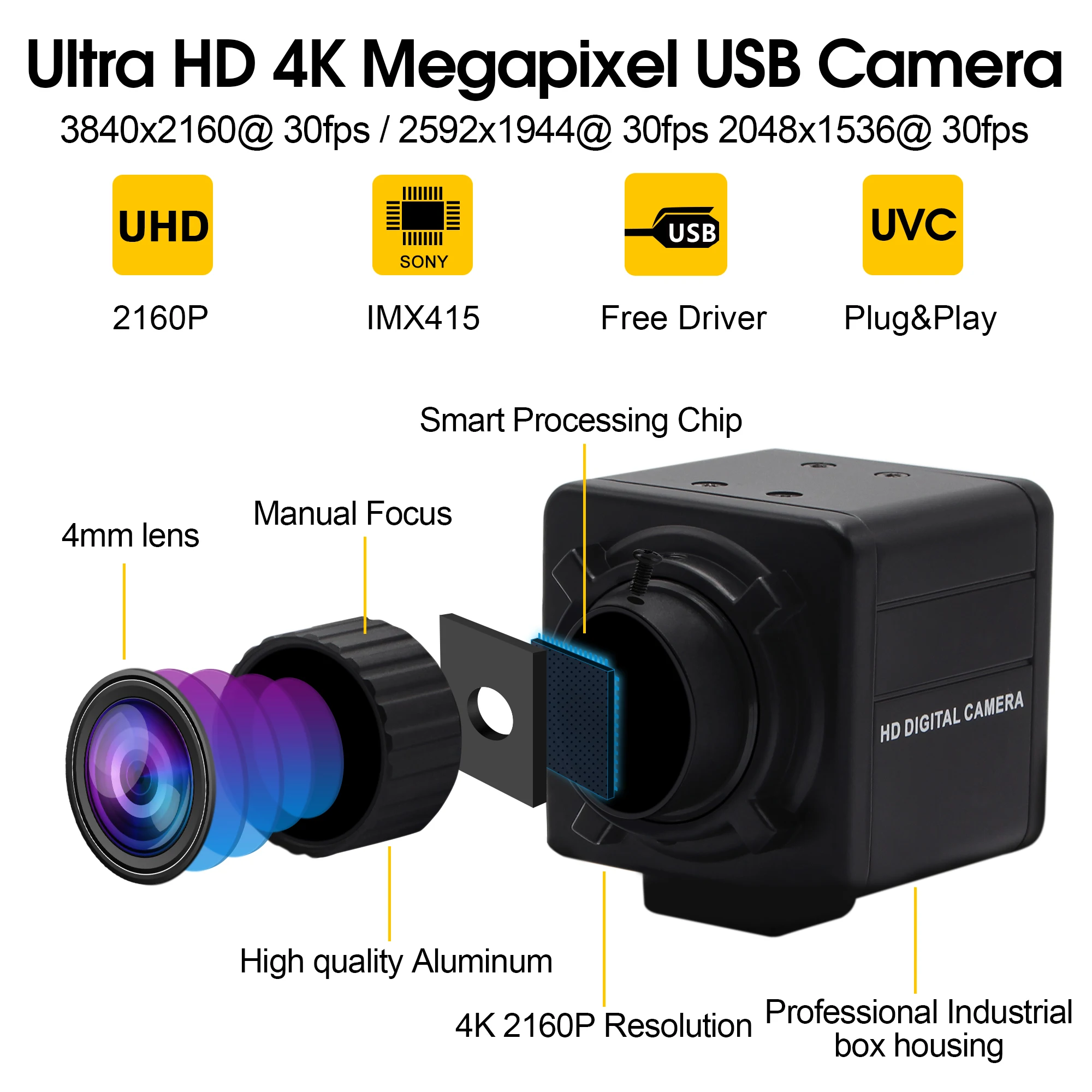

*Adopt high quality 1/2.8″ IMX415 cmos image sensor;
*Ultra clear, max resolution:3840(H) *2160(V);
*High frame rate- deliver 30 fps in 3840*2160 resolution;
*WIth high quality manual focus 4mm/6mm/8mm/12mm CS Lens; optional 4X zoom lens/10X zoom CS lens;
*MJPEG/YUY2 compression format optional;
*Low power consumption- ideal for portable equipment;
*White balance Function: Resolve color reduction and tone processing issues;
*Camera with UVC for Windows,Linux,Mac,Raspberry Pi,etc.;
*High speed USB 2.0 interface for high resolution PC camera interface;
*High pixel technology for sharp image and accurate color reproduction;
*With mini metal housing, built-in 1/4“ screw hole for mounting purpose and adjustable holder.
Note: The default model is ELP-USB4K03-MF40  (with CS 4mm lens), if you need other lens, please leave message when ordering.

Model NO.:

ELP-USB4K03-MF40  (CS 4mm lens)

ELP-USB4K03-MF60 (CS 6mm lens)

ELP-USB4K03-MF80  (CS 8mm lens)

ELP-USB4K03-MF12  (CS 12mm lens)

ELP-USB4K03-MFV(2.8-12) (CS 4mm lens)

ELP-USB4K03-MFV(5-50) (CS 5-50mm lens)

Image Sensor

SONY IMX415 (1/2.8” )

Max. Resolution

3840(H) *2160 (V)

Sensitivity

1000mV/Lux-sec

Pixel Size

1.45µmx1.45µm

Compression format

MJPEG  / YUY2（YUYV）

Resolution & frame
3840×2160@ 30fps MJPEG / 2592×1944@ 30fps MJPEG
2048×1536@ 30fps MJPEG /1600×1200@ 30fps MJPEG
1920×1080@ 30fps MJPEG/ 1280×960@30fps MJPE
1280×720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG
640×480@ 30fps MJPEG /  320×240@ 30fps MJPEG
3840×2160@ 1fps YUY2 / 2592×1944@ 1fps YUY2
2048×1536@ 3fps YUY2 /1600×1200@ 5fps YUY2
1920×1080@ 5fps YUY2/1280×960@5fps YUY2
1280×720@ 5fps YUY2 / 800 x 600@ 20fps YUY2
640×480@ 30fps YUY2 /  320×240@ 30fps YUY2

Center definition

1000LW/PH (Center)

S/N Ratio

30dB

Sensitivity

0.65V/lux-sec@550nm

Minimum illumination

0.2lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

AEC

Support

AEB

Support

AGC

Support

Focus

Fixed focus

Adjustable parameters
Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White
Balance, Exposure
Lens Parameter

CS 4mm/6mm/8mm/12mm/2.8-12mm/5-50mm lens optional

Power supply& connector

USB BUS POWER  4P-2.0mm socket

Power Voltage

DC5V

Power Current

200mA

Board Size

38mm × 38mm (optional 32*32mm)

Storage Temperature

-20°C to 70°C

Work Temperature

0°C to 60°C

USB Cable

3M(1M/2M/5M optional)

Operating System support
Win XP/Vista/Win7/Win8/Win9/Win10/Win11
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.

Additional information

Weight 0.35 kg
Dimensions 13 × 10 × 9 cm
