Description
ELP 3MP Webcam 2048X1536 AR0331 H.264 WDR(Wide Dynamic Range) USB Camera 1080P 30FPS Mini USB Video Web Camera with Wide Angle No Distortion 110 Degree Lens for Sunlight/Strong Llight Capture
Package includes:
1) 1pcs 3MP WDR usb camera with wide angle no distortion lens
2) 1pcs 3m usb cable (1/2/5m cable optional)
* 1/3” Aptina AR0331 sensor for high quality image
* 3 Megapixel resolution, max resolution 2048*1536
* High frame rate, can get 15fps in 2048*1536, 30fps in 1920*1080
* Support WDR, Dynamic Range up to 100 dB
* With Wide angle 1.95mm M12 lensm FOV 120 degree
* With microphone for audio recording
* H.264/MJPEG/YUY2 dual video format optional
* Mini size 41*41*22.6mm for embedded application
* High speed USB 2.0 plug&play port – suitable for any PC with USB 2.0 interface
* Low power consumption – ideal for portable equipment.
* UVC compliant – support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol – Can be external camera for mobile phone, Tablet and other device which support OTG
Model | ELP-USB3MP01H-BH120 (H120 no distortion lens, FOV 110 Degree)
Optional: ELP-USB3MP01H-BH110 (H110 no distortion lens, FOV 97 Degree) ELP-USB3MP01H-BH100 (H100 no distortion lens, FOV 85 Degree) ELP-USB3MP01H-BV100 (V100 no distortion lens, FOV 71 Degree) ELP-USB3MP01H-BLC1100 (LC1100 no distortion lens,FOV 57 Degree) ELP-USB3MP01H-BL (Without lens, DIY your own M12 mount lens) |
Sensor | AR0331 |
Lens Size | 1/3 inches |
Pixel Size | 2.2um X2.2um |
Max. Resolution | 2048X1536 |
Compression format | H.264 /MJPEG / YUV2(YUYV) |
Resolution & frame | H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps MJPEG:640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps YUV:640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@ 5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps |
S/N Ratio | 39dB |
Dynamic Range | Up to 100 dB |
Sensitivity | 2.0V/lux-sec@550nm |
Min.illumination | 0. 05lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class(UVC) |
Support OTG Protocol | USB2.0 OTG |
AEC/AEB/AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure |

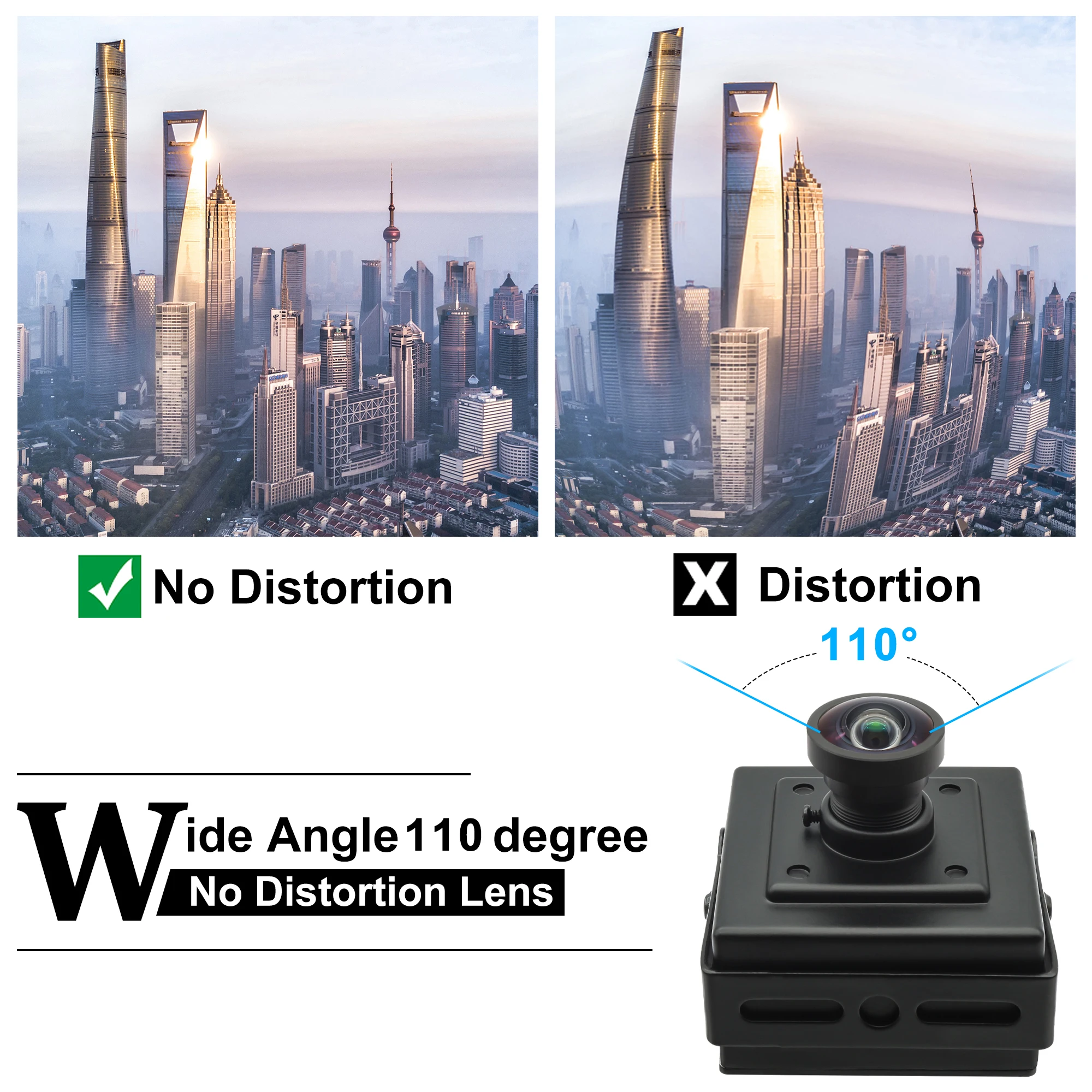

Lens Parameter | With wide angle no distortion lens, 57°/71°/85°/97°/110°FOV optional, (other lenses like 2.1/2.8/3.6/6/8/12mm or fisheye lens are available) |
Digital audio | High quality digital MIC, support single, dual channel |
IR CUT Connector | Support 2P-1.25mm socket |
LED board power connector | Support 2P-2.0mm socket |
Power supply | USB BUS POWER 4P-2.0mm socket |
Operating Voltage | DC5V |
Working current | 140mA~200mA |
Working temperature | -10~70℃ |
Storage temperature | -20~85℃ |

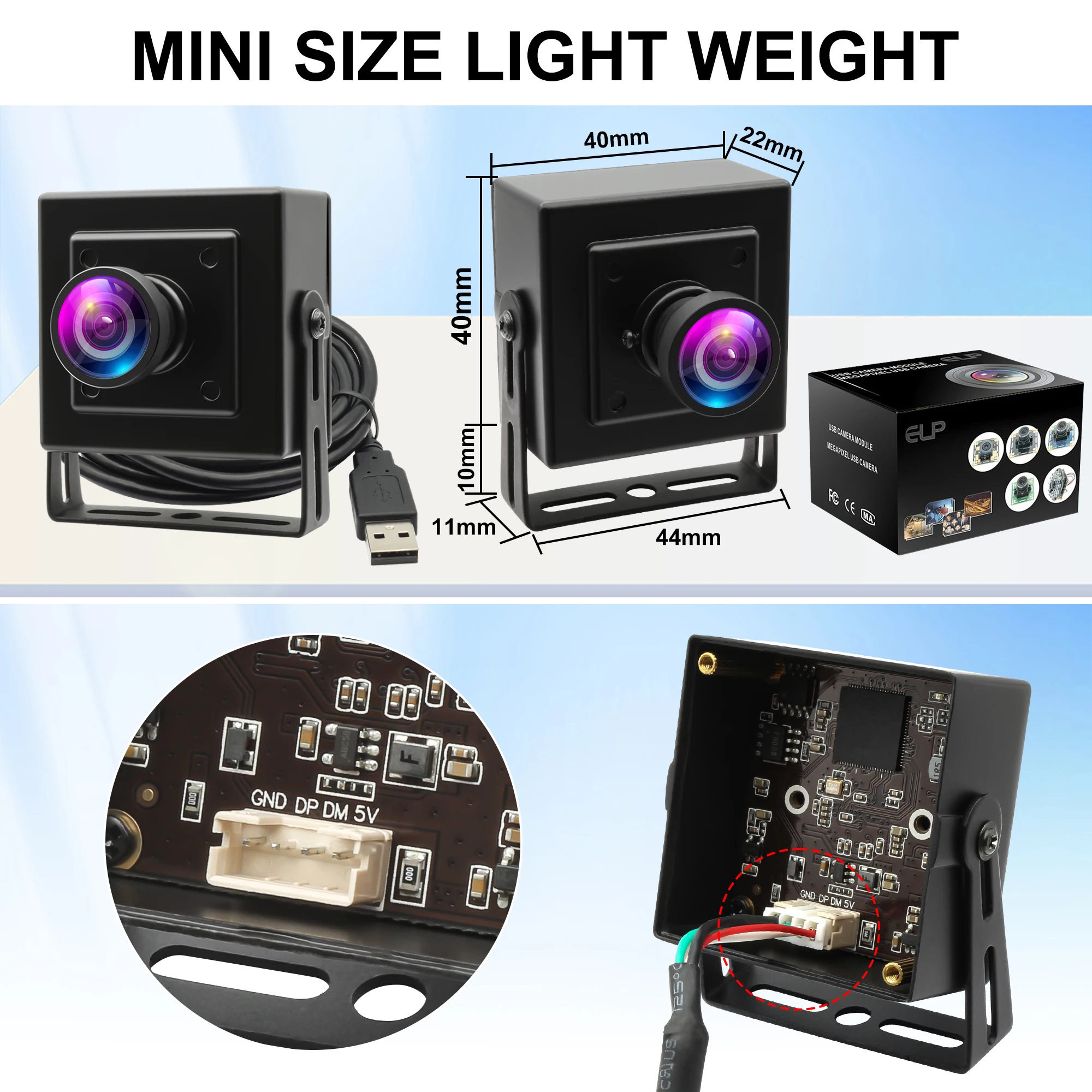

Size | 41*41*22.6mm |
Cable | Standard 3M (1M,2M,5M optional) |
Operating system request | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
WDR(Wide Dynamic Range) USB camera can view clear image under very strong light or very low light, such as the car front light is very strong, while the WDR camera can capture the clear image too). WDR camera very newly used in USB cameras, with USB port easy to plug and play installation, widely used in all kinds of industrial or personal home security, equiped with WDR perfect to use in any light condition.
1. Has higher coding efficiency.
2. Can provide high-quality video images at the low bit rate as well as the low bandwidth.
3. H.264 can work in real-time communication application low-latency mode, such as Video Conferencing systems, Online video storage and streaming, video game consoles, mobile video through 3G/4G…
Can work with many video software like USB Camera, Photobooth, lightburn laser engraver, Amcap, Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
It can work with already preinstalled camera software instead of builtin camera.
Support Android development board,Raspberry Pi development board,Jetson Nano,etc. FOR PC:
Support windows,linux,mac,Android,raspberry Pi.
Very easy to use,UVC compliant,free driver,just plug in and go.
