ELP 48mp USB Camera Module 30fps for Computer Wide Angle PC Camera Mini Lightburn Camera for Laser Engraver Monitoring Octoprint 3D Printer USB Security Camera 6000P Webcam Board for Jetson Nano RaspberryPi

Description

ELP 48MP USB Camera Module 30fps Wide Angle 100Degree No distortion Lens IMX586 UVC 8K Mini USB Webcam Board for PC RaspberryPi

​

Package included:

1) 1pcs  48mp usb camera with wide angle Non distortion lens

2) 1pcs 1m usb cable, (2/3m length optional)

Description:

           This High Resolution 48MP USB Camera is based on big size 1/2” Sony IMX586 image sensor, manual focus, USB 2.0 UVC compliant camera. No extra drivers needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera, shoot the images or record videos with super Image reality, real color reproduction. Its ultra 8000*6000 resolution can be used in a wide range of applications where high-resolution images and videos with autofocus capabilities are required.

1.Ultra HD 8000X6000 High Resolution 48MP USB Camera.

2.High frame rate 30fps 48 megapixel usb camera, can do 30fps@3840*2160.

3.Wide angle no distortion lens, 75°/90°/105°/120°/130° view angle optional.

4.With industrial grade high quality sensor Sony IMX586.

5.Super Image reality, real color reproduction, without interpolation.

6.UVC Free Driver , Plug and Play, easily used on different systems.

7.Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…

8.OTG Support, can be used on Android smartphone, recommended app “USB Camera”.

9.Wide Application: Well used for industrial camera, Video Conferencing,Live Streaming, Security, Medical device, Industrial Inspection,Scientific research and development , Education and Training, High Resolution Document Scan, High-speed photographic apparatus, Photo scanner… and so on.

Model	ELP-USB48MP02-V100 (no distortion lens, FOV 90°) Optional Model: ELP-USB48MP02-LC1100 (no distortion lens, FOV 75°) ELP-USB48MP02-H100 (no distortion lens, FOV 105°) ELP-USB48MP02-H110 (no distortion lens, FOV 120°) ELP-USB48MP02-H120 (no distortion lens, FOV 130°)
Sensor	IMX586
Max. Resolution	8000(H)*6000(V)
Sensor Size	1/2 inch (4:3)
Compression Format	MJPEG / YUV2(YUYV)
Resolution & Frame Rate	8000×6000@ 5fps MJPEG / 4000×3000@ 12fps MJPEG 3840×2160@ 30fps MJPEG / 1920×1080 @ 30fps MJPEG 1280×720 @ 30fps MJPEG 1920*1080 @5fps YUY2 / 800*600 @25fps YUY2 640*480 @20fps YUY2
Surface Mount Technology	SMT
Central Definition	1000LW/PH (Center)
S/N Ratio	37dB
Dynamic Range	82dB
Sensitivity	1.4V/lux-sec@550nm
Min.illumination	0.3lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port Type	USB2.0 High Speed
AEC	Support
AWB	Support
AdjustableParameters	Brightness,Contrast, Saturation, Hue, Sharpness, Gamma, ​White balance, Exposure
Lens Parameter	With wide angle no distortion lens, 75°/90°/105°/120°/130° view angle optional
Power Supply	USB BUS POWER 4P-2.0mmSocket
Operating Voltage	DC5V
Working Current	550mA- 650mA
Board Size	Double-deck, 38mm ×38mm
Storage Temperature	-20°C to 80°C
Working Temperature	0°C to 70°C
USB Cable	Standard 1m, optional 2m/3m
Operating System Request	WinXP/Vista/Win7/Win8/Win10/Win11 etc. Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

48MP Ultra Clear, Max Resolution: 8000(H) X 6000(V) 48 Megapixel, super Image reality, real color reproduction, show your best in every video call.

High frame rate 48mp usb webcam, can do 30fps@3840*2160, provide smooth and fluent streaming

Wide angle 48MP USB camera with 100 degree none-distortion lens, 75°/90°/105°/120°/130° view angle optional.

With high technology Sony IMX586 sensor chip , works efficienctly.

Mini size 38*38mm,light weight. Equipped with 1meters USB cable for wider range of usage.

Wide Compatibility: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…OTG Support, can be used on Android smartphone, recommended app “USB Camera”.

Plug and Play/Free Driver. UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

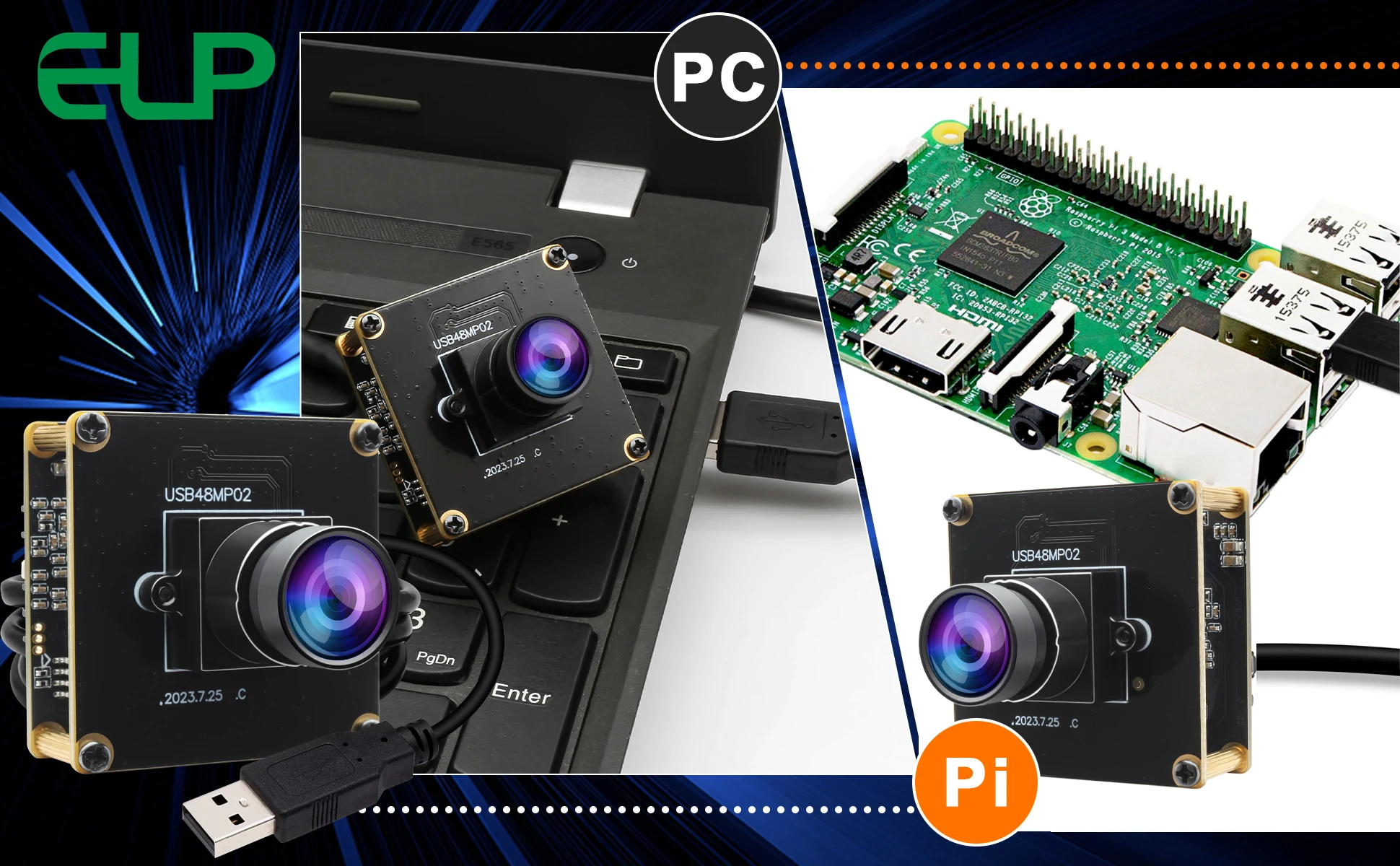

FOR RASPBERRY PI

• It can work with already preinstalled camera software instead of builtin camera.

• Support Android development board,Raspberry Pi development board,Jetson Nano,etc.

FOR PC:

• Support windows,linux,mac,Android,raspberry Pi

• Very easy to use,UVC compliant,free driver,just plug in and go.

Applications of 48mp usb webcam camera:

1. Video Conferencing: With the rise of remote work and online meetings,a 48MP USB camera can be used to provide high-quality video forvideo conferencing applications.

2. Live Streaming: Content creators and streamers can use a 48MP USB camera to capture high-resolution video capabilities,providing high-quality footage for their audience.

3. Security and Surveillance: A 48MP USB camera can be used insecurity and surveillance applications,providing high-resolution images and videos capabilities for better analysis and identification.

4. Medical Imaging: In the medical field,a 48MP USB camera can be used for imaging applications, such as telemedicine and remote diagnosis.

5. Industrial Inspection: A 48MP USB camera can be used in industrial inspection applications, providing high-resolution images for quality control and analysis.

6. Research and Development : A 48MP USB camera can be used in scientific research applications, such as microscopy and spectroscopy,to capture high-resolution images and videos for better analysis and documentation.

7. Education and Training: A 48MP USB camera module can be used in education and training applications,providing high-quality videos for better demonstrations and lectures.

Overall, a 48MP USB camera can be used in a wide range of applications where high-resolution images and videos are required.

​ ​
