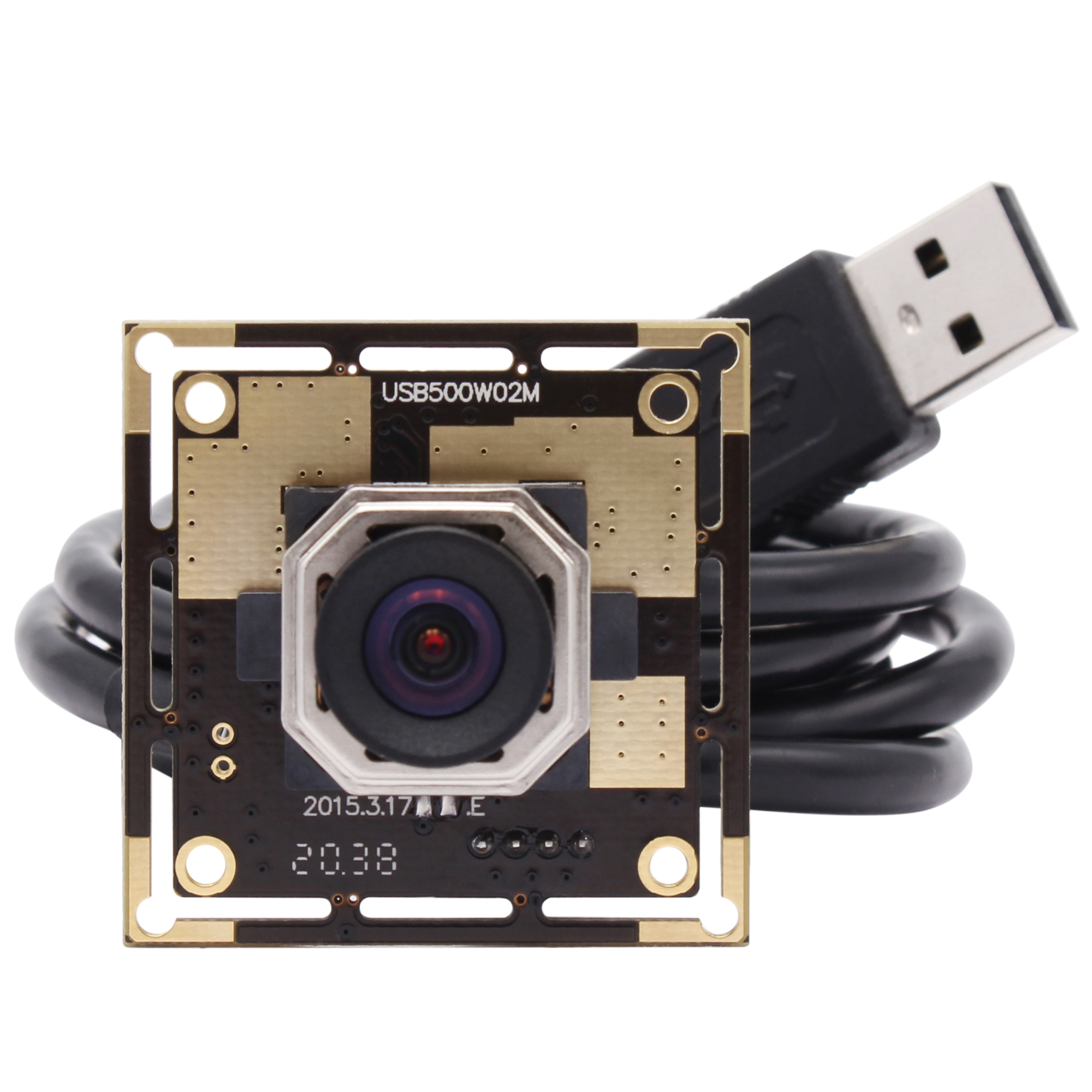

ELP 5MP Autofocus CMOS OV5640 MJPEG 100degree No Distortion Lens 5MP Industrial Camera For Advertising / LED Display


Model: ELP-USB500W04AF-AF100

125 in stock


ELP 5MP Autofocus CMOS OV5640 MJPEG 100degree No Distortion Lens 5MP Industrial Camera For Advertising / LED Display

Main Features:

*5.0megapixel 2592(H)x1944(V)pixels USB Camera
*FOV(D)100 Degree, no distortion  Lens with AUTOFOCUS MOTOR
*CMOS OV5640 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.(32*32/38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

*OV5640 USB Cameras Do NOT Support OTG


Main Specifications


Module No. ELP-USB500W04AF-AF100

(100degree None distortion lens)

Sensor OV5640 (1/4” )
Max. Resolution 2592 (H) *1944 (V)
Sensitivity 600mV/Lux-sec
Pixel Size 1.4µm x1.4µm
Image area 3673.6µmx2738.4µm
Maximum Image Transfer Rate

2592×1944@ 15fps MJPEG / 2048×1536@ 15fps MJPEG

1600×1200@ 15fps MJPEG / 1920×1080@ 15fps MJPEG

1280×1024@15fps MJPEG/ 1280×720@ 30fps MJPEG

1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG

640×480@ 30fps MJPEG /  320×240@ 30fps MJPEG

Camera Board Assembly technique SMT (ROSH)
Focus Auto
Object distance 5CM-100M
Resolution 600LW/PH (Center)
interface USB 2.0 High Speed
protocol USB Video Class(UVC)
S/N Ratio 36dB
Dynamic Range 68dB
Shutter Rolling shutter/ frame exposure
Package CSP, Bare Die
Output Formats YUYV/MJPEG
Adjustable parameter Brightness Contrast Hue Saturation Sharpness Gamma White Balance  Exposure Focus
Package LQFN-40pin
Lens Parameter Size:  1/4,  100degree lens, no distortion lens

Relative Illumination (Sensor): 70%

IR Filter: 650±10nm

LED board power connector

Support  2P-2.0mm socket

Power supply

USB BUS POWER  4P-2.0mm socket

Operating Voltage


Power consumption 150mW (VGA); 200mW (QSXGA);
Module Size 38x38mm /32x32mm
Temperature (Operation) -20°C to 70°C
Temperature (Stable Image) 0°C to 60°C
USB Cable 1M(2M/3M/5M Optional)
Operating system request

Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC

Certifications FCC and CE

Additional information

Weight 0.25 kg
Dimensions 13 × 10 × 9 cm
