Description

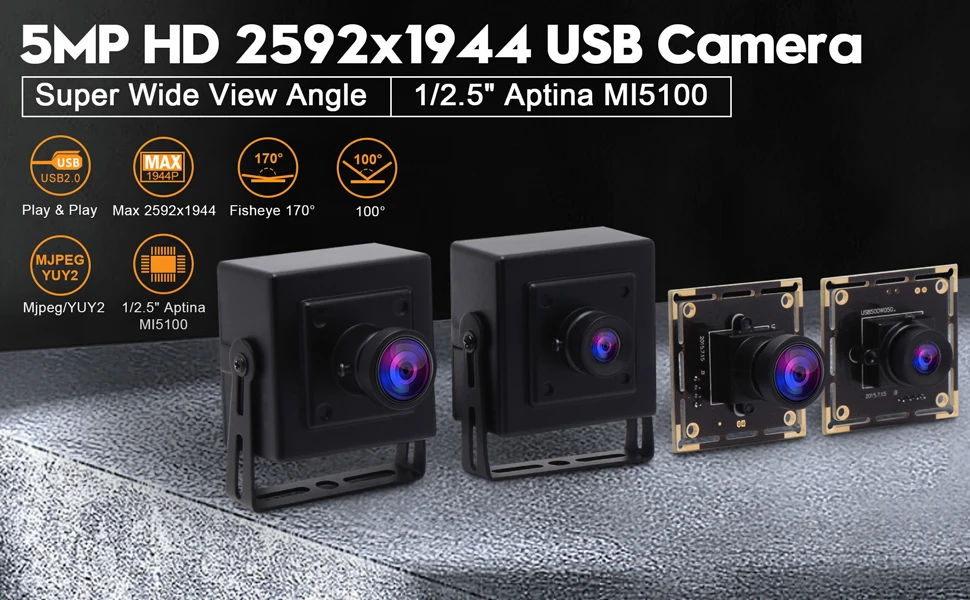

ELP 5MP USB Camera 1080P 30FPS Wide Angle Lens Face Recognition Webcam Aptina MI5100 CMOS Sensor 2592×1944 Mini Video Camera for Robot Vision Aerial Image ID Identification 3D printer Document Scanning
Package includes:
1) 1pcs 5mp mini box camera with M12 lens ( 2.1/2.8/3.6/6/8/12mm lens, wide angle no distortion lens optional)
2) 1pcs 3 m usb cable(1m/2m/5m optional)
General Description:
Based on 1/2.5 inch Aptina MI5100 CMOS Sensor, Fixed focus, wide angle no distortion lens, UVC compliant USB 2.0 cameras. This is a mini usb webcam, max resolution 5 Megapixel 2592×1944 output, support max 30FPS 1080P output, with mini metal housing. No extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera. This 5MP mini camera is good for QR Code Reading, Bar Code Reading, Document Scanning, Paper Scanning, ID Card Scanning, Passport Scanning, etc.
Note: We will send model -BH100, FOV 100 degree, if need other model, contact us or leave us message when ordering.
|
Model |
ELP-USB500W05G-BH100 (H100 no distortion lens, HFOV about 100°) Optional model: ELP-USB500W05G-BL21 (2.1mm lens, HFOV about 120°) ELP-USB500W05G-BL28 (2.8mm lens, HFOV about 113°) ELP-USB500W05G-BL36 (3.6mm lens, HFOV about 93°) ELP-USB500W05G-BL60 (6mm lens, HFOV about 59°) ELP-USB500W05G-BL80 (8mm lens, HFOV about 48°) ELP-USB500W05G-BL12 (12mm lens, HFOV about 25°) ELP-USB500W05G-BH110 (H110 no distortion lens, HFOV about 115°) ELP-USB500W05G-BH120 (H120 no distortion lens, HFOV about 125°) |
|
Sensor |
Aptina MI5100 |
|
Lens Size |
1/2.5 inch(4:3) |
|
Pixel Size |
2.2um |
|
image area |
5.7mm x 4.28mm |
|
Max. Resolution |
2592(H) X 1944(V) |
|
Compression format |
MJPEG / YUV2(YUYV) |
|
Resolution & frame |
2592×1944 @ 15fps MJPEG / 2048×1536 @ 15fps MJPEG 1600×1200 @ 15fps MJPEG / 1280×1024 @ 15fps MJPEG 1920×1080 @ 30fps MJPEG / 1280×720 @ 30fps MJPEG 800×600 @ 30fps MJPEG / 640×480 @ 30fps MJPEG |
|
S/N Ratio |
38dB |
|
Dynamic Range |
70dB |
|
Sensitivity |
1.4V/lux-sec@550nm |
|
Min. illumination |
0. 1lux |
|
Shutter Type |
Electronic rolling shutter / Frame exposure |
|
Connecting Port type |
USB2.0 High Speed |
|
Free Drive Protocol |
USB Video Class(UVC) |
|
Support OTG Protocol |
USB2.0 OTG |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure |
|
Lens Parameter |
Optional M12 lenses, 2.1/2.8/3.6/6/8/12mm/Wide angle no distortion lenses |
|
LED board control interface |
Support 2P-1.25mm socket |
|
LED board power connector |
Support 2P-2.0mm socket |
|
Power supply |
USB BUS POWER 4P-2.0mm socket |
|
Operating Voltage |
DC5V |
|
Working current |
150mA~200mA |
|
Working temperature |
-10~70℃ |
|
Storage temperature |
-20~85℃ |
|

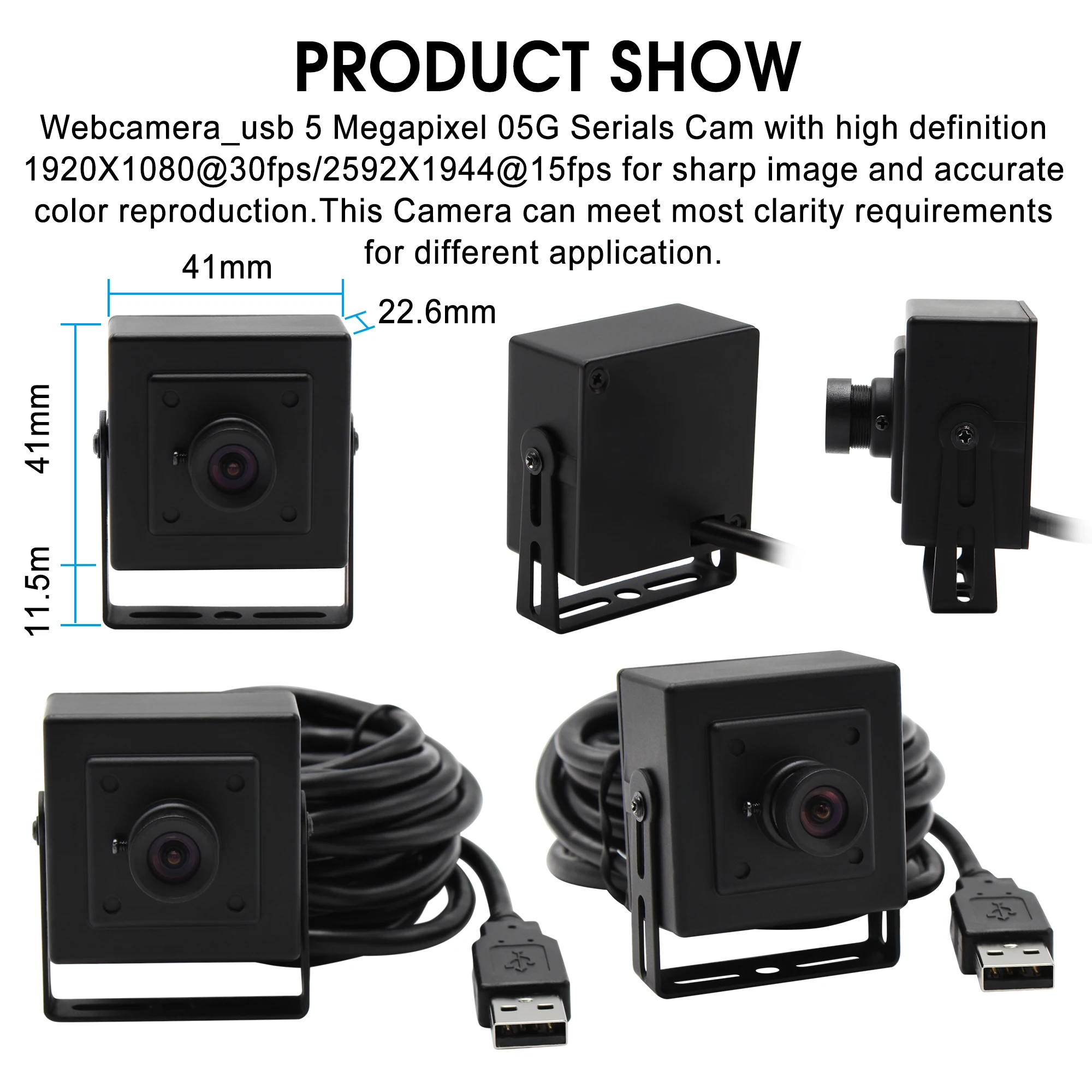

Camera Size |
41x41x22.6mm |
|
Cable |
Standard 3M / 1M,2M,5M optional |
|
Operating system request |
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. |

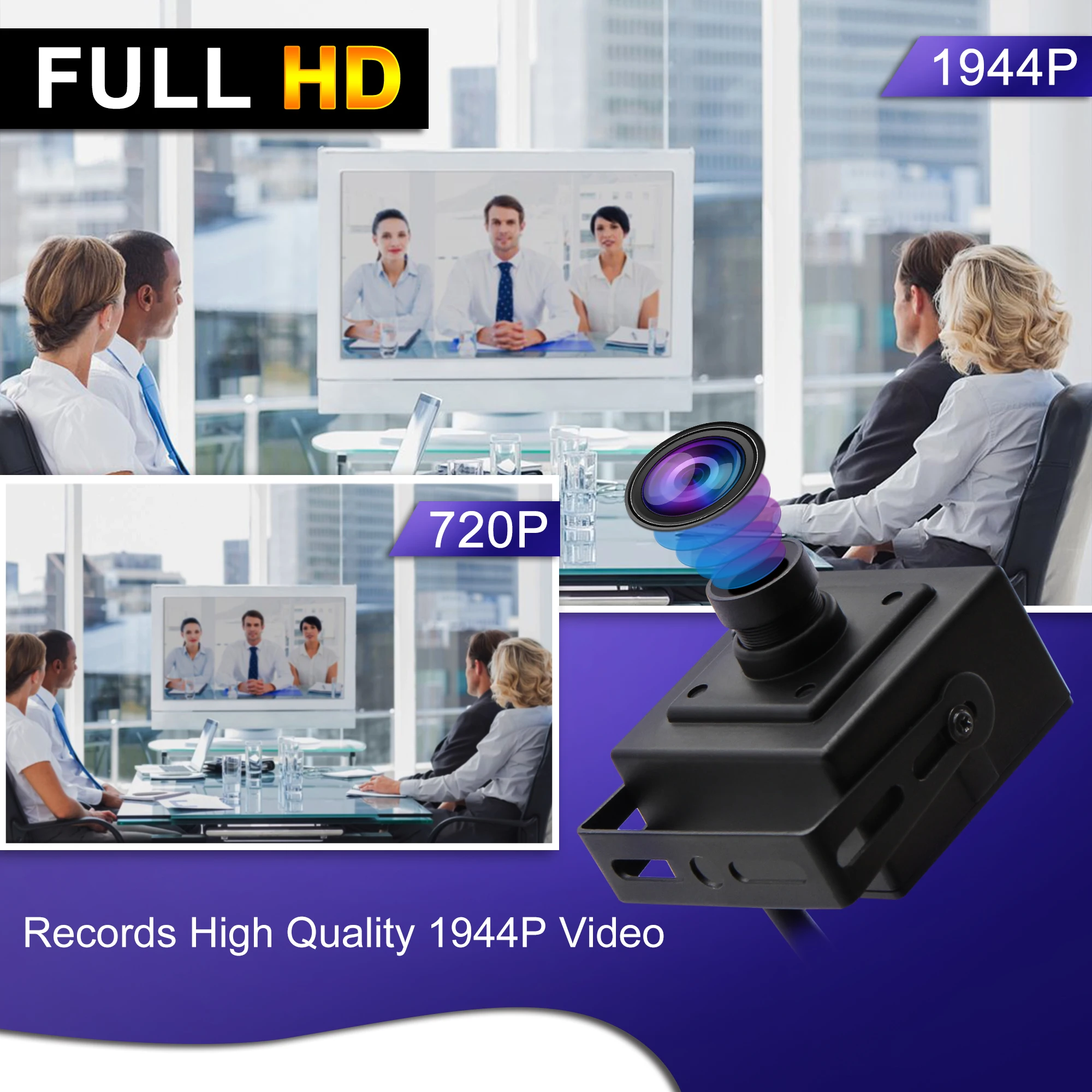

Capture crystal-clear footage with this HD 5MP USB camera, offering a sharp 2592*1944 resolution for detailed imaging.
This camera’s frame rate can reach up to 30fps@1080P, 15fps@1944P, ensuring smooth and fluid video capture.

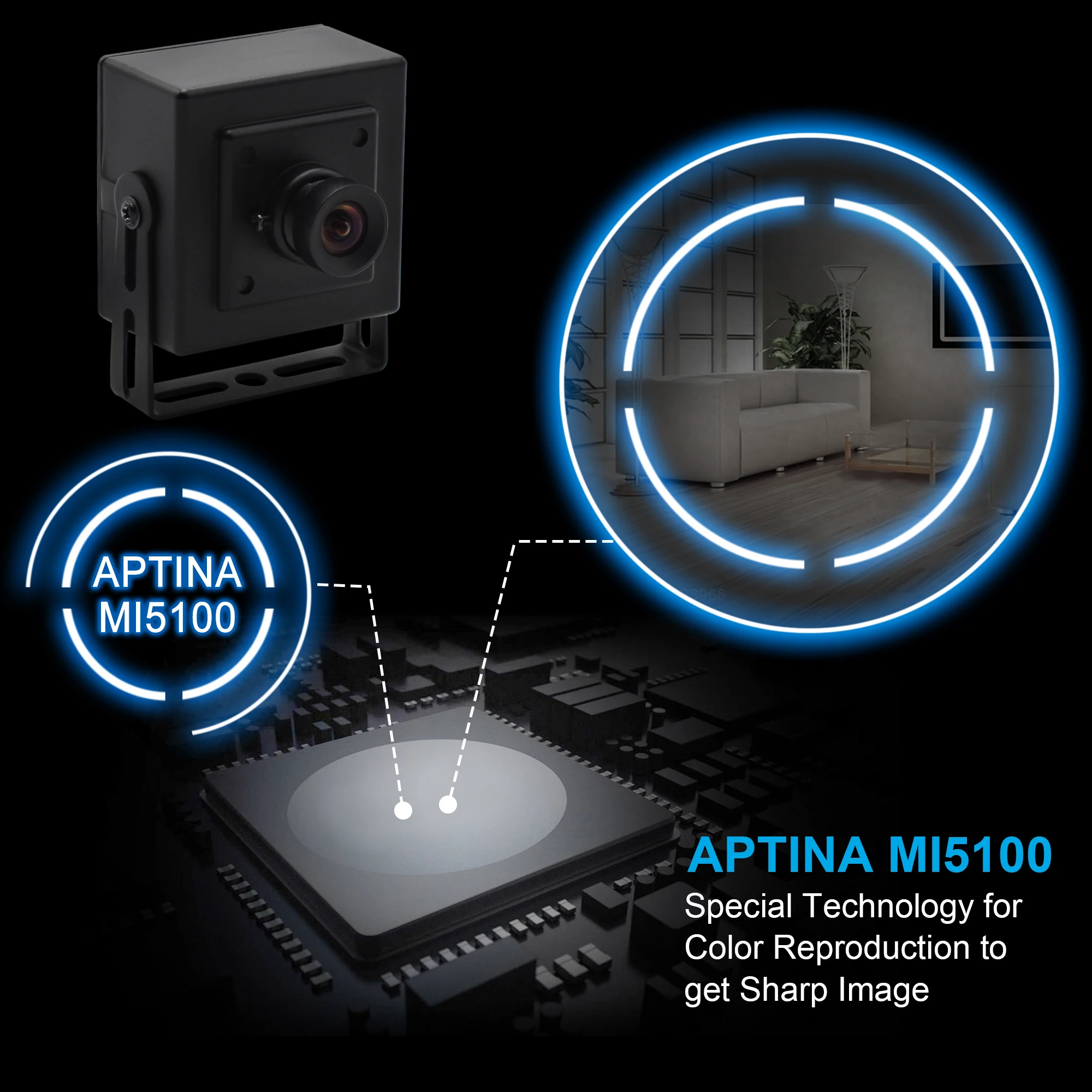

Adopt 1/2.5 inch Aptina MI5100 CMOS Sensor, with 0.01lux low illumination sensitivity.

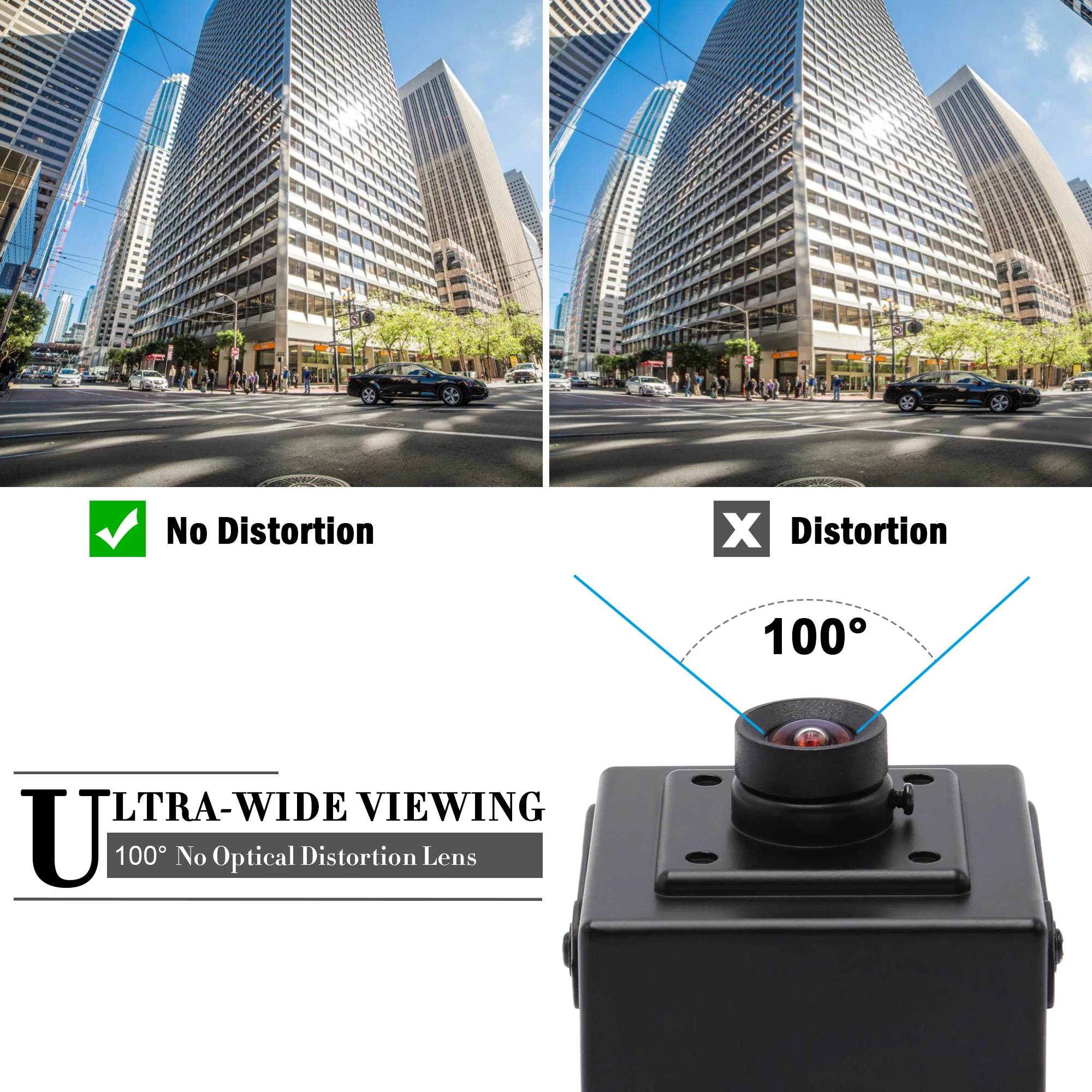

【Wide Angle No Distortion Lens, HFOV 100°】
Lens focal distance manually adjustable & Lens changeable, 2.1/2.8/3.6/6/8/12mm lens, wide angle no distortion lens optional.
【High Color Saturation & Color Purity】
High color reproduction and delicate image rendering PC Camera – contribute to a more immersive, engaging, and visually pleasing experience.
-Free driver, Plug and play for Windows, Linux, Android, Mac OS…with UVC
-OTG support, can connect android tablet, smartphone via OTG cable.
-Adjustable Features – many parameters adjustable, allows you customize the camera’s performance according to your needs.
【Wide Software Compatibility】
High Compatibility – compatible with a wide range of applications and platforms, including video chat software, video recording software and social media platforms, like Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Lives treaming services etc.

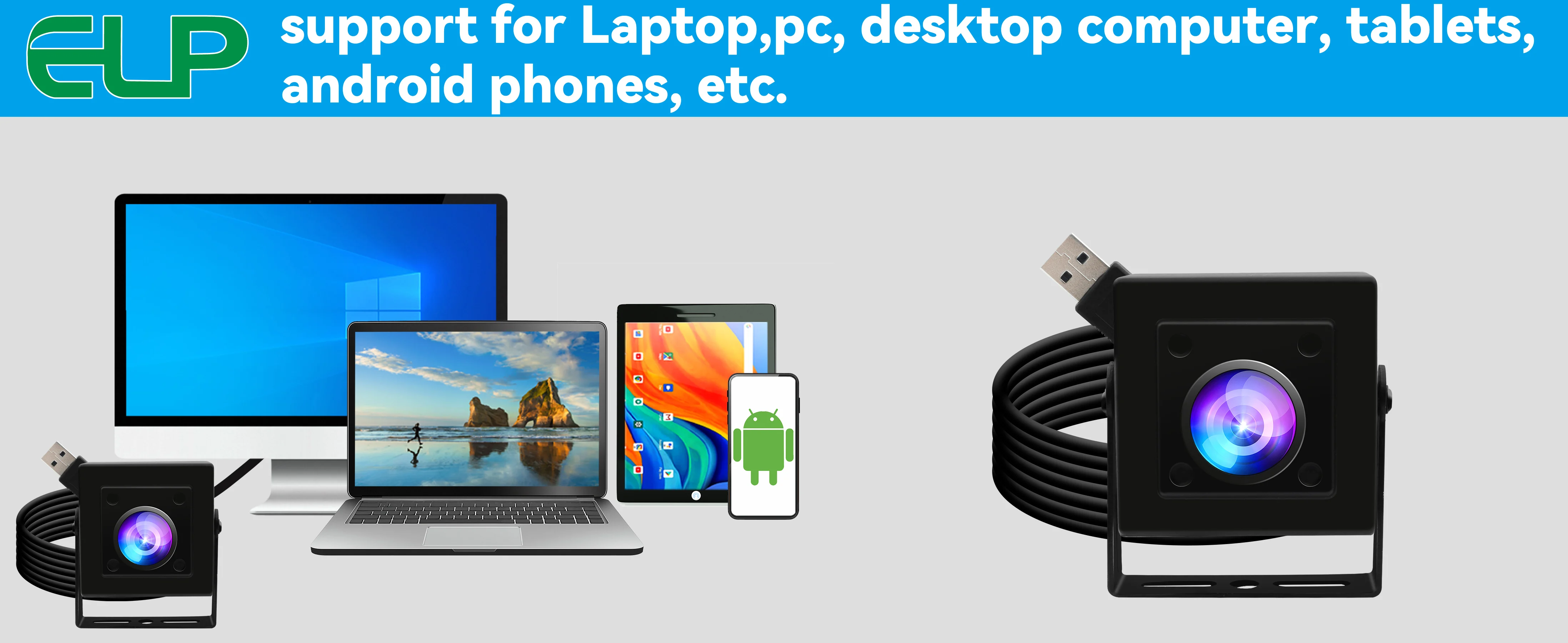

【High Device/Systems Compatibility】
- Free driver,simply connect to a USB port then Plug & Play immediately. No need additional hardware, driver or complex setup processes
– seamlessly integrate with operating systems including Android, Windows, Linux. Mac OS etc.

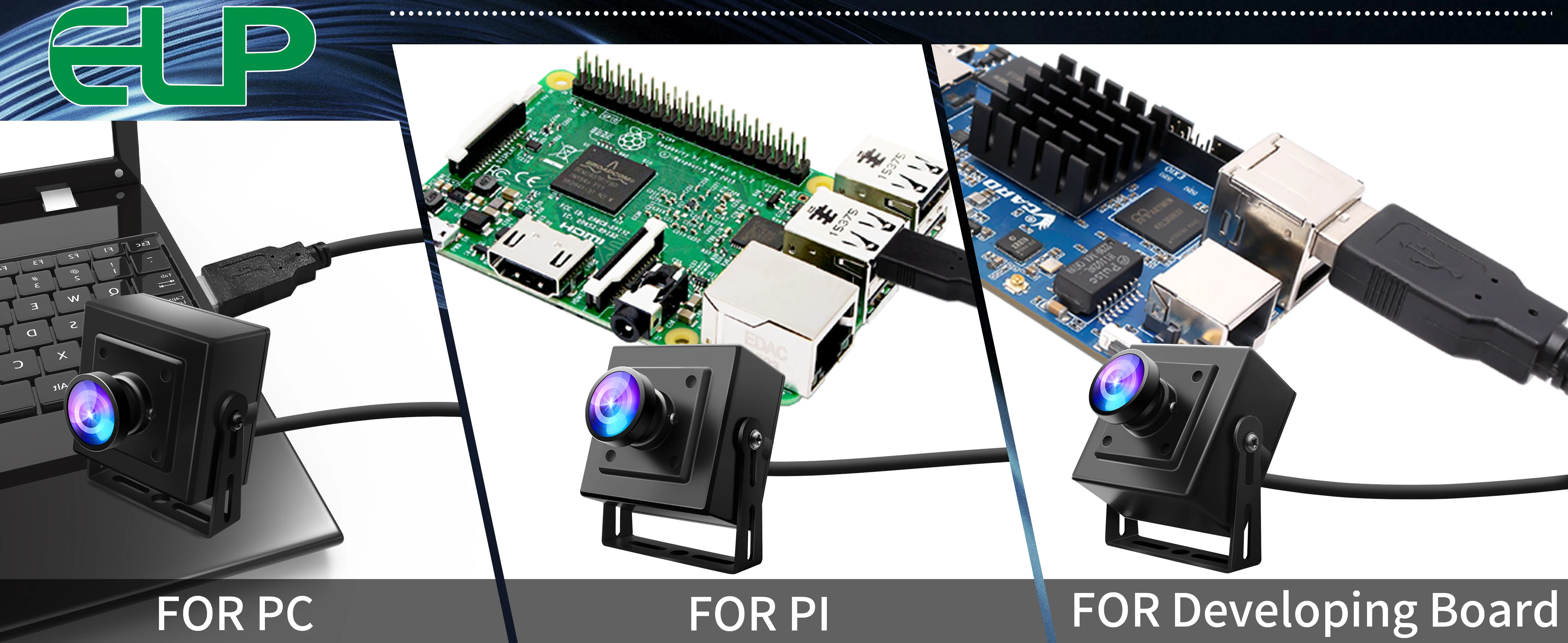

Easy Integration, OTG Support, Work with all kind of PC, Laptop, Desktop, Industrial PC, Android Development, Mini PC like Raspberry PI, Banana PI, Strawberry PI, Orange PI, Jetson Nano etc.
FOR RASPBERRY PI:
-
It can work with already preinstalled camera software instead of builtin camera.
-
Support Android development board,Raspberry Pi development board,Jetson Nano,etc.
FOR PC:
-
Support windows,linux,mac,Android,raspberry Pi.
-
Very easy to use,UVC compliant,free driver,just plug in and go.
【Wide Applications】
This ELP 5mp machine vision mini UVC USB 2.0 Camera with Wide Angle no distortion lens, widely used in many fields, especially scanning fields, such as Altimeter, Security Gate, ID Card/Passport Scanning Code/QR Code Scanning, 3D Printer, Document/Paper Scanning, etc.
