Description
ELP HDMI 4K USB3.0 Camera 60FPS Wide Angle No Distortion Lens H.264 High Speed IMX415 Ultra HD Mini PC Webcam For Live Streaming
Package Includes:
1) 1pcs 4K USB3.0 HDMI Camera with Wide Angle No Distortion Lens.
2) 1pcs 1.5m usb cable with type C port
3) 1pcs 1.5m HDMI cable with HDMI port
New Release 4K HDMI&USB3.0 Camera!
This 4K ELP-USB4KCAM30H USB3.0 HDMI Camera is a New member of ELP Cameras Family in 2024. It adopt 1/2.8″ Sony IMX415 Color CMOS sensor. With powerful H.264 Video Compression, provides you Ultra Smooth Uploading Experience. It can achieve Ultra HD 3840×2160 60fps,also Full HD 1080P 60fps Video Output, can support HDMI 4K 60FPS output. Support USB3.0 and HDMI Dual Output simultaneously. With wide angle no distortion 120 degree lens for super clear details images
Why HDMI?
“HDMI” stands for High-Definition Multimedia Interface.It allows for the transmission of crisp, clear visuals; It is a digital transmission, so no loss of quality;It supports a wide range of resolutions and refresh rates, including 1080p, 4K, and even 8K resolutions, as well as various frame rates for smooth video playback and gaming.Except these advantages, it also has wide compatibility and great versatility,simply setup and reduces cable clitter.HDMI provides a seamless way to enjoy high-quality multimedia contentacross different devices.
Why USB 3.0?
The transmission rate of USB 2.0 is 480Mbps, which is 60MB/s, while the transmission rate of USB 3.0 is 5.0Gbps, which is 625MB/s. USB 3.0 has a faster transfer speed than USB 2.0, which can help you get more efficient data transfer. And it is also compatible with USB 2.0.
* Sensor: 4K USB3.0 & HDMI Camera with 1/2.8” Sony IMX415 Color CMOS image Sensor ;
* Interface: USB 3.0 Type C and HDMI simultaneously output;
* Lens: With wide angle 120 degree no distortion lens, 68/85/95/110 degree lenses optional;
* Picture&Video Format: H.264 / MJPEG / YUY2 optional;
* Resolution&Frame Rate: Max resolution 3840X2160, can drive HDMI 4K 60FPS, MJPEG 4K 60fps, H.264 4K 60fps/ YUY2 1080P 60FPS;
* Consumption: High speed USB 3.0 interface camera module Low power consumption
* UVC Compliant Plug&Play: Just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed or with HDMI cable to motitor for display directly
* Three Display Mode: USB mode / HDMI mode / USB & HDMI mode;
|
Model |
ELP-USB4KCAM30H-H120 (1.8mm no distortion lens, FOV 120°) Optional Models: ELP-USB4KCAM30H-LC11100 (4.35mm no distortion lens, FOV 68°) ELP-USB4KCAM30H-V100 (3.24mm no distortion lens, FOV 85°) ELP-USB4KCAM30H-H100 (2.8mm no distortion lens, FOV 95°) ELP-USB4KCAM30H-H110 (2mm no distortion lens, FOV 110°) |
|
Sensor |
1/2.8” SONY IMX415 |
|
Max Resolution |
3840(H)*2160(V) |
|
Sensitivity |
0.65V/lux-sec@550nm |
|
Pixel Size |
1.45µm x 1.45µm |
|
Video Compression |
MJPEG / YUY2(YUYV) / H.264 |
|
Resolution & Frame Rate |
3840×2160 MJPEG 60fps/ H.264 60fps / YUY2 15fps 2560×1440 MJPEG 60fps/ H.264 60fps / 1920×1080 MJPEG 60fps/ H.264 60fps / YUY2 60fps 1280×720 MJPEG 60fps/ H.264 60fps / YUY2 60fps 640×480 MJPEG 60fps/ H.264 60fps / YUY2 60fps |
|
Image Processing Time |
About 10seconds after opening the preview software |
|
Central Definition |
1000LW/PH(Center) |
|
S/N Ratio |
30dB |
|
Min illumination |
0.2Lux |
|
Shutter Type |
Electronic Rolling Shutter/ Frame Exposure |
|
Connecting Port Type |
USB 3.0 Interface &HDMI v1.4 Interface |
|
AEC/AWB/AGC |
Support |
|
Adjustable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure |
|
Lens Parameter |
No distortion H120 lens, FOV about 120 degree. Optional M12 12mm/16mm/25mm, No distortion (FOV 80-125 degree), 150 degree/180 degree Fisheye lens, M16 4mm lens etc. |
|
Power Supply & Interface |
USB Type-C Power Supply, Type-C & HDMI Display Simultaneous |
|
Display Modes & Power Supply |
I. USB Output (USB Bus Power) II. HDMI Output (Power by Portable Power Bank / Charging Adapter ) III. USB Output +HDMI Output Simultaneous |
|
Operating Voltage |
DC 5V |
|
Working Current |
700-780mA |
|
Dimension |
46.4×46.6x43mm |
|
Storage Temperature |
-20°C to 80°C |
|
Working Temperature |
-10°C to 70°C |
|
USB Cable |
1.5m cable with Type-C port |
|
HDMI Cable |
1.5m cable with HDMI port |
|
Operating System Request |
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
4K Ultra HD USB 3.0 HDMI Camera, support max resolution 3840×2160, 4K high pixel technology for sharp image and accurate color reproduction.
High speed 60fps 4K USB 3.0 & HDMI Camera, USB 3.0 ouput support H.264 4K 60FPS , MJPEG 4K 60FPS , YUY2 1080P 60FPS, HDMI output support 4k 60fps, gives you ultra smooth and fluent streaming
ELP 4K USB3.0 HDMI Camera, support USB 3.0 type C and HDMI simultaneously dual output

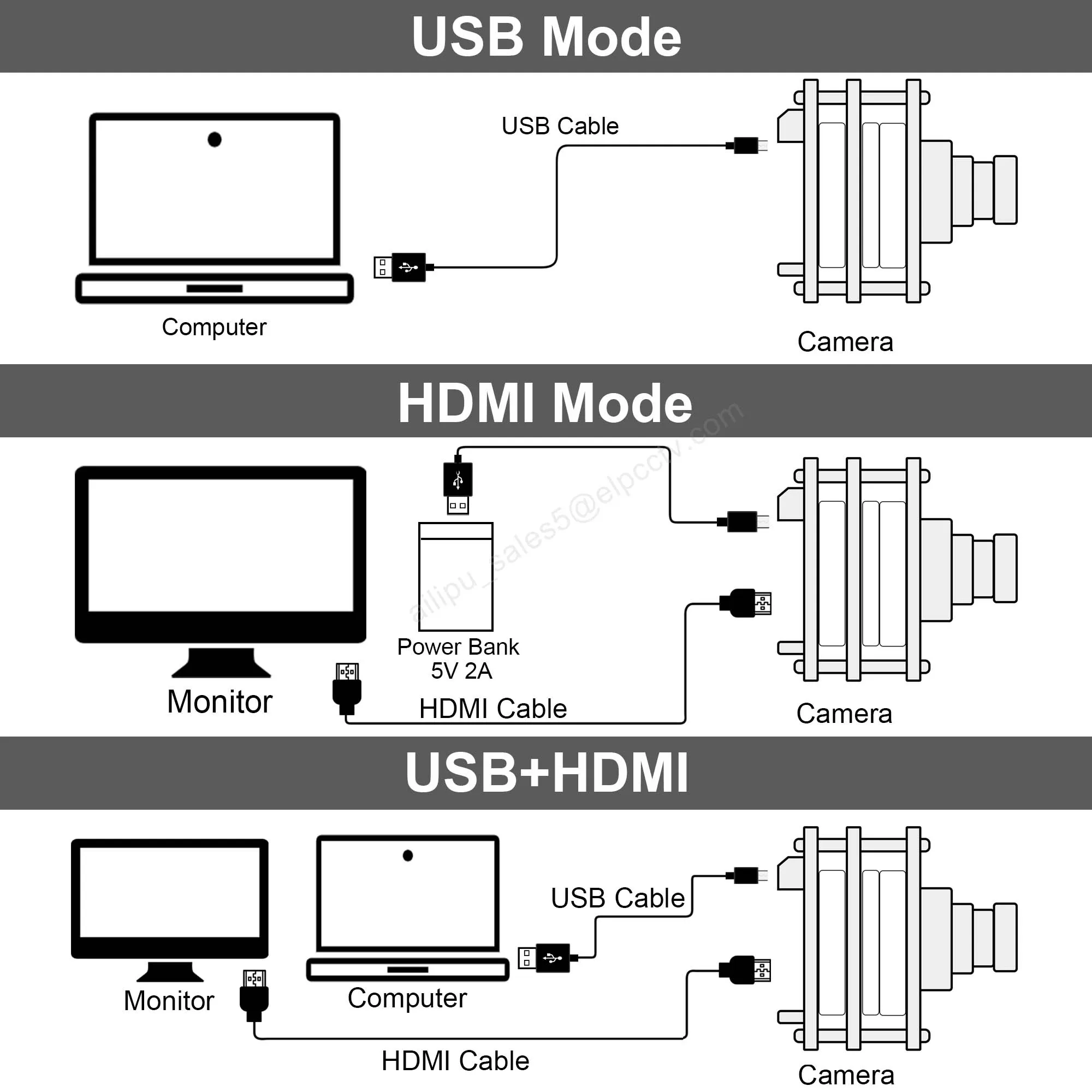

Support 3 Working Modes: USB Mode/HDMI Mode/USB+HDMI simultaneously output Mode
-
USB Output:
Connect USB3.0- Type C cable to PC, the camera plugs and plays ;
-
HDMI Output:
No need PC systems, with USB3.0- Type C cable the camera is powered and can transfer the image directly to the monitor, projector… etc.
-
USB & HDMI Output simultaneously:
Connect USB3.0- Type C Cable to PC, and connect HDMI cable to the monitor with HDMI Port or projector… Then the camera can display simultaneously both on PC and monitor, projector…etc.

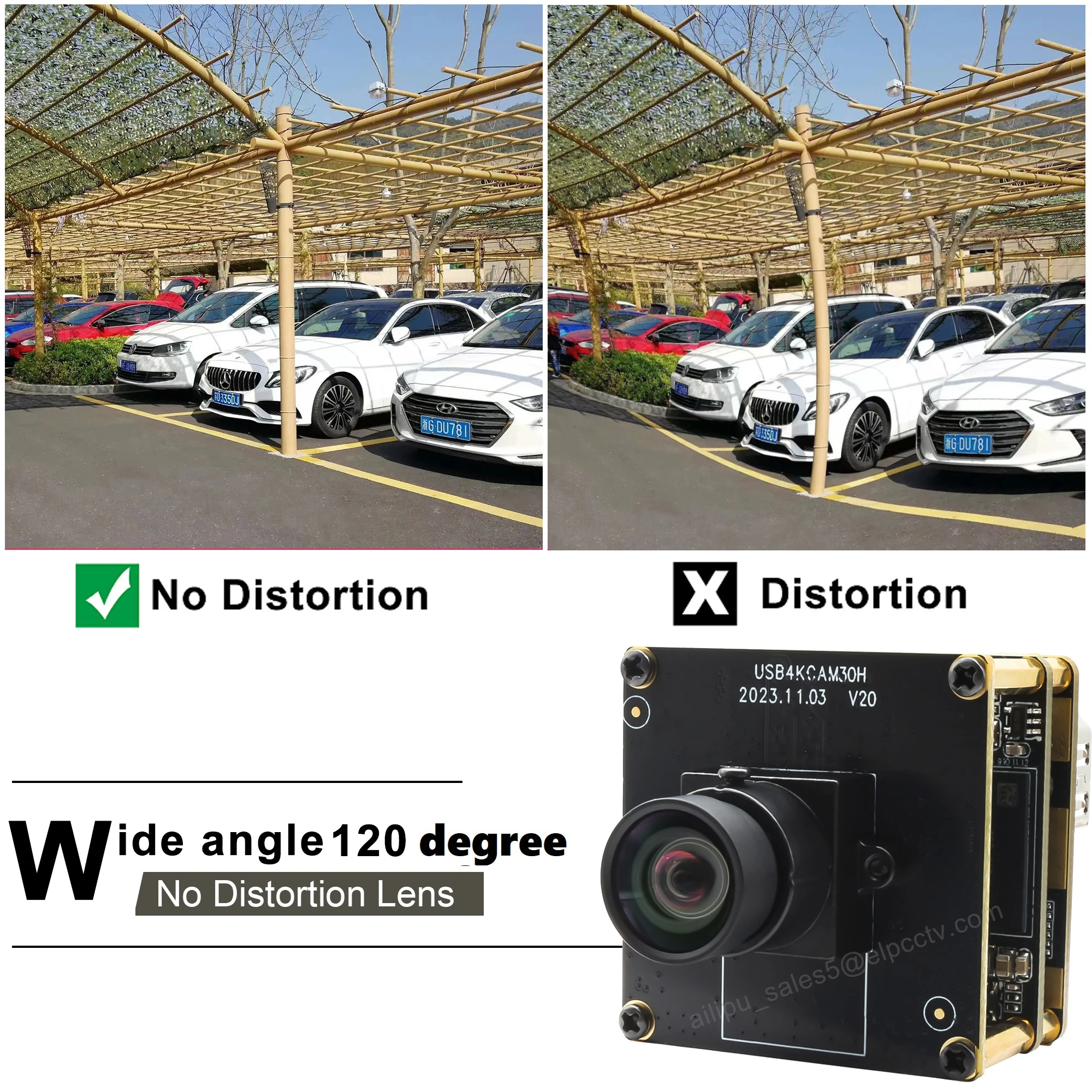

With wide angle 120 degree no distortion lens, optiona 85 degree, 110 degree lens.
Support 3 types compression formats, powerful H.264 video vompression+ Mjpeg and YUY2 video format for ultra smooth uploading experience

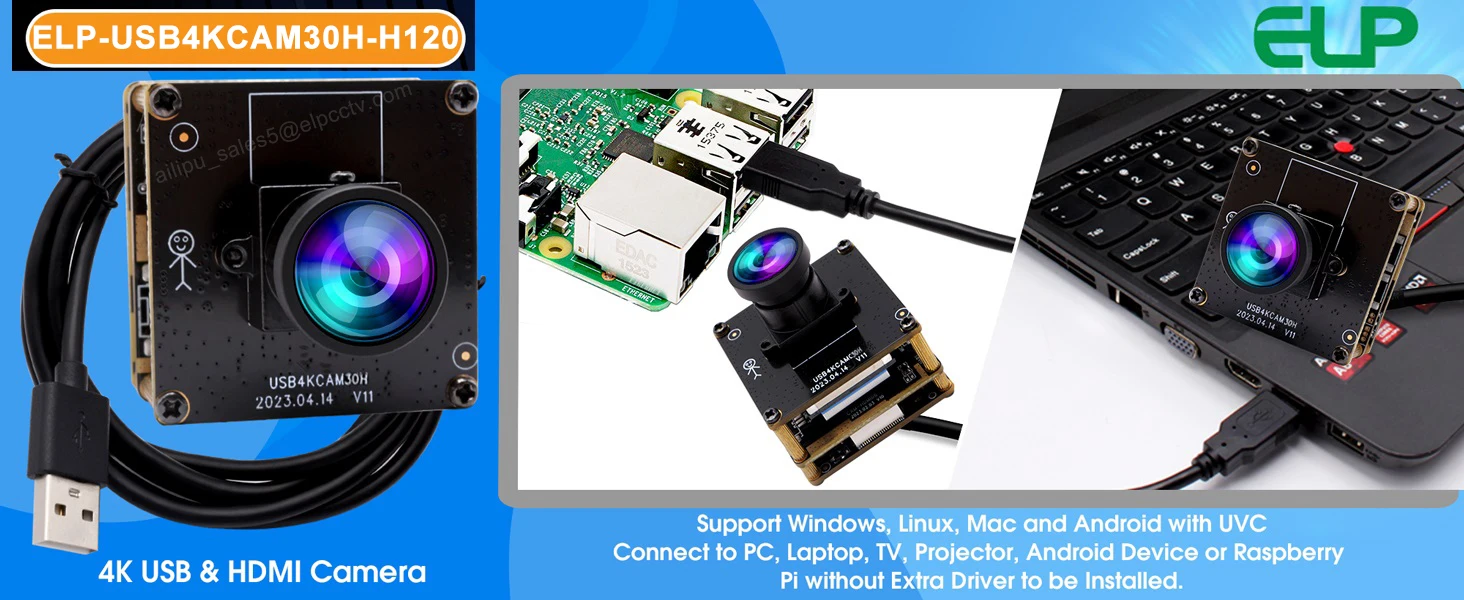

Max. 3840*2160 USB3.0 HDMI 4K Camera with high compatibility for Computer PC Laptop, Raspberry Pi, Android Develop Board, Jetson Nano. No driver needed, just plug and play.
FOR PC:
-
It can work with already preinstalled camera software instead of builtin camera.
-
Support Android development board,Raspberry Pi development board,Jetson Nano,etc.
FOR RASPBERRY PI:
-

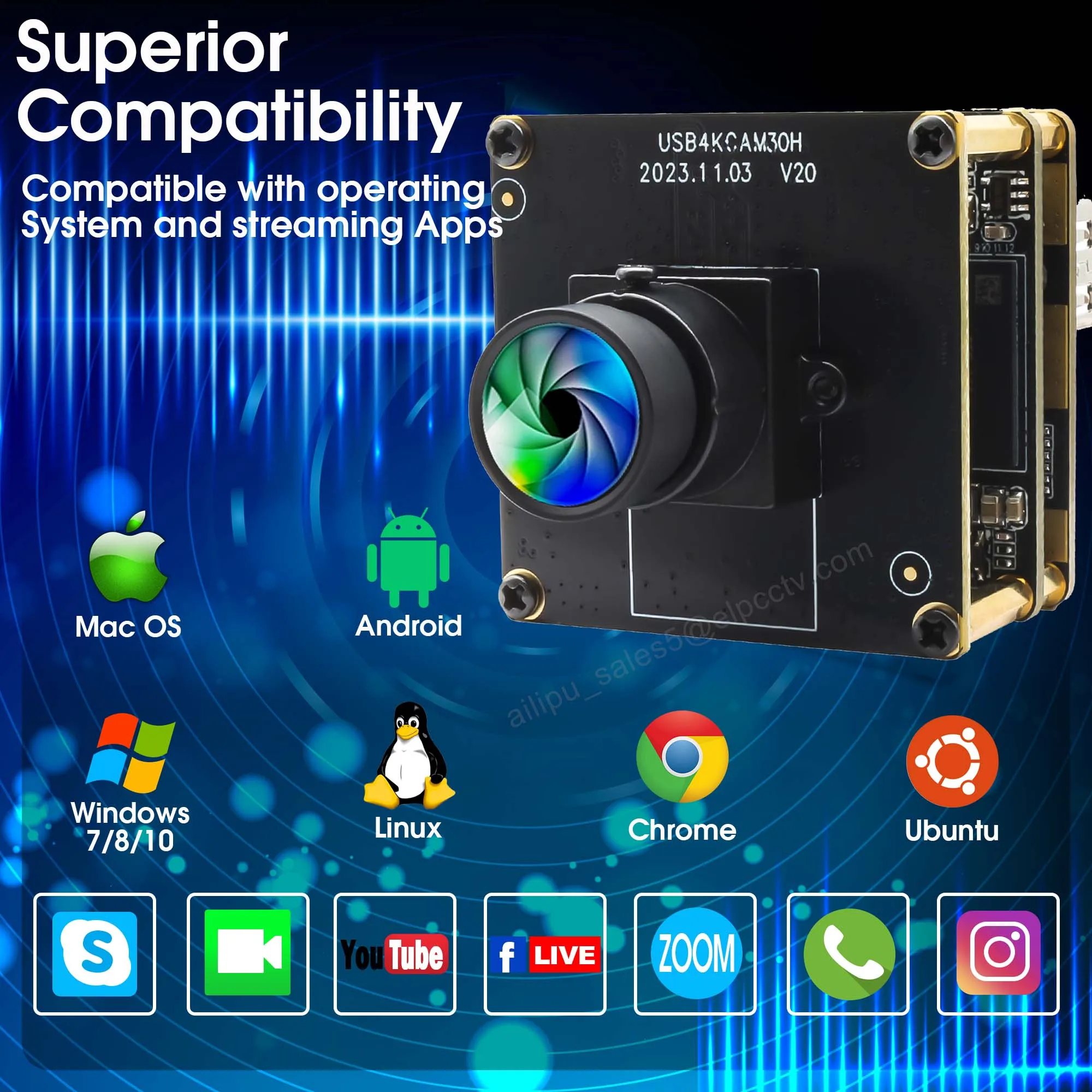

Support windows,linux,mac,Android,raspberry Pi.
-
Very easy to use,UVC compliant,free driver,just plug in and go.
HDMI are commonly used to connect devices such as televisions, monitors, projectors, gaming consoles, computers, and more. It has become a widely used technology and be used widely on all kinds of field.

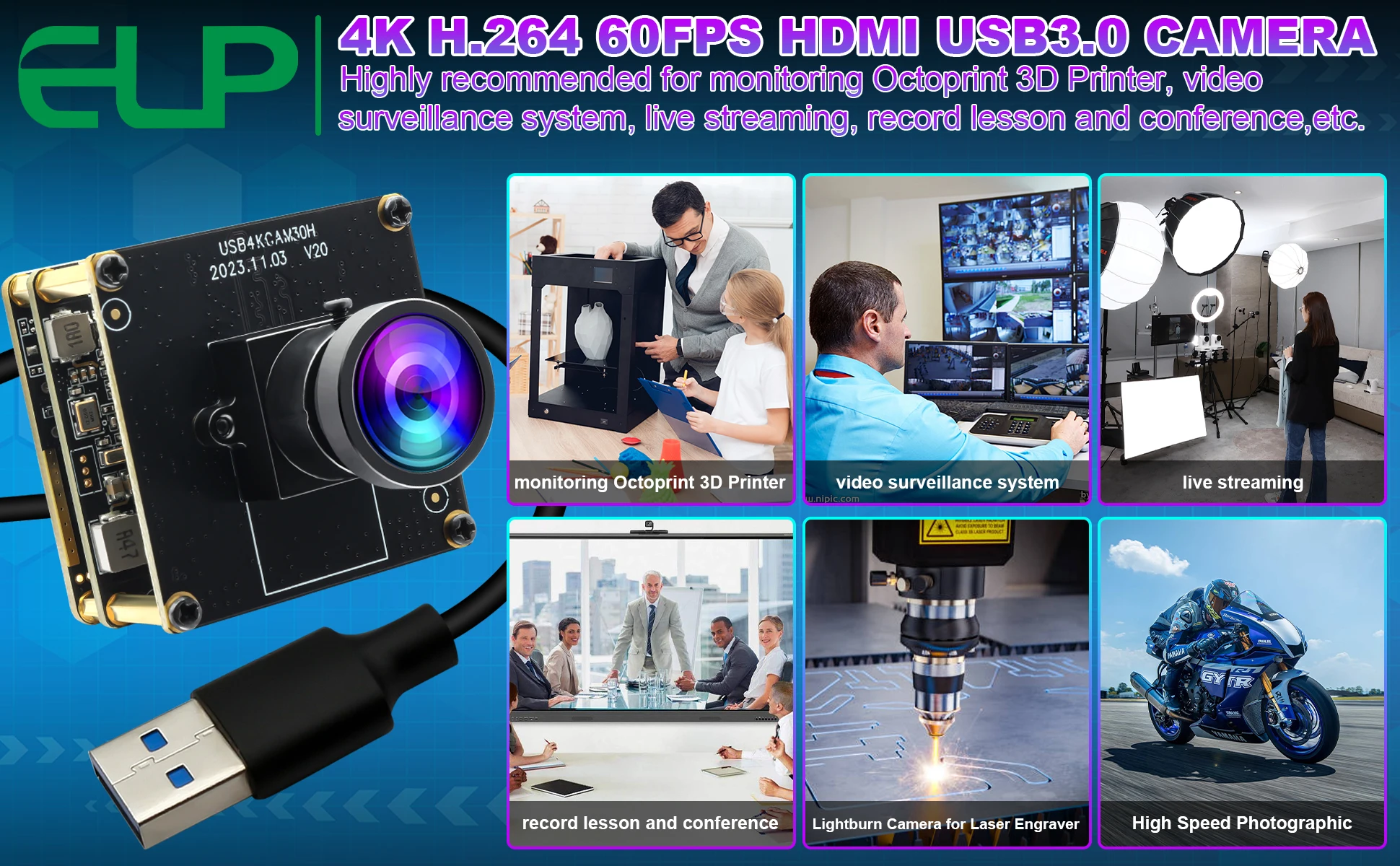

This 4K USB3.0 HDMI Camera is widely used in Commericial, Industrial, Medical,Automobile, Astronomical, Biological Field:
Like Online-Teaching, Webcast, industrial camera, Video Conferencing, Live Streaming, Security, Medical device,Industrial Inspection, Scientific research and development, Education and Training, High Resolution Document Scan, High-speed photographic apparatus, Photo scanner etc.
