ELP High Speed 120fps USB Camera Module with 2.1mm Wide Angle Lens Full HD 1080P OV2710 Embedded Webcam Module ELP-USBFHD01M-L21

Description

ELP High Speed 120fps USB Camera Module with 2.1mm Wide Angle Lens Full HD 1080P OV2710 Embedded Webcam Module ELP-USBFHD01M-L21

Package includes:

1) 1pcs 2mp usb camera module with 2.1mm lens;

2) 1pcs 1m usb cable 2/3/5m optional).

General Introduction:

This is a mini Compact Size 1080p Full HD High Speed webcam, Max Frame Rate up to 120fps. Which used in applications that require capturing fast-moving objects or events with high temporal resolution. These cameras are capable of capturing a large number of frames per second (fps),allowing for detailed analysis, motion tracking, and slow-motion playback. Based on 1/2.7″ OV2710 image sensor, Fixed focus, 2.1mm lens, UVC compliant USB 2.0 camera. Its Mini size, light weight and Low Power consumption which is suitbale for many embedded application and Portable Device.

Features:

-High frame rate–deliver120fps @ 640*480, 60fps @1280X720,30 fps in 1920X1080 resolution.

-2.1mm Wide-Angle Lens Webcam Module, Other wide angle Fisheye Lens exchangeable

-CMOS 1/2.7inch OV2710 sensor for high quality image and low power consumption.

-High pixel technology for sharp image and accurate color reproduction.

-High speed USB 2.0 interface for high resolution PC camera interface.

-Support OTG, can connect to your mobilephone, Tablet, mini PC via OTG Cable

-Super small outline and thin profile for embedded applications.Mini size :32*32mm/38*38mm, customization available.

-Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS

-High Compatibility, can work with many software like Ubuntu, Raspberry Pi, Mac OS…-Support living streaming software,

  Skype, Zoom, Facetime, Youtube, Amcap, OpenCV, PC default Webcam software, VLC, V4L2…

Optional Models	ELP-USBFHD01M-L21 ( 2.1mm lens, HFOV 117 degree) Optional Model with Different Lens With Normal Lens: ELP-USBFHD01M-L28 ( 2.8mm lens, HFOV 113 degree) ELP-USBFHD01M-L36 ( 3.6mm lens, HFOV 91 degree) ELP-USBFHD01M-L60 ( 6mm lens, HFOV 56 degree) ELP-USBFHD01M-L80 ( 8mm lens, HFOV 42 degree) ELP-USBFHD01M-L12 ( 12mm lens, HFOV 25 degree) With No distortion Lens: ELP-USBFHD01M-H100 (No distortion, HFOV 100 degree) ELP-USBFHD01M-H110 (No distortion, HFOV 113 degree) ELP-USBFHD01M-H120 (No distortion, HFOV 125 degree) ELP-USBFHD01M-LC1100 (No distortion, HFOV 68 degree) With Fisheye Lens: ELP-USBFHD01M-L170( L170 fisheye lens, HFOV 156 degree) ELP-USBFHD01M-L180( L180 fisheye lens, HFOV >180 degree)
Sensor	1/2.7 inch OV2710
Pixel Size	3.0um X 3.0um
Image area	5856 µm x 3276 µm
Max. Resolution	FULL HD 1920(H)X1080(V)
Compression format	MJPEG / YUV2（YUYV）
Resolution & Frame Rate	320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps ​640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps ​1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps ​1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps
Special function	Lens correction/ Defective pixel correction/ Black sun cancellation
Min illumination	0.05lux
Shutter Type	Electronic rolling shutter / Frame exposure
Sensitivity	3.7V/lux-sec@550nm
Connecting Port type	USB2.0 High Speed（Support USB2.0 HS/FS, USB2.0 OTG）
USB Protocol	USB2.0 HS/FS USB1.1/USB1.0
Connecting Port type	USB2.0 High Speed
OTG Protocol	USB2.0 OTG
Free Drive Protocol	USB Video Class（UVC）
AEC	Support
AWB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure
Lens Parameter	Standard 2.1mm M12 lens, 2.8/3.6/6/8/12mm, No distortion lens, Fisheye lens Optional
Night vision	Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board
LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC5V
Working current	120mA~220mA
Working temperature	0～60℃
Storage temperature	-20～75℃
Board size /Weight	38X38mm (Compatible 32X32mm)/ about 30g
Cable	Standard 1M (optional 2M,3M,5M)
Operating system request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

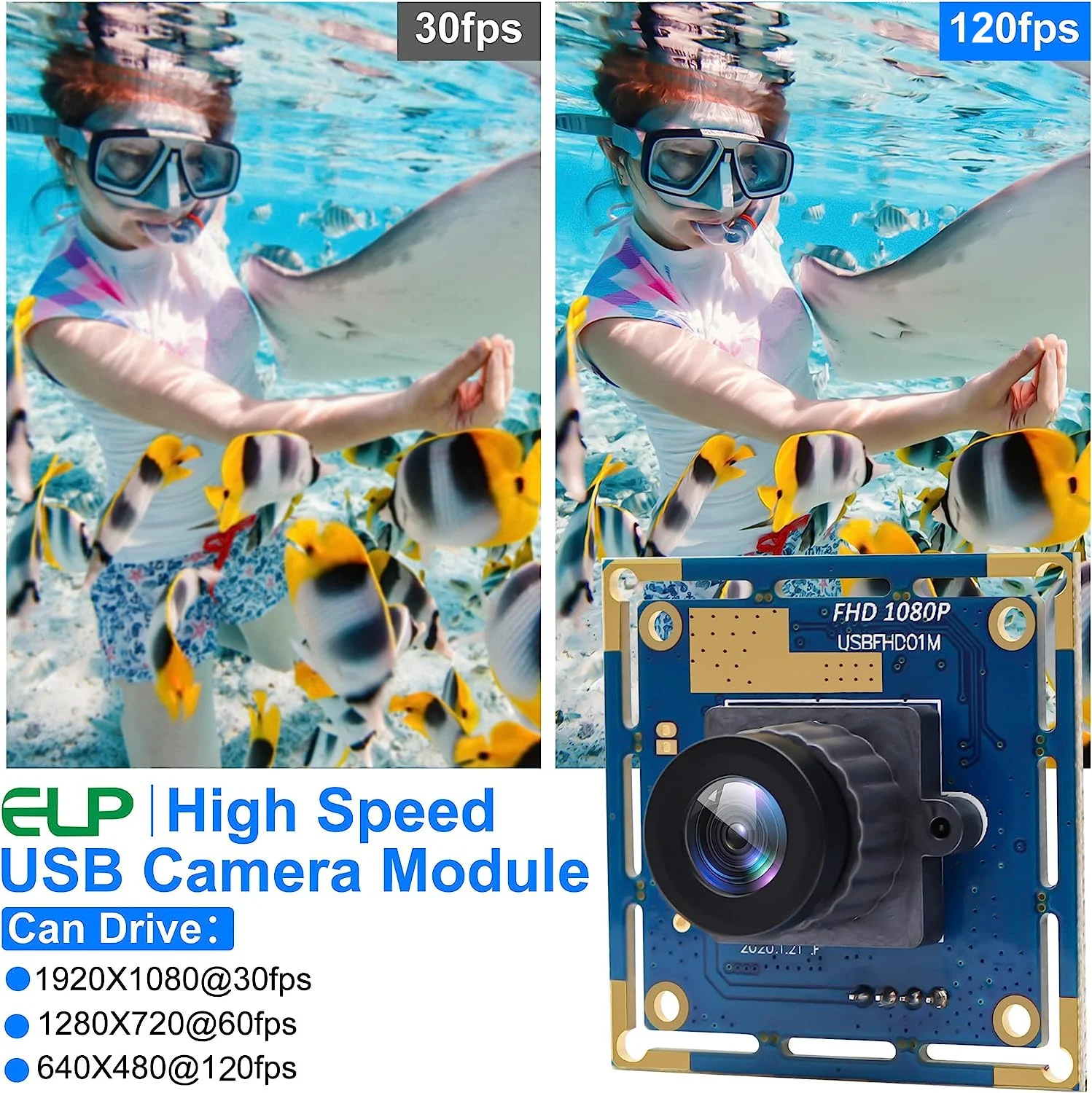

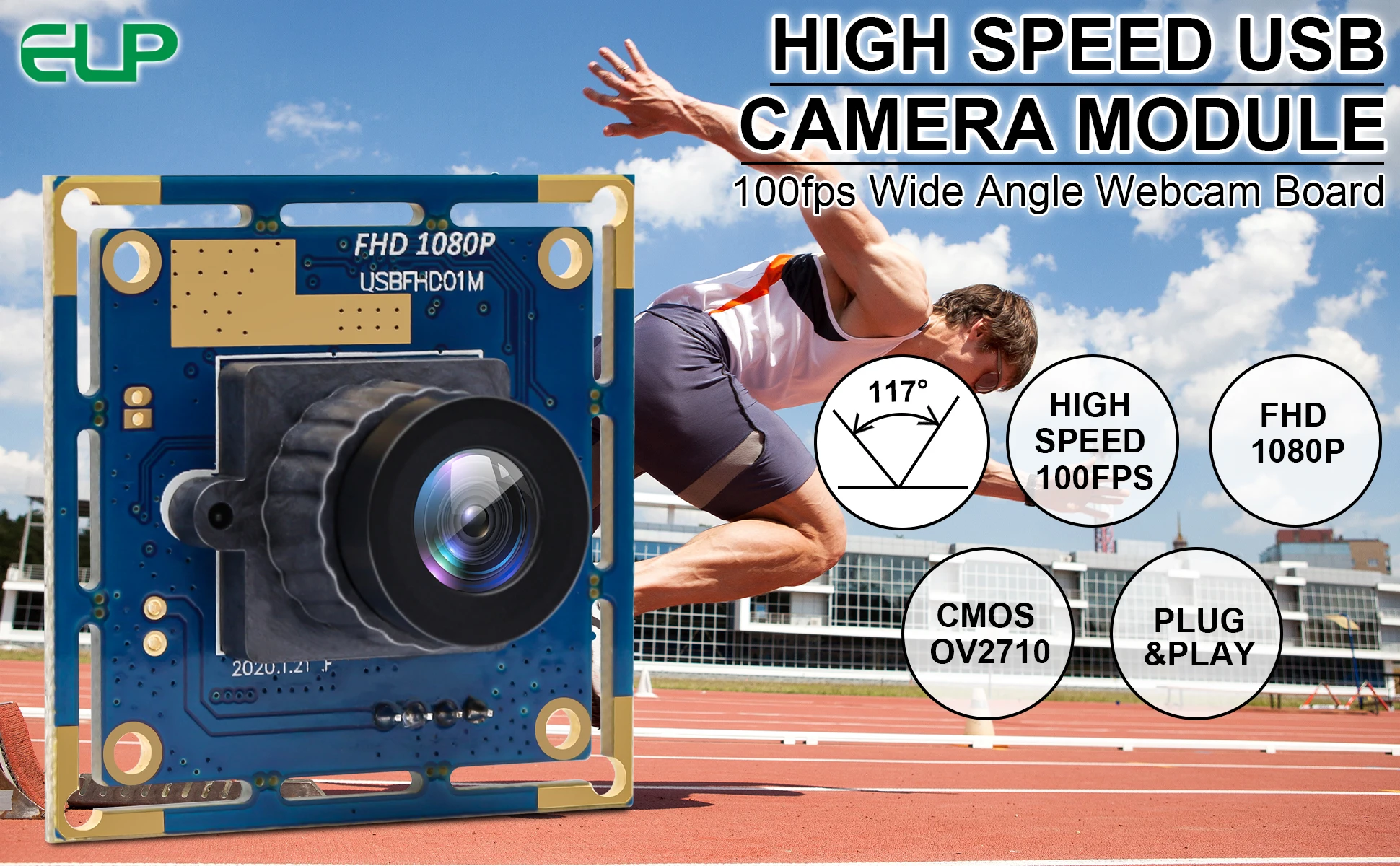

High frame Rate USB Camera Module MJPEG 120 fps @ 640X480 Resolution, 60fps @ 1280 x 720 Resolution, 30fps @1920 x 1080 Resolution

2 Megapixel  Full HD 1080P USB Camera High Pixel Technology for Sharp Image and Accurate Color Reproduction

2.1mm Wide Angle Webcam with 1/2.7″ CMOS OV2710 sensor

Real 117 degree Fisheye Lens Effect, Capture FHD video at a Super Wide Angle area with a Single Camera

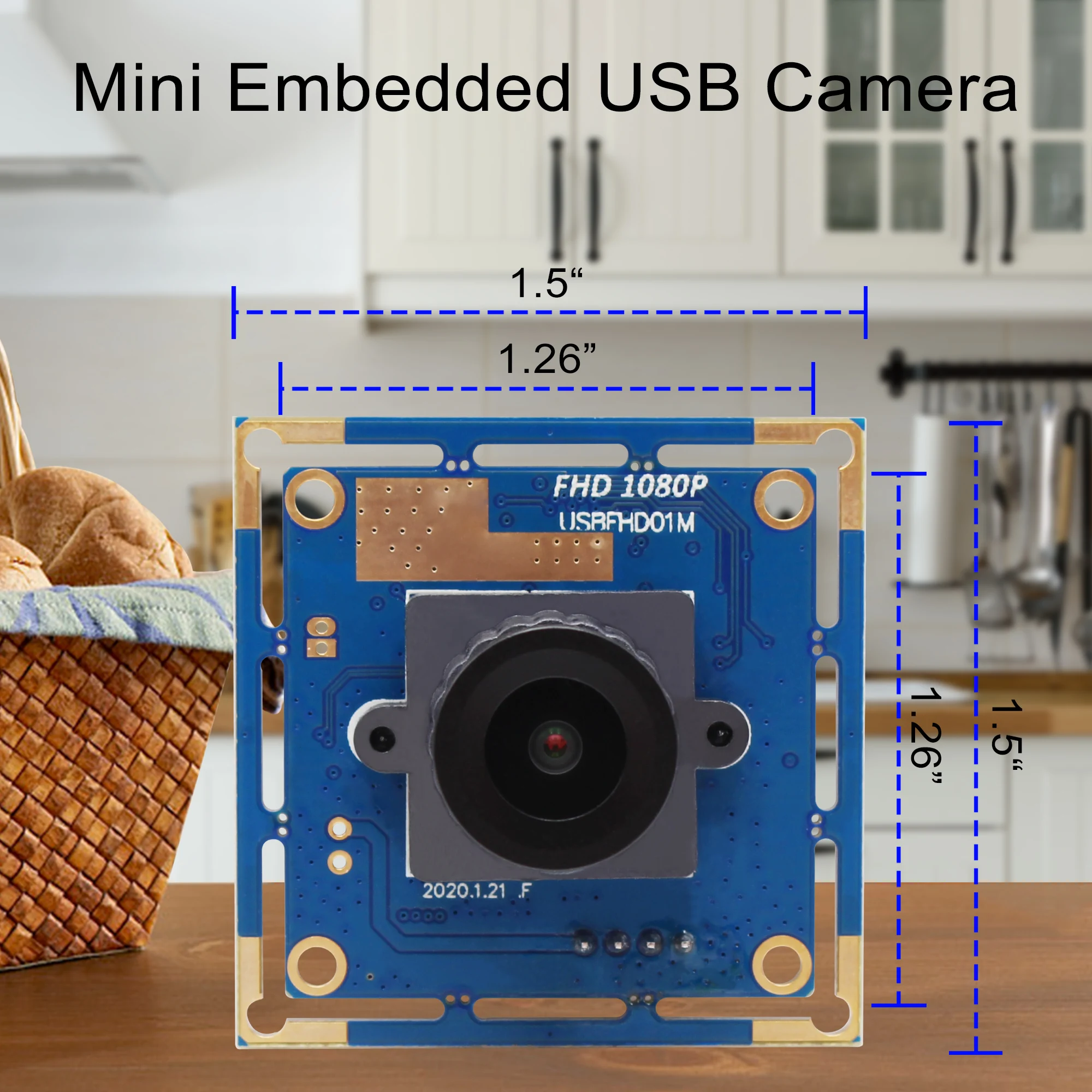

Super Small Outline And Thin Profile Mini Board Size for Embedded Machine Vision

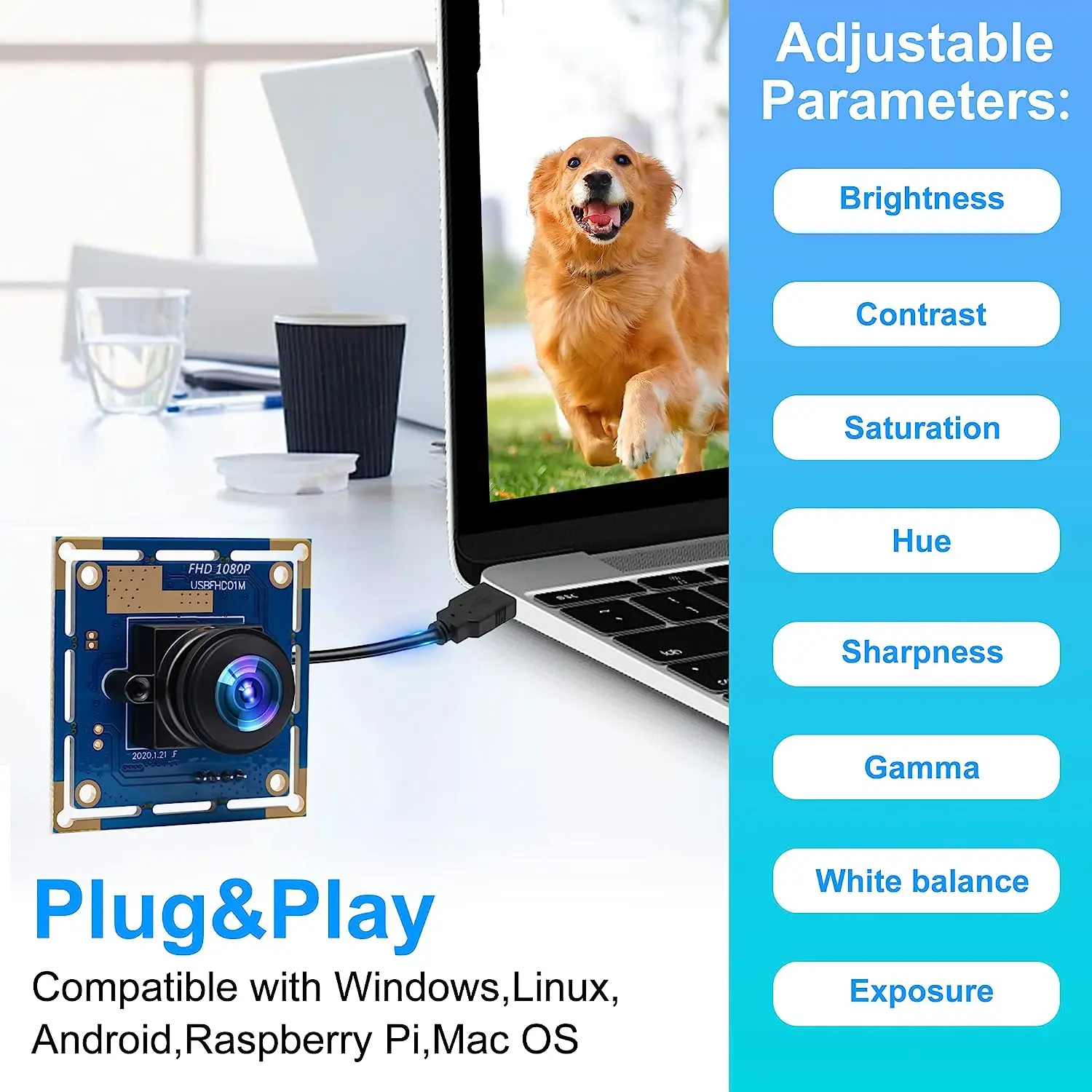

Easy to Set up & Plug and Play – You don’t need to install any driver, just simply plug it in and play, the HD 1080P webcam is perfect for your computer,phone and tablet. High quality with exquisite appearance. It can stand as you like.

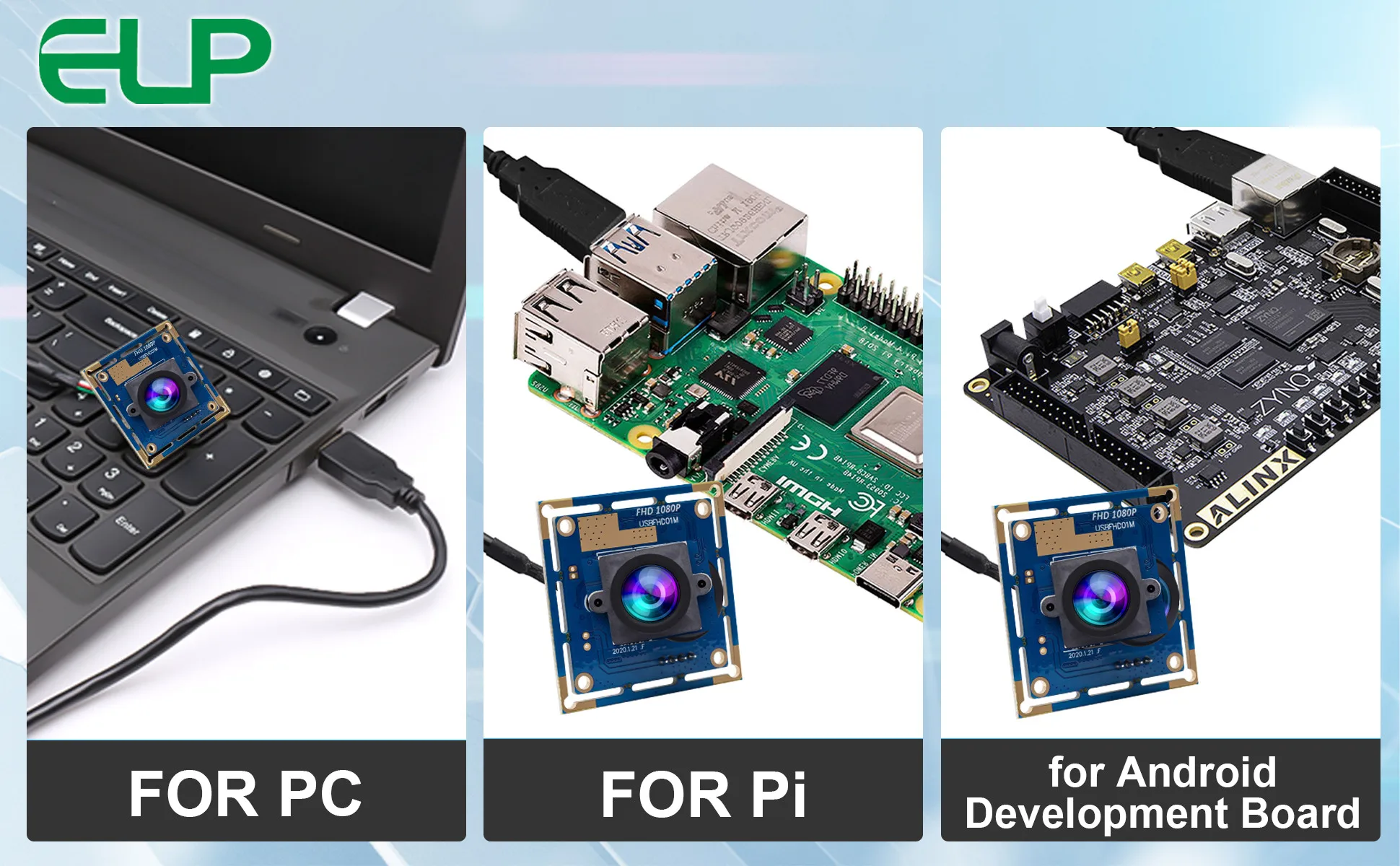

OTG Support , Can be Connected to computer,laptop,pc,Android development board,Raspberry Pi development board,Jetson Nano,etc

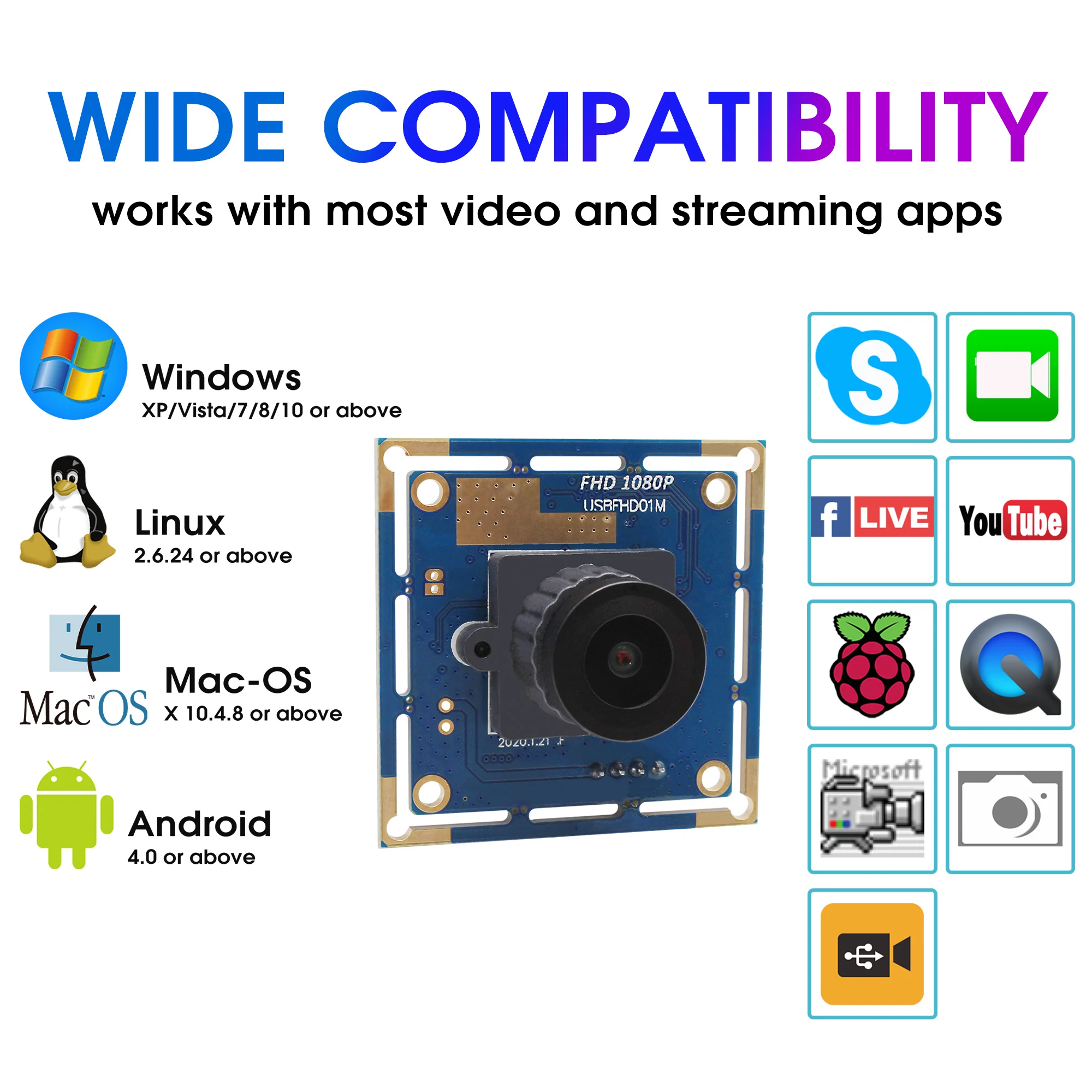

Wide Compatibility

– Versatile 1080P webcam usb camera for Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Livestreaming services,

– Widely works with WinXP/Vista/Windows 7/8,Windows 10 Linux with UVC（above linux-2.6.26）MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC

1. Sports Analysis enable capturing fast-paced sports actions, such as golf swings, tennis strokes, or soccer kicks, in slow motion for detailed analysis. Coaches, athletes, and sports commentators can study the mechanics of movements, identify flaws, and provide insightful commentary.

2. Motion Analysis and Biomechanics: help capture and analyze human and animal movements, study gait analysis, evaluate athletic performance, and understand the mechanics of various movements.

3. Industrial Inspection: for quality control and inspection in industrial settings.

4. Robotics and Automation: provide real-time visual feedback for robot navigation, object detection, and motion tracking. allows robots toreact quickly to changes in the environment and perform precise actions, enhancing their efficiency and accuracy.

5. Scientific Research: enable the study of fast events and phenomena, such as chemical reactions, fluid dynamics, combustion processes, or material testing.

6. Entertainment and Media Production: for film production, special effects, and virtual reality applications.
