Description

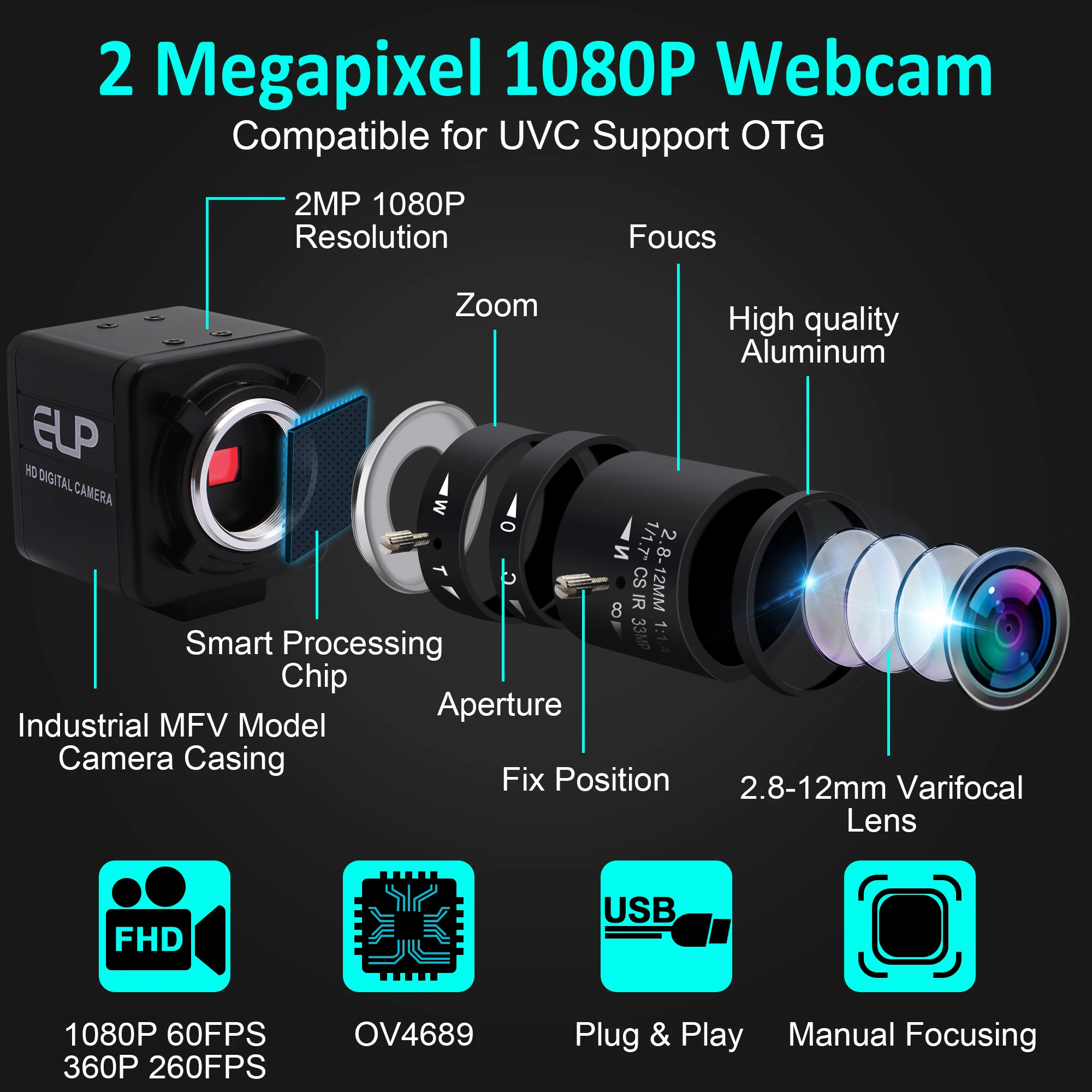

ELP High Speed Camera 260fps 120fps 60fps Manual Zoom Webcam with 2.8-12mm Varifocal Zoom Lens 1080P OV4689 UVC Plug Play PC USB Video Camera for Motion Detection
Package include:
1) 1PC 2mp high speed usb camera with 2.8-12mm/5-50mm/6-60mm varifocal lens optional
2) 1PC 3m usb cable ( 1m/2m/5m cable optional)

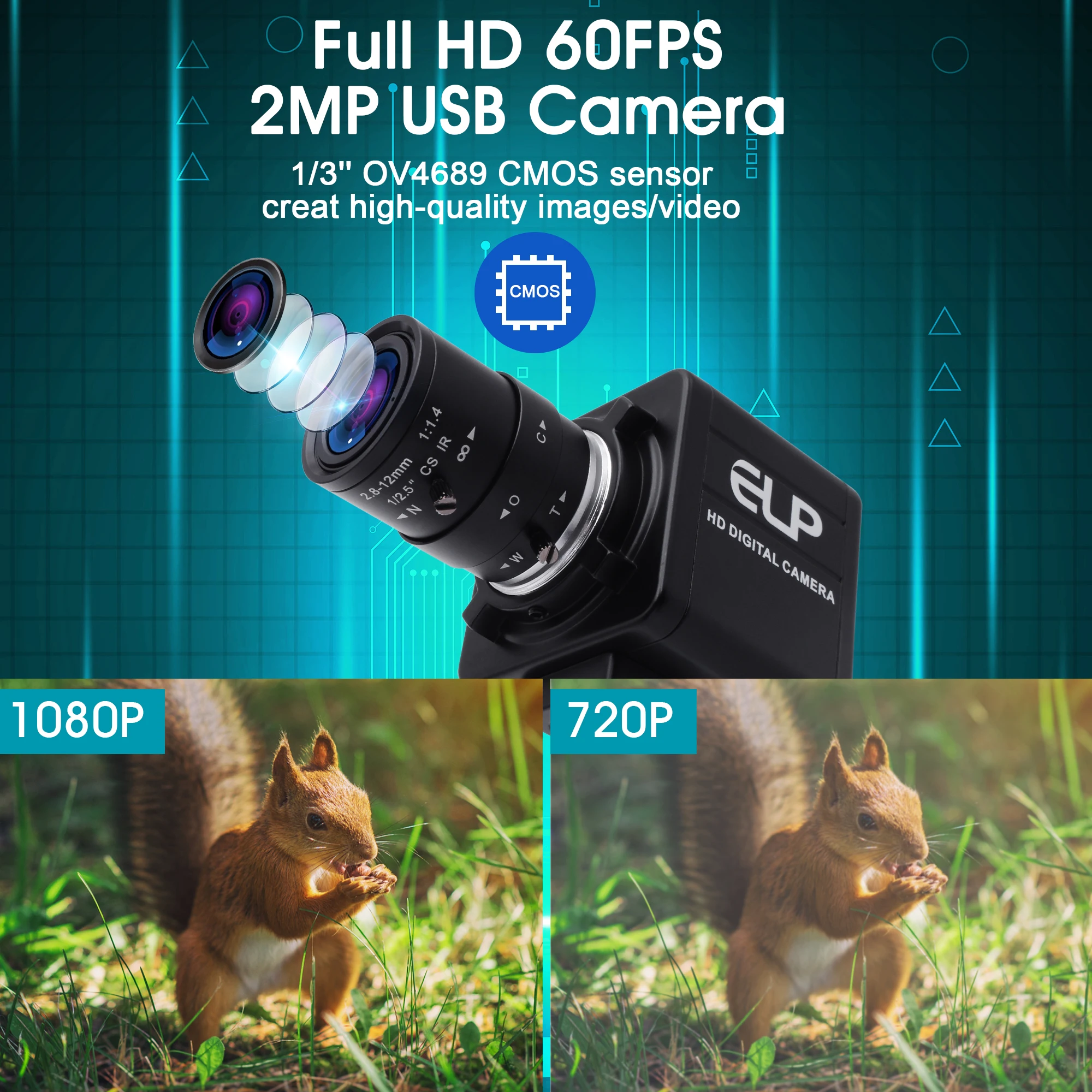

1.Sensor: With industrial grade 1/3” omnivisonOV4689 sensor for high quality image;
2.Resolution: Full HD 2MP 1080P high speed usb camera module;
3.High Speed: Mjpeg 260FPS@640*360, Mjpeg 120FPS@1080*720,Mjpeg 30FPS@1920*1080, etc.;
4.Megapixel Lens: High Quality 2.8-12mm/5-50mm/6-60mm vairfocal zoom lens, CS 4mm/6mm/8mm/12mm fixed focus lens optional;
5.High Quality Image: Super Image reality, real color reproduction, without interpolation;6.Low power consumption – ideal for portable equipment.
7.UVC Support: Free Driver , Plug and Play, Can be external camera for mobile phone, Tablet and other device which support OTG;
8.Support Systems: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…;
9.OTG Support: can be used on Android smartphone, recommended app “USB Camera”.
10.Wide Application: Well used for High Speed- sports photography, AI object recognition, Industrial inspection, Video
applications, Industrial automation, robotics, or scientific imaging. Some can also be used for Augmented and virtual reality, gesture and eye tracking, depth and motion detection…. and so on.
|
Model
|
ELP-USBFHD08S-MFV(2.8-12) (CS 2.8-12mm 4X zoom lens)
Optional Models:
ELP-USBFHD08S-MFV(5-50) (CS 5-50mm 10X zoom lens)
ELP-USBFHD08S-MFV(6-60) (CS 6-60mm 4X zoom lens)
ELP-USBFHD08S-MF40 (CS 4mm fixed focus lens)
ELP-USBFHD08S-MF60 (CS 6mm fixed focus lens)
ELP-USBFHD08S-MF80 (CS 8mm fixed focus lens)
ELP-USBFHD08S-MF12 (CS 12mm fixed focus lens)
|
|

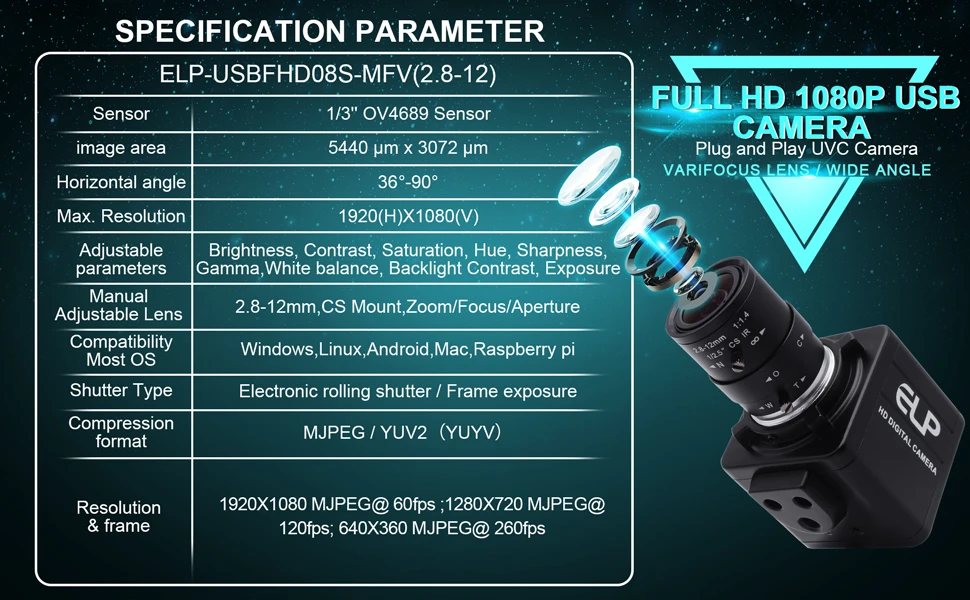

Sensor
|
OV4689
|
|
Lens Size
|
1/3 inch
|
|
Pixel Size
|
2.0µm X 2.0µm
|
|
image area
|
5440 µm x 3072 µm
|
|
Max. Resolution
|
1280(H)X720(V)
|
|
Compression format
|
MJPEG / YUV2（YUYV）
|
|
Resolution & frame
|
1920X1080 MJPEG@ 60fps
1280X720 MJPEG@ 120fps
640X360MJPEG@ 260fps
|
|
S/N Ratio
|
38.3dB
|
|
Dynamic Range
|
64.6dB
|
|
Sensitivity
|
1900mV/lux-sec@550nm
|
|
Mini illumination
|
0. 1lux
|
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
|
Connecting Port type
|
USB2.0 High Speed
|
|
Free Drive Protocol
|
USB Video Class（UVC）
|
|
AEC
|
Support
|
|
AEB
|
Support
|
|
AGC
|
Support
|
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure |
|
Lens Parameter
|
2.8-12mm/5-50mm/6-60mm CS zoom lens, 4/6/8/12mm CS lens optional |
|
Power supply
|
USB BUS POWER
|
|
Operating Voltage
|
DC5V
|
|
Working current
|
150mA~185mA
|
|
Working temperature
|
0～70℃
|
|

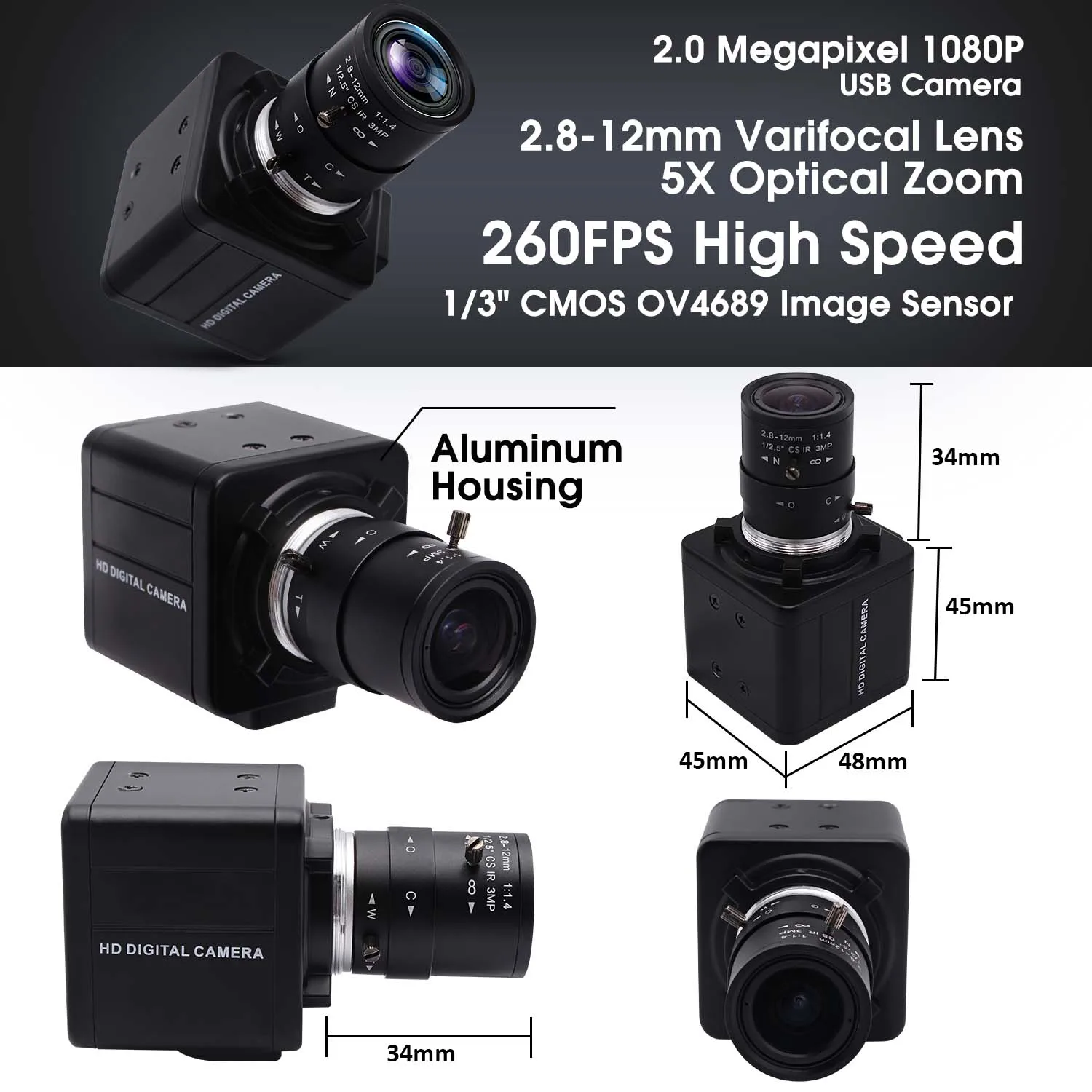

Board size /Weight
|
38*38mm
|
|
Cable
|
Standard 3M, optional 1/2/5m length
|
|

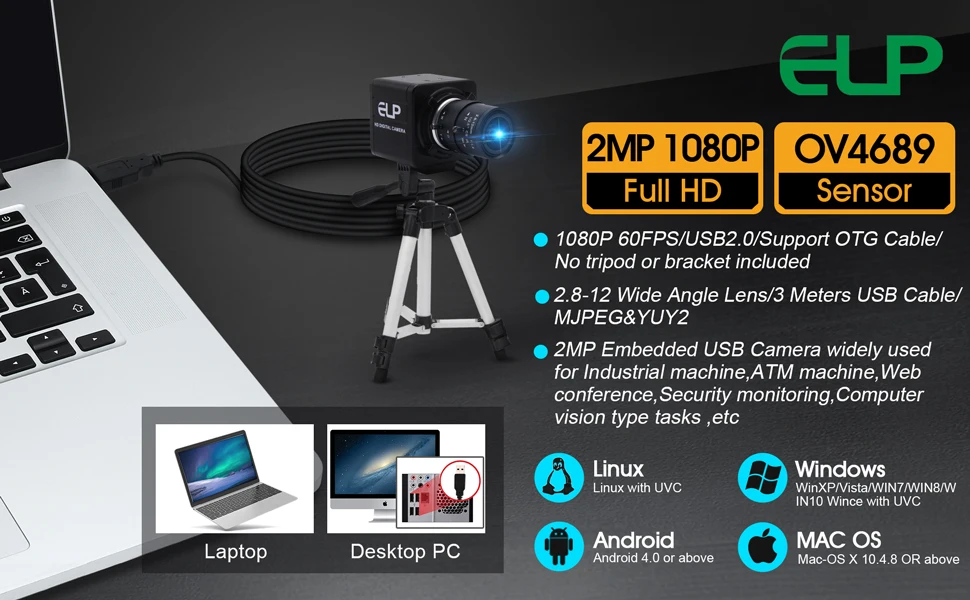

Operating system request
|
Win XP/Vista/Win7/Win8/Win9/Win10/Win11 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |

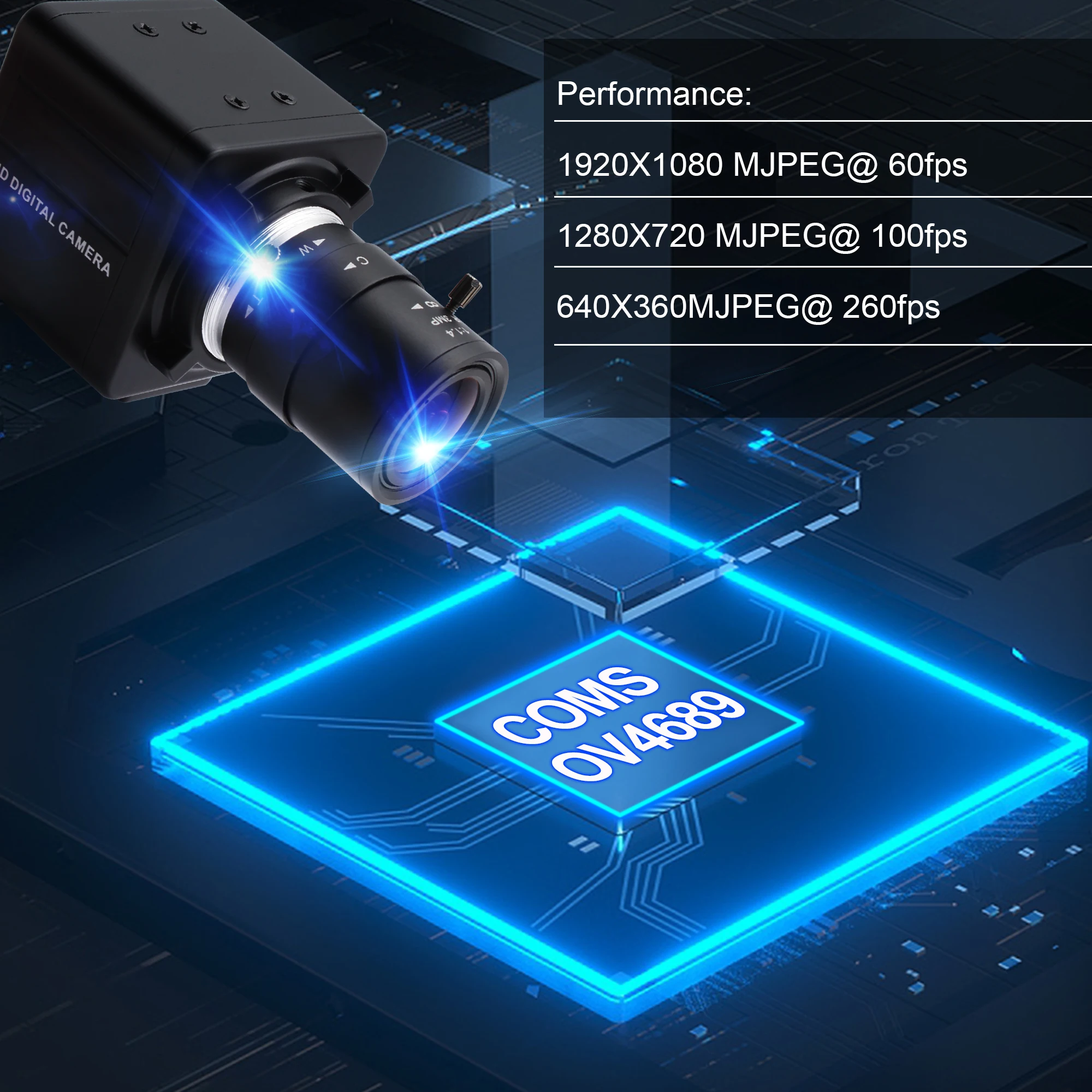

High frame rate 1080P USB Camera, Real fps shown via windows software:

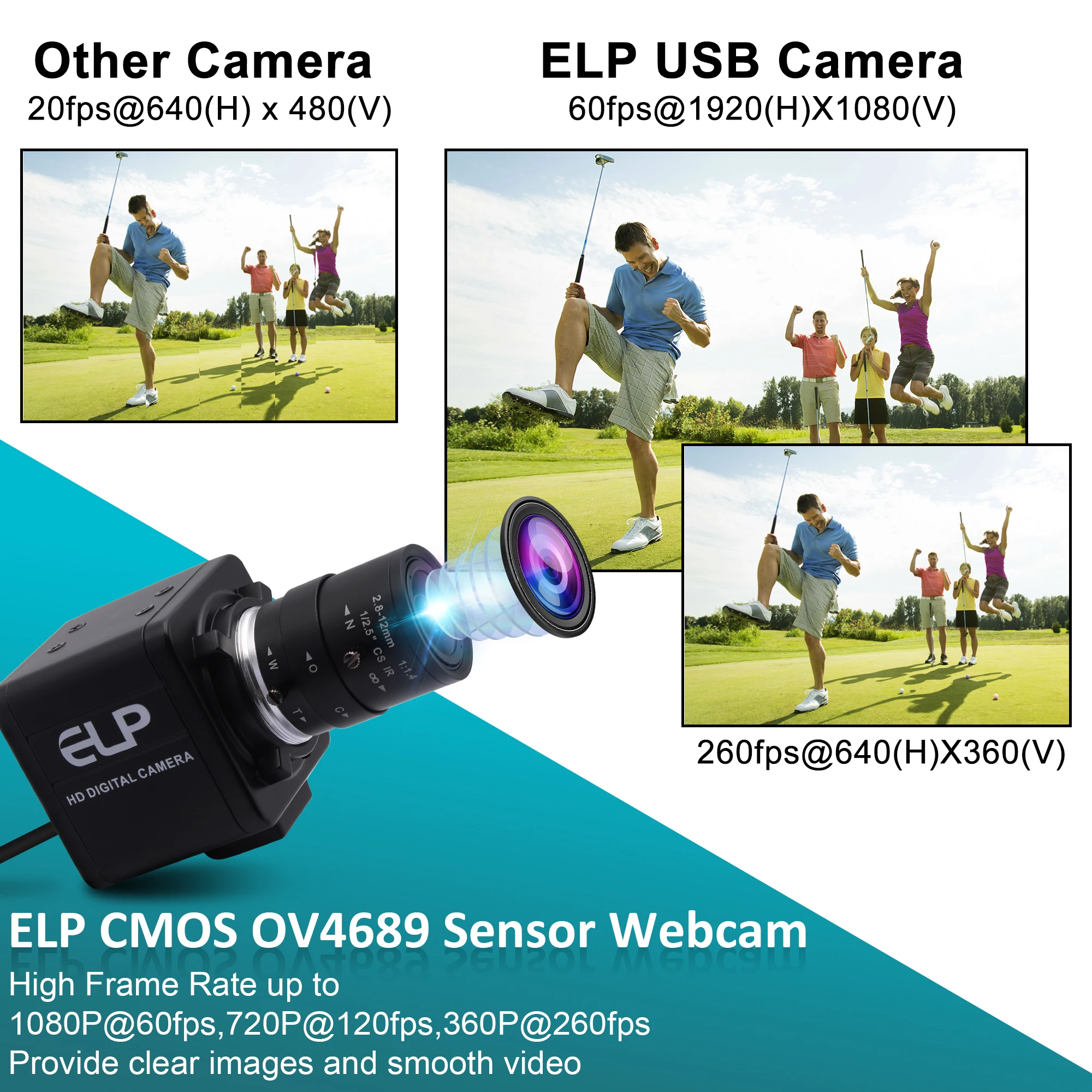

High frame rate:
-
60fps@1920*1080P
-
120fps@1280*720P
-
260fps@640*360P
Lens is changeable, you can also install other CS or C mount lens ( We have C mount adapter,if you need,please tell me)
With mounting screw holes on the case for connection with bracket (bracket is not included in package)

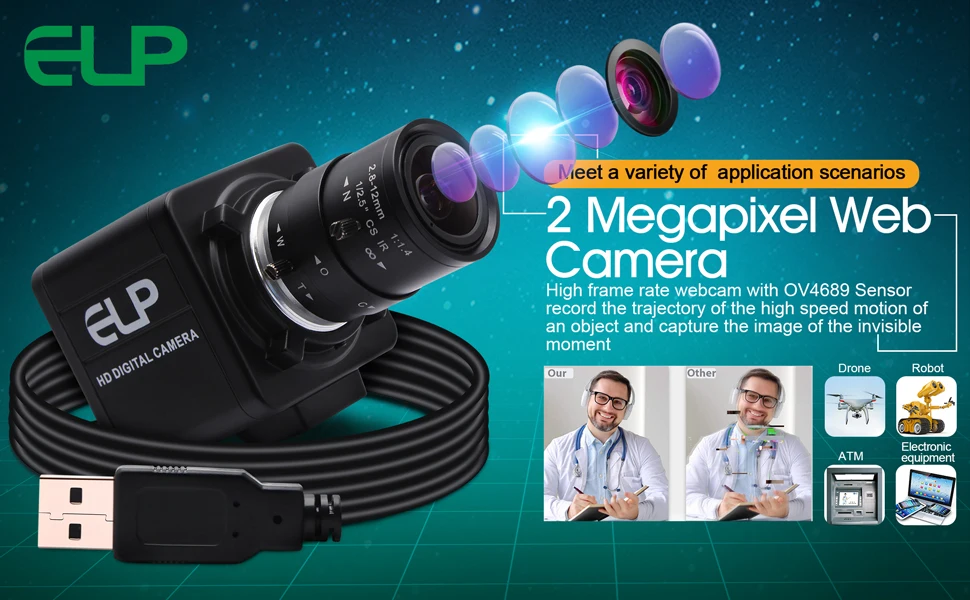

Camera with default 3M USB Cable, optional 1m/2m/5m,if you need other lens, feel free to let me know.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
