Description
ELP Ultra HD 48MP Fast Autofocus USB Camera Module 8000*6000 UVC Free Driver USB Webcam for Document Scan,Industrial Inspection
Package included:
1) 1pcs 48mp usb camera with Non distortion lens
2) 1pcs 1m usb cable, (2/3m length optional)
Description:
This High Resolution 48MP Autofocus USB Camera is based on big size 1/2” S5KGM1ST04-FG9 image sensor, Auto Focus, USB 2.0 UVC compliant camera. No extra drivers needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera. Fast auto focus about 200ms, quickly shoot the images or record videos with super Image reality, real color reproduction. Its ultra 8000*6000 resolution can be used in a wide range of applications where high-resolution images and videos with autofocus capabilities are required.
1.Ultra HD 8000X6000 High Resolution 48MP USB Camera.
2.Fast autofocus 48 megapixel usb camera, 200ms autofocus speed.
3.Wide angle no distortion lens, HFOV about 70 degree, DFOV about 82 degree.
4.With industrial grade high quality sensor S5KGM1ST04-FG9.
5.Super Image reality, real color reproduction, without interpolation.
6.UVC Free Driver , Plug and Play, easily used on different systems.

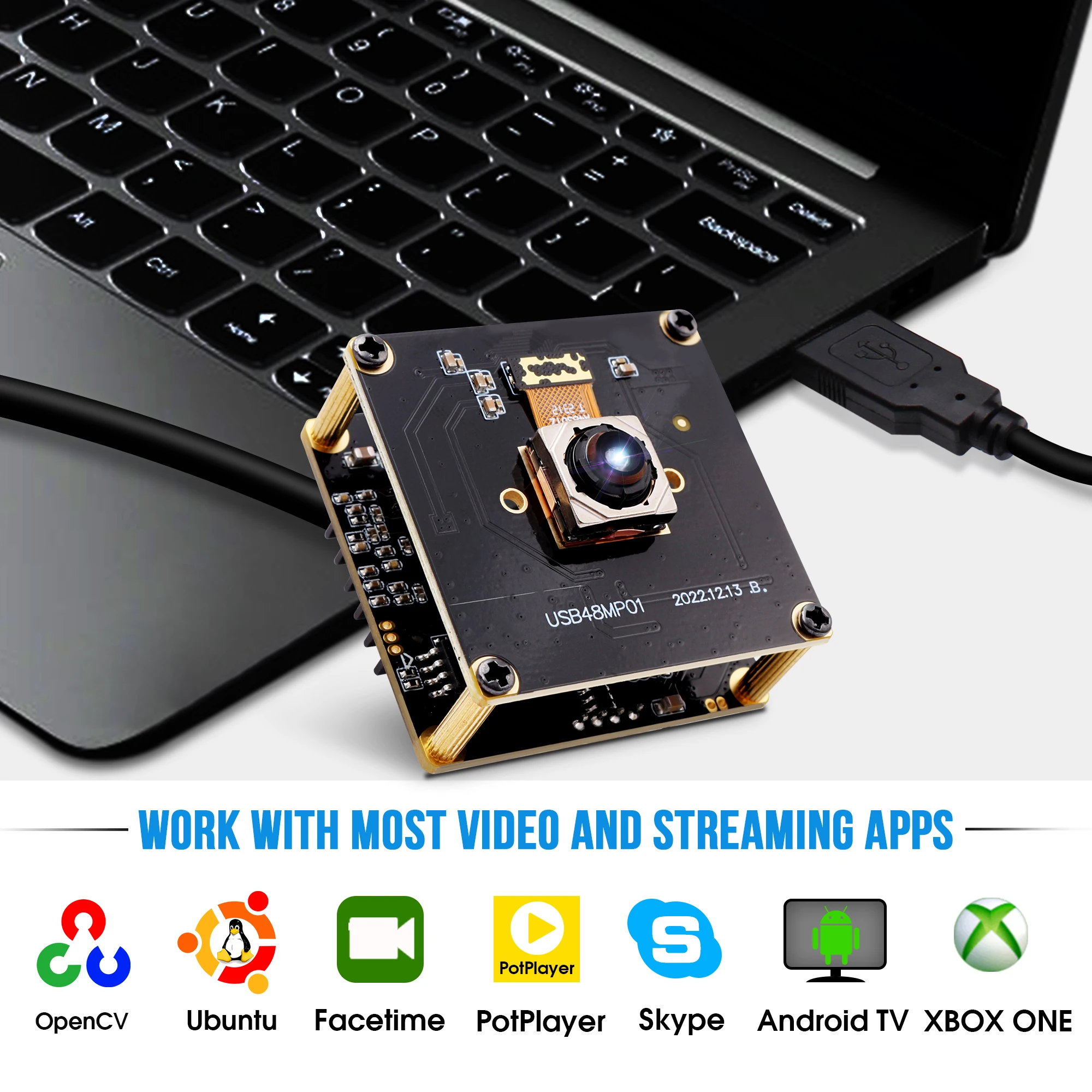

7.Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…
8.OTG Support, can be used on Android smartphone, recommended app “USB Camera”.
9.Wide Application: Well used for industrial camera, Video Conferencing,Live Streaming, Security, Medical device, Industrial Inspection,Scientific research and development , Education and Training, High Resolution Document Scan, High-speed photographic apparatus, Photo scanner… and so on.
| Model | ELP-USB48MP01-AF70 (without case)
ELP-USB48MP01-KAF70 (with metal case) |
| Sensor | S5KGM1ST04-FG9 |
| Max. Resolution | 8000(H)*6000(V) |
| Lens Size | 1/2 inch(4:3) |
| Compression Format | MJPEG / YUV2(YUYV) |
| Resolution & FrameRate | 8000×6000@ 3fps MJPEG / 4000×3000@ 13fps MJPEG
3840×2160@ 30fps MJPEG / 1920×1080 @ 30fps MJPEG 1280×720 @ 30fps MJPEG |
| Surface Mount Technology | SMT |
| Focus | Auto |
| Focus Speed | Fast About 200ms |
| Central Definition | 1000LW/PH (Center) |
| S/N Ratio | 36dB |
| Dynamic Range | 82dB |
| Sensitivity | 1.4V/lux-sec@550nm |
| Min illumination | 0.3lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port Type | USB2.0 High Speed |
| AEC | Support |
| AWB | Support |
| AdjustableParameters | Brightness,Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure |
| Lens Parameter | Size1/2
DFOVAbout 82degree HFOVAbout 70degree Mount M8.15*P0.35 |
| Power Supply | USB BUS POWER 4P-2.0mmSocket |
| Operating Voltage | DC5V |
| Working Current | 550Ma- 610mA |

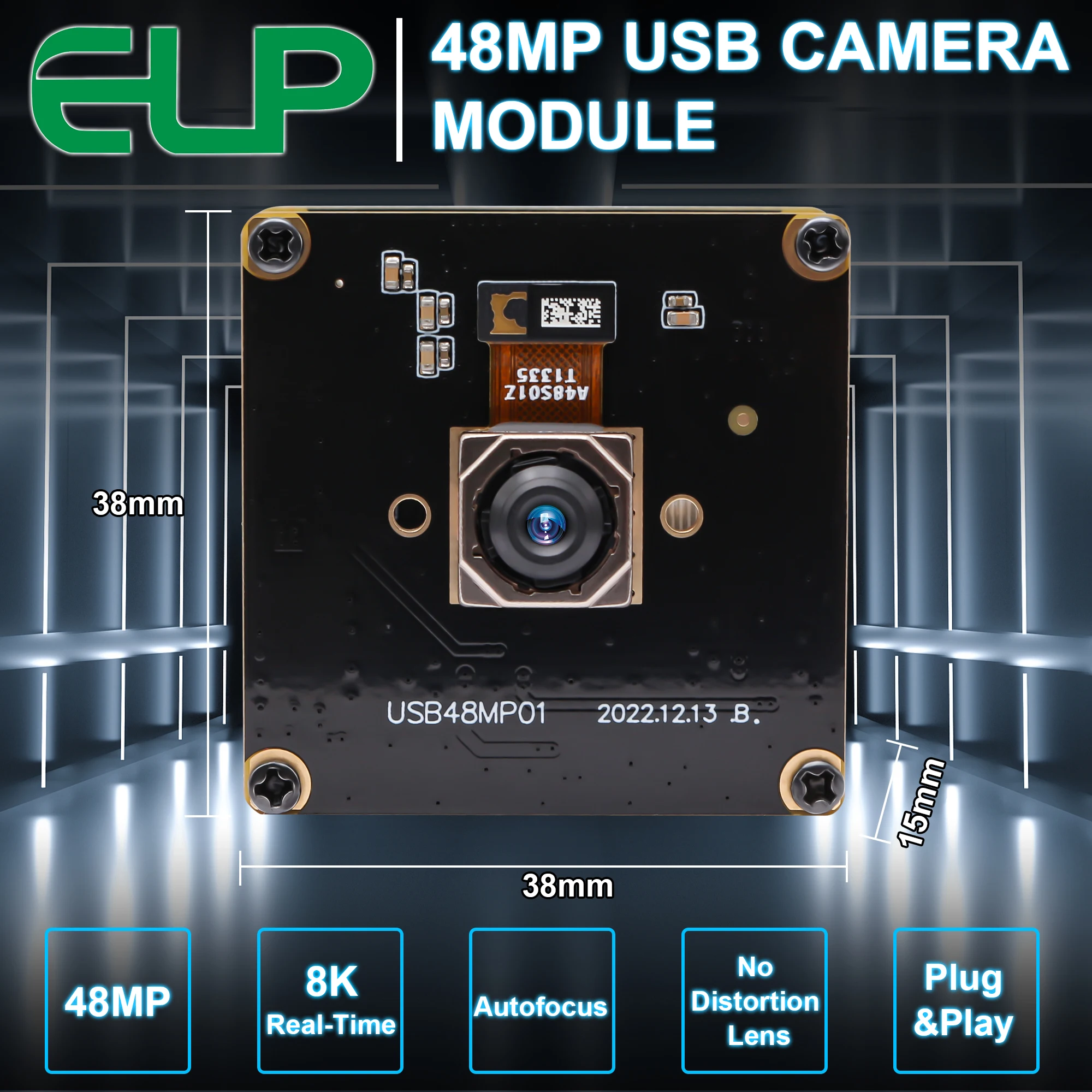

| Board Size | Double-deck,38mm ×38mm |
| Storage Temperature | -20°C to 80°C |
| Working Temperature | 0°C to 70°C |
| USB Cable | Standard 1m/ optional 2m,3m… |
| Operating System Request | WinXP/Vista/Win7/Win8/ Win10/ Win11 etc.
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
Applications of 48mp autofocus usb camera module:
- Video Conferencing: With the rise of remote work and online meetings,a 48MP autofocus USB camera module can be used to provide high-quality video forvideo conferencing applications.
- Live Streaming: Content creators and streamers can use a 48MP autofocus USBcamera module to capture high-resolution video with autofocus capabilities,providing high-quality footage for their audience.
- Security and Surveillance: A 48MP autofocus USB camera module can be used insecurity and surveillance applications,providing high-resolution images and videos with autofocus capabilities for better analysis and identification.
- Medical Imaging: In the medical field,a 48MP autofocus USB camera module can be used for imaging applications, such as telemedicine and remote diagnosis.
- Industrial Inspection: A 48MP autofocus USB camera module can be used in industrial inspection applications, providing high-resolution images withautofocus capabilities for quality control and analysis.
- Research and Development : A 48MP autofocus USB camera module can be used in
scientific research applications, such as microscopy and spectroscopy,to capture high-resolution images and videos with autofocus capabilities for better analysis and documentation.
- Education and Training: A 48MP autofocus USB camera module can be used in education and training applications,providing high-quality videos withautofocus capabilities for better demonstrations and lectures.
Overall,a 48MP autofocus USB camera module can be used in a wide range of applications where high-resolution images and videos with autofocus capabilities are required.
