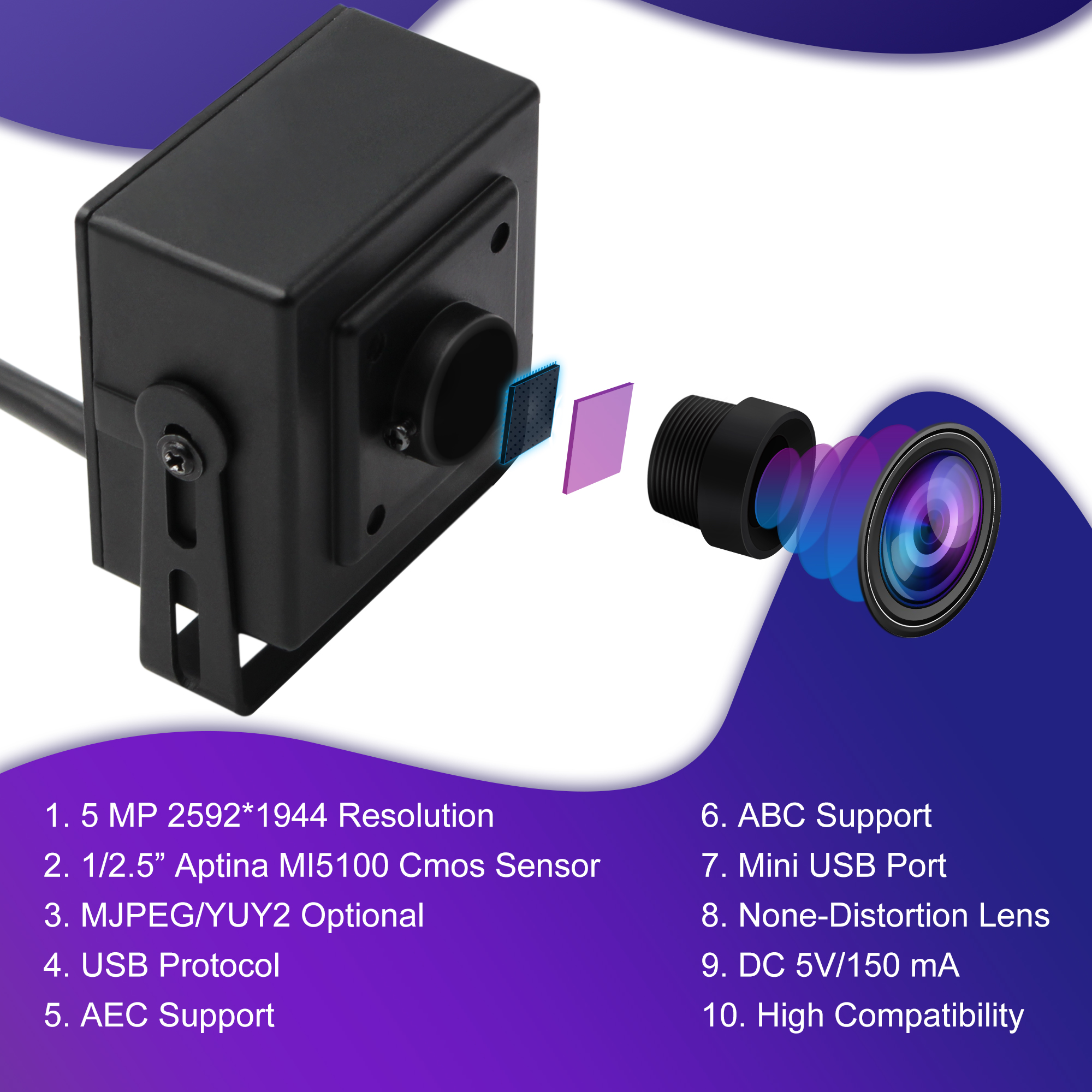

SVPRO 5MP Aptina MI5100 color CMOS 100 degree no distortion lens high speed usb camera high resolution usb webcam

59.90$ 51.45$

*High Speed 5MP HD USB Camera
*Equiped with 100 degree no distortion lens ( 2.8/3.6/6/8/12mm lens/100 degree no distortion lens optional)
*Can drive 30fps@1080P and 30fps@720p
*CMOS Aptina MI5100 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 30 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

120 in stock

Description

SVPRO 5MP Aptina MI5100 color CMOS 100 degree no distortion lens high speed usb camera high resolution usb webcam

5MP USB CAMERA

General Description:

The HD 5MP USB CMOS board camera module(model:SV-USB500W05G serials) is ideal for many applications like security
systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by OmniVision, one of the world leaders in this field of electronics.
The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.

Model
USB500W05G-BL100
Sensor
Aptina MI5100
Lens Size
1/2.5 inch (4:3)
Pixel Size
2.2um
image area
5.7mm x 4.28mm
Max. Resolution
2592(H) X 1944(V)
Compression format
MJPEG / YUV2(YUYV)
Resolution & frame
2592×1944 @ 15fps MJPEG / 2048×1536 @ 15fps MJPEG
1600×1200 @ 15fps MJPEG / 1280×1024 @ 15fps MJPEG
1920×1080 @ 30fps MJPEG / 1280×720 @ 30fps MJPEG
800×600 @ 30fps MJPEG / 640×480 @ 30fps MJPEG
S/N Ratio
38dB
Dynamic Range
70dB
Sensitivity
1.4V/lux-sec@550nm
Mini illumination
0.1 lux
Shutter Type
Electronic rolling shutter / Frame exposure
Connecting Port type
USB2.0 High Speed
Free Drive Protocol
USB Video Class(UVC)
Support OTG Protocol
USB2.0 OTG
AEC
Support
AEB
Support
AGC
Support
Adjustable parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens Parameter
100 degree no distortion lens
LED board control interface
Support  2P-1.25mm socket
LED board power connector
Support  2P-2.0mm socket
Power supply
USB BUS POWER 4P-2.0mm socket
Operating Voltage
DC5V
Working current
150Ma~200Ma
Working temperature
-10~70℃
Storage temperature
-20~85℃
Board size /Weight
38X38mm(Compatible 32X32mm)
Cable
Standard  3M / optional 1M,2M,5M
Operating system request
WinXP/Vista/Win7/Win8
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC

Additional information

Weight 0.25 kg
Dimensions 13 × 11 × 9 cm
