Description
ELP 8MP 3264X2448 Sony IMX179 USB Camera Industrial Varifocal Mini USB Webcam Camera Android,Linux, Windows for Robotic
Features
1. 1/3.2 inch Sony IMX179 USB webcam
2. 8 megapixel high resolution Mjpeg USB camera
3. UVC usb camera, Support windows, linux, Mac with UVC, also for android system.
Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.

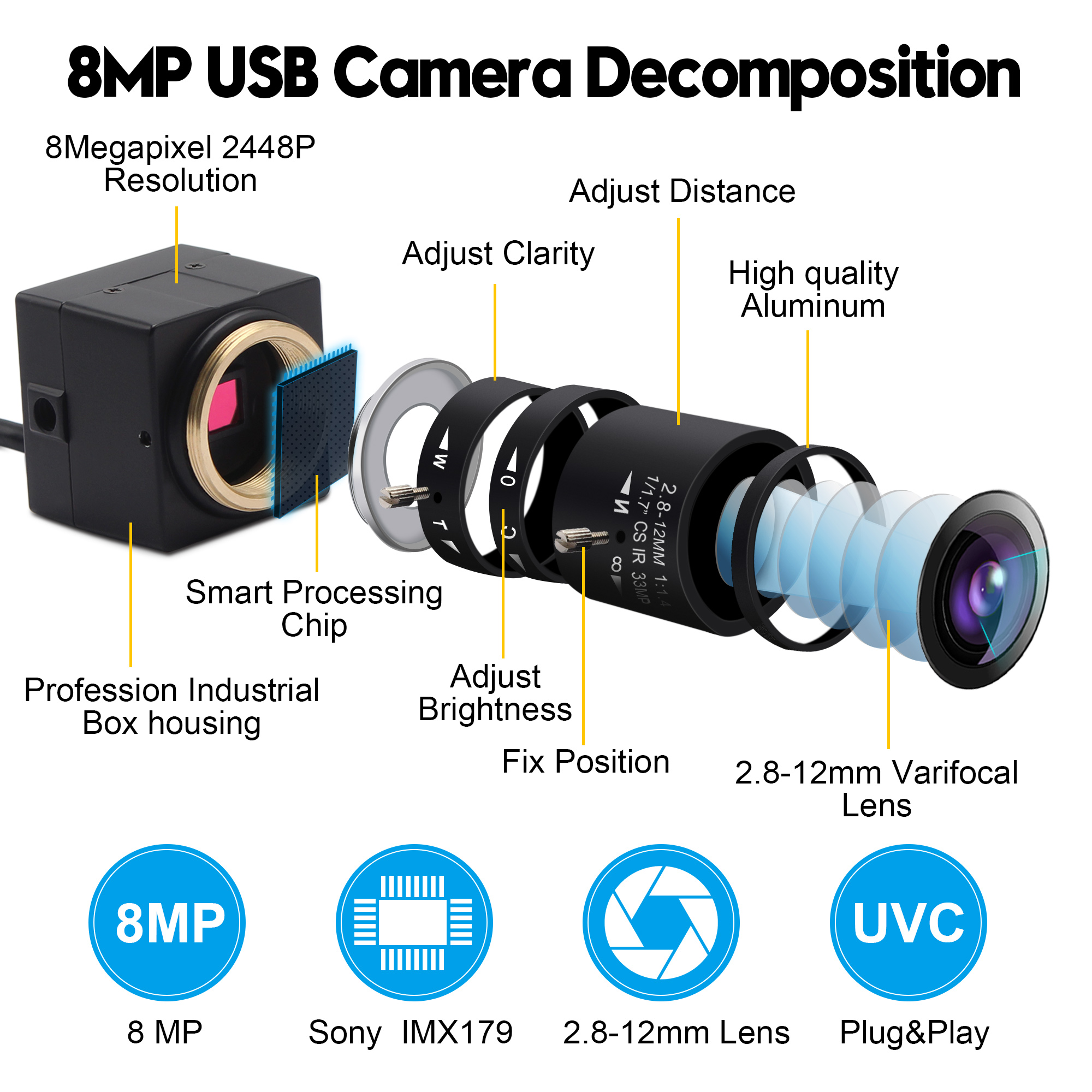

4. Webcam USB with 2.8-12mm varifocal manual lens
5. 38×38/32x32mm mini micro usb board camera euipped inside
6. USB webcam, well used in many machines, atm machine, medical machine, automatic vending machine, industry machine..
7. USB camera module Parameters changable (Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure…)
Spcifications
| Model: ELP-USB8MP02G-SFV(2.8-12) | |||
| Resolution & frame |
3264X2448 @ 15fps / 2592X1944@ 20fps 2048X1536 @ 20fps / 1600X1200@ 20fps 1280X960 @ 20fps / 1024X768@ 30fps 800X600 @ 30fps / 640X480@ 30fps |
||
| Sensor | SONY IMX179 | Compression format | MJPEG / YUV2(YUYV) |
| Lens Size | 1/3.2inch | Lens Parameter | 5-50mm varifocal lens |
| Pixel Size | 1.4um | Board size/Weight | 41*41mm,about 0.3kg |
| image area | 6.18mm x 5.85mm | Connecting Port type | USB2.0 High Speed |
| Max. Resolution | 3264(H) X 2448(V) 8Megapixel | Free Drive Protocol | USB Video Class(UVC) |
| S/N Ratio | 34dB | OTG protocol | USB2.0 OTG |
| Dynamic Range | 72.5dB | Shutter Type | Rolling shutter /
Frame exposure |
| Sensitivity | 0.65V/lux-sec@550nm | AEC,AEB,AGC | Support |
| Mini illumination | 0.5lux | Button Camera | Support |
| Operating Voltage | DC5V | Working temperature | -10~70 degree |
| Working current | 150mA~240mA | Storage temperature | -20~85 degree |
| Adjustable
parameter |
Brightness, Contrast, Saturation,
Sharpness, Gamma, Gain, White balance, Hue, Backlight Contrast, Exposure |
LED board control interface | Support 2P-1.25mm socket |
| LED board power connector | Support 2P-2.0mm socket | ||
| Support OS | WinXP/Vista/WIN7/WIN8 /WIN10 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above |
||
