Description

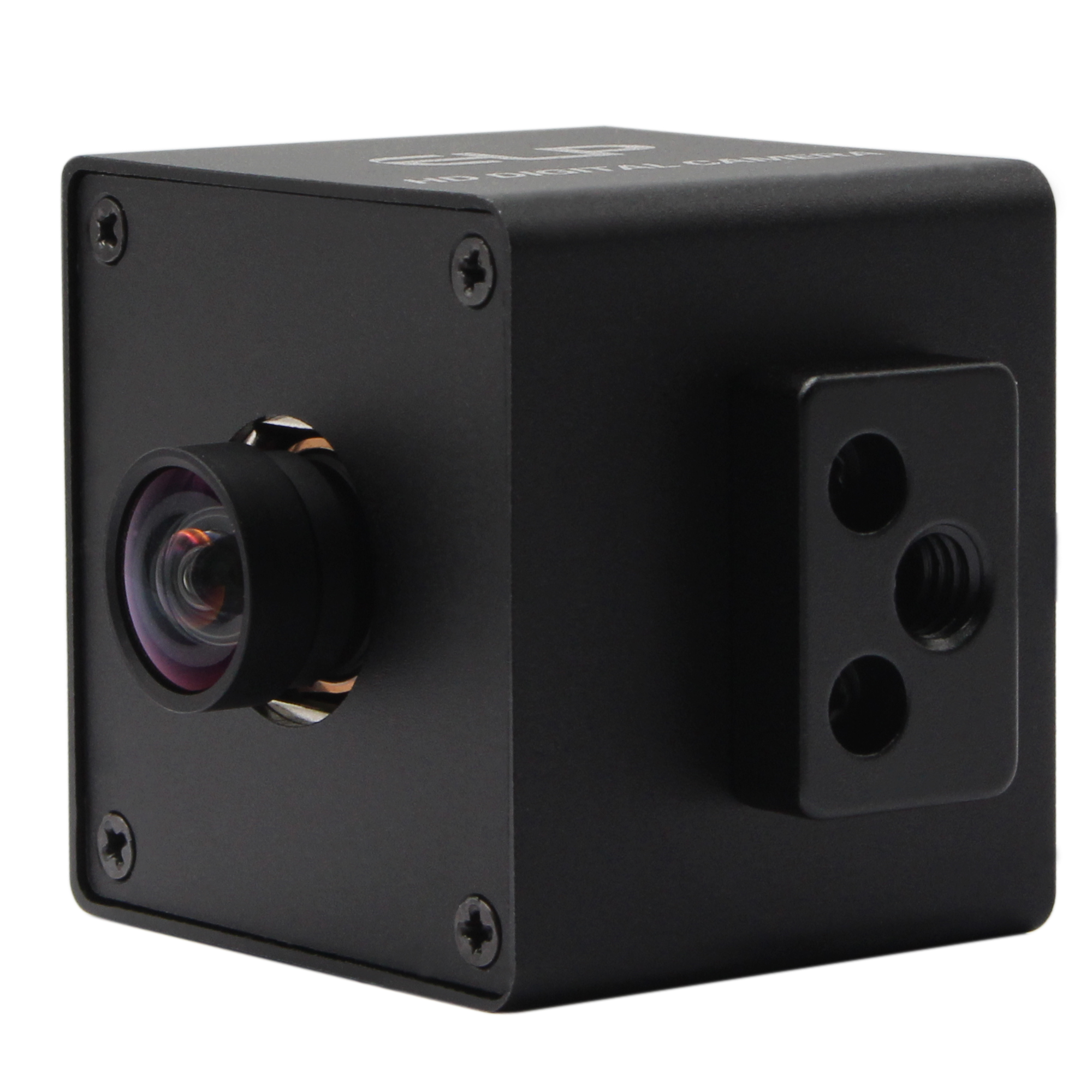

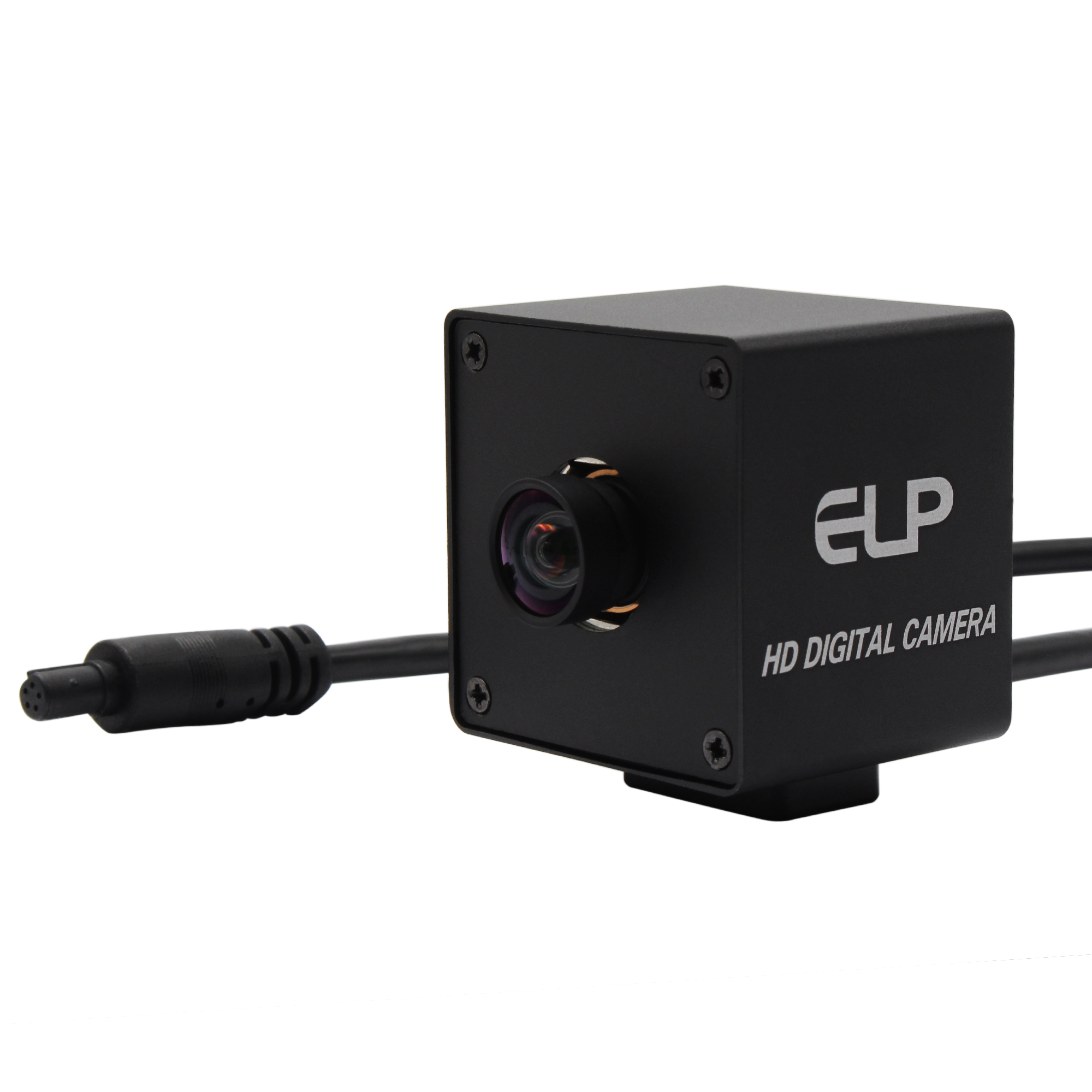

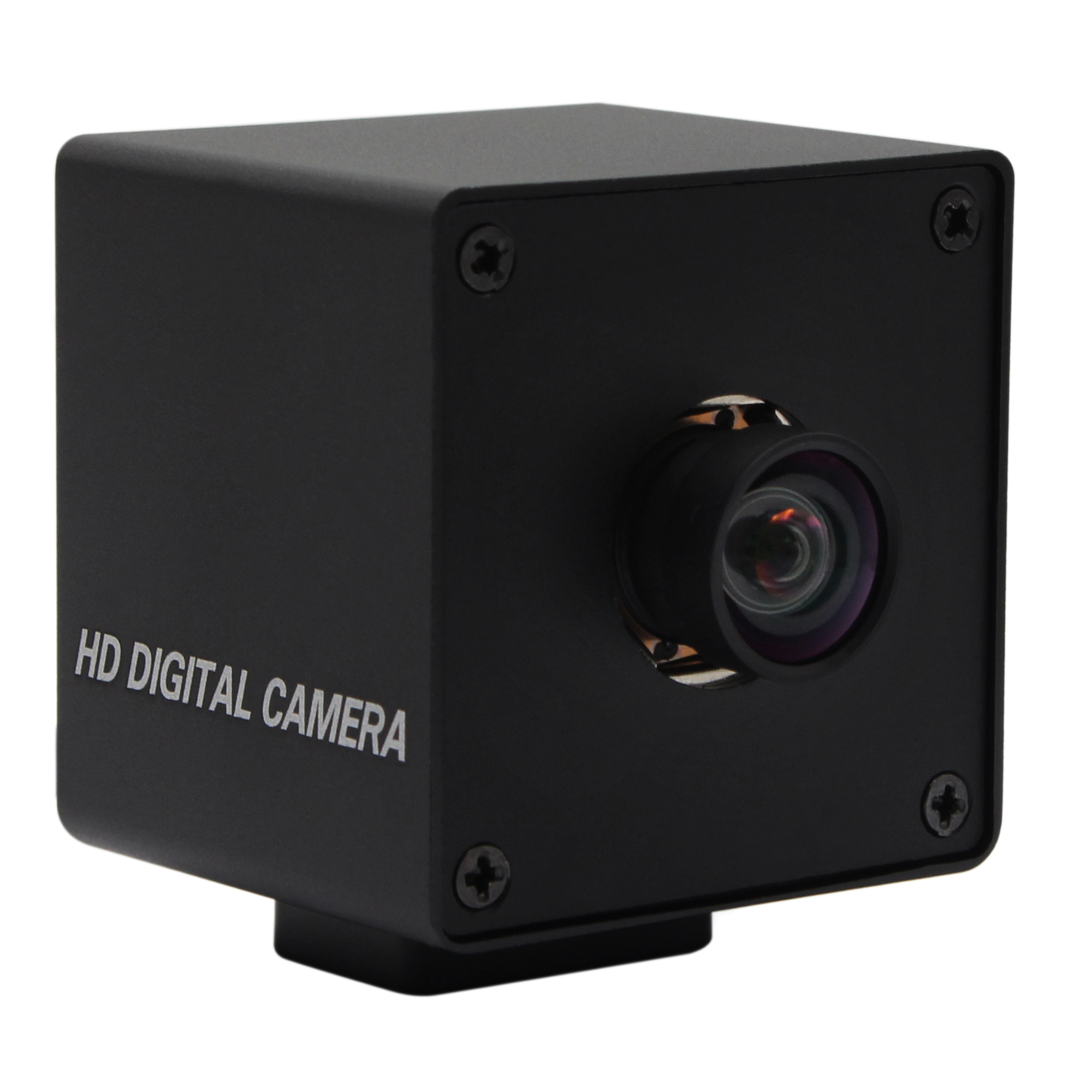

ELP No distortion 4K Autofocus USB Webcam CMOS SONY IMX415 Video Surveillance USB Cameras for Machine Vision, Document Scanning
Picture effect:
Feature:
*Super high resolution 4K 3840×2160 USB camera module
*SONY IMX415 (1/2.8” ) for high quality image.
* High quality no distortion lens/2.1/2.8/3.6/6/8/12/25mm lens optional .
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
* Auoto focus, with motor
*low light performance – ideal for any lighting condition.
*Super small outline 38*38mm and thin profile for embedded applications.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or Android4.0 above.
Specification:
| Model NO.: | ELP-USB4K02AF-KL100 |
| Image Sensor | SONY IMX415 (1/2.8” ) |
| Max. Resolution | 3840(H) *2160 (V) |
| Sensitivity | 1000mV/Lux-sec |
| Pixel Size | 1.45µmx1.45µm |
| Compression format | MJPEG / YUY2（YUYV） |
| Resolution & frame | 3840×2160@ 30fps MJPEG / 2592×1944@ 30fps MJPEG
2048×1536@ 30fps MJPEG /1600×1200@ 30fps MJPEG 1920×1080@ 30fps MJPEG/ 1280×960@30fps MJPE 1280×720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG 640×480@ 30fps MJPEG / 320×240@ 30fps MJPEG 3840×2160@ 1fps YUY2 / 2592×1944@ 1fps YUY2 2048×1536@ 3fps YUY2 /1600×1200@ 5fps YUY2 1920×1080@ 5fps YUY2/1280×960@5fps YUY2 1280×720@ 5fps YUY2 / 800 x 600@ 20fps YUY2 640×480@ 30fps YUY2 / 320×240@ 30fps YUY2 |
| Center definition | 1000LW/PH (Center) |
| S/N Ratio | 30dB |
| Sensitivity | 0.65V/lux-sec@550nm |
| Minimum illumination | 0.2lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Auto Focus | Support |
| Adjustable parameters | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White
Balance, Exposure |
| Lens Parameter
|
Size: 1/2.5, FOV: 94.5Degree
IR filter: 650±10nm |
| Power supply& connector | USB BUS POWER 4P-2.0mm socket |
| Power Voltage | DC5V |
| Power Current | 200mA |
| Board Size | 38mm × 38mm |
| Storage Temperature | -20°C to 70°C |
| Work Temperature | 0°C to 60°C |
| USB Cable | 1M(2M/3M/5M optional) |
| Operating System support | Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
