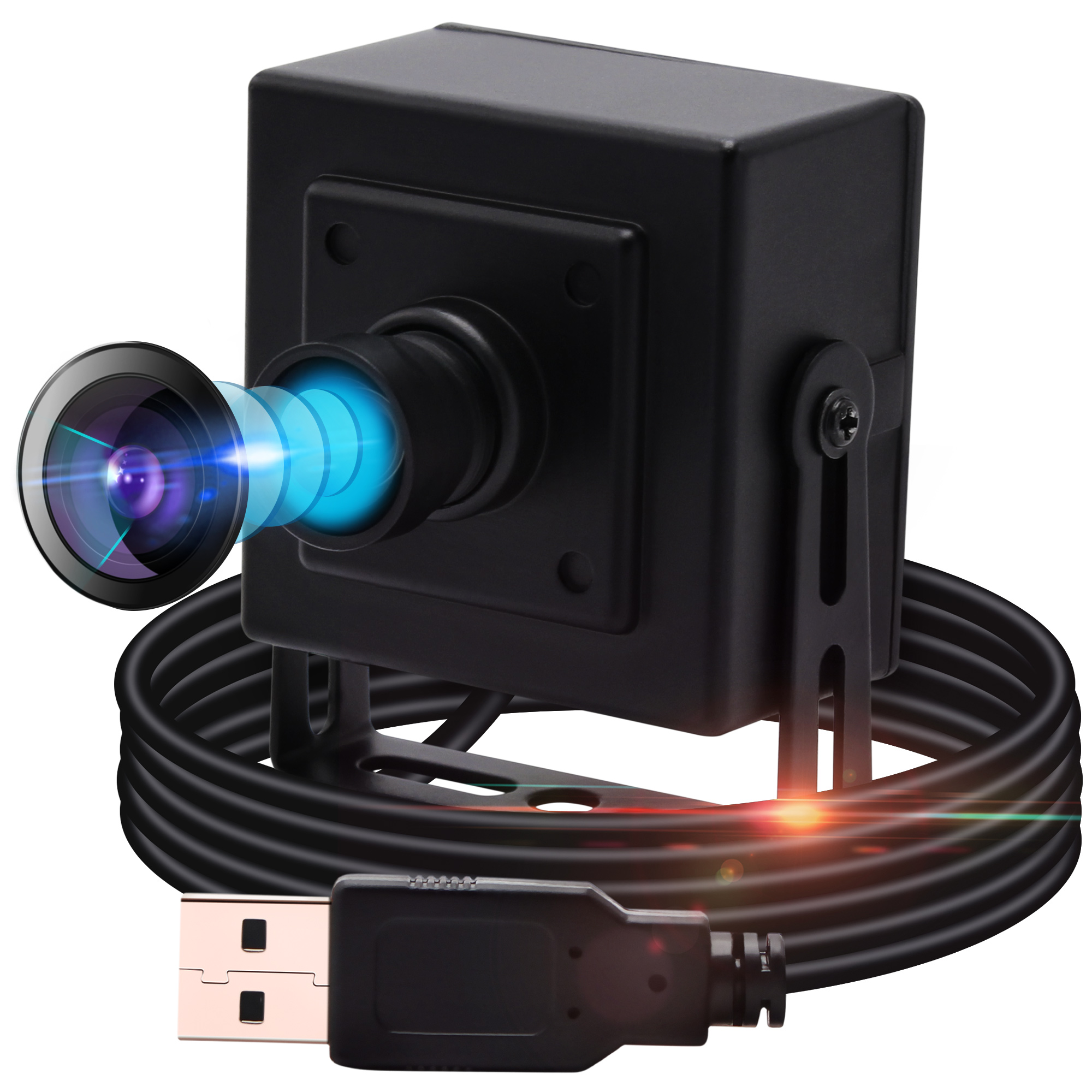

ELP Sony IMX179 8MP Surveillance USB Camera Undistortion Lens High Definition Webcam For Industrial Machine


Model: ELP-USB8MP02G-BL100

152 in stock


ELP Sony IMX179 8MP Surveillance USB Camera Undistortion Lens High Definition Webcam For Industrial Machine



1.  1/3.2 inch Sony IMX179 USB webcam, Undistortion Lens

2.  8 megapixel high resolution Mjpeg USB camera

3.  UVC usb camera, Support windows, linux, Mac with UVC, also for android system.

Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.

4.  Webcam USB with 75 degree no distortion lens

5. 41*41mm mini micro usb Box camera

6. USB webcam, well used in many machines, atm machine, medical machine, automatic vending machine, industry machine..

7. USB camera module Parameters changable (Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure…)




Model: ELP-USB8MP02G-BL100
Resolution &
3264X2448 @ 15fps / 2592X1944@ 20fps
2048X1536 @ 20fps / 1600X1200@ 20fps
1280X960 @ 20fps / 1024X768@ 30fps
800X600 @ 30fps / 640X480@ 30fps
Sensor SONY IMX179 Compression format  MJPEG / YUV2(YUYV)
Lens Size 1/3.2inch Lens Parameter FOV 100degree undistortion lens
Pixel Size 1.4um Board size/Weight 41*41mm,about 0.3kg
image area 6.18mm x 5.85mm Connecting Port type USB2.0 High Speed
Max. Resolution 3264(H) X 2448(V) 8Megapixel Free Drive Protocol USB Video Class(UVC)
S/N Ratio 34dB OTG protocol USB2.0 OTG
Dynamic Range  72.5dB Shutter Type Rolling shutter /

Frame exposure

Sensitivity  0.65V/lux-sec@550nm AEC,AEB,AGC  Support
Mini illumination 0.5lux Button Camera Support
Operating Voltage DC5V Working temperature  -10~70 degree
Working current 150mA~240mA Storage temperature  -20~85 degree


Brightness, Contrast, Saturation,

Sharpness, Gamma, Gain,

White balance, Hue,

Backlight Contrast, Exposure

LED board control interface  Support 2P-1.25mm socket
LED board power connector Support 2P-2.0mm socket
Support OS WinXP/Vista/WIN7/WIN8 /
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC,
Android 4.0 or above


Additional information

Weight 0.35 kg
Dimensions 13 × 10 × 9 cm
