Description
ELP USB Video Camera Support OTG IR 1080P 30fps Mjpeg Yuy2 Wide Angle USB Camera For For Truck/Van/Vehicle OEM/ODM

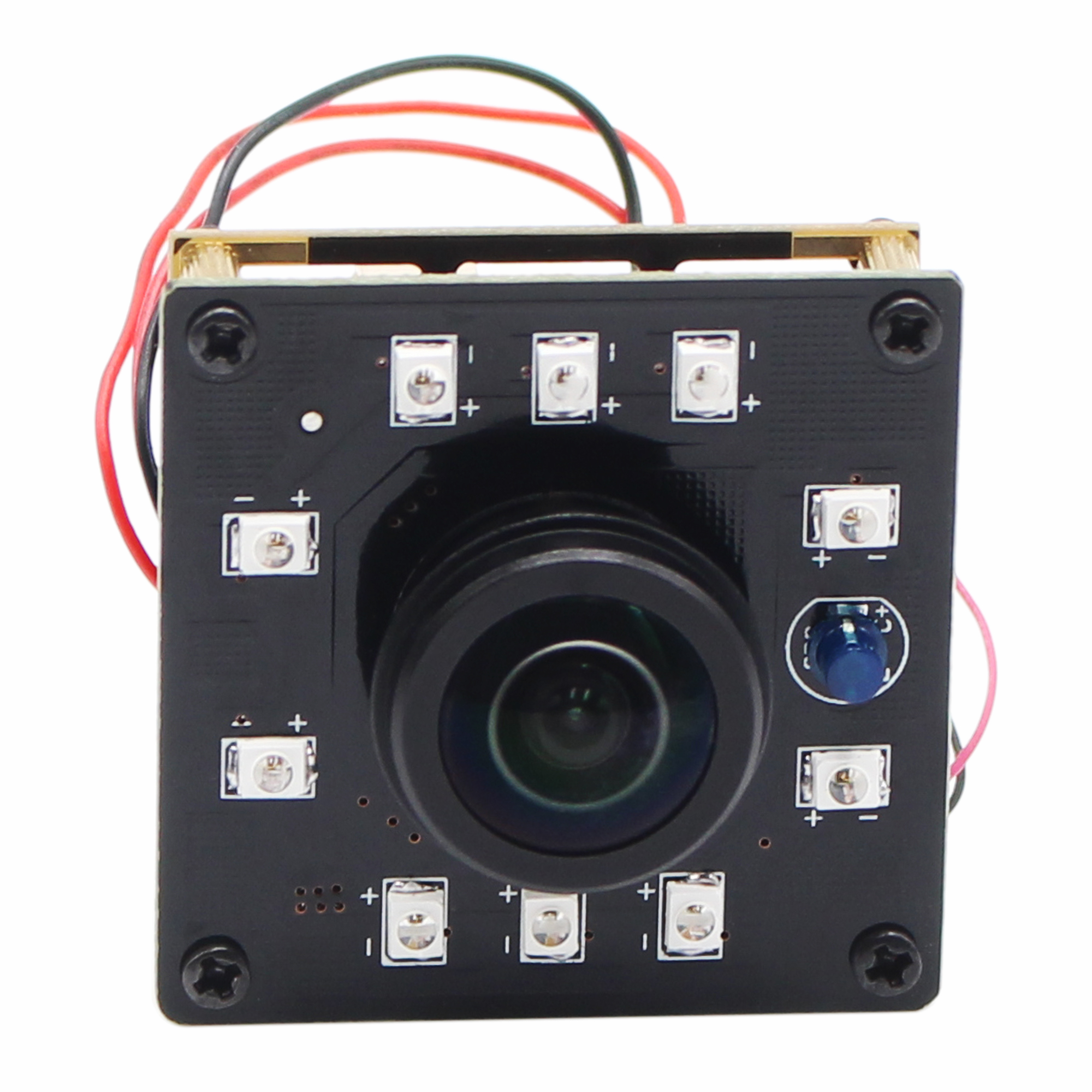

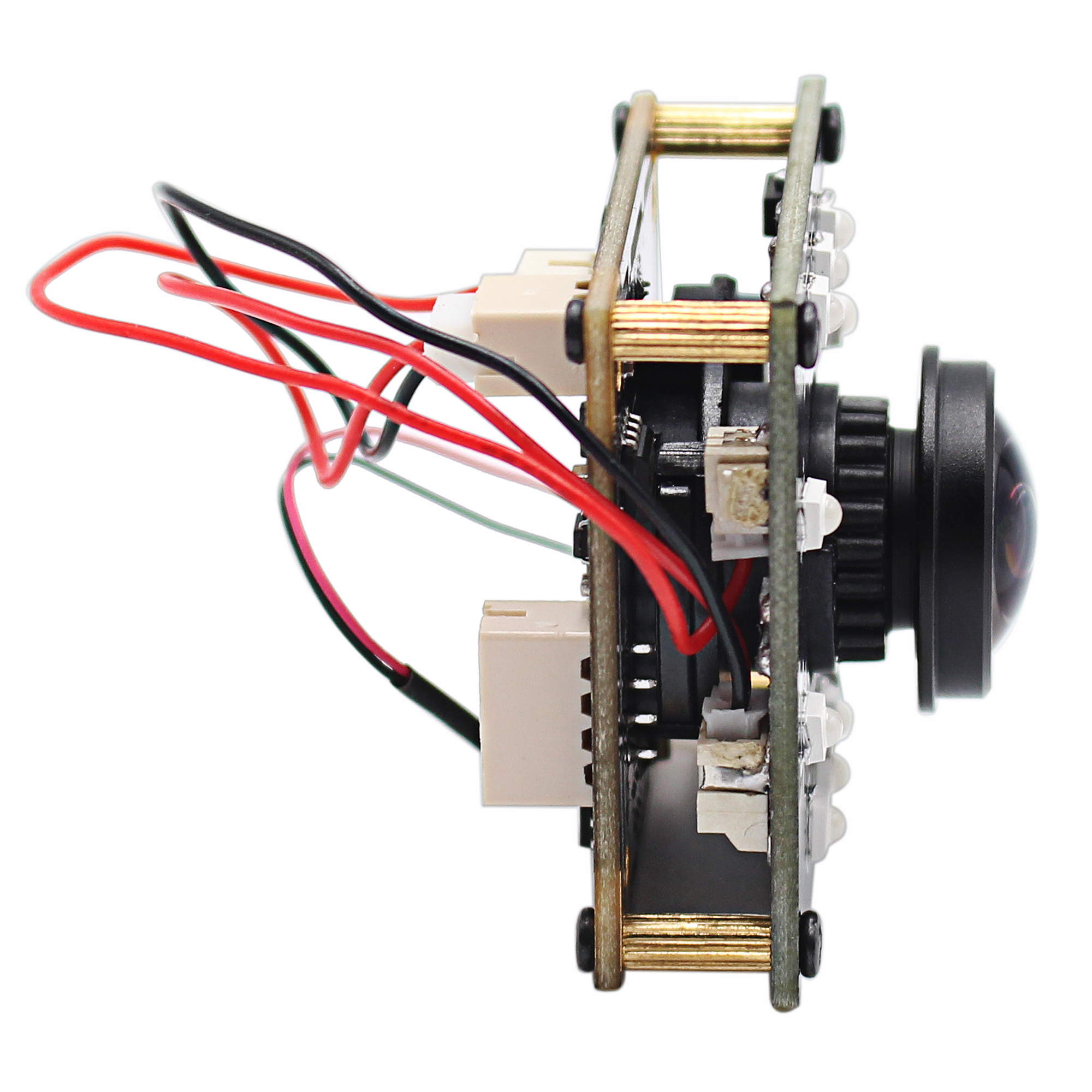

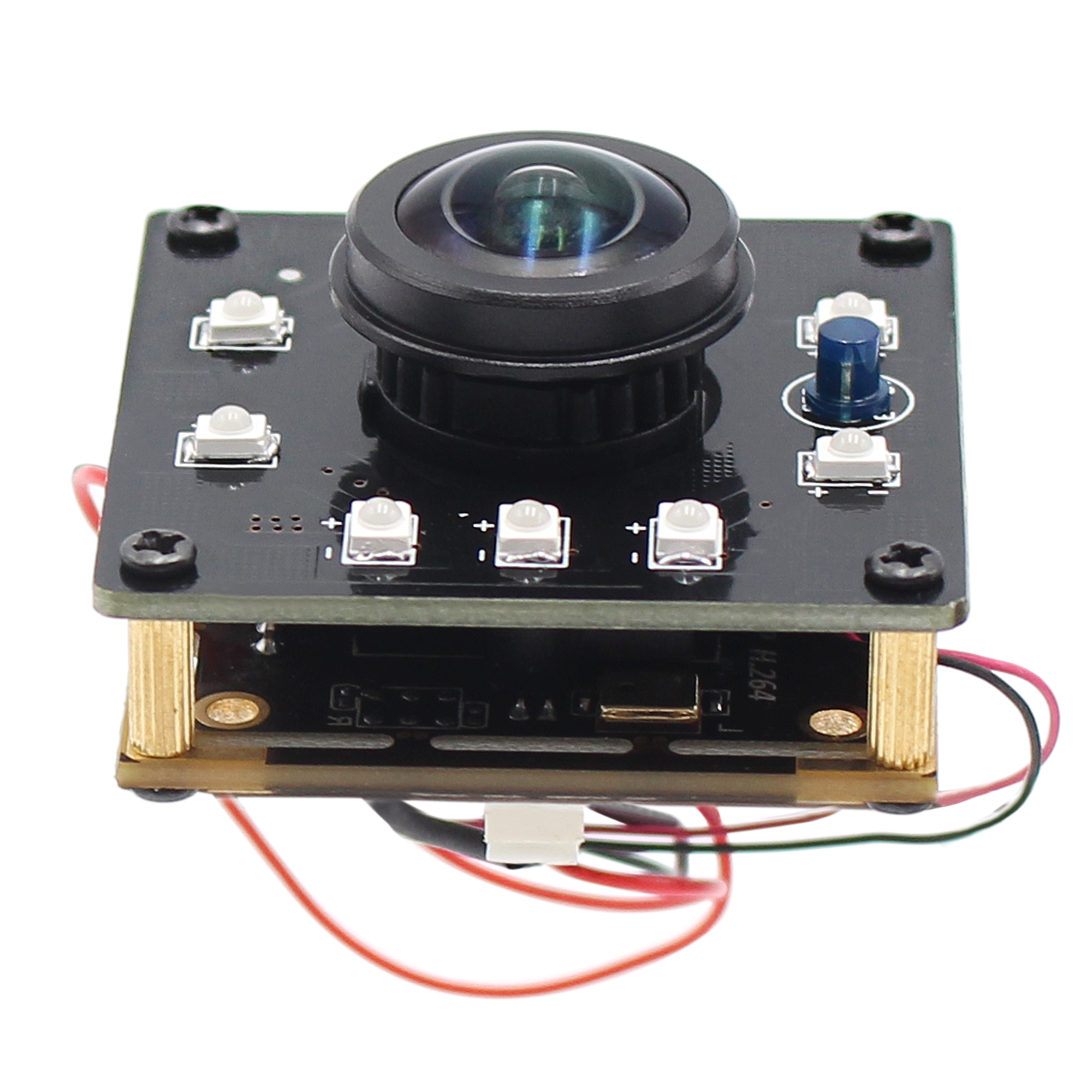

Model:SV-USBFHD05MT-KRL156 is 2.0megapixel 1920(H)X1080(V) High resolution USB2.0 cameras with IR LED Board for night vision, Wide angle 1.56mm lens for Linux Android Windows etc. OS system.
Note:
If Support IR Cut ,then frame rate max 30fps.
If need high speed ,max frame rate can be 120fps,while not support IR Cut.
Features:
*1080P HD USB2.0 Camera,
*Equiped with 1.56mm wide angle lens
*Can drive 30fps@1080P and 60fps@720p, 120fps at 480P or Support IR Cut
*CMOS OV2710 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.(32*32/38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specifications
|
Model : ELP-USBFHD05MT-KRL156 |
|||
|
Resolution & frame rate |
320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps 640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps 1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps 1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps |
||
| Sensor | CMOS OV2710 | Picture format | MJPEG or YUY2(YUYV) |
| Sensor Size | 1/2.7 inch | Mini illumination | 0.05lux |
| Pixel Size | 3μm x 3μm | Lens Parameter | Standard 1.56mm lens , optional 2.8/3.6/6/8/12mm,FOV(D) 170/180Degree |
| Image Area | 5856μm x 5856μm | Cable | Standard 1M/ Optional 2m,3m,5m |
| Max. Resolution | FULL HD
1920(H)x1080(V)pixels |
Board Size/ Weight |
38*38mm/32mm*32mm optional / about 30g |
| Interface | USB2.0 High speed | Shutter Type | Rolling shutter/ Frame exposure |
| Support free driver | USB Video Class(UVC) | Adjustable parameters | Brightness, Contrast, Saturation, Hue,
Sharpness, Gamma, White balance, Backlight Contrast, Exposure |
| USB Protocol | USB2.0 HS/FS | Special Function | Lens correction/ Defective pixel correction/
Black sun cancellation |
| OTG protocol | USB2.0 OTG | AEC, AEB,AGC | Supoort |
| Power Supply | DC 5V | Working temperatur | 0~60 degree |
| Working Current | 120mA~220mA | Storage temperatur | -20~75 degree |
| Night vision | Support,need to equipped IR sensor 850nm or 940nm lens and IR LED Board |
LED board power connector | Support 2P-2.0mm socket |
| Support OS | WinXP/Vista/WIN7/WIN8 / Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above |
||
