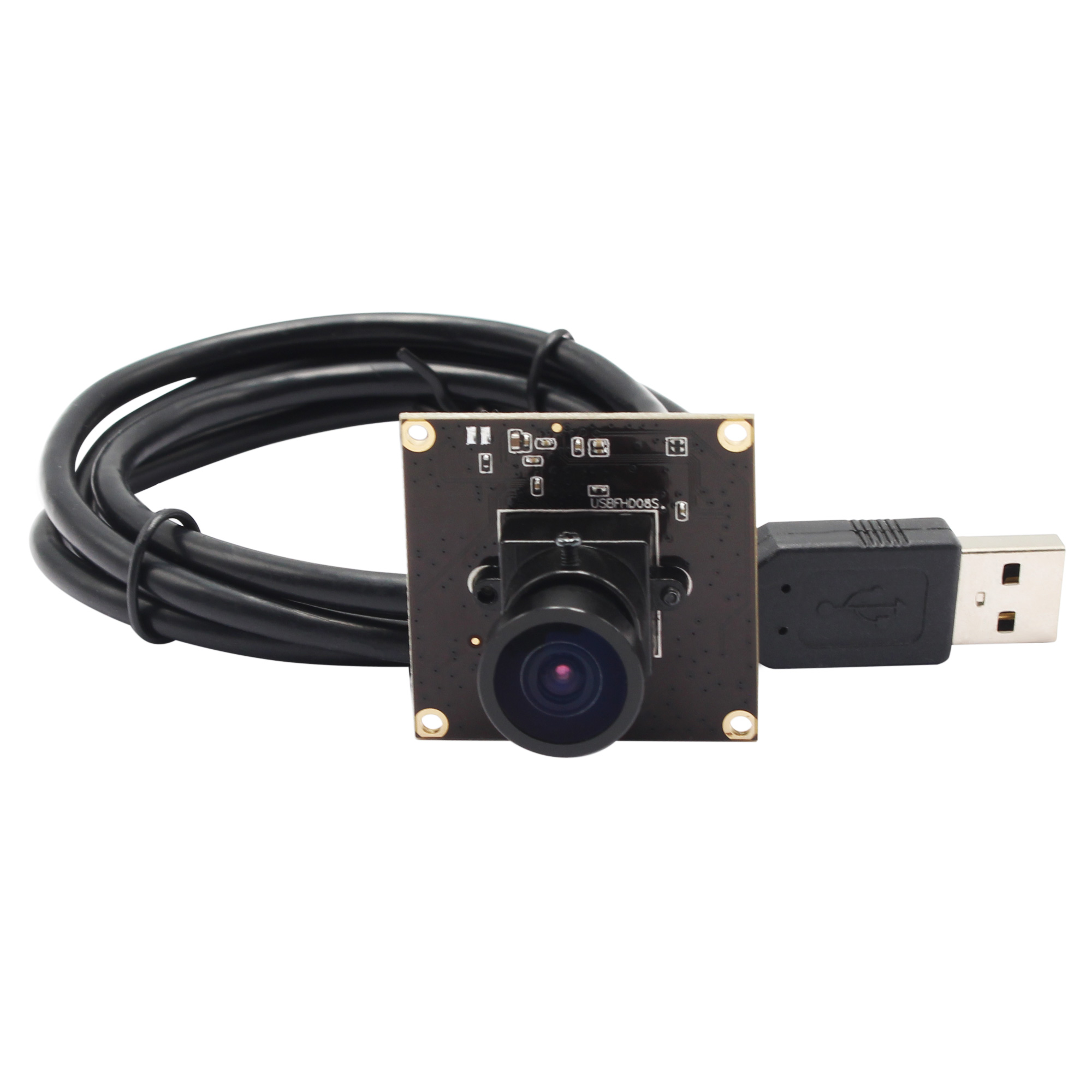

SVPRO Wide Angle 260fps USB Webcam 2megapixels CMOS OV4689 Sensor Mini 1080P 60fps Camera Board Module With 2.9mm Lens

72.99$ 68.25$

*1080P 60fps HD USB2.0 Camera,
*Equiped with wide angle 2.9mm lens
*Can drive 60fps@1080P and 120fps@720p, 260fps at 640x360P or Support IR Cut
*CMOS OV4689 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.(38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

158 in stock

Description

SVPRO Wide Angle 260fps USB Webcam 2megapixels CMOS OV4689 Sensor Mini 1080P 60fps Camera Board Module With 2.9mm Lens

Specifications

Model SV-USBFHD08S-L29 (2.9mm lens)
Sensor OV4689
Lens Size 1/3 inch
Pixel Size 2.0µm X 2.0µm
image area 5440 µm x 3072 µm
Max. Resolution 1280(H)X720(V)
Compression format MJPEG  / YUV2(YUYV)
Resolution & frame 1920X1080 MJPEG@ 60fps

1280X720 MJPEG@ 120fps

640X360MJPEG@ 260fps

S/N Ratio 38.3dB
Dynamic Range 64.6dB
Sensitivity 1900mV/lux-sec@550nm
Mini illumination 0. 1lux
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB2.0 High Speed
Free Drive Protocol USB Video Class(UVC)
AEC Support
AEB Support
AGC Support
Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens Parameter Standard 2.9mm lens,

Compatible with other M12 Mount lens

Power supply USB BUS POWER
Operating Voltage DC5V
Working current 150mA~185mA
Working temperature 0~70℃
Board size /Weight 38*38mm
Cable Standard  1M
Operating system request Win XP/Vista/Win7/Win8

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC

Frame rate read by our testing software- AMCAP
