ELP 2MP 1200P 1080P AR0234 Color Global Shutter USB Camera Module 120fps 90fps High Speed Mini USB2.0 Webcam Board with Wide Angle No Distortion Lens for Laptop Raspberry Pi, Support External Triggering and Flash Output
Package Includes:
1) 1pcs 2MP Global Shutter USB Camera with 85 degree low/no distortion lens(68/101/112/126 degree optional)
2) 1pcs 1m usb cable (2/3/5m usb cable optional)
View angle for optional lenses:
|
Model Number |
Lens |
Focal Length |
Horizontal angle |
Vertical angle |
Diagonal angle |
|
ELP-USBGS1200P02-V100 |
No distortion lens |
3.24mm |
85.00 |
59.00 |
93.00 |
|
ELP-USBGS1200P02-LC1100 |
No distortion lens |
4.35mm |
68.00 |
46.00 |
80.00 |
|
ELP-USBGS1200P02-H100 |
No distortion lens |
2.8mm |
101.00 |
73.00 |
108.00 |
|
ELP-USBGS1200P02-H110 |
No distortion lens |
2.2mm |
112.00 |
82.00 |
120.00 |
|
ELP-USBGS1200P02-H120 |
No distortion lens |
1.8mm |
126.00 |
94.00 |
134.00 |
New ELP USB Global Shutter Camera
This is a High Speed 2.3MP Global Shutter Color USB Camera Module. Boasting Full HD 1920*1200P Resolution Paired with Smooth 120FPS & 90FPS High Frame Rate, Delivering Images with Excellent Quality. Its AR0234 Color Global Shutter Sensor Makes All Pixels in the Image Exposed Simultaneously, Producing Smoothing Images with Free of Distortion. Equipped with 126 Degree Wide Angle No Distortion Lens, Delivering Clear and Precise Image with High Color Reproduction and Delicate Image Rendering. Free Driver, Plug and Play, Support OTG, Seamlessly Integrated with Most Operating Systems. With External Triggering and Software Triggering Function and Mini Size 38*38mm, Makes it Easy For Embedded or Secondary Developed Project. This 120FPS Global Shutter USB Webcam Module is an Ideal Choice for Capturing High Speed Moving Objects, Can be Widely Used for Applications Like Golf Swing, Golf Simulator, License Plate Recognition for Moving Vehicles, Conveyor Belt Parts Inspection, Etc.
Special Triggering & Flashing Function

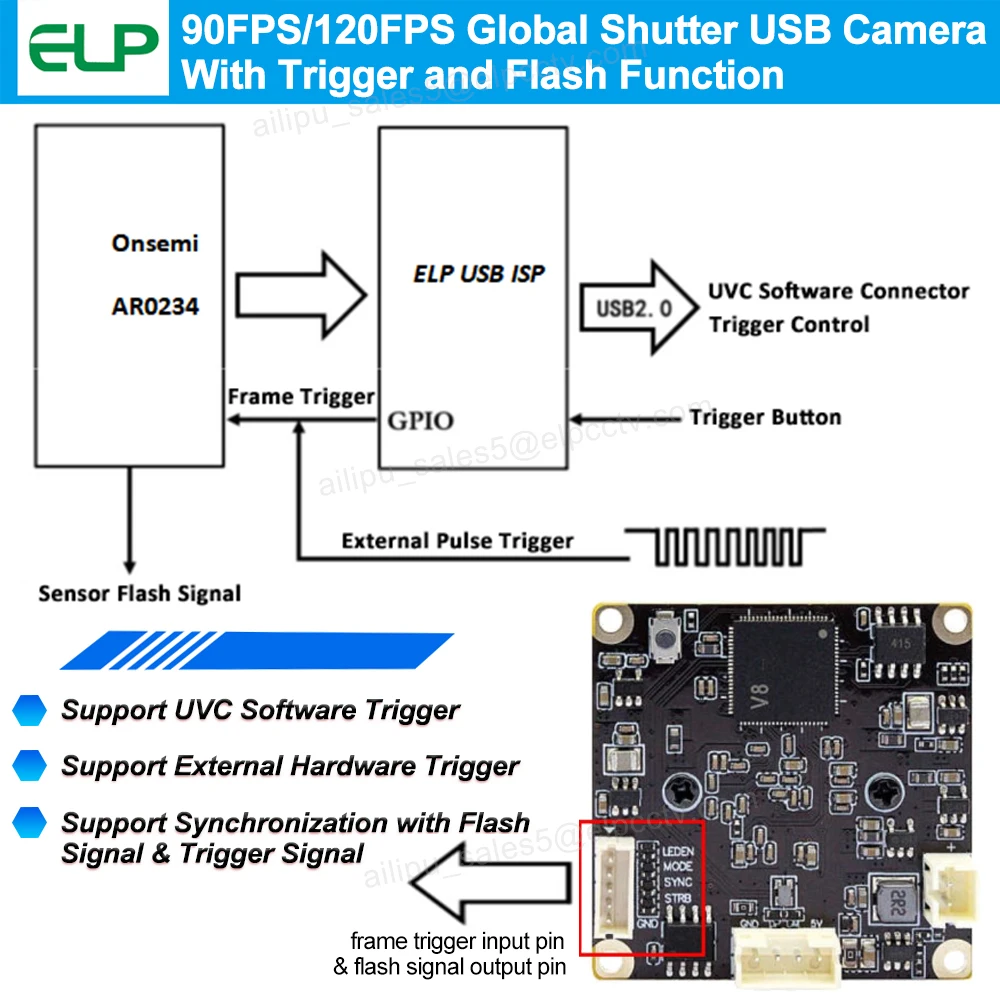

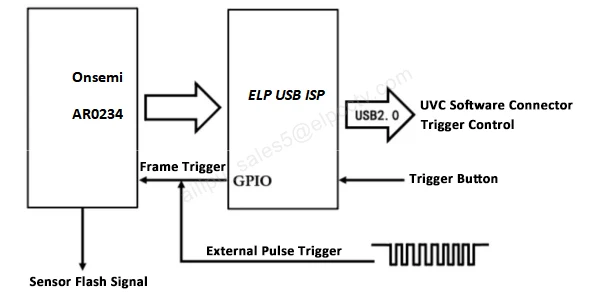

The AR0234 provides a frame trigger input pin and a flash signal output pin. The GPIO of USB ISP connected to the frame trigger pin can realize continuous trigger, single frame trigger, and on-board button- controlled trigger through UVC software; External hardware connected to the frame trigger pin supports pulse trigger and high-level automatic trigger. The flash signal is synchronized with the trigger signal, enabling microsecond-level flash control of the flash.
Why Global Shutter Cameras?

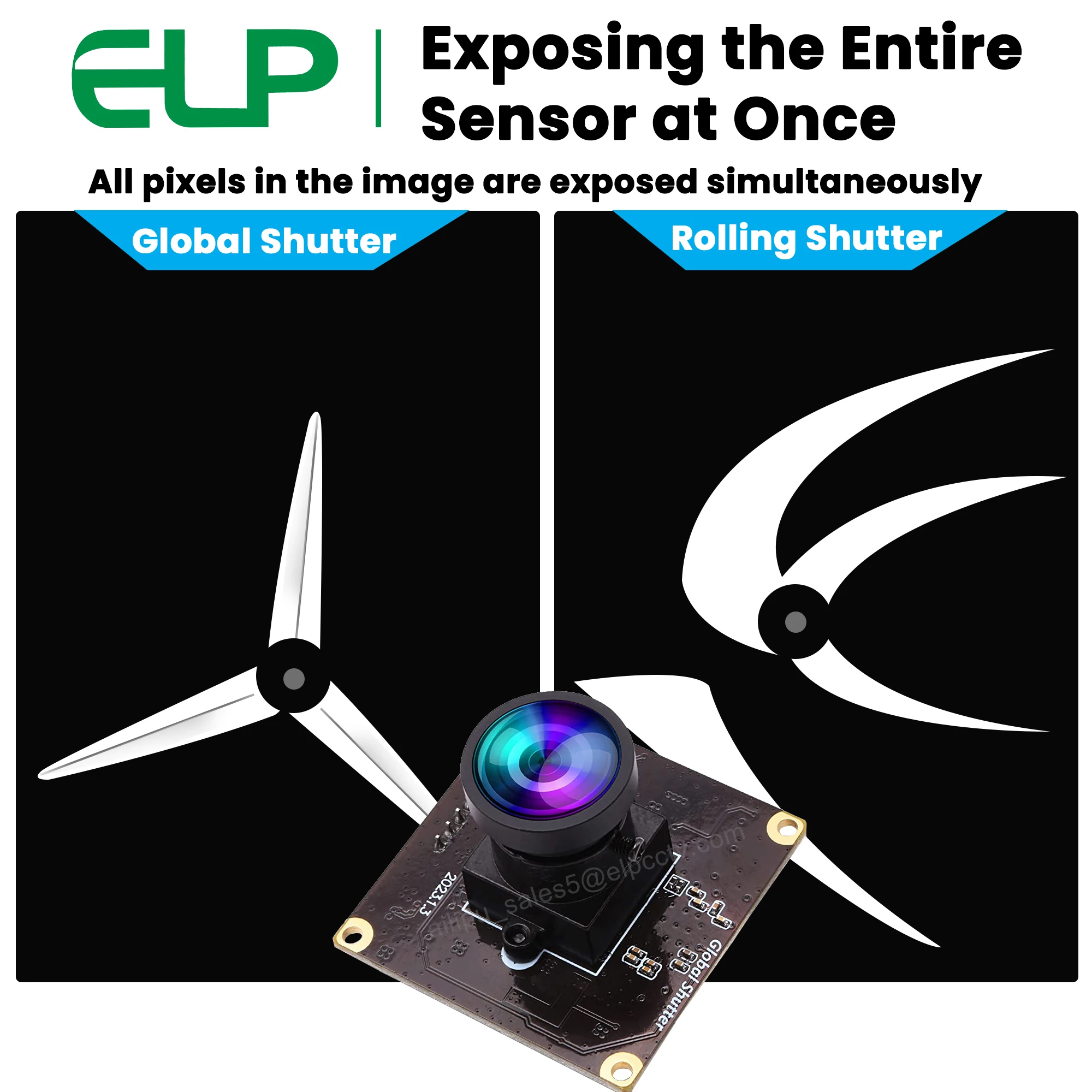

A global shutter camera can captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.It can avoid smearing when when capturing high-speed motion.
Difference between Rolling Shutter and Global Shutter
| Model | ELP-USBGS1200P02-V100 (HFOV about 85 degree)
ELP-USBGS1200P02-LC1100 (HFOV about 68 degree) ELP-USBGS1200P02-H100 (HFOV about 101 degree) ELP-USBGS1200P02-H110 (HFOV about 112 degree) ELP-USBGS1200P02-H120 (HFOV about 126 degree) |
| Sensor | Aptina AR0234 (1/2.6”) Global Shutter |
| Max Resolution | 1920 (H) *1200 (V) |
| Sensor Size | 1/2.6 inch (4:3) |
| PixelSize | 3.0μm |
| Compression Format | MJPEG/YUV2 (YUYV) |
| Resolution& Framerate | 1920×1200 @ 90fpsMJPEG/ 1920×1080 @ 90fps MJPEG
1600×1200 @ 90fps MJPEG/ 1280×960 @ 90fps MJPEG 1280×720 @ 120fps MJPEG/ 1024×768 @ 90fps MJPEG 960×720 @ 120fps MJPEG/ 800×600@ 120fps MJPEG 640×480 @ 120fps MJPEG/ 320×240 @ 120fps MJPEG |
| Surface Mount Technology | SMT |
| Focus | Fixed |
| Central Definition | 600LW/PH (Center) |
| S/N Ratio | 37dB |
| Dynamic Range | 70dB |
| Sensitivity | 1.4V/lux-sec@550nm |
| Min. iIllumination | 0.3lux |
| Shutter | Global Shutter |
| Interface | USB2.0 High Speed |
| AEC | Support |
| AWB | Support |
| AGC | Support |
| Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Compensation, Exposure |
| Lens Parameters | Wide angle 85 degree low/no distortion lens,
Optional 2.1mm/2.8mm/2.9mm/3.6mm/6mm/8mm/12mm/16mm/25mm… No Distortion Lens(FOV65~130 degreeoptional) Fisheye lens 150 degree /180 degree etc. |
| LED board power connector | Support 2P-2.0mm socket |
| Trigger and Flash Support | Support external hardware triggering, UVC software triggering and syn chronization of trigger signal & flash signal |
| Power Supply | USB BUS POWER 4P-2.0mm socket |
| Operating Voltage | DC5V |
| Working Current | 160mA- 190mA |
| Dimension | 38mm x 38mm |
| Storage Temperature | -20°C to 80°C |
| Working Temperature | 0°C to 60°C |
| USB Cable | 1M(2M/3M/5M … Optional ) |
| Operating System Request | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 orlater Android 4.0 or above with UVC |
2.3 Megapixel 1200P Global Shutter USB Camera with high pixel technology Aptina AR0234 sensor for sharp image and accurate color reproduction. With high frame 1080P@90fps, 720P@120fps, can shoot high-speed moving objects in crisp sharp images.
Global Shutter Camera is Exposing entire sensor at one time,free of distortion. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.

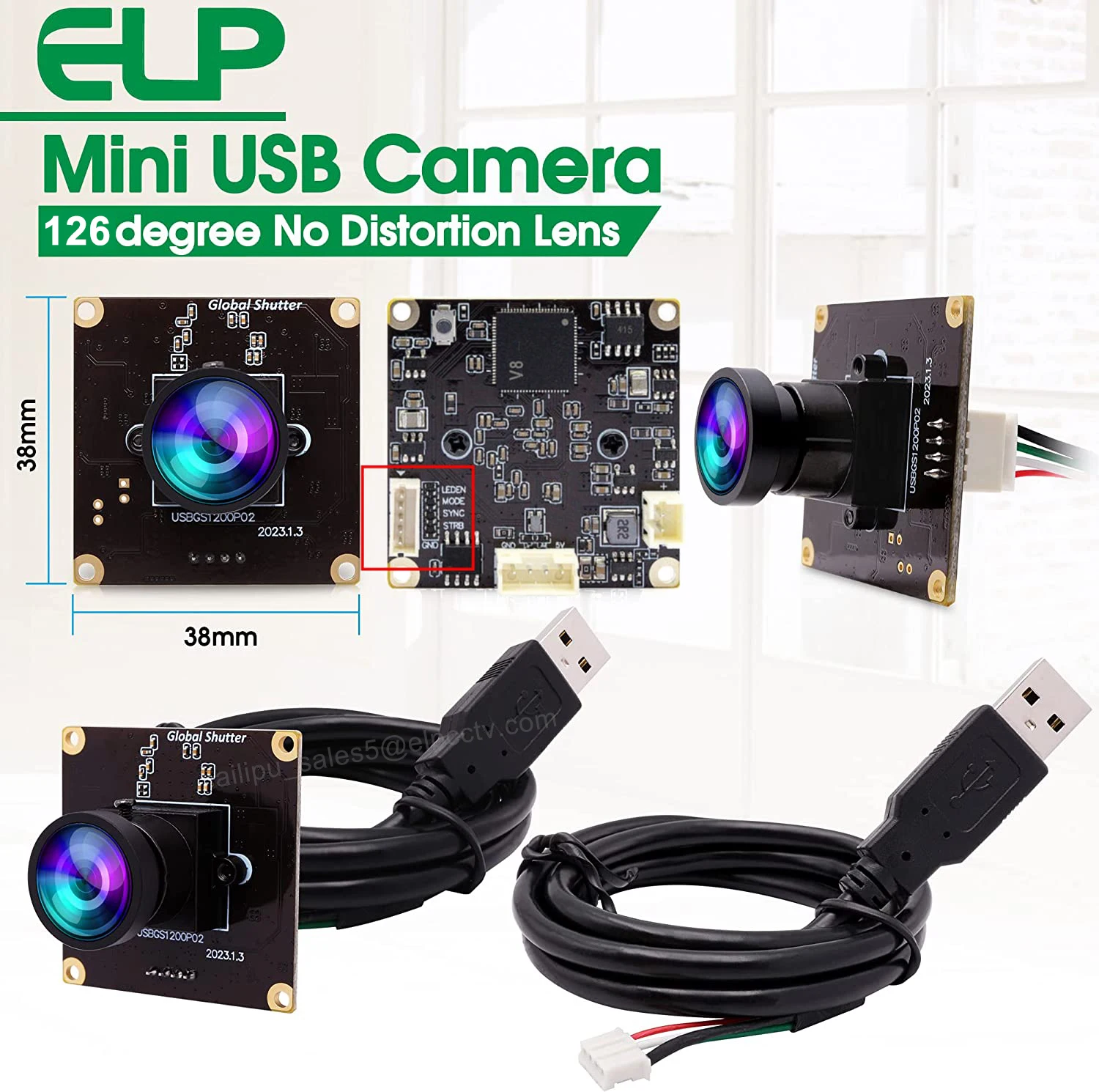

Mini wide angle USB camera with low/no distortion lens, HFOV is about 126degree. Lens is changeable, 68/85/101/112/126 degree view angle optional.

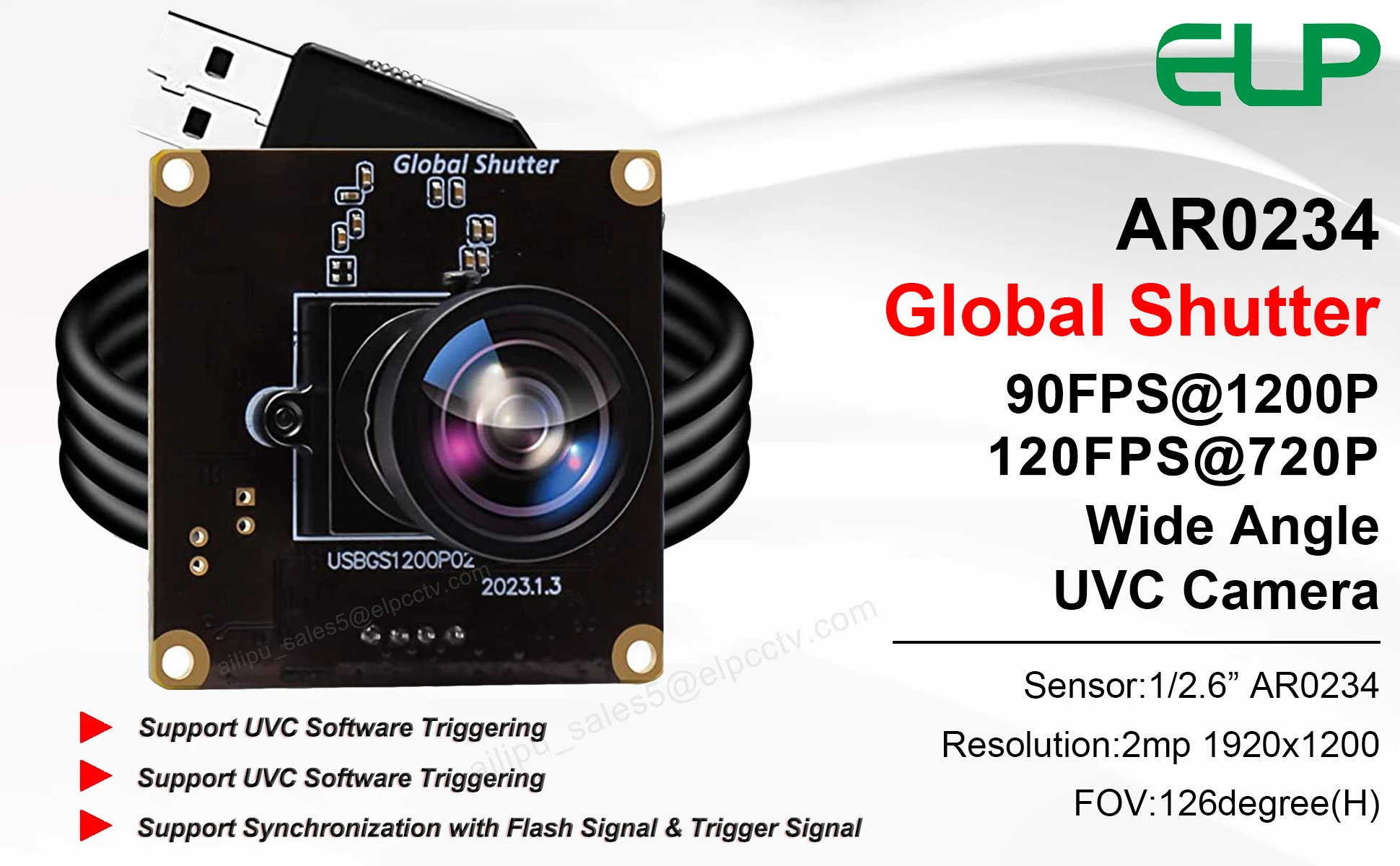

120fps high speed Global Shutter USB camera with external trigger function and flash fucntion, supporting UVC software triggering, external hardware triggering and synchronization of trigger signal & flash signal.
【For the special trigger and flash function, we can provide the operation manual for your reference after placing the order, if you need it.】

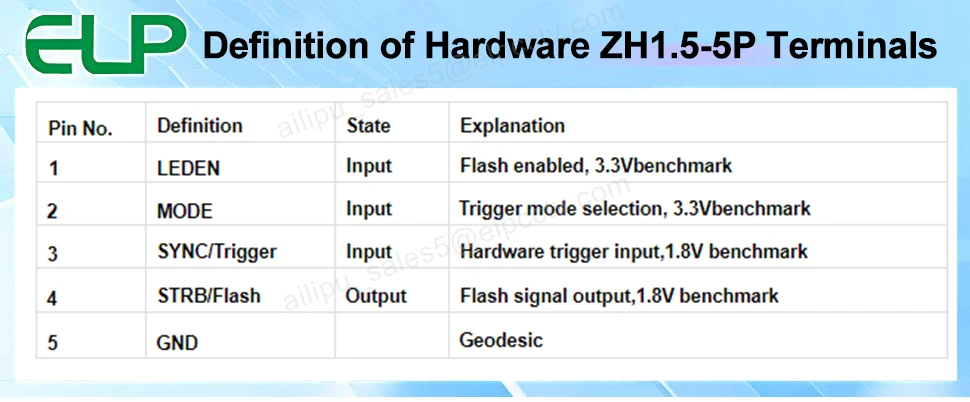

Connected using ZH1.5-5P terminals, the pin definitions of external trigger and flash control signals are as follows:
Mini 38mmx38mm camera board can be installed in most hidden and narrow position, Easy For Embedded or Secondary Developed Projects.
UVC compliant, free driver, plug and play. Seamless compatibility with major systems and popular paltforms, like Windows, Linux, Mac, Android, Ununtu, Chrome OS,… etc.
Compatible with different preview software: Amcap, PotPlayer, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time , Webcam Viewer,TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam….
OTG Support -Can work with Industrial computer, laptop, Tablet,Smartphone, Android development board, Mini PC board like Raspberry PI, Jetson Nano etc.
FOR RASPBERRY PI:
- It can work with already preinstalled camera software instead of builtin camera.
- Support Android development board,Raspberry Pi development board,Jetson Nano,etc.
FOR PC:
- Support windows,linux,mac,Android,raspberry Pi.
- Very easy to use,UVC compliant,free driver,just plug in and go.
This 120FPS Global Shutter USB Webcam Module is an Ideal Choice for Capturing High Speed Moving Objects, Can be Widely Used for Applications Like Golf Swing, Golf Simulator, License Plate Recognition for Moving Vehicles, Conveyor Belt Parts Inspection,High Speed- sports photography, AI object recognition, Industrial inspection, Video applications, Industrial automation, robotics, or scientific imaging, Industrial water detection, Robot mobile shooting, Gesture recognition, High-speed mobile capture, Mobile car shooting, Loom shooting, Water drop detail shooting, Sports security capture, Augmented and virtual reality, Eye tracking, Depth and motion detection…. and so on.
