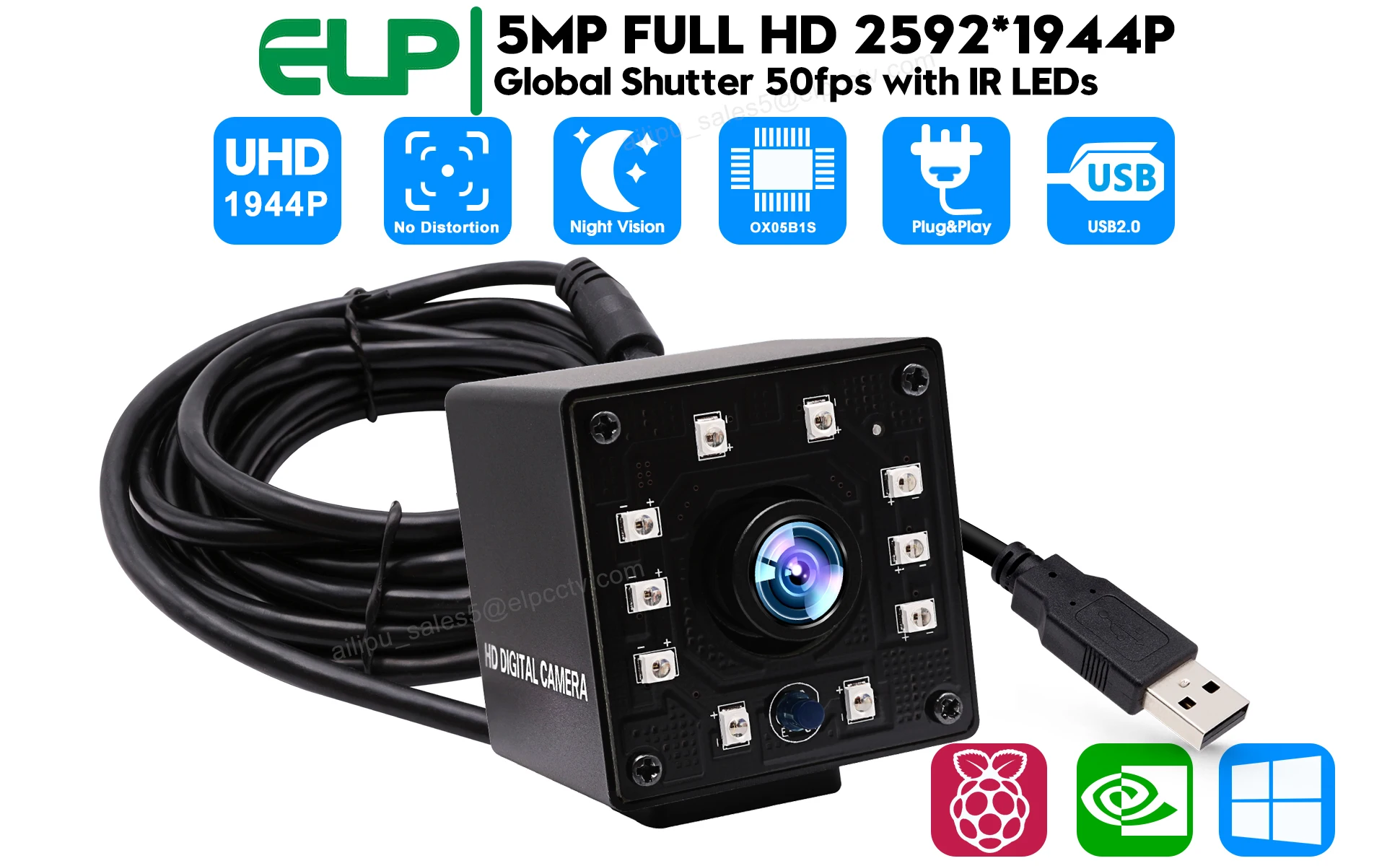

ELP 5MP IR USB Camera Global Shutter with 850nm IR LEDs & 85 Degree No Distortion Lens High Speed 1080P 60FPS 1944P 50FPS IR Infrared USB Webcam for License Plate Recognition Smart Traffic Monitoring

Description

ELP 5MP IR USB Camera Global Shutter with 850nm IR LEDs High Speed 1080P 60FPS 1944P 50FPS IR Infrared USB Webcam for License Plate Recognition Smart Traffic Monitoring

​

​New ELP USB Global Shutter Camera

This ELP-USBGS5MP01 Series Camera is ELP New 5MP Global Shutter Sensor & High Frame Rate 50FPS USB 2.0 camera. Highly recommended for Accurate and Fast Capture of Moving Scenes at 50 fps in 5MP Resolution. Its OX05B1S Color CMOS Global Shutter Sensor Helps to Minimize Frame-to-Frame Distortion and Reduce Motion Blur While Capturing Fast-Moving Objects to Produce Smoother Images with Greater Scene details. Wide Applications for Shooting High Speed Moving Objects, Like Automatic Number Plate Recognition (ANPR), Autonomous Mobile Robots (AMR), Gesture Recognition, Robotic Vision, Drones, Bar code Scanner, Factory Automation, Conveyor Monitoring Cameras, and Traffic Monitoring Systems etc.

Why Global Shutter Cameras?

        A global shutter camera can captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.It can avoid smearing when when capturing high-speed motion.

Difference between Rolling Shutter and Global Shutter

Optional Models	ELP-USBGS5MP01-KV100IR (3.24mm no distortion lens, FOV 85°) Optional models: ELP-USBGS5MP01-KL21IR     (2.1mm lens, FOV 115 degree) ELP-USBGS5MP01-KL281IR   (2.8mm lens, FOV 110 degree) ELP-USBGS5MP01-KL361IR   (3.6mm lens, FOV 90 degree) ELP-USBGS5MP01-KL601IR   (6mm lens, FOV 58 degree) ELP-USBGS5MP01-KL80IR    (8mm lens, FOV 43 degree) ELP-USBGS5MP01-KL12IR    (12mm lens, FOV 25 degree) ELP-USBGS5MP01-KL170IR  (1.95mm lens fisheye lens, FOV 160°) ELP-USBGS5MP01-KL156IR (1.56mm lens fishye lens, FOV 200°)
Sensor	1/2.5”OmniVision OG05B10 (Global Shutter)
Max Resolution(Default)	2592 (H) *1944 (V)
Sensor Size	1/2.5 inch (4:3)
Image Array Area	5737μmx4312μm
Pixel Size	2.2μmx 2.2μm
Compression Format	MJPEG / YUV2 (YUYV)
Resolution & Frame Rate	2592×1944 @ 50fps MJPEG/ 2592×1440 @ 60fps MJPEG 2560×1440 @ 60fps MJPEG/ 2304×1296 @ 60fps MJPEG 2048×1536 @ 50fps MJPEG/ 1920×1080 @ 60fps MJPEG 1600×1200 @ 50fps MJPEG/1600×900 @ 60fps MJPEG 1280×960 @ 50fps MJPEG/1280×720 @ 60fps MJPEG 1024×768 @ 50fps MJPEG/ 1024×576 @ 60fps MJPEG 960×720 @ 50fps MJPEG/ 960×540 @ 60fps MJPEG 800×600@ 50fps MJPEG/800×450 @ 60fps MJPEG 848×480 @ 60fps MJPEG/640×480 @ 50fps MJPEG 640×360 @ 60fps MJPEG/
Surface Mount Technology	SMT
Focus	Fixed Focus
Central Definition	1000LW/PH (Center)
S/N Ratio	38dB
Dynamic Range	72dB
Sensitivity	1.4V/lux-sec@550nm
Min Illumination	0.1Lux
Shutter	Global Shutter
Interface	USB2.0 High Speed
AEC/AWB/AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure
Lens Parameters	85 degree No Distortion Lens ; Optional 2.1mm/2.8mm/3.6mm/6mm/8mm/12mm/16mm/25mm… Fish-eye lens 150 degree /180 degree etc.
LED board power connector	Support 2P-2.0mm socket

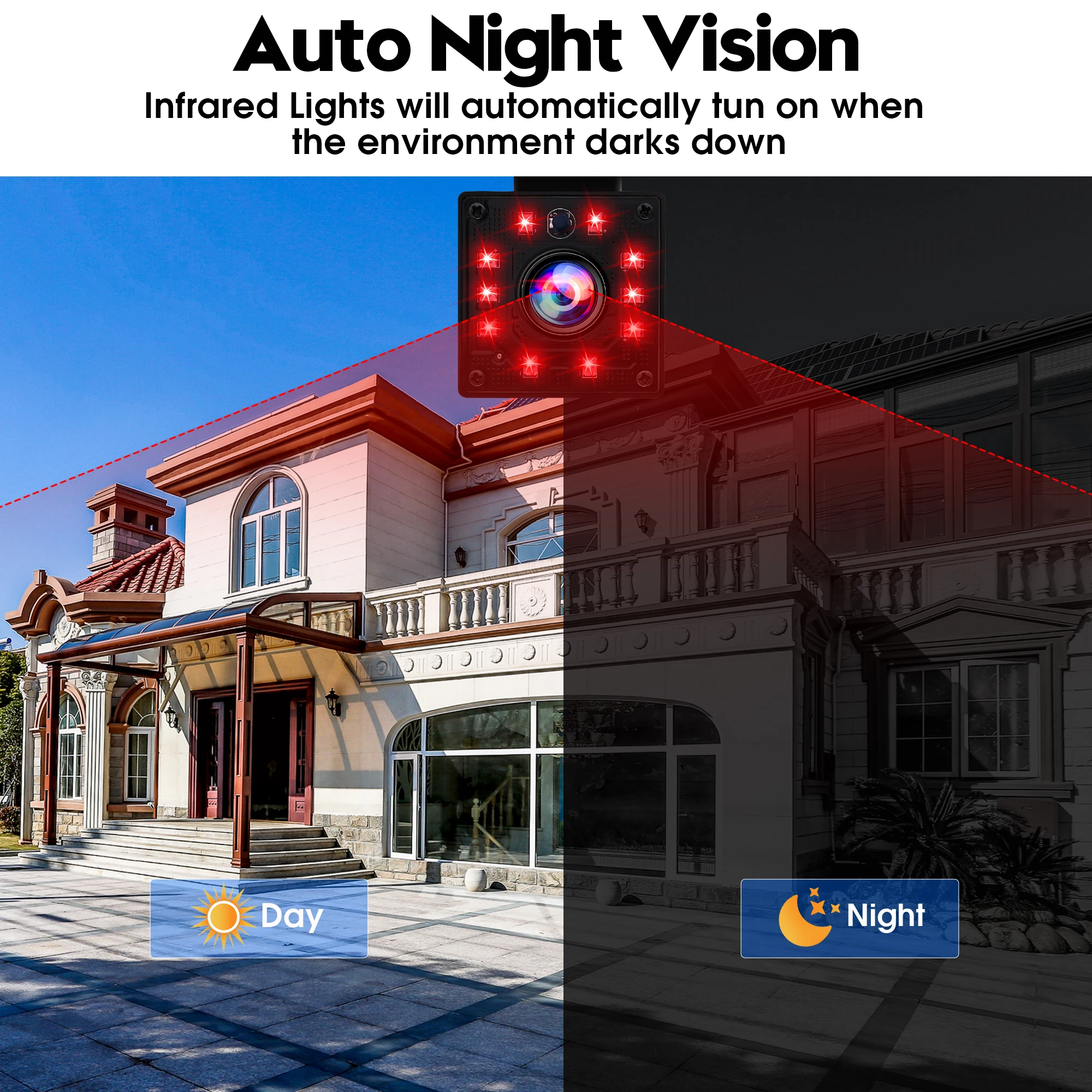

Night Vision	With IR CUT filters and 850nm IR LED, support day and night vision
Power Supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC 5V
Working Current	180mA- 230mA
Dimension	42mmx 42mmx36mm
Working Temperature	0°C to 60°C
Storage Temperature	-20°C to 80°C
USB Cable	3M (1M/2M/5M … Optional )
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MACOS X 10.4.8 or later, Android 4.0 or above with UVC

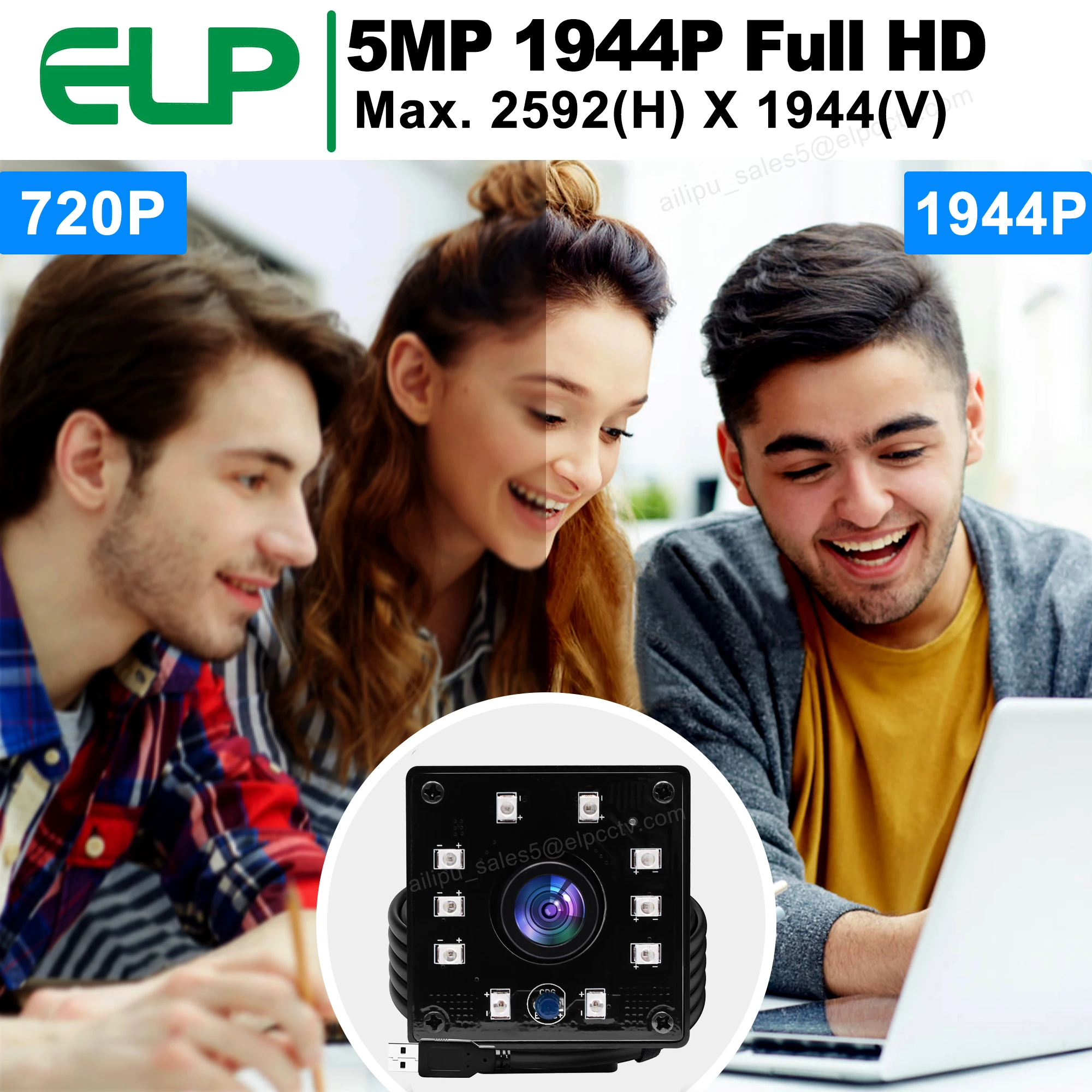

5 Megapixel 1944P Global Shutter USB Camera with high pixel technology OG05B10 sensor for sharp image and accurate color reproduction.

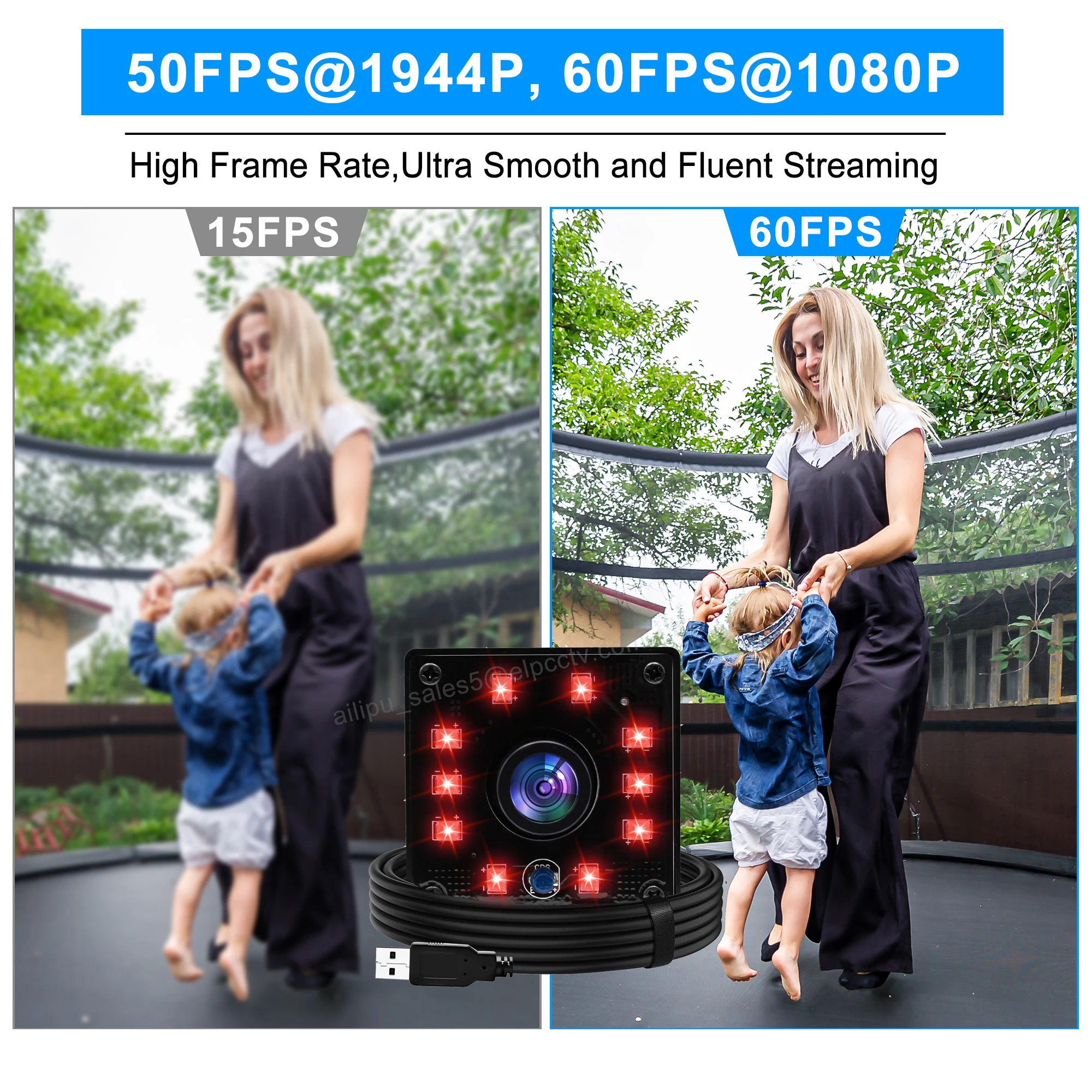

Global shutter high frame 1944P@50fps, 1940P@60fps, 1080P@60fps usb IR camera, can shoot high-speed moving objects in crisp sharp images

​

• Global Shutter Camera is Exposing entire sensor at one time,free of distortion.

• Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.

​

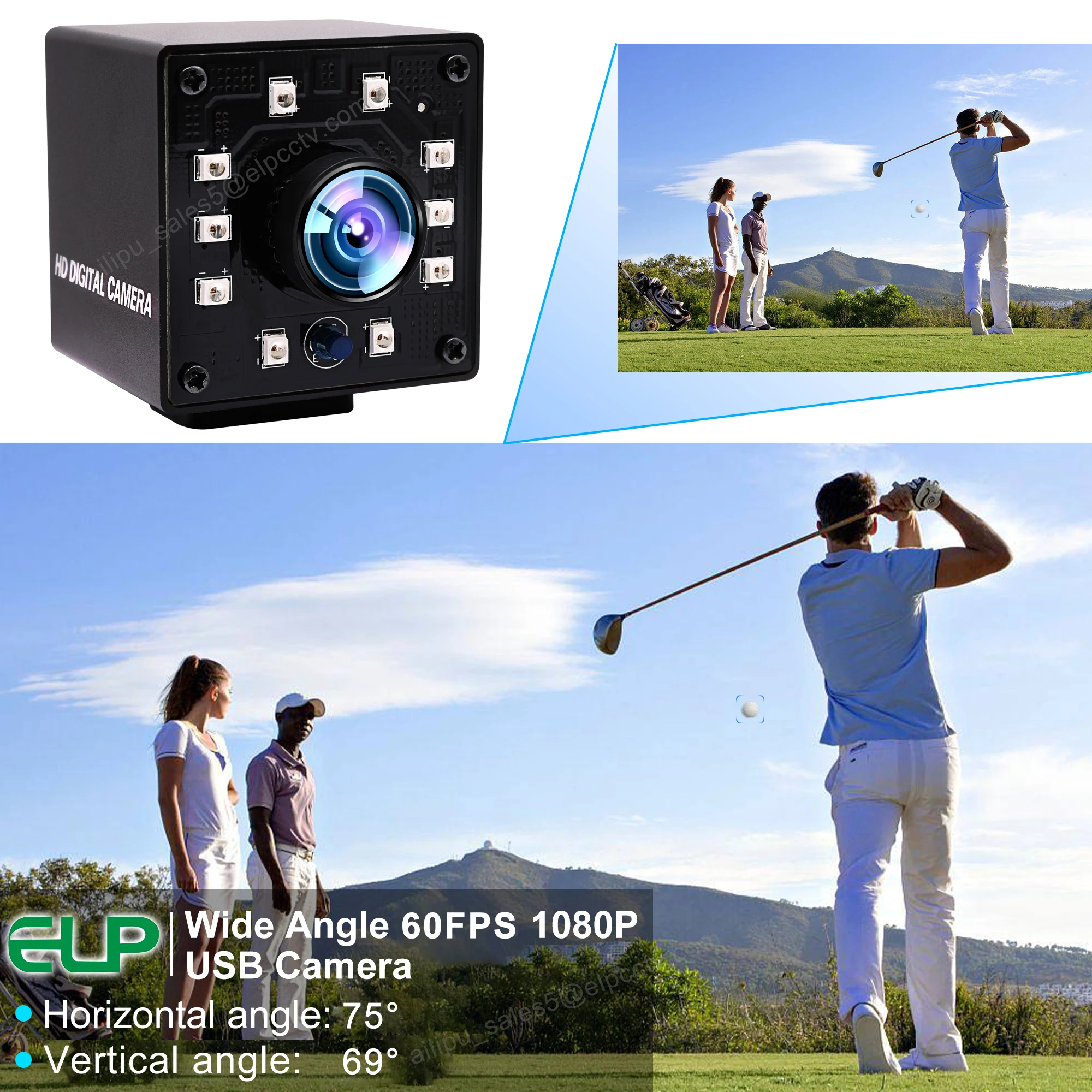

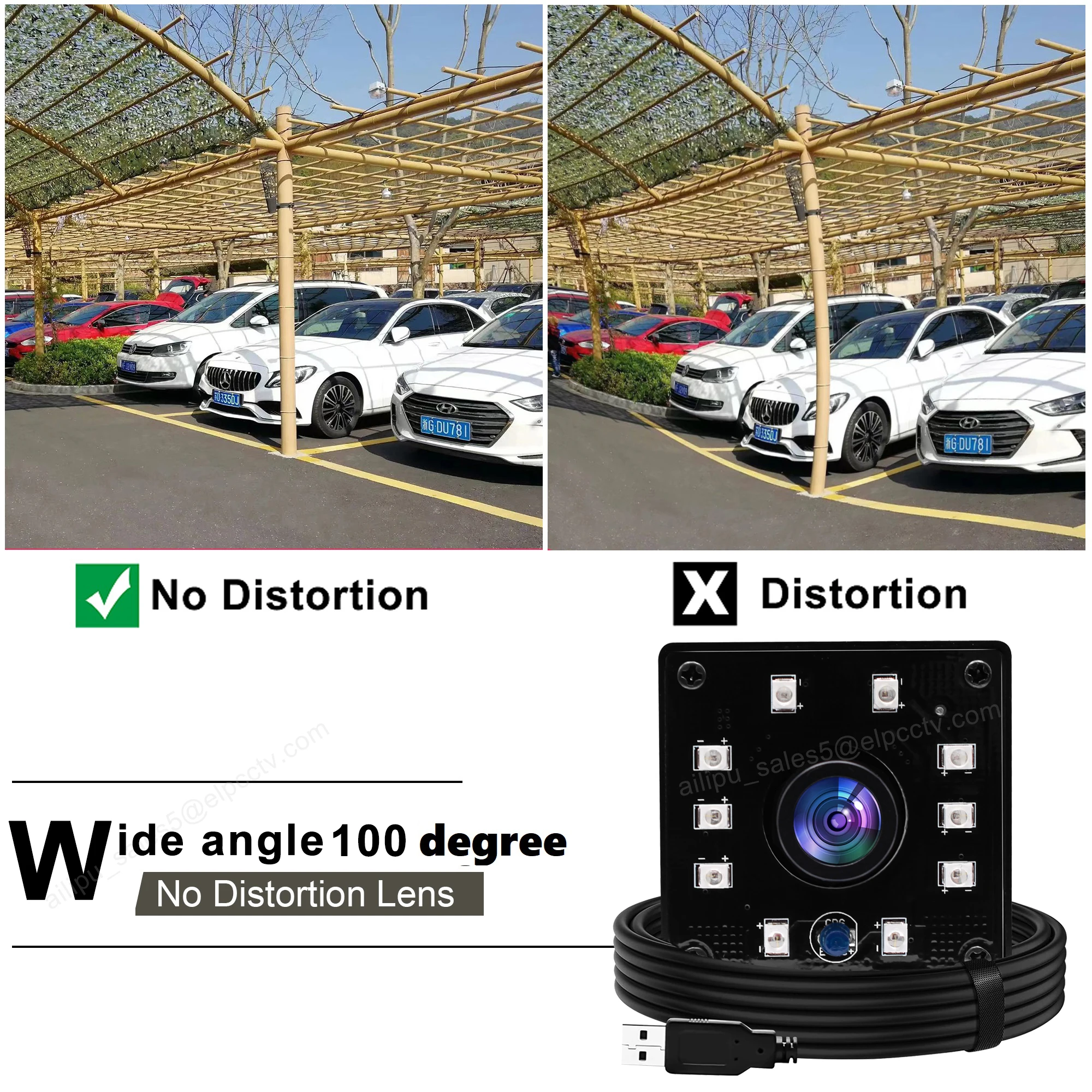

Mini USB camera with no distortion lens, HFOV 85 degree,  wide angle view usb camera.

Lens changeable, M12 mount lenses like 2.1/2.8/3.6/6/8/12mm/no distortion lens/fisheye lens are optional.

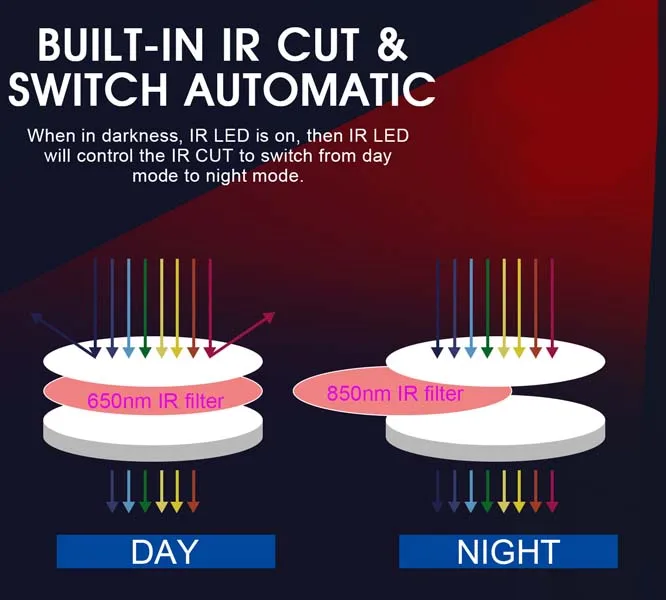

​Automatic IR Switching Function, Built-in IR CUT and 10pcs IR LEDs, support day and night vision.

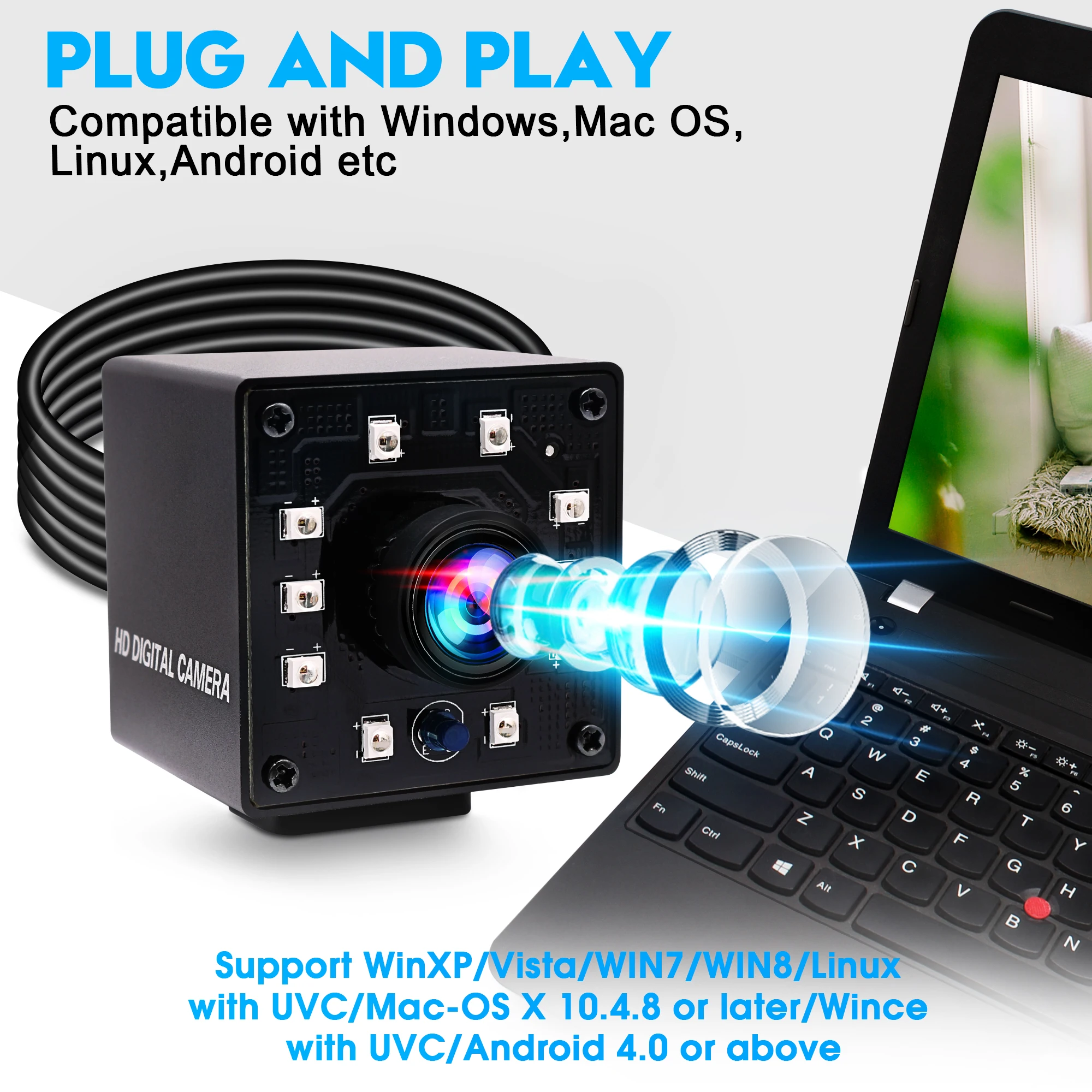

High compability, plug and play, Super mini light weight usb camera board for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc

FOR RASPBERRY PI:

• It can work with already preinstalled camera software instead of builtin camera.

• Support Android development board,Raspberry Pi development board,Jetson Nano,etc.

FOR PC:

• Support windows,linux,mac,Android,raspberry Pi.

• Very easy to use,UVC compliant,free driver,just plug in and go.

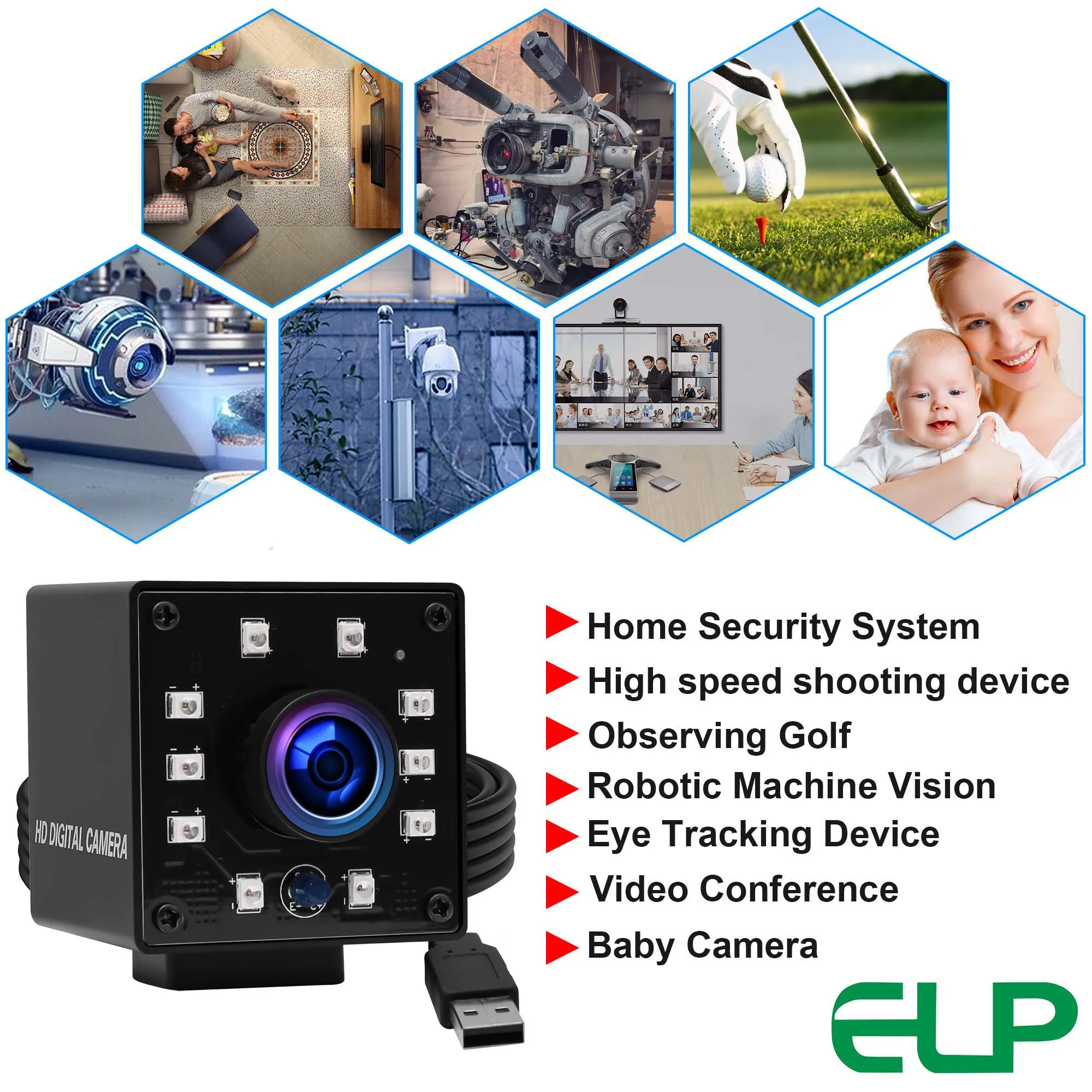

         Well used for High Speed- sports photography, AI object recognition, Industrial inspection, Video applications, Industrial automation, robotics, or scientific imaging, Industrial water detection, Robot mobile shooting, Gesture recognition, High-speed mobile capture, Mobile car shooting, Loom shooting, Water drop detail shooting, Sports security capture, Augmented and virtual reality, Eye tracking, Depth and motion detection…. and so on.
