Description

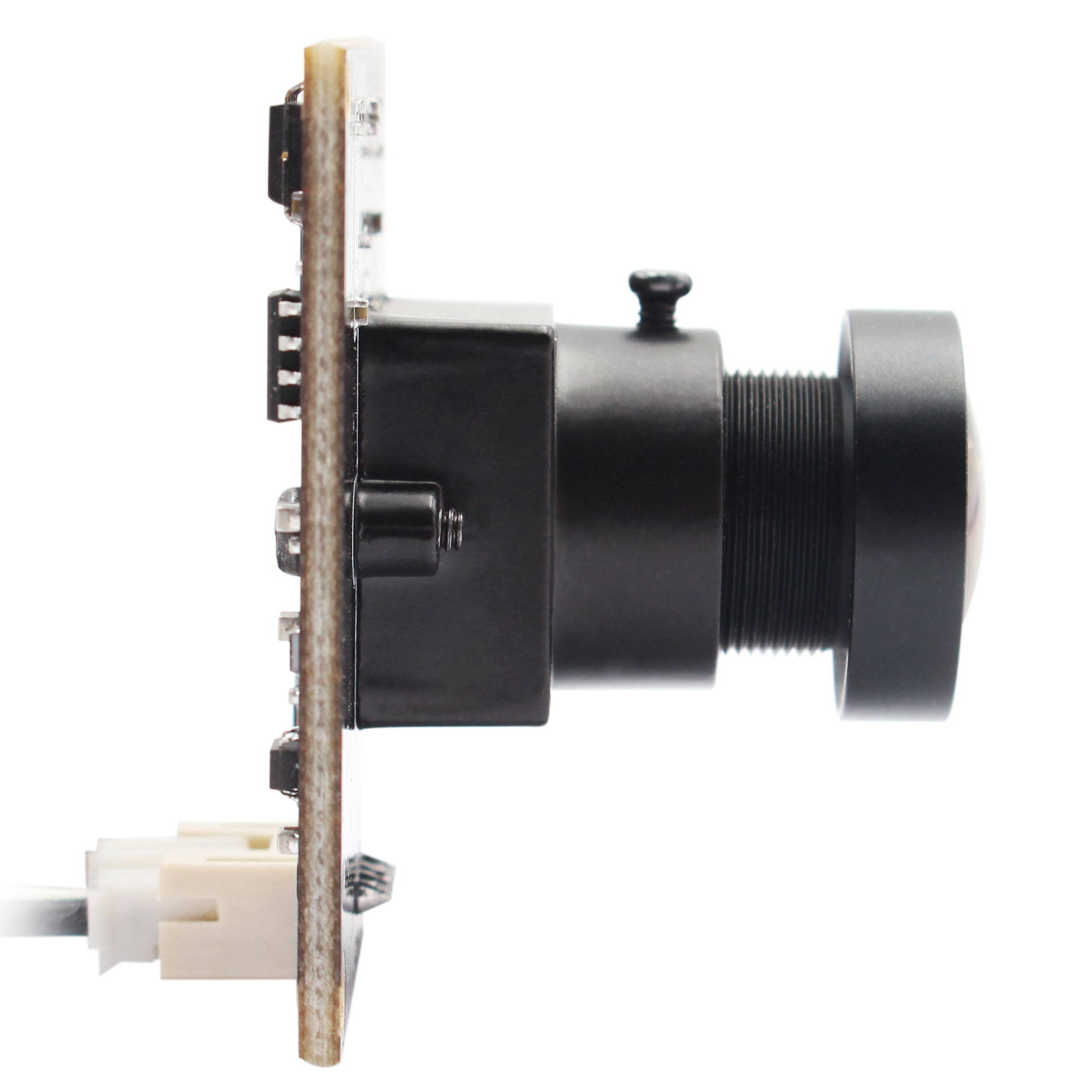

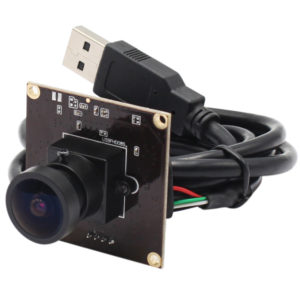

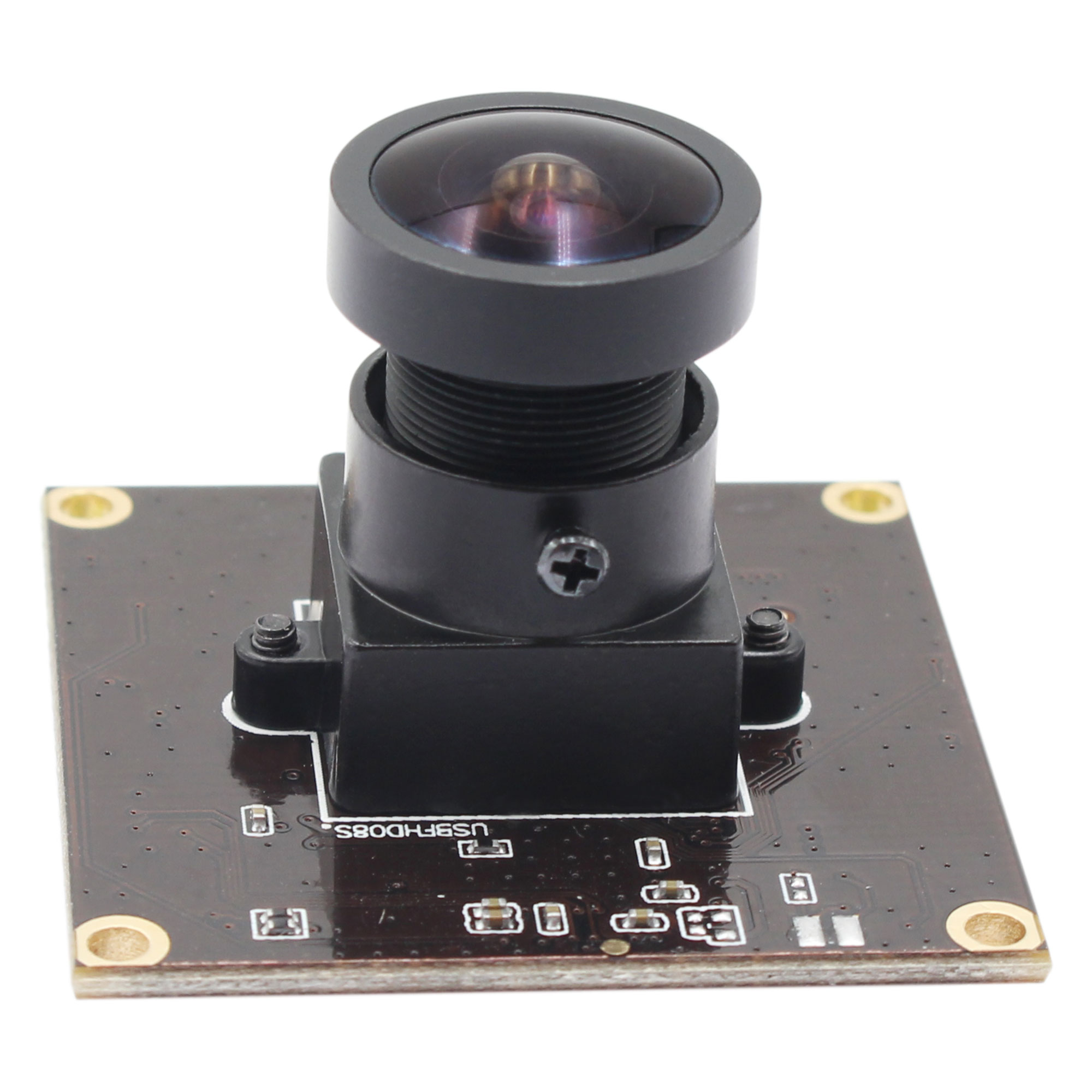

ELP High Speed USB2.0 OmniVision OV4689 Color CMOS Smallest USB Camera 260fps 360P,120fps 720P, 60fps 1080P
Features:
*1080P 60fps HD USB2.0 Camera,
*Equiped with Standard wide angle lens
*Can drive 60fps@1080P and 120fps@720p, 260fps at 640x360P or Support IR Cut
*CMOS OV4689 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*Super small outline and thin profile for embedded applications.(38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specifications
| Model | ELP-USBFHD08S-L170 (wide angle 170degree lens) |
| Sensor | OV4689 |
| Lens Size | 1/3 inch |
| Pixel Size | 2.0µm X 2.0µm |
| image area | 5440 µm x 3072 µm |
| Max. Resolution | 1280(H)X720(V) |
| Compression format | MJPEG / YUV2(YUYV) |
| Resolution & frame | 1920X1080 MJPEG@ 60fps
1280X720 MJPEG@ 120fps 640X360MJPEG@ 260fps |
| S/N Ratio | 38.3dB |
| Dynamic Range | 64.6dB |
| Sensitivity | 1900mV/lux-sec@550nm |
| Mini illumination | 0. 1lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class(UVC) |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure |
| Lens Parameter | Standard wide angle 170degree lens
optional other M12 Mount lens |
| Power supply | USB BUS POWER |
| Operating Voltage | DC5V |
| Working current | 150mA~185mA |
| Working temperature | 0~70℃ |
| Board size /Weight | 38*38mm |
| Cable | Standard 1M |
| Operating system request | Win XP/Vista/Win7/Win8
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Frame rate read by our testing software- AMCAP
