Description

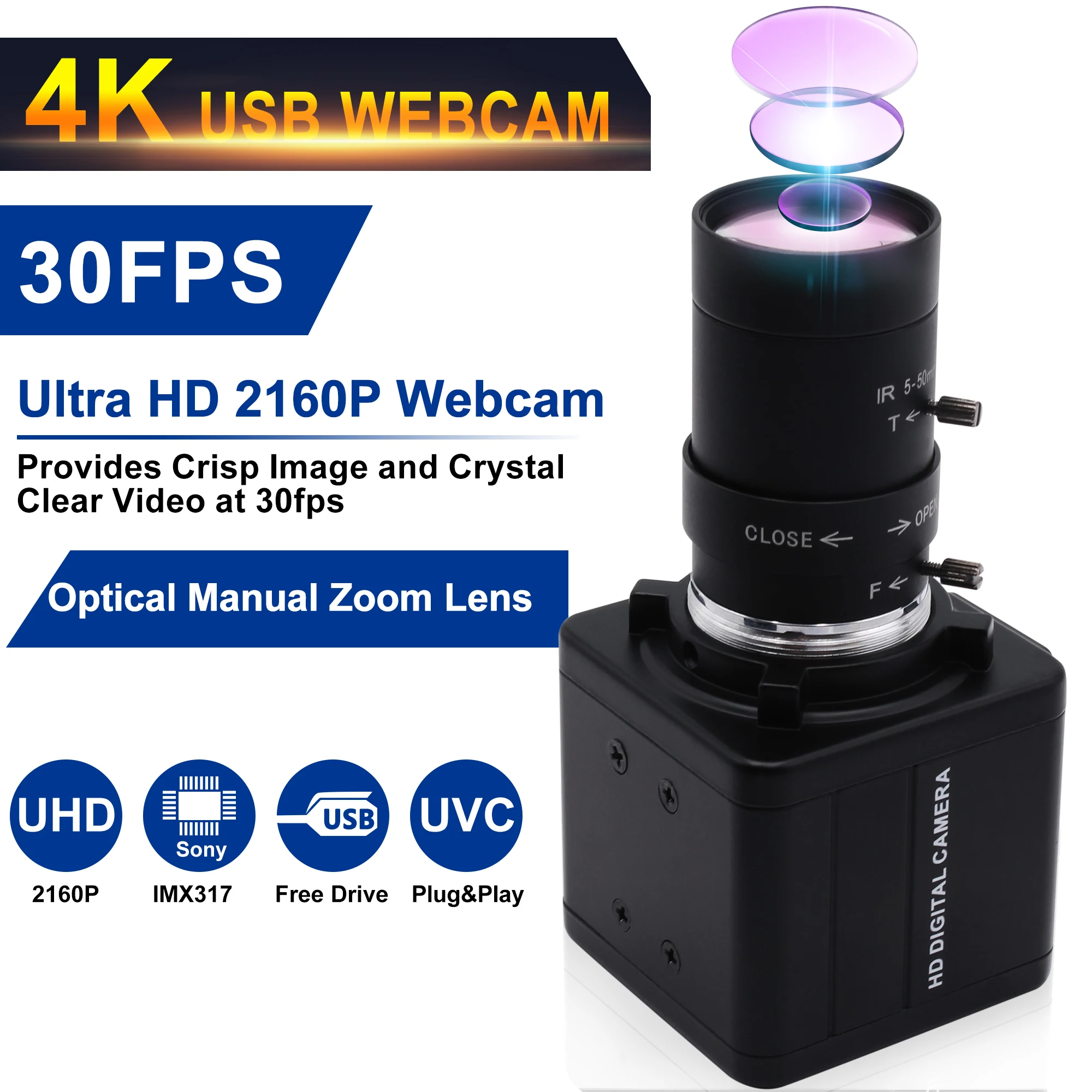

ELP 4K USB Webcam 30fps 3840×2160 High Resolution UVC IMX317 Sensor with 5-50mm 10X Zoom Varifocal Lens, with Microphone ,Mini USB Close-up Camera
Package Includes:
1) 1PC 4K USB Camera with 2.8-12mm or 5-50mm varifocal lens.
2) 1PC 3m usb cable (1/2/5m usb cable optional)
| Model | ELP-USB4KHDR01-MFV(5-50) (10X zoom manual lens)
Optional: ELP-USB4KHDR01-MFV(2.8-12) (2.8-12mm manual zoom lens) |

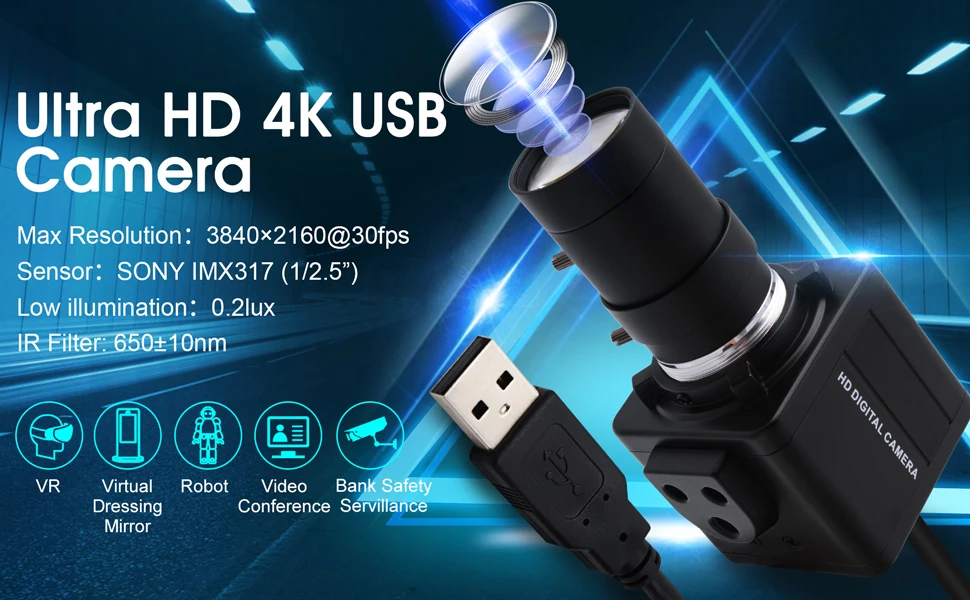

| Sensor | SONY IMX317 (1/2.5”) |
| Max Resolution | 3840(H) *2160 (V) |
| Sensitivity | 1000mV/Lux-sec |
| Image area | 6100^mx4524^m |
| Picture format | MJPEG /YUY2 (YUYV) |
| Resolution & FPS | 3840×2160@ 30fps MJPEG/ 2592×1944@ 30fps MJPEG
2048×1536@ 30fps MJPEG /1600×1200@ 30fps MJPEG 1920×1080@ 30fps MJPEG/ 1280×1024@30fps MJPEG 1280×960@30fps MJPEG/1280×720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640×480@ 30fps MJPEG/ 320×240@ 30fps MJPEG 3840×2160@ 1fps YUY2 / 2592×1944@ 1fps YUY2 2048×1536@ 3fps YUY2 /1600×1200@ 3fps YUY2 1920×1080@ 3fps YUY2/ 1280×1024@3fps YUY2 1280×960@5fps YUY2/1280×720@ 5fps YUY2 1024 x 768@ 5fps YUY2/ 800 x 600@ 20fps YUY2 640×480@ 30fps YUY2 / 320×240@ 30fps YUY2 |
| Center Definition | 1000LW/PH (Center) |
| S/N (Signal Noise Ratio) | 26dB |
| Sensitivity | 0.65V/lux-sec@550nm |
| Low illumination | 0.2lux |
| Shutter | Electronic rolling shutter / Frame exposure |
| Interface | USB2.0 High Speed |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance,Backlight Contrast, Exposure |
| Lens | 2.8-12mm/5-50mm varifocal manual lens optional |
| Audio Support | With built-in microphone, support audio recording |
| Power Supply & Connector | USB BUS POWER 4P-2.0mm socket |
| Power | DC5V |
| Current | 200mA |

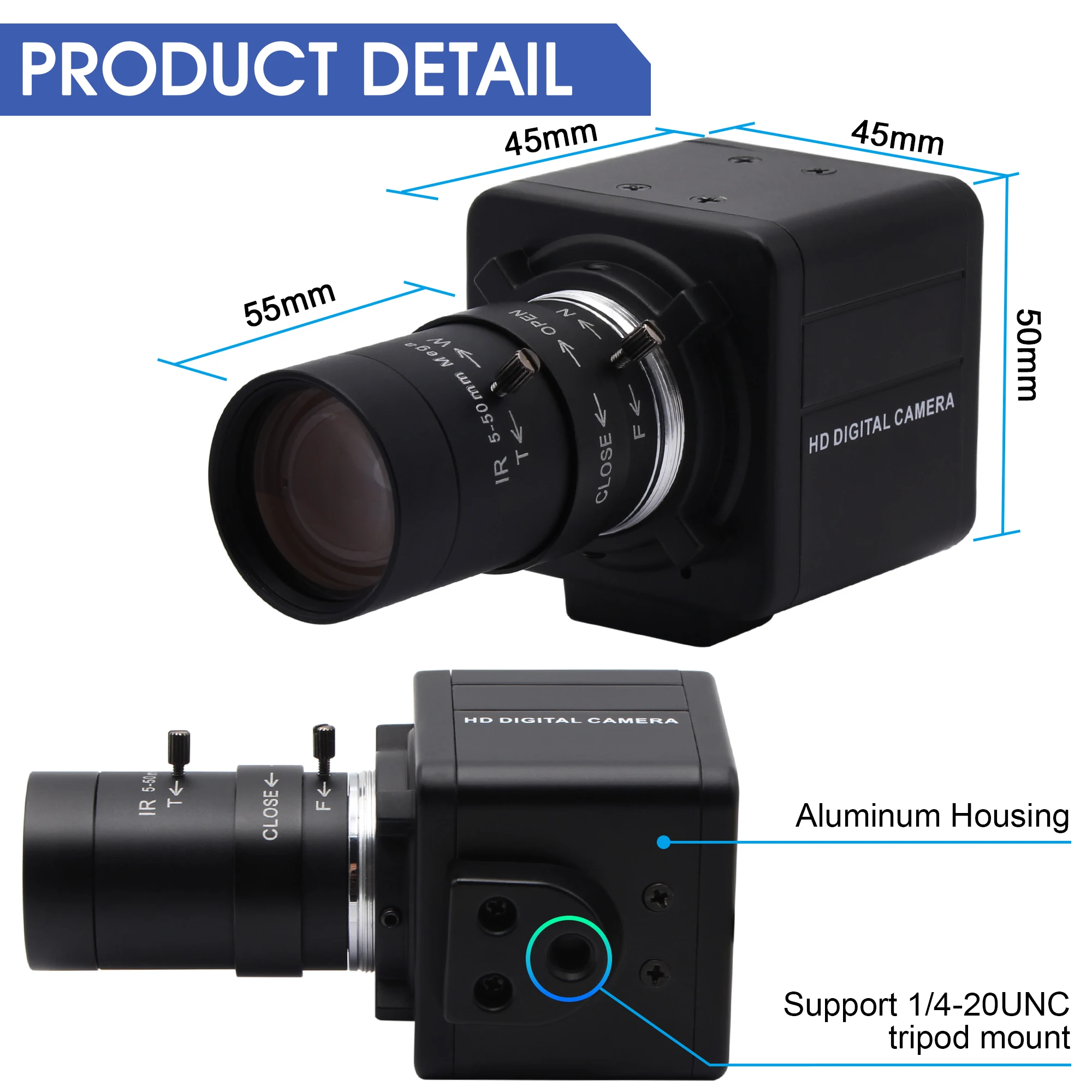

| Size | 45mm x 45mmx50mm |
| Storage Temperature | -20°C to 70°C |
| Working Temperature | 0°C to 60°C |
| USB Cable | 3M(1M/2M/5M Optional) |
| Operating System | Win XP/Vista/Win7/Win8/Win10/Win11
Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
