Description
ELP Mini 720p Webcam USB Camera Module 1.0Megapixel CMOS OV9712 HD Free Driver Industrial Camera for 3D Printer, Machine Vision

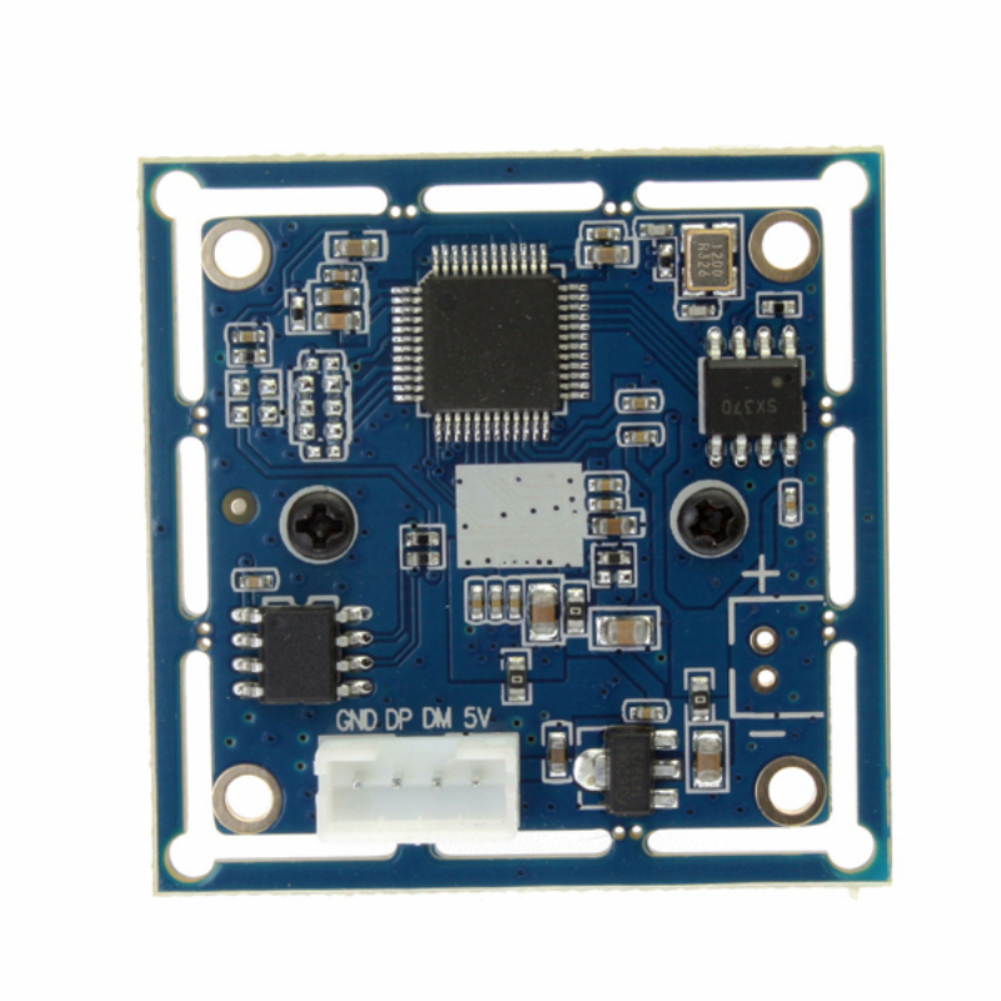

The HD 720P USB CMOS board camera module(model: ELP-USB100W03M serials) is ideal for many applications like security
systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by Omnivision, one of the world leaders in this field of electronics.
The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.
Feature:
*720P USB Camera Module
*Equiped with megapixel lens (2.1/2.8/3.6/6/8/12/16mm lenses optional)
*CMOS 720P sensor for high quality image and low power consumption
*High speed USB 2.0 interface for high resolution PC camera interface
*high pixel technology for sharp image and accurate color reproduction
*low light performance – ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High frame rate– deliver 30 fps in 1280X720 resolution
*High quality lens, true and undistorted color image
*Low power consumption – ideal for portable equipment
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC
Specification:
| Optional models | ELP-USB100W03M-L36 |
| Sensor | OV9712 |
| Lens size | 1/4 inch |
| Pixel Size | 3.0um X 3.0um |
| Image Area | 3888 µm x 2430 µm |
| Max. Resolution | 1280(H)X720(V) |
| Compression Format | MJPEG / YUV2（YUYV） |
| Resolution & frame | 1280X720 MJPEG@ 30fps YUY2@10fps/ 960X720MJPEG@ 30fps YUY2@15fps 800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps 352X248 MJPEG@30fps YUY2@ 30fps/ 320X240 MJPEG@ 30fps YUY2@ 30fps 176X144 MJPEG@30fps YUY2@ 30fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps |
| S/N Ratio | 40dB |
| Dynamic Range | 69dB |
| Sensitivity | 3.7V/lux-sec@550nm |
| Mini illumination | 0. 1lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class（UVC） |
| Support OTG Protocol | USB2.0 OTG |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure |
| Lens Parameter | Standard 3.6mm, optional 2.1/2.5/2.8/6mm/FOV(D)170 Degree |
| Digital audio | High quality digital MIC, support single, dual channel |
| LED board power connector | Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Power supply | DC5V |
| Operating Voltage | 100mA~120mA |
| Working current | `-10～70 °C |
| Working temperature | `-20～85 °C |
| Board size /Weight | 38X38mm（Compatible 32X32mm）/ about 30g |
| Cable | Standard 1M / optional 2M,3M,5M |
| Operating system request | Win XP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
