Description

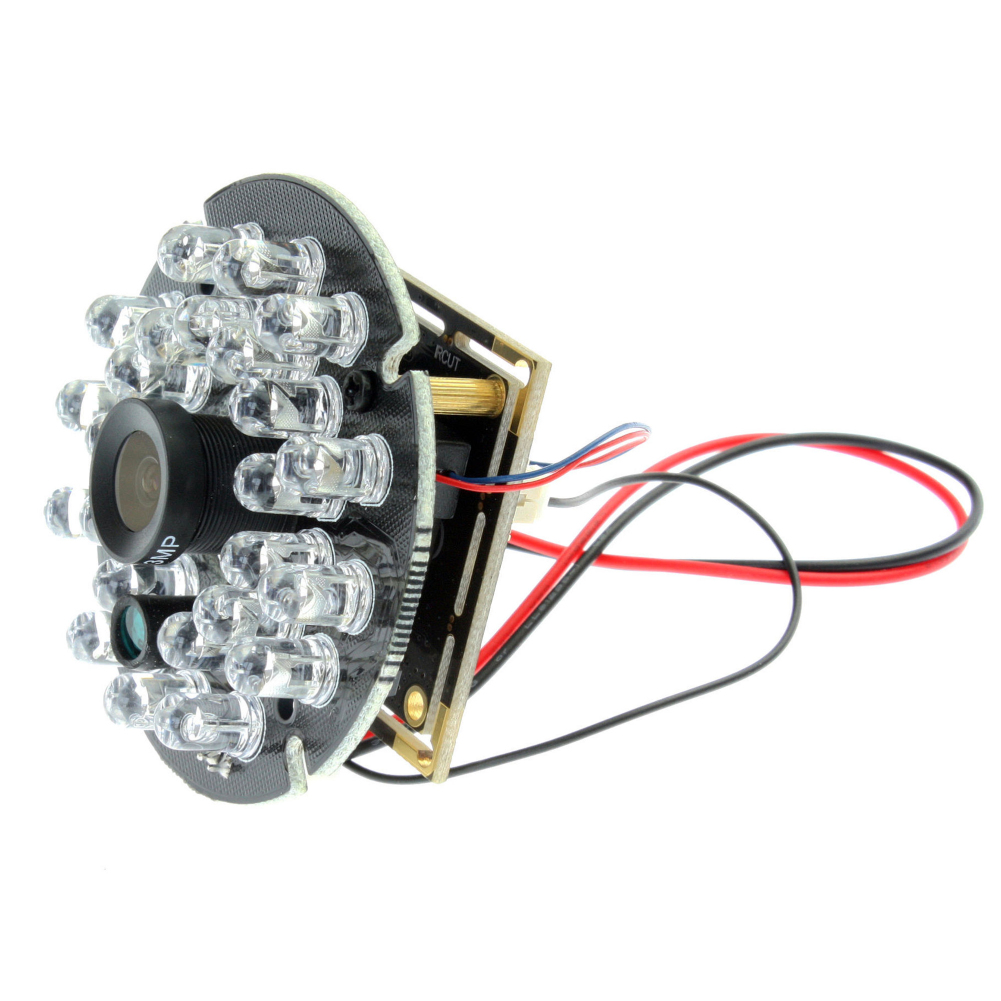

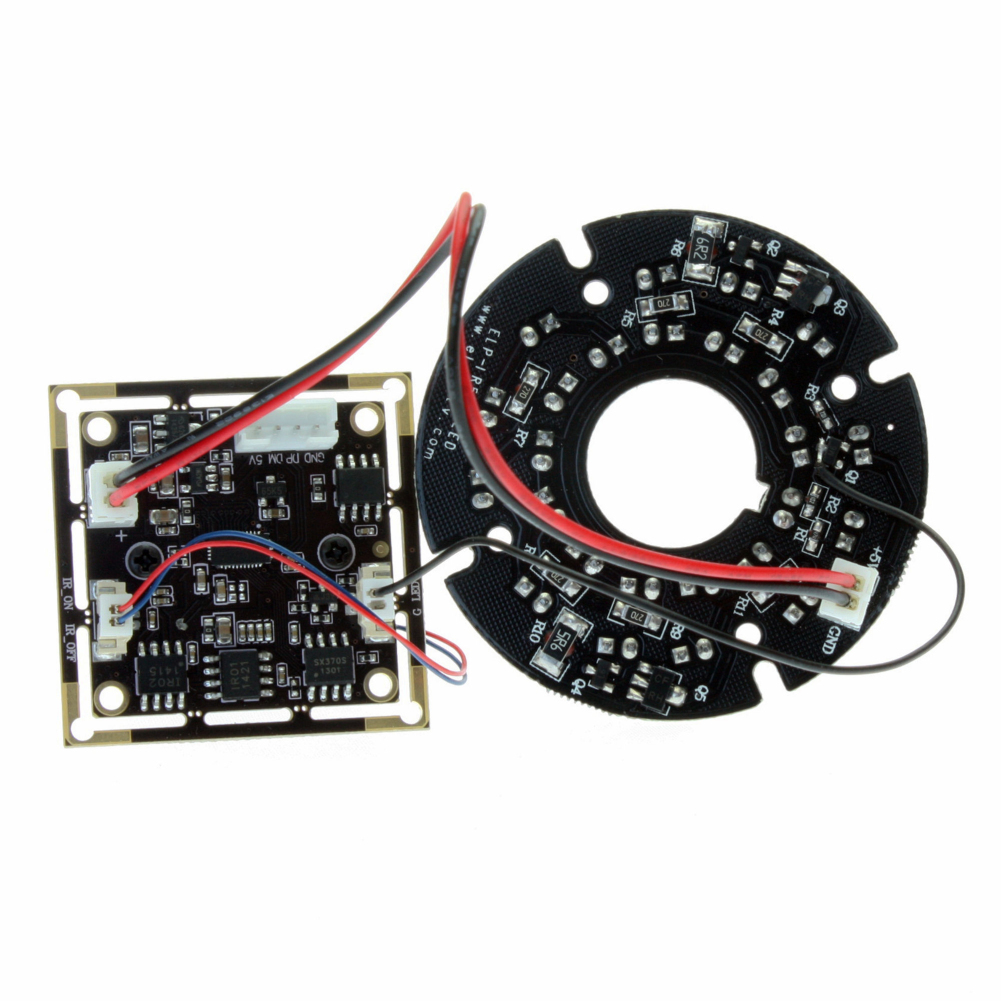

ELP Night Vision 1.3Megapixels CMOS USB Camera With IR LED, Low Illumination Webcam, Low light camera modue usb (ELP-USB130W01MT-RL36)
This low illumination camera can work well in low light environment. We also have 2mp and 13mp low light cameras.
Feature:
*CMOS 960P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or Android 4.0 above.
*Camera with UVC.
Specification:
| Model | ELP-USB130W01MT-RL36 |
| Sensor | Aptina AR0130 |
| Lens Size | 1/3 inch |
| Pixel Size | 3.75um |
| Max. Resolution | 1280(H)X960(V) |
| Compression format |
MJPEG / YUV2（YUYV） |
| Resolution & frame |
1280X960 MJPEG@ 15fps YUY2@9fps/ 1280X720MJPEG@ 30fps YUY2@15fps 800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@20fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps |
| S/N Ratio | 44dB |
| Dynamic Range | 83.5dB |
| Sensitivity | 5.5V/lux-sec@550nm |
| Mini illumination | 0. 01lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
|
Connecting Port type |
USB2.0 High Speed |
|
OTG protocol |
USB2.0 OTG |
|
Free Drive Protocol |
USB Video Class（UVC） |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
|
Lens Parameter |
Standard 3.6mm, optional 2.1/2.5/2.8/6mm |
|
LED |
24PCS LED |
|
IR CUT Connector |
Support 2P-1.25mm socket |
|
LED board test connector |
Support 2P-1.25mm socket |
|
LED board power connector |
Support 2P-2.0mm socket |
|
Power supply |
USB BUS POWER 4P-2.0mm socket |
|
Power supply |
DC5V |
|
Operating Voltage |
100mA~160mA |
|
Working current |
0～70℃ |
|
Working temperature |
-20～75℃ |
|
Board size /Weight |
38X38mm/ about 60g |
|
Cable |
Standard 1M / optional 2M,3M,5M |
|
Operating system request |
WinXP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
