ELP Outdoor Waterproof IP67 Rated Camera 1080p Full HD Night Vision CCTV Surveillance Mini High Speed 30/60/120fps OV2710 CMOS Dome Usb Camera
General Description:
The HD 1080P USB CMOS board camera module(model: USBFHD01M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by OmniVision, one of the world leaders in this field of electronics. The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.
Feature:

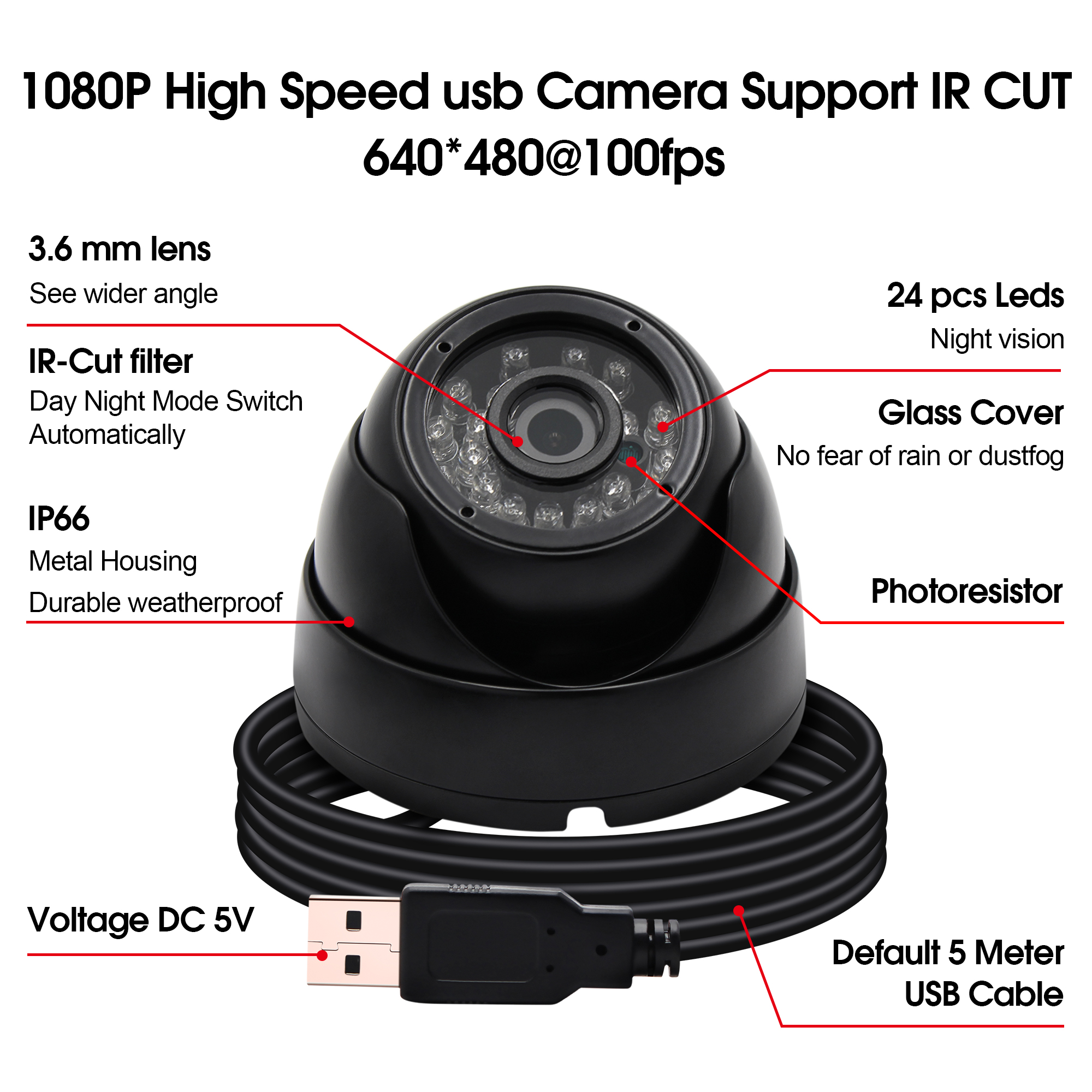

*High Speed 1080P HD USB Camera.
*Equiped with 3.6mm megapixel lens ( 2.8/6/8mm lens optional).
*Can drive 30fps@1080P and 60fps@720p and 120fps@480p.
*CMOS 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*High pixel technology for sharp image and accurate color reproduction.
*Low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 120fps in 640X480, 60fps in 1280X720,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specifications:
| Optional models | ELP-USBFHD01M-DL36 |
| Sensor | 1/3″ CMOS OV2710 |
| Lens size | 200W, 2.0megapixel, 1920(H)x1080(V)pixels |
| Max. Resolution | 1920X1080 |
| Picture format | MJPEG |
| USB Protocal | USB2.0 HS/FS, USB1.1 FS |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| Frame rate | 1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps 800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps 640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps 352(H) x 288 (V) pixels MJPEG 120fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 120fps YUY2 30fps |
| Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |

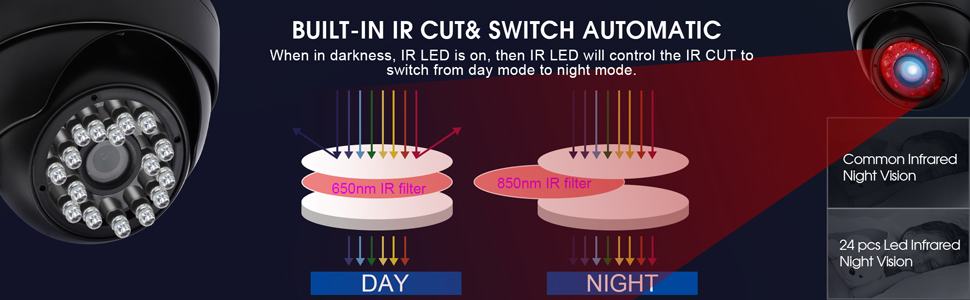

| Night vision | 3.6mm megapixel lens(2.8/6/8mm lens optional) |
| view angle | 92degree |
| voltage | DC 5V |
| Current | 150mA |
| Work temperature | DEGREES(-20~70) |
| Size | Diameter 92.5mm, height 65mm |

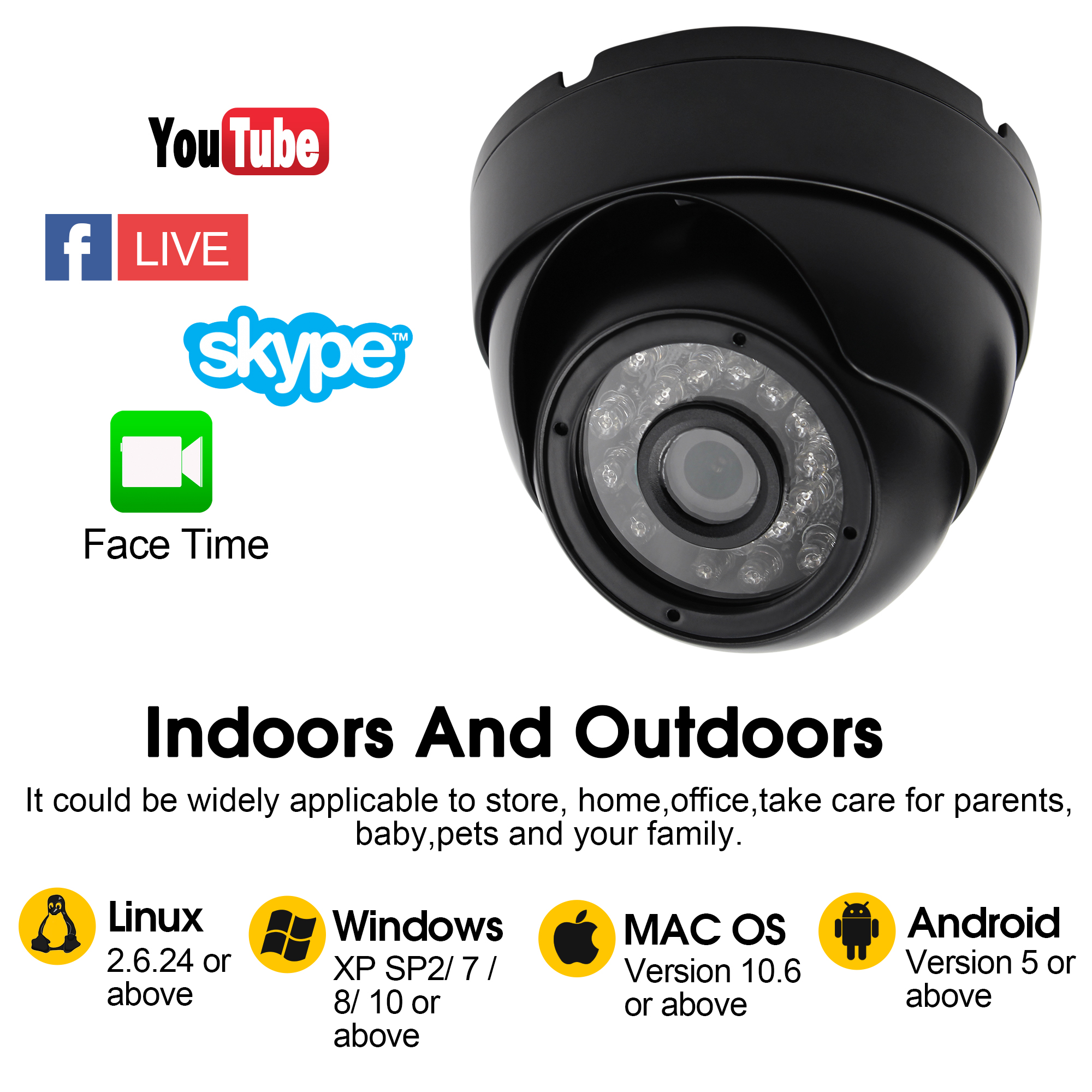

| Support OS | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
