Description
ELP 12MP Webcam Auto Focus USB Camera Module 1080P 60FPS 4K 30FPS Mini Lightburn Camera With 60degree Lens for Face Recognition
* 12MP High Resolution – CMOS IMX362 Sensor max resolution up to 4000X3000 for sharper and more detailed images
* High Speed Max 60FPS – 1080P 60FPS, 4K 30FPS, 4000*3000 15FPS
* High color reproduction and delicate image rendering – contribute to a more immersive, engaging, and visually pleasing experience
* Fast Auto Focus – auto control the focusing process to capture the moving object, works like the human eye, and shots the imaging you want.
* Adjustable Features – many parameters adjustable and saved, allows you customize the camera’s performance according to your needs.
* Ease of Use – Free driver,simply connect to a USB port then Plug & Play immediately. No need additional hardware, driver
* Mini Compact Webcam – 38*38mm board Size for Embedded Application
* Easy Integration – seamlessly integrate with many operating systems like Android, Windows, Linux. Mac OS etc.
* High Compatibility – compatible with a wide range of applications and platforms, Mini OTG USB Webcam for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc
| Model | ELP-USB12MP02AF-V65 (Without Case)
Optional Model: ELP-USB12MP02AF-KV65 (With Mini Metal Case) ELP-USB12MP02AF-KV65W (With Mini Metal Case+ White LED) |
| Sensor | SONY IMX362 |
| Sensor Size | 1/2.55inch |
| Pixel Size | 1.4um X 1.4um |
| Image Area | 6.8mm X 5.67mm |
| Max. Resolution | 4000(H) X 3000(V) 12Megapixel |
| Default Resolution | 4000(H) X3000(V) |
| Compression Format | MJPEG/ YUY2(YUYV) |
| Auto Focus Mode | PDAF Mode |
| Focus Speed | About 200ms At 60fps / 300ms At 30fps |
| Resolution & Frame Rate | 4000 X 3000 MJPEG@15fps 3840 X 2160 MJPEG@30fps
2592 X 1944 MJPEG@30fps YUY2@3fps 2560 X 1440MJPEG@30fps YUY2@3fps 2048 X 1536 MJPEG@30fps YUY2@3fps 1920 X 1080 MJPEG@60fps YUY2@5fps 1600 X 1200 MJPEG@45fps YUY2@5fps 1280x 1024 MJPEG@60fps YUY2@10fps 1280 X 720 MJPEG@60fps YUY2@10fps 800 X 600 MJPEG@45fps YUY2@25fps 640 X 480 MJPEG@45fps YUY2@25fps 640 X 360 MJPEG@60fps 320 X 240 MJPEG@45fps YUY2@25fps |
| Min Illumination | 0.5Lux |
| Shutter Type | Electronic Rolling Shutter /Frame Exposure |
| Connecting Port Type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class (UVC) |
| AEC | Support |
| AWB | Support |
| AGC | Support |
| Adjustable Parameters | Brightness,Contrast, Saturation,Hue, Sharpness, Gamma, Gain,White Balance,Backlight Contrast,Exposure |
| Lens Parameter | AF LENS Focus:3.3mm, DFOV:About 76 Degree, HFOV: About 65 Degree |
| Power Supply | USB BUS POWER 4P-2.0mm Socket |
| Operating Voltage | DC5V |
| Working Current | 160mA~180mA |
| Working Temperature | -20~60℃ |
| Storage Temperature | -20~85℃ |

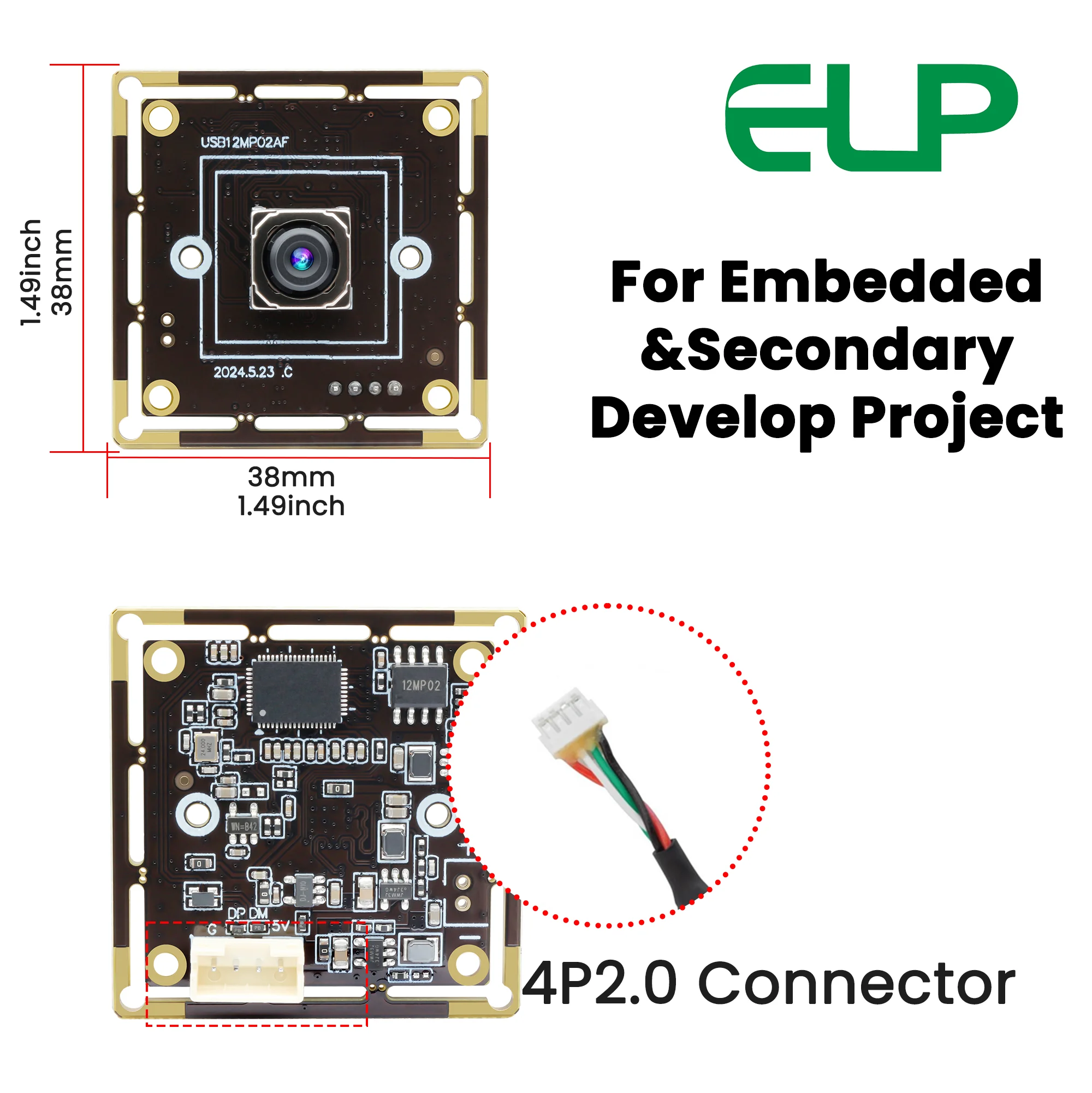

| Board Size /Weight | 38X38mm (Compatible 32X32mm) / About 30g |
| Cable | Standard1m / Optional 2m,3m,5m |
| Operating System Request | WinXP/Vista/Win7/Win8/Win9/Win10/Win11etc.
LinuxwithUVC(AboveLinux-2.6.26) MAC-OSX10.4.8orlater Android4.0orabovewithUVC |
12MP High Definition USB Webcam- CMOS IMX362 Sensor Max Resolution up to 4000*3000 for Sharper and More Detailed Images
60FPS High Speed: With this high-speed UVC camera module, you can enjoy programmable frame rates, with the potential to reach up to 60fps at 1080P and 30FPS at 4K resolution
Fast Auto Focus PC Camera, About 200 mS, auto control the focusing process to capture the moving object, works like the human eye, and shots the imaging you want.
High color reproduction and delicate image rendering PC Camera – contribute to a more immersive, engaging, and visually pleasing experience
No Distortion Mini Lens USB Camera – HFOV up to 65degree
Adjustable Features – many parameters adjustable and saved, allows you customize the camera’s performance according to your needs.Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Exposure
Mini Compact Webcam – 32*32mm / 38*38mm board Size for Embedded Application, Like ATM, Kiosk, Lightburn camera, Laser engraver, Robot vision
Easy Integration – seamlessly integrate with many operating systems like Android, Windows, Linux. Mac OS etc.
High Compatibility – compatible with a wide range of applications and platforms, including video chat software, video recording software and social media platforms, like OpenCV, Ubuntu, Facetime, PotPlayer, Skype, Android TV, XBOX ONE, Zoom, Facebook etc.

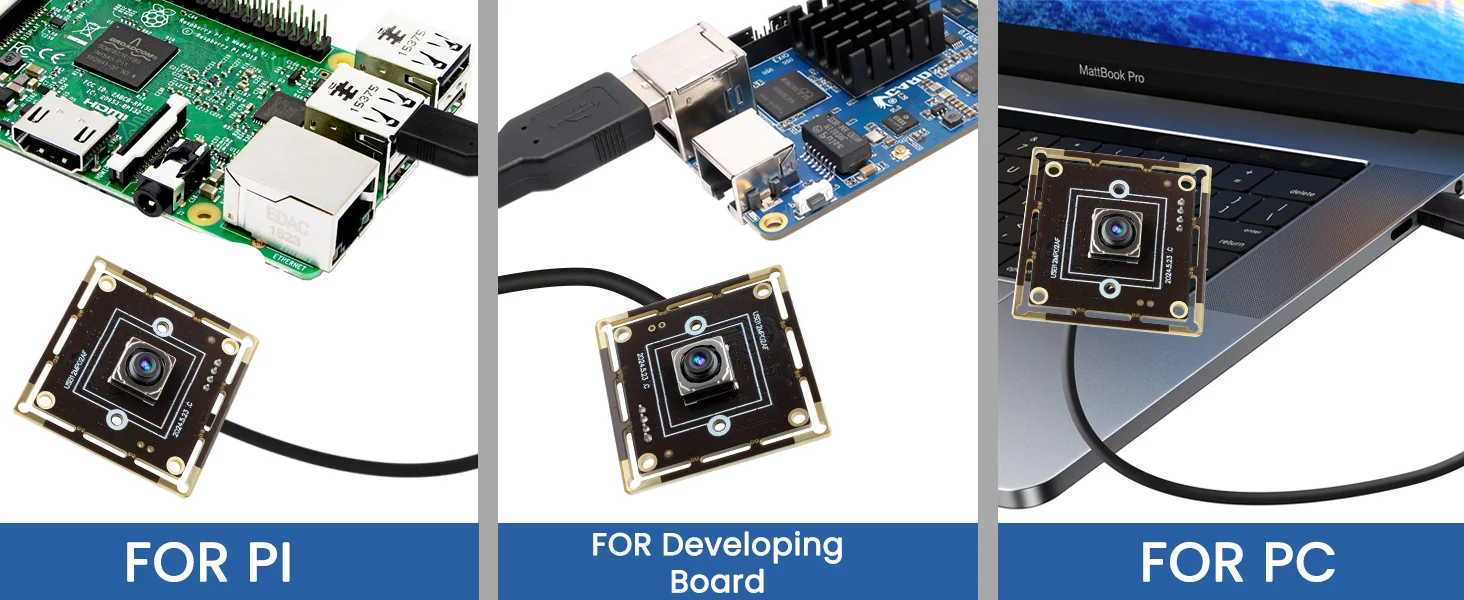

-Mini OTG USB Webcam for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc
Video Conferencing, Live Streaming, Security and Surveillance Medical Imaging,Industrial Inspection, Research and Development, Education and Training, high resolution document scan, high-speed photographic apparatus, photo scanner, 3D printer, Staic Scane, Altimeter, Micropscope etc.
