ELP 3MP WDR USB Camera 30fps H.264 AR0331 CMOS Mini Compact USB Video Camera with Microphones and 3.7mm Pinhole Lens for Industrial and Machine Vision

68.25$

Model: ELP-USB3MP01H-PL37

352 in stock

Description

ELP 3MP WDR USB Camera 30fps H.264 AR0331 CMOS Mini Compact USB Video Camera with Microphones and 3.7mm Pinhole Lens for Industrial and Machine Vision

Packing list:

1) 1pcs 3MP microphpne WDR usb camera with 3.7mm lens

2) 1pcs 3m usb cable (1/2/5m cable optional)

*Adopt high quality 1/3″ AR0331 cmos image sensor;

*Full HD, max resolution:2048(H) *1536(V);

*High frame rate- deliver 30 fps in 1920*1080 resolution;

*Support WDR, Dynamic Range up to 100 dB;*With microphone for audio recording;

*WIth high quality 3.7mm mini lens, other M12 lens optiona;

*H.264/MJPEG/YUY2 compression format optional;

*Low power consumption- ideal for portable equipment;

*White balance Function: Resolve color reduction and tone processing issues;

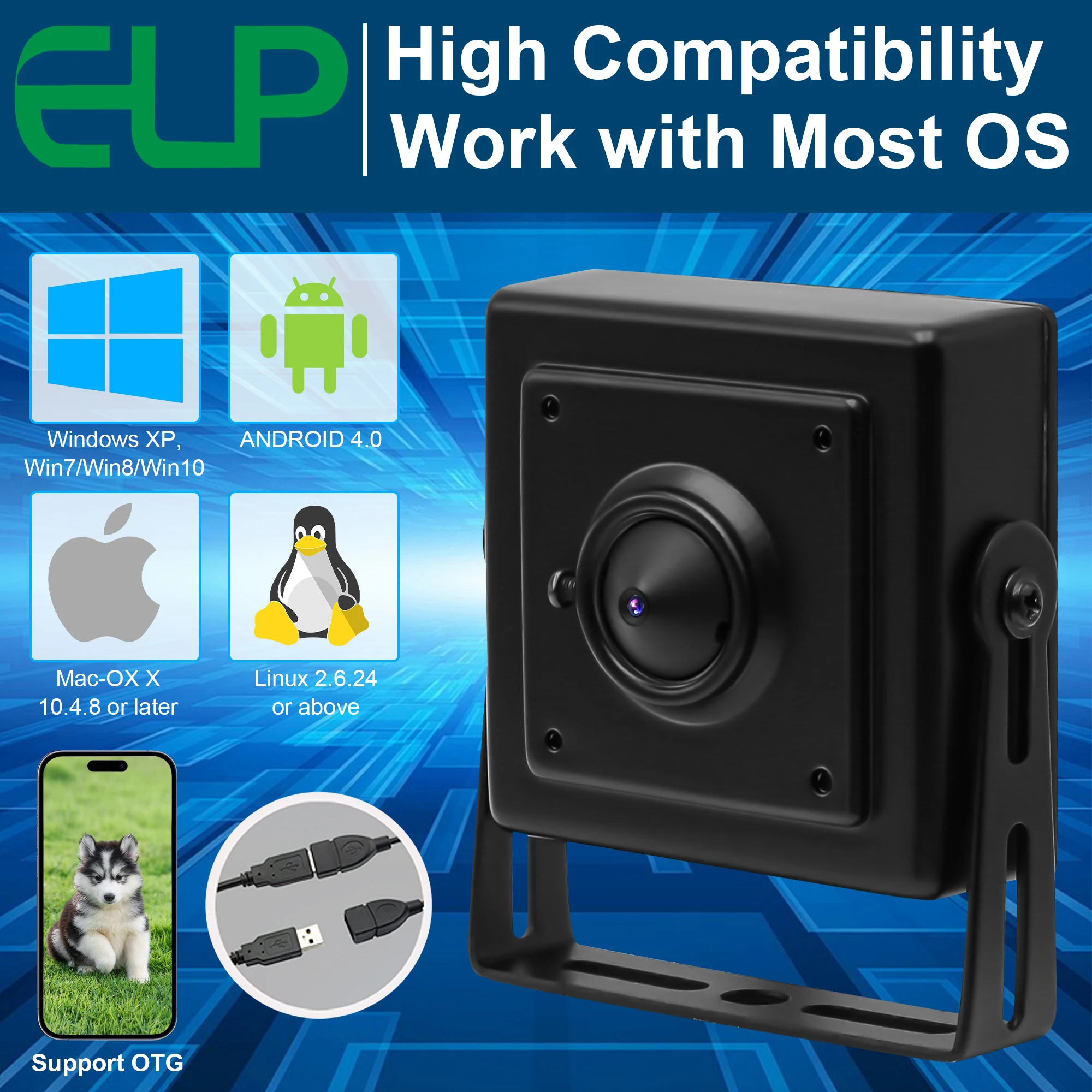

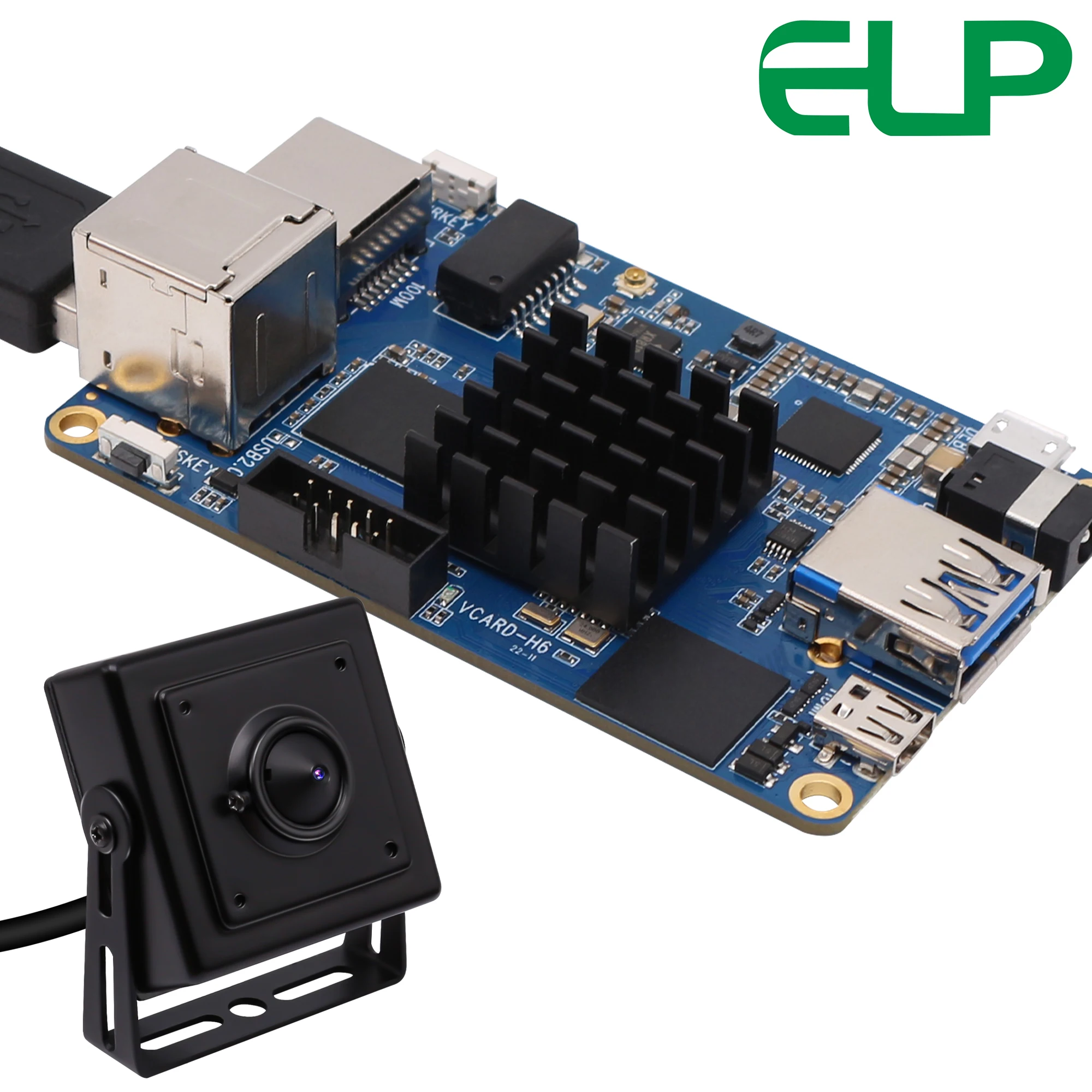

*Camera with UVC for Windows,Linux,Mac,Raspberry Pi,etc.;

*High speed USB 2.0 interface for high resolution PC camera interface;

*High pixel technology for sharp image and accurate color reproduction;

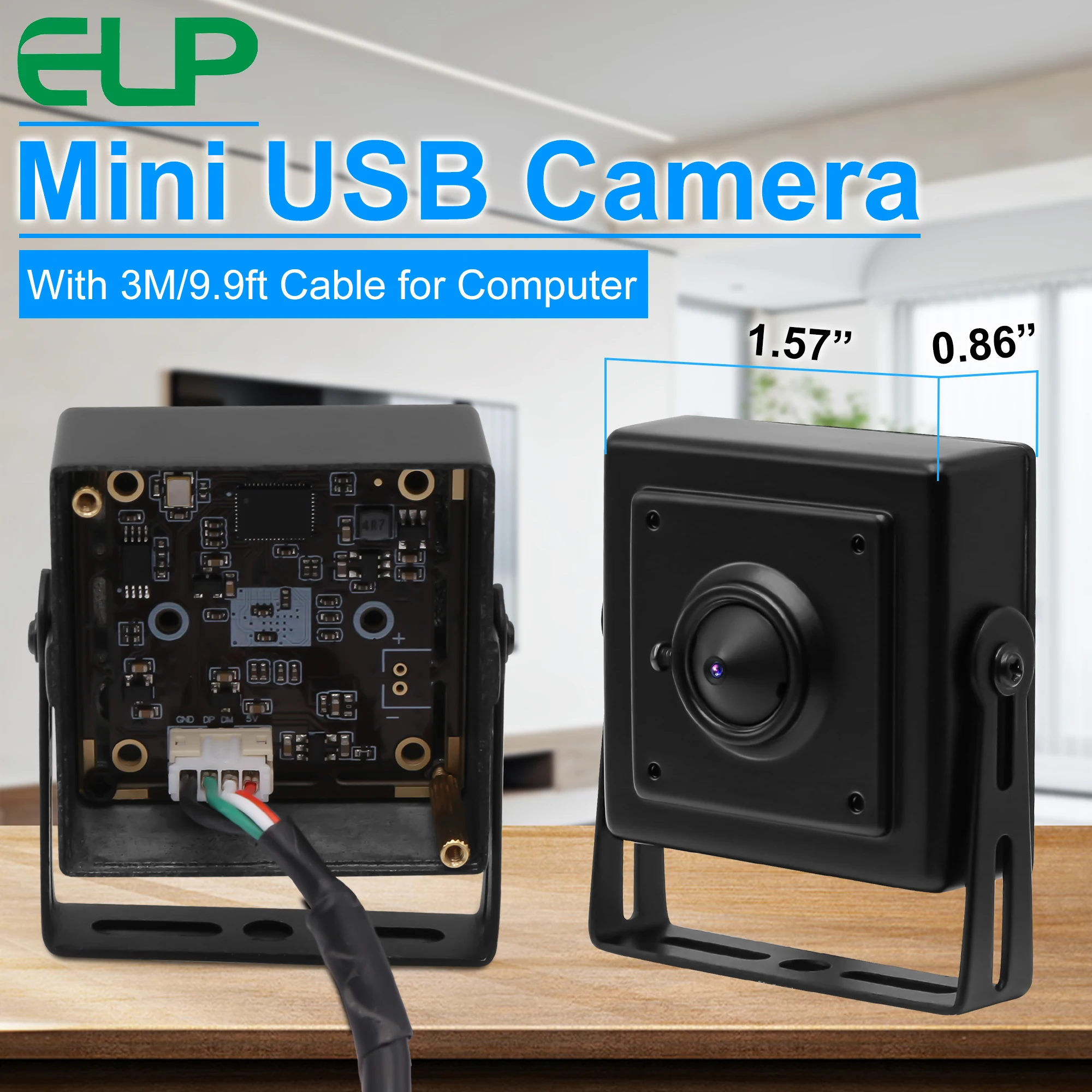

*Super small outline 38*38mm and thin profile for embedded applications.

Model

ELP-USB3MP01H-PL37

Sensor

AR0331

Lens Size

1/3 inches

Pixel Size

2.2um X2.2um

Max. Resolution

2048X1536

Compression format

H.264 /MJPEG / YUV2(YUYV)

Resolution & frame

H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps ​MJPEG:640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@ ​30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps ​YUV:640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@ ​5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps

S/N Ratio

39dB

Dynamic Range

Up to 100 dB

Sensitivity

2.0V/lux-sec@550nm

Min illumination

0. 05lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

Free Drive Protocol

USB Video Class(UVC)

Support OTG Protocol

USB2.0 OTG

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure

Lens Parameter

Standard 3.7mm pinhole lens

(2.1/2.8/3.6/6/8/12mm or fisheye lens or no distortion lens Optional)

Digital audio

High quality digital MIC, support single, dual channel

IR CUT Connector

Support 2P-1.25mm socket

LED board power connector

Support 2P-2.0mm socket

Power supply

USB BUS POWER 4P-2.0mm socket

Operating Voltage

DC5V

Working current

140mA~200mA

Working temperature

 -10~70℃

Storage temperature

 -20~85℃

Size

41X41X14.3mm

Cable

Standard 3M / 1M,2M,5M optional

Operating system request

WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC

Additional information

Weight 0.25 kg
Dimensions 13 × 10 × 9 cm
