Description
ELP 4K USB Zoom Camera 30fps H.265 H.264 HDMI live Streaming Camera 2.8-12mm Varifocal Lens USB Video PC Webcam 4K for Zoom, Skype, OBS
Package Includes:

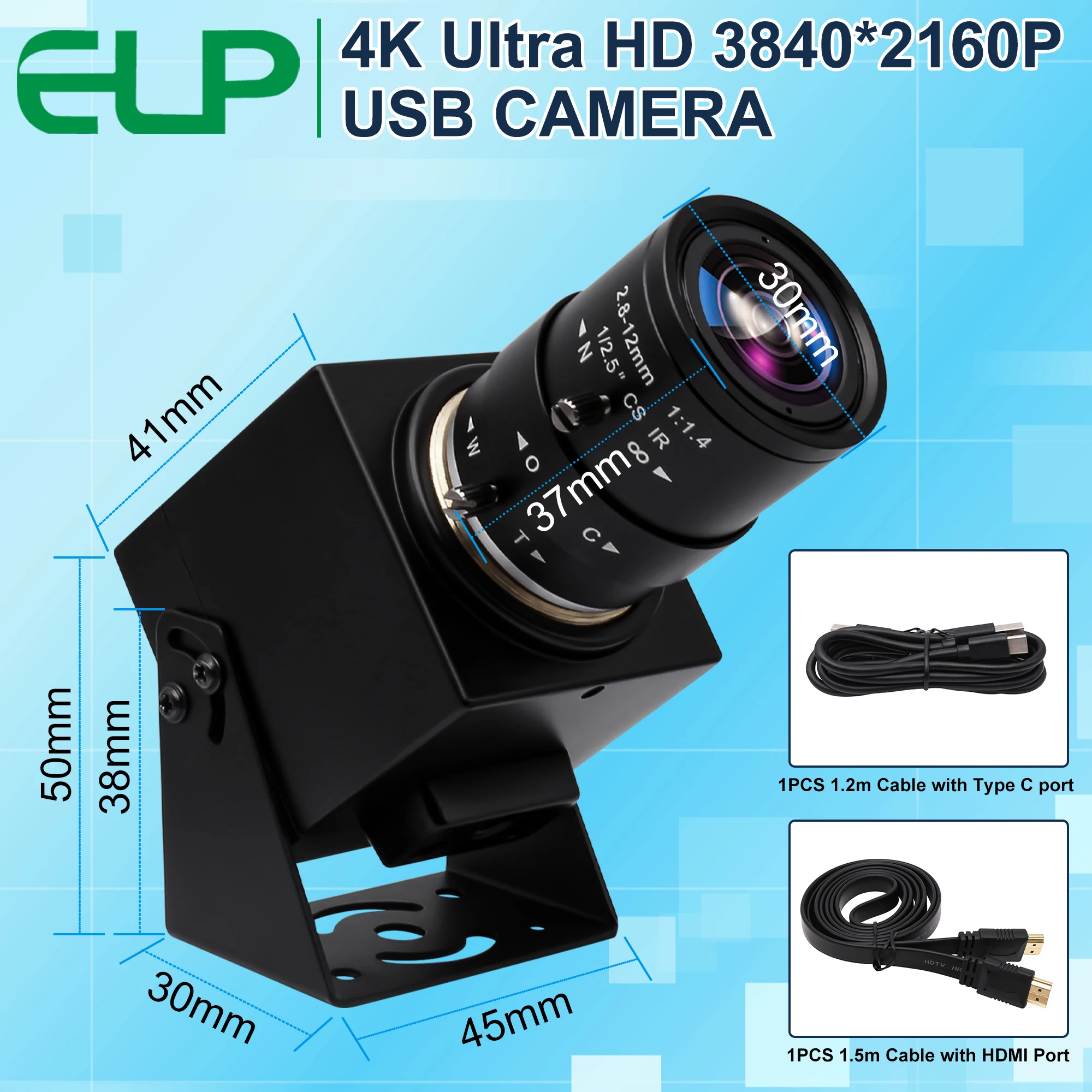

1) 1pcs 4K USB HDMI Camera with 2.8-12mm (optional 3.6-10mm or 5-50mm Varifocal Zoom Lens)
2) 1pcs 1.2m usb cable with type C port
3) 1pcs 1.5m HDMI cable with HDMI port
New Release 4K HDMI&USB Camera!
This 4K ELP-USB4KCAM01H-CFV USB HDMI Camera is a New member of ELP Cameras Family in 2023. It adopt 1/2.8″ Sony IMX415 Color CMOS sensor. With powerful H.265 Video Compression& H.265 Video format, provides you Ultra Smooth Uploading Experience. It can achieve Ultra HD 3840×2160 30fps,also Full HD 1080P 30fps Video Output. Support Type C and HDMI Dual Output simultaneously. With 2.8-12mm or 5-50mm Manual focus zoom Lens, enable 2X digital Zoom and 4X or 10X optic Zoom for super clear details images
Why HDMI?
“HDMI” stands for High-Definition Multimedia Interface.It allows for the transmission of crisp, clear visuals; It is a digital transmission, so no loss of quality;It supports a wide range of resolutions and refresh rates, including 1080p, 4K, and even 8K resolutions, as well as various frame rates for smooth video playback and gaming.Except these advantages, it also has wide compatibility and great versatility,simply setup and reduces cable clitter.HDMI provides a seamless way to enjoy high-quality multimedia contentacross different devices.
Why H.265?
H.265 is the successor to the previous H.264 standard. H.265 was designed to improve video compression efficiency and reduce the amount of data needed to transmit or store high-quality video content.H.265-encoded videos can achieve the same video quality at a lower bit rate or achieve higher video quality at the same bit rate compared to H.264-encoded videos. This is especially important for high-resolution content like 4K and 8K videos.
* Sensor: 4K USB&HDMI Camera with 1/2.8” Sony IMX415 Color CMOS image Sensor ;
* Interface: Type C and HDMI simultaneously output;
* Lens: With 2.8-12mm CS lens, 3.6-10mm, 5-50mm CS lens optional;
* Picture&Video Format: H.265 / H.264 / MJPEG / YUY2 optional;
* Resolution&Frame Rate: Max resolution 3840X2160, can drive 3840×2160 MJPEG 30fps/ H.264 30fps/ H.265 30fps;
* Consumption: High speed USB 2.0 interface camera module Low power consumption
* Three Display Mode: USB mode / HDMI mode / USB & HDMI mode;
* Digital Zoom: Support 2X digital Zoom for super clear details images;
* Optical Zoom: With 2.8-12mm lens, support 4X optic Zoom;With 5-50mm lens, support 10X optic Zoom;
* Good zoom in and out camera: Suitable for the research, technical or hobby projects, Raspberry Pi project to record bird feeding/the bird feeder, keep the recording in loop, especially getting a satisfactory long distance focus outdoors.
* UVC Compliant Plug&Play: Just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed or with HDMI cable to motitor for display directly
|
Model |
ELP-USB4KCAM01H-CFV(2.8-12) (4X zoom 2.8-12mm CS lens) ELP-USB4KCAM01H-CFV(3.6-10) (3X zoom 3.6-10mm CS lens) ELP-USB4KCAM01H-CFV(5-50Y) (10X zoom 5-50mm CS lens) |
|
Sensor |
1/2.8” SONYIMX415 |
|
Max Resolution |
3840(H)*2160(V) |
|
Default Resolution |
3840(H)*2160(V) |
|
Sensitivity |
0.65V/lux-sec@550nm |
|
Pixel Size |
1.45µmx1.45µm |
|
Video Compression |
MJPEG/ YUY2(YUYV) / H.264 / H.265 |
|
Digital Zoom |
2X Digital Zoom |
|
Resolution & Frame rate |
3840×2160 MJPEG 30fps/ H.264 30fps/ H.265 30fps 2560×1440 MJPEG 30fps/ H.264 30fps/ H.265 30fps 1920×1080 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 5fps 1280×720 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 10fps 1024×576 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps 960×540 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps 640×480 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps 640×360 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps |
|
Image Processing Time |
About 8 seconds after opening the preview software |
|
Central Definition |
1000LW/PH(Center) |
|
S/N Ratio |
30dB |
|
Min illumination |
0.2Lux |
|
Shutter Type |
ElectronicRollingShutter/FrameExposure |
|
Connecting Port Type |
USB 2.0 Interface &HDMI v1.4 Interface |
|
AEC |
Support |
|
AWB |
Support |
|
AGC |
Support |
|
Adjustable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure |
|
Lens Parameter |
CS 2.8-12mm lens or CS 5-50mm lens optional |
|
Power Supply & Interface |
USB Type-C Power Supply, Type-C & HDMI Display Simultaneous |
|
Operating Voltage |
DC5V |
|
Working Current |
480-500mA |
|
Board Dimension |
Double-deck, 38mm x 38mm |
|
Storage Temperature |
-20°Cto85°C |
|
Working Temperature |
-10°Cto70°C |
|
USB Cable |
2 pieces cables (1pcs 1.2m cable with Type-C port, 1pcs 1.5m cable with HDMI port) |
|
Operating System Request |
Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC MAC-OS X10.4.8 or later, Android 5.x or above |
High speed 30fps 4K USB HDMI Camera, support H.265 4K 30FPS, H.264 4K 30FPS , MJPEG 4K 30FPS, HDMI output support 1080P 30fps, gives you ultra smooth and fluent streaming

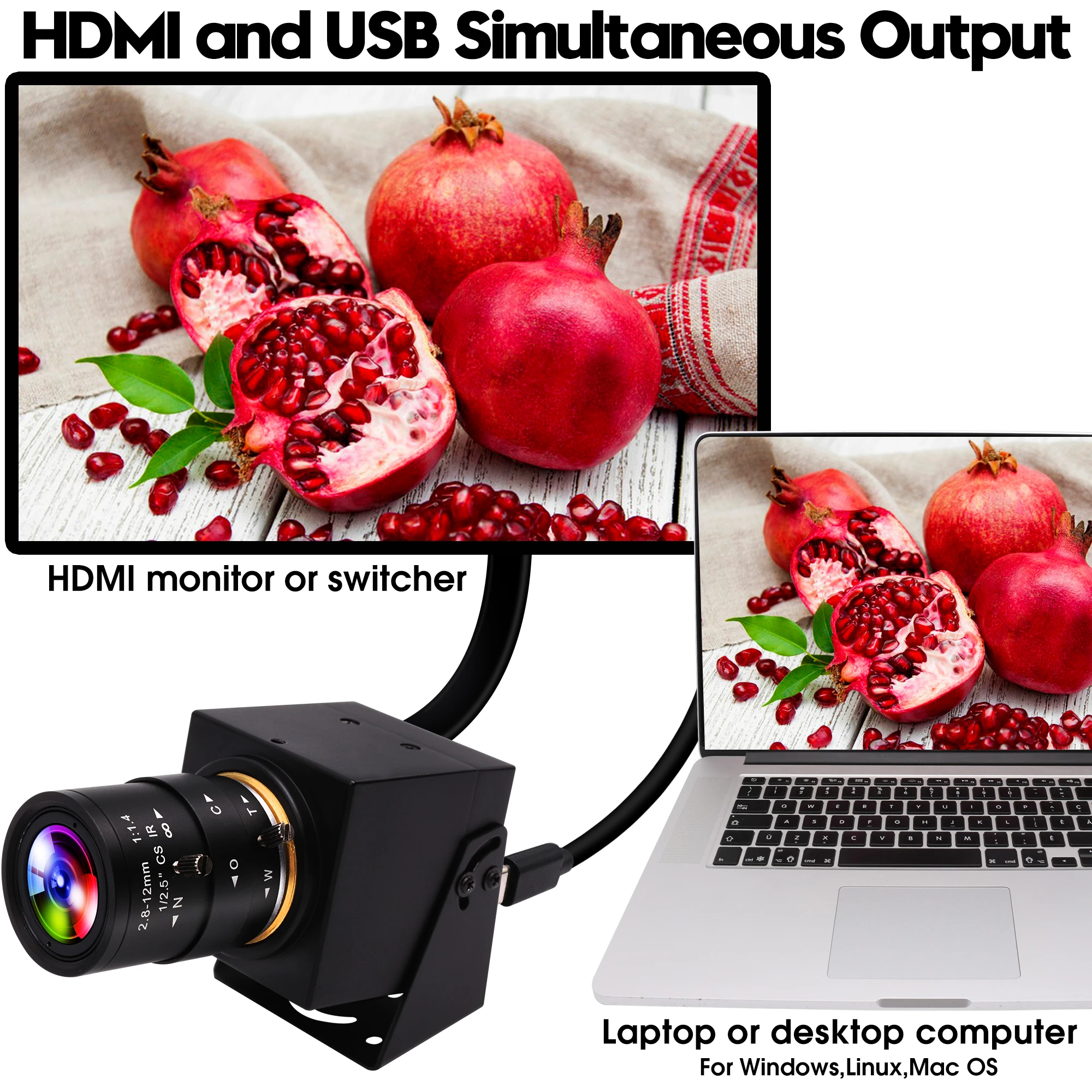

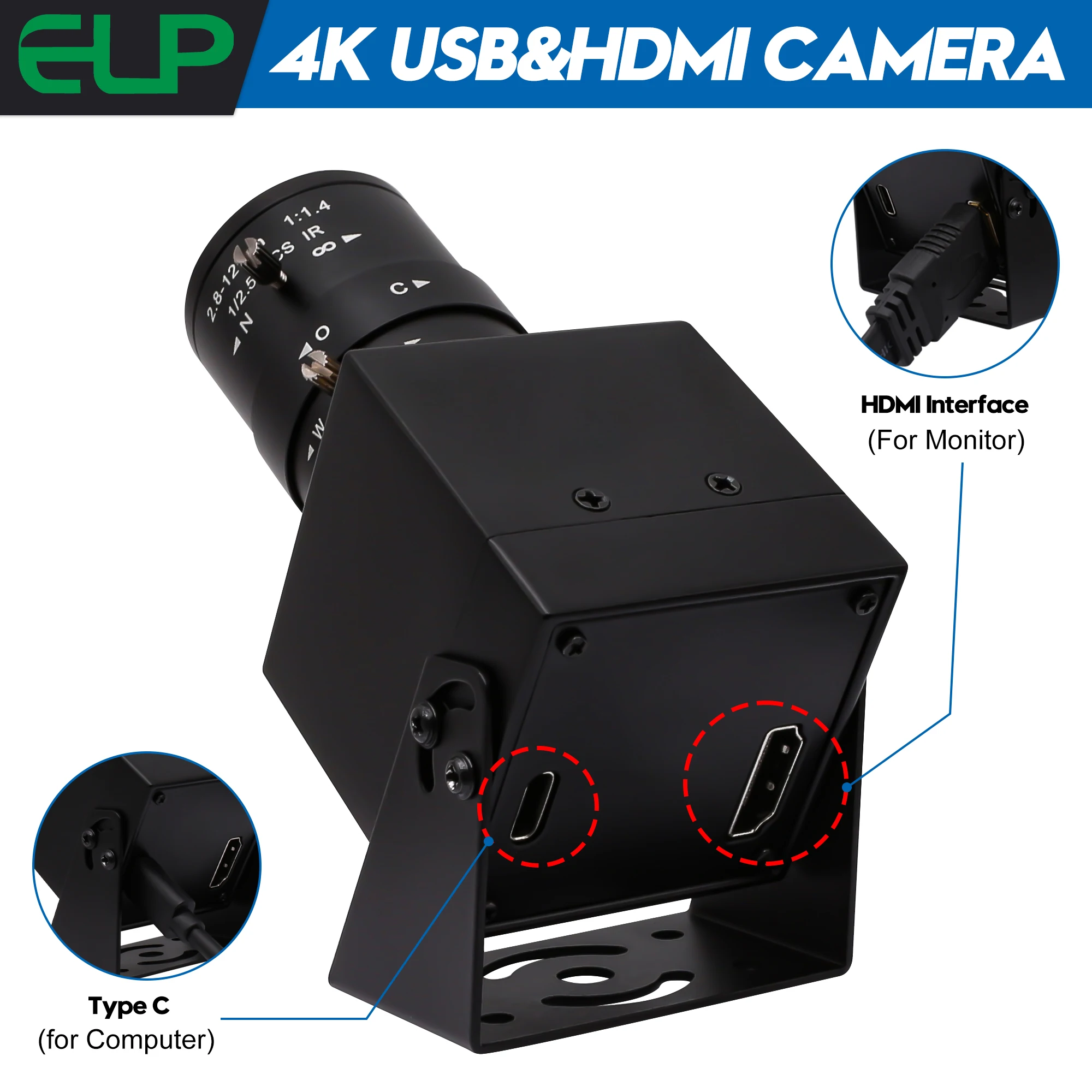

ELP 4K USB & HDMI Camera, with Type C and HDMI simultaneously dual output

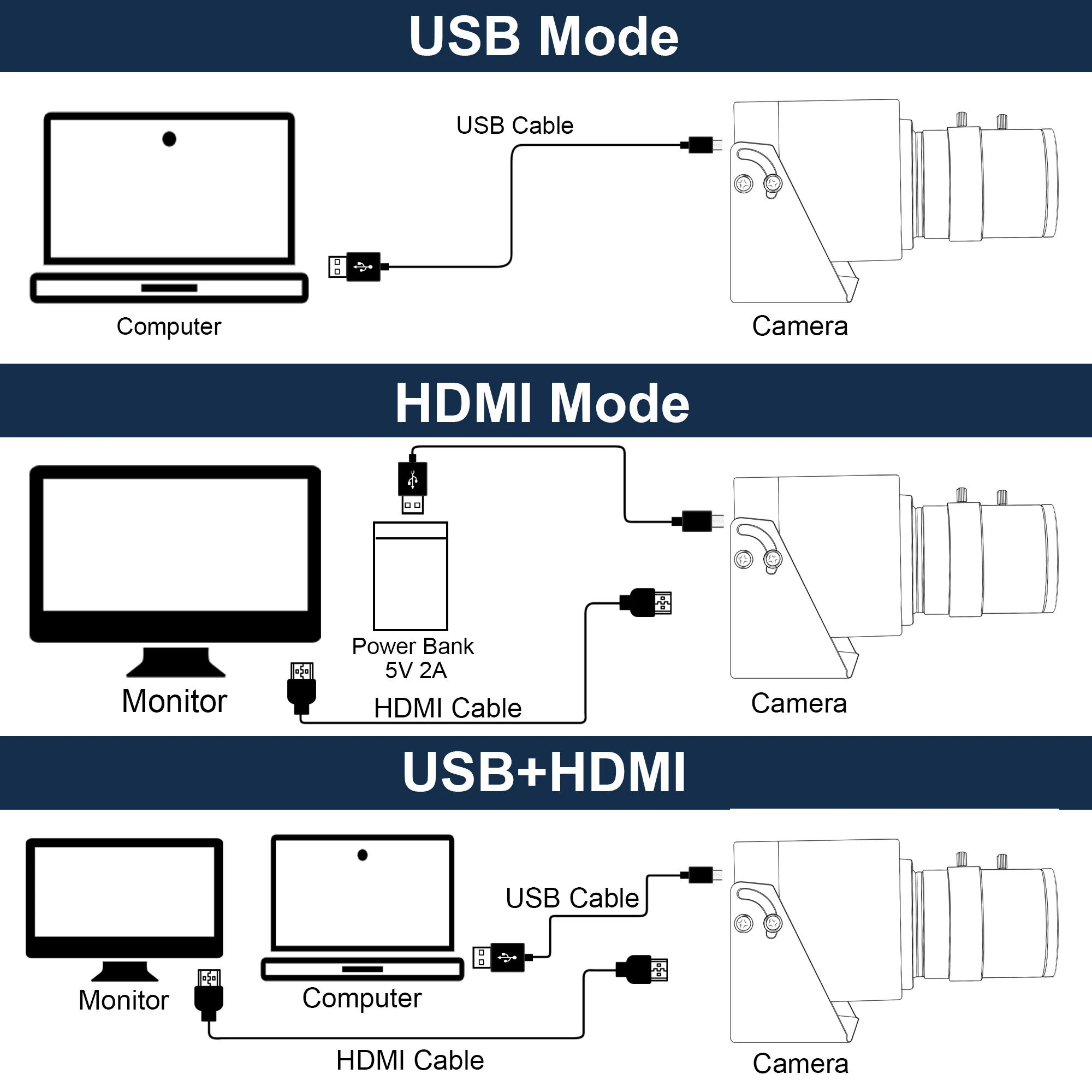

Support 3 Display Modes: USB Mode/HDMI Mode/USB+HDMI simultaneously output Mode
-
USB display:

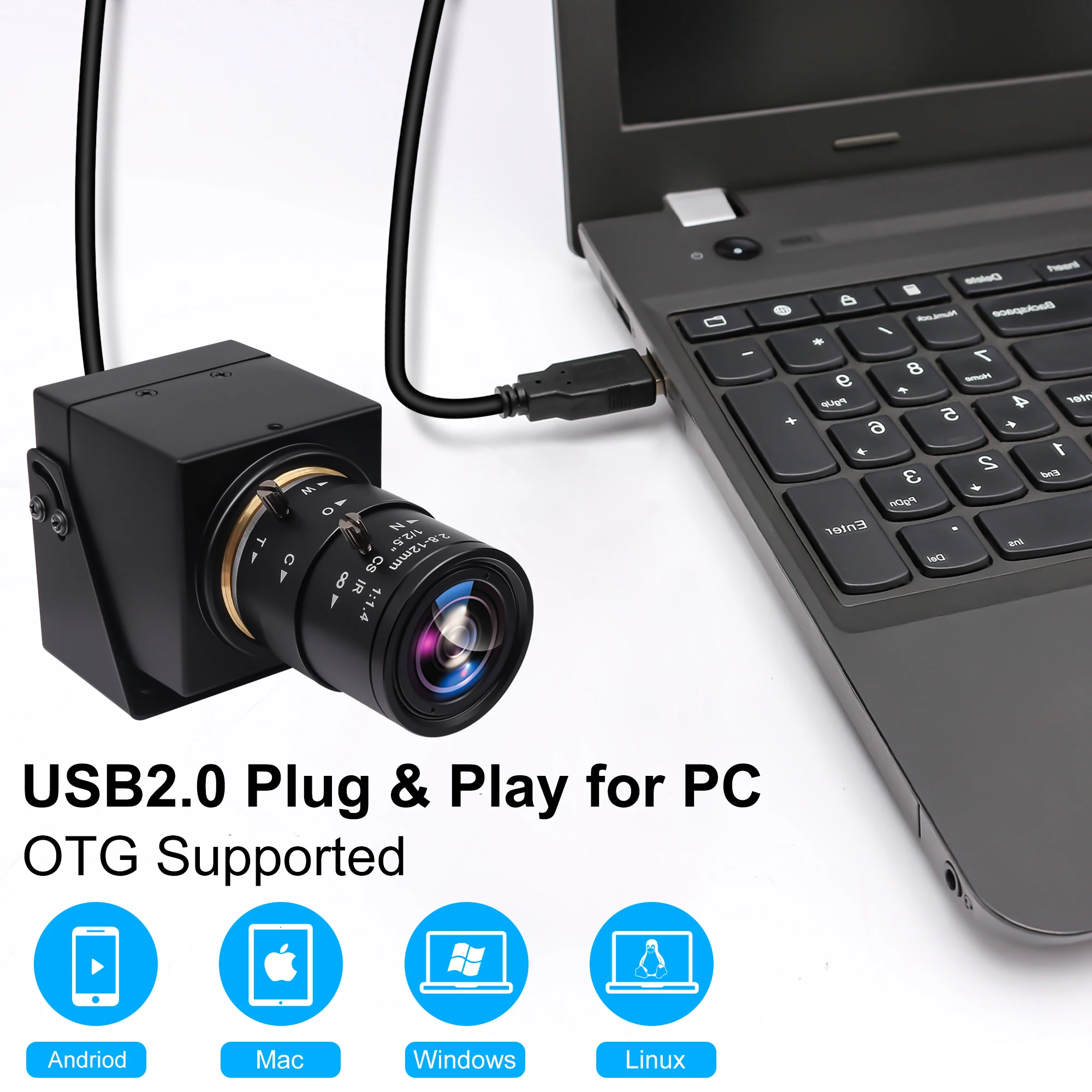

Connect USB-C cable to PC, the camera plugs and plays ;
-
HDMI display:
No need PC systems, with USB-C cable the camera is powered and can transfer the image directly to the monitor, projector… etc.
-
USB & HDMI display simultaneously:
Connect USB-C Cable to PC, and connect HDMI cable to the monitor with HDMI Port or projector… Then the camera can display simultaneously both on PC and monitor, projector…etc.
2X Digital Zoom + 4X Optical Zoom -Ultra HD shooting, Every Details can be Seen Clearly
2.8-12mm variable focus zoom camera for all kinds of distance shooting, zoom, brightness, clarity can be adjust by rotating the lens
4K Ultra HD 3840*2160P USB Camera with USB Type C and HDMI simultaneously output, small size for industrial equipments
Max. 3840*2160 USB HDMI 4K Camera with high compatibility for Computer PC Laptop, Raspberry Pi, Android Develop Board, Jetson Nano
HDMI are commonly used to connect devices such as televisions, monitors, projectors, gaming consoles, computers, and more. It has become a widely used technology and be used widely on all kinds of field.
This 4K USB HDMI Camera is widely used in Commericial, Industrial, Medical,Automobile, Astronomical, Biological Field:
Like Online-Teaching, Webcast, industrial camera, Video Conferencing, Live Streaming, Security, Medical device,Industrial Inspection, Scientific research and development, Education and Training, High Resolution Document Scan, High-speed photographic apparatus, Photo scanner etc.
