Description

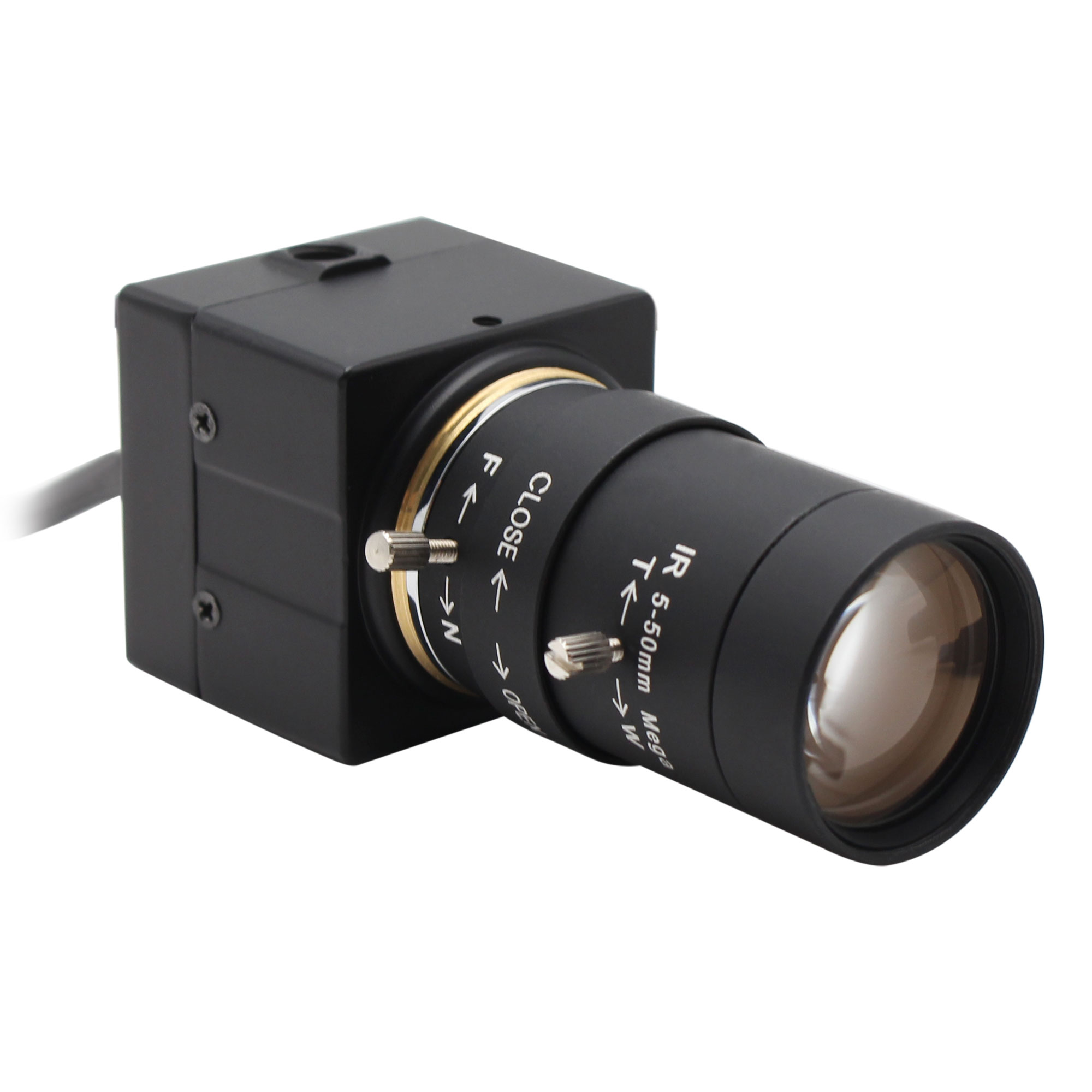

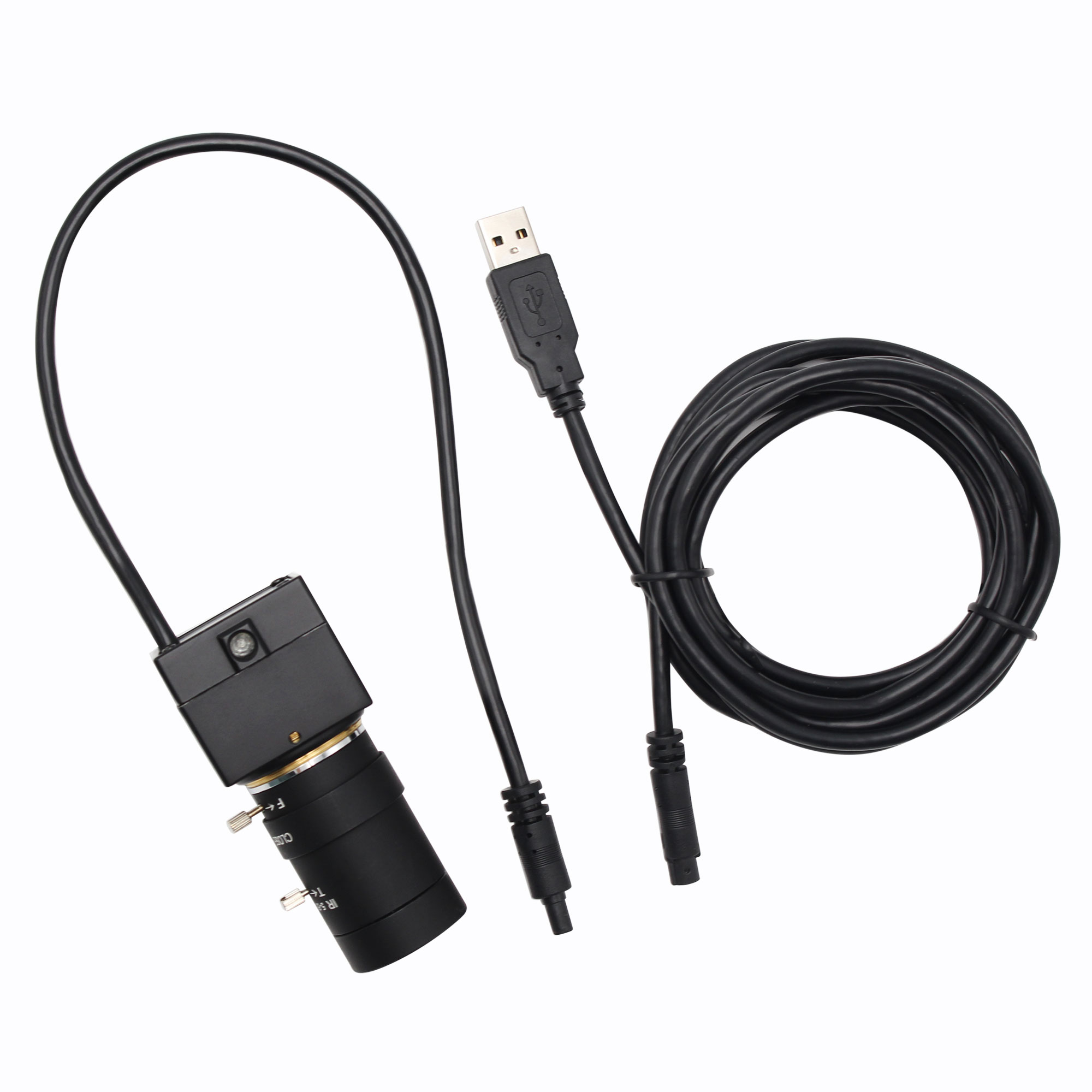

ELP Free Driver Manual Focus Webcam 5-50mm Low Illumination 0.01lux USB2.0 Video Confrence Camera With Varifocal Lens (ELP-USB130W01MT-SFV(5-50))

Effect pictures:


Feature:
*1.3Megapixel CMOS sensor for high quality image.
* low illumination Min 0.01lux ,can get clear picture when it’s not so bright.
*HD 1/3inch Aptina AR0130 CMOS sensor.
*5-50mm manual zoom Varifocal lens, can adjust to get different view angle .
*MJPEG&YUY2 Compression format optional
*USB 2.0 High speed port
*Support OTG protocal: can connect your mobile via OTG cable
*White balance adjustable: Resolve color reduction and tone processing issues
*Free Driver, plug & play for used in any device
Camera with UVC, Compatible use in Linux, Windows XP, WIN CE, MAC, SP2 or Android 4.0 above
Specification:
| Module No. | ELP-USB130W01MT-MFV(5-50mm) |
| Module Size | 38mm × 38mm 32mm × 32mm |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 60°C |
| Camera Board Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 5CM-100M |
| Resolution | 600LW/PH (Center) |
| interface | USB 2.0 High Speed |
| protocol | USB Video Class(UVC) |
| Power | USB bus power |
| Operating system request | Win XP\Win7\Win8\Win10\Android\Linux\Mac OS |
| Certifications | FCC and CE |
| Sensor Type | AR0130 (1/3” ) |
| Active Array Size | 1280 *960 |
| Minimal illumination | 0.01Lux |
| Pixel Size | 3.75um |
| Maximum Image Transfer Rate | 1280 (H) x 960 (V) pixels MJPEG 15fps |
| 1280 (H) x 720 (V) pixels MJPEG 30fps | |
| 800 (H) x 600 (V) pixels MJPEG 30fps | |
| 640 (H) x 480 (V) pixels MJPEG 30fps | |
| 320 (H) x 240 (V) pixels MJPEG 30fps | |
| S/N Ratio | 44dB |
| Dynamic Range | 83.5dB |
| Shutter | Rolling shutter/ frame exposure |
| Lens Type | 5-50mm varifocal lens (2.8-12mm varifocal lens optional) |
| Lens Construction | 5G+IR |
| F/No | 1.8 |
| BFL(Optical) | 6.5mm |
| FOV | 20-115 degree |
| IR Filter | 650±10nm |
| DSP Type | RV1080P |
| AGC/AEC/AWB/ABF | Auto |
| Output Formats | YUYV/MJPEG |
| IR CUT | SUPPORT |
| Adjustable parameters | Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus |
| Package | LQFN-40pin |
| USB Cable | 3M(1M/2M/5M Optional) |
