Description
ELP Smallest camera module 720P CMOS OV9712 1280X720 100 degree lens PCB usb cctv camera micro camera
Feature:
*720P resolution 1280x720P
*USB interface Camera Module for Monochrome Stereo
*Android&Linux system support
*YUY and MJPEG compression format optional
*CMOS 720P sensor for high quality image and low power consumption
*High speed USB 2.0 interface for high resolution PC camera interface
*high pixel technology for sharp image and accurate color reproduction
*low light performance – ideal for any lighting condition
*Super small outline and thin profile for embedded applications

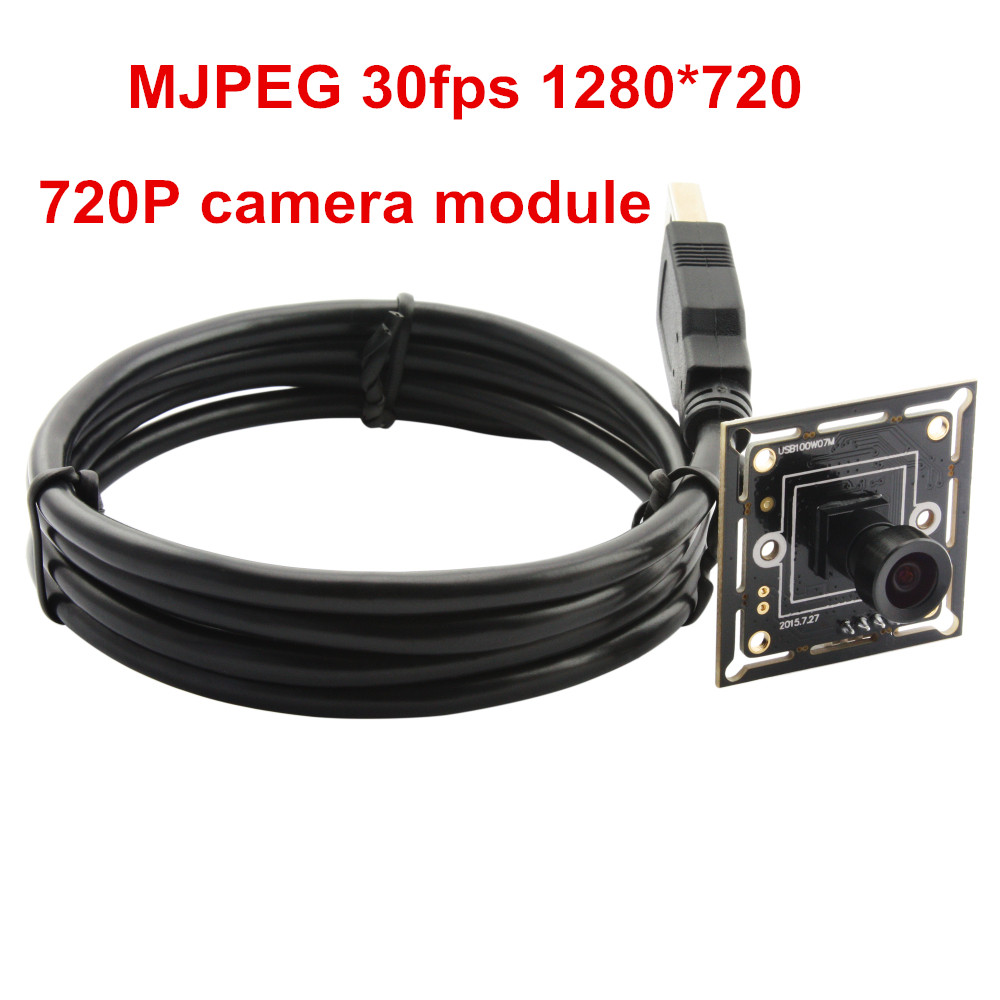

*High frame rate– deliver 30 fps in 1280X720 resolution
*High quality lens, true and undistorted color image
*Low power consumption – ideal for portable equipment
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC
Specification:
|
Model : ELP-USB100W07M-MHV100 (100edgree lens) |
|||
| Resolution & frame | MJPEG: 320X240@ 30fps /352X288@ 30fps /640X360@60fps / 640X480@ 30fps/800X600@ 30fps /1280X720@ 30fps YUV: 320X240@ 30fps /352X288@ 30fps /640X360@30fps / 640X480@ 30fps/800X600@ 15fps /1280X720@ 5fps |
||
| Sensor | CMOS OV9712 | Mini illumination | 0.1lux |
| Sensor Size | 1/4 inch | Support free driver | USB Video Class(UVC) |
| Pixel Size | 3μm x 3μm | Sensitivity | 3.7V/lux-sec@550nm |
| Image Area | 3888μm x 2430μm | AEC,AEB,AGC | Support |
| Max. Resolution | 1080(H)x720(V)pixels | S/N Radio | 40dB |

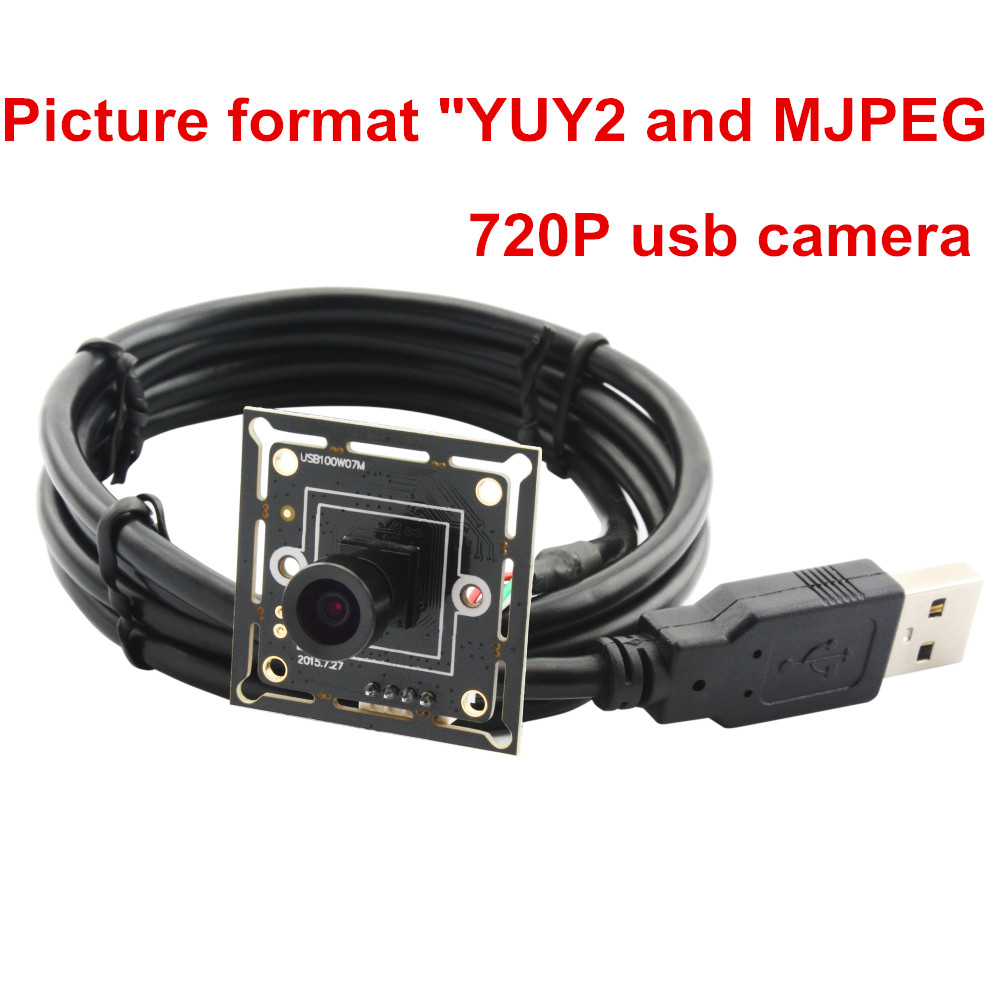

| Picture format | MJPEG or YUY2(YUYV) | Dynamic Rangde | 69dB |
| Lens Parameter | M7 100degree lens,
Optional 45/120degree lens |
Adjustable parameters |
Brightness/Contrast/Saturation, Hue, Sharpness,Gamma, Exposure White balance,Backlight Contrast |

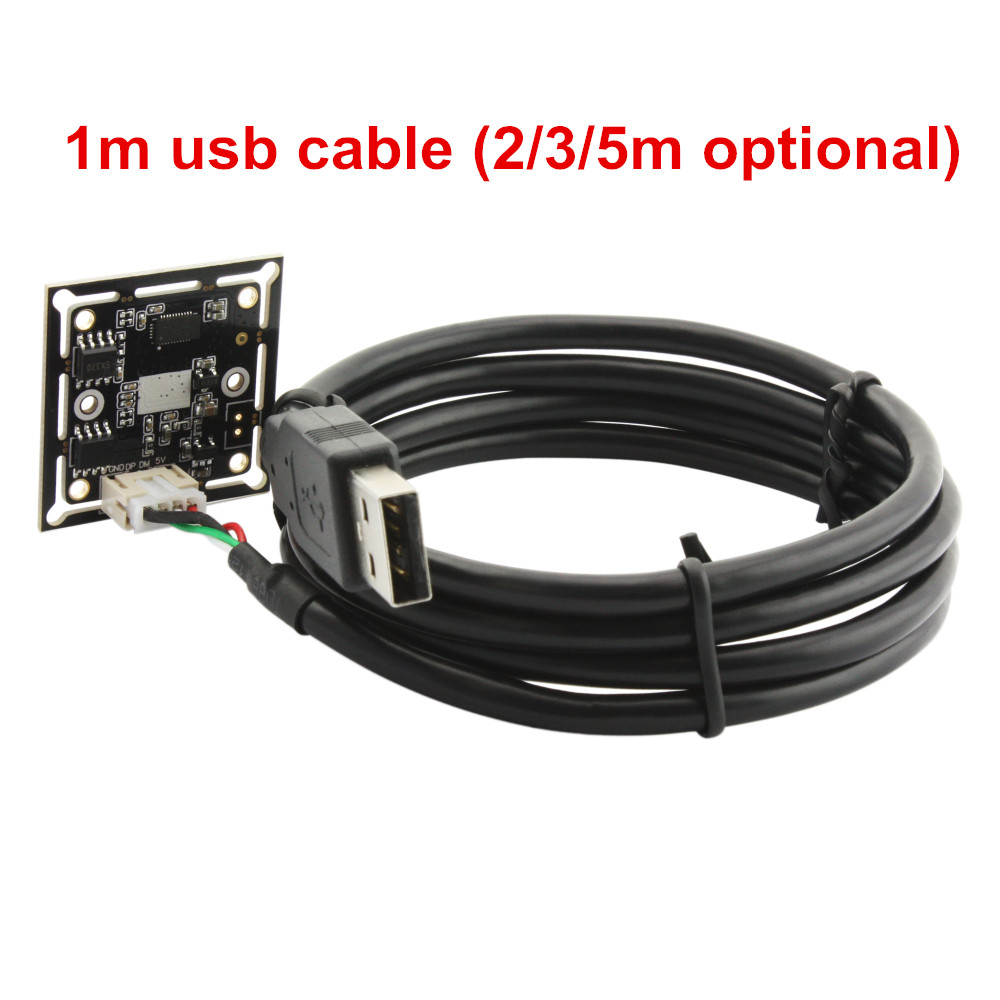

| Cable | Standard 1M/ Optional 2m,3m,5m | work temperature | DEGREES(-20~85) |
| Board Size/ Weight |

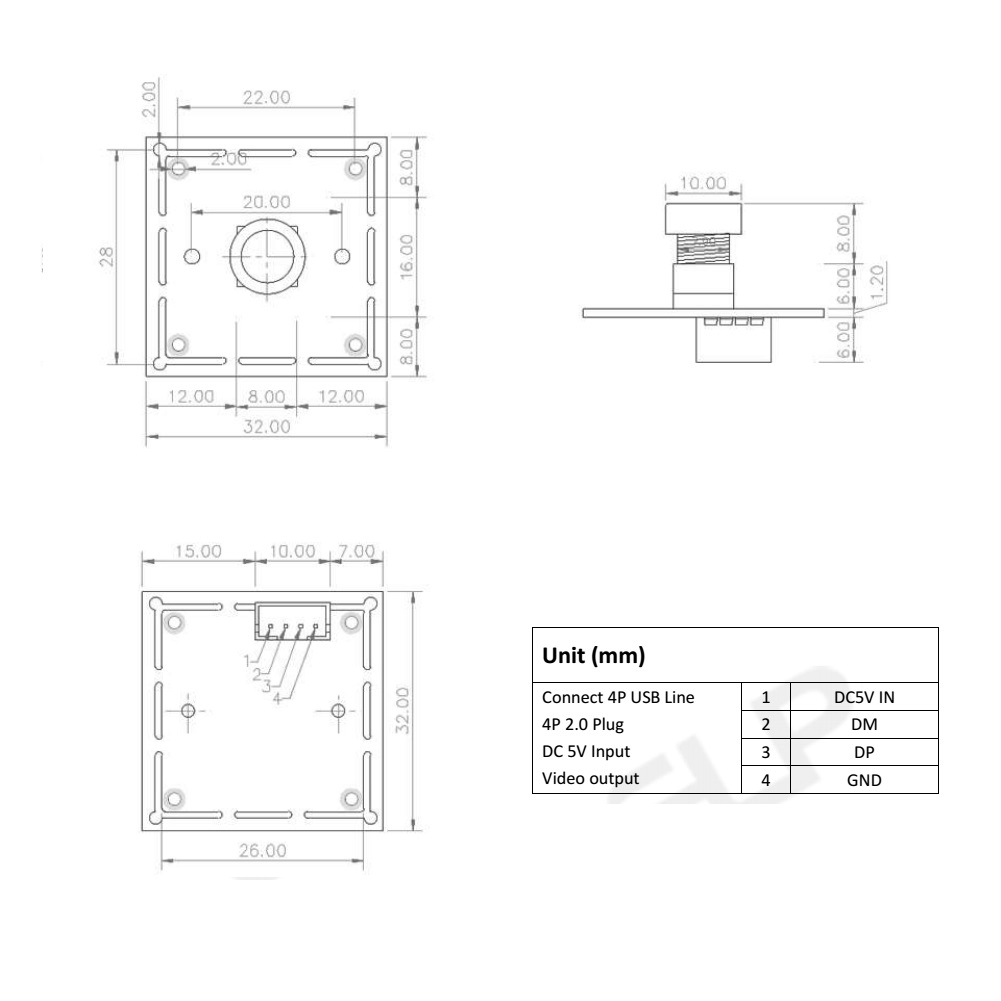

26*26mm/32mm*32mm optional / about 30g | Shutter Type | Electronic rolling shutter/ Frame exposure |
| Connecting Port Type | USB2.0 High speed | Working current | 120mA~180mA |
| USB Protocol | USB2.0 HS/FS | Power Supply | DC 5V |
| OTG protocol | USB2.0 OTG | USB BUS POWER 4P-2.0mm socket | |
| Night vision | Need to equipped with IR Control board | LED board power connector | Support 2P-2.0mm socket |

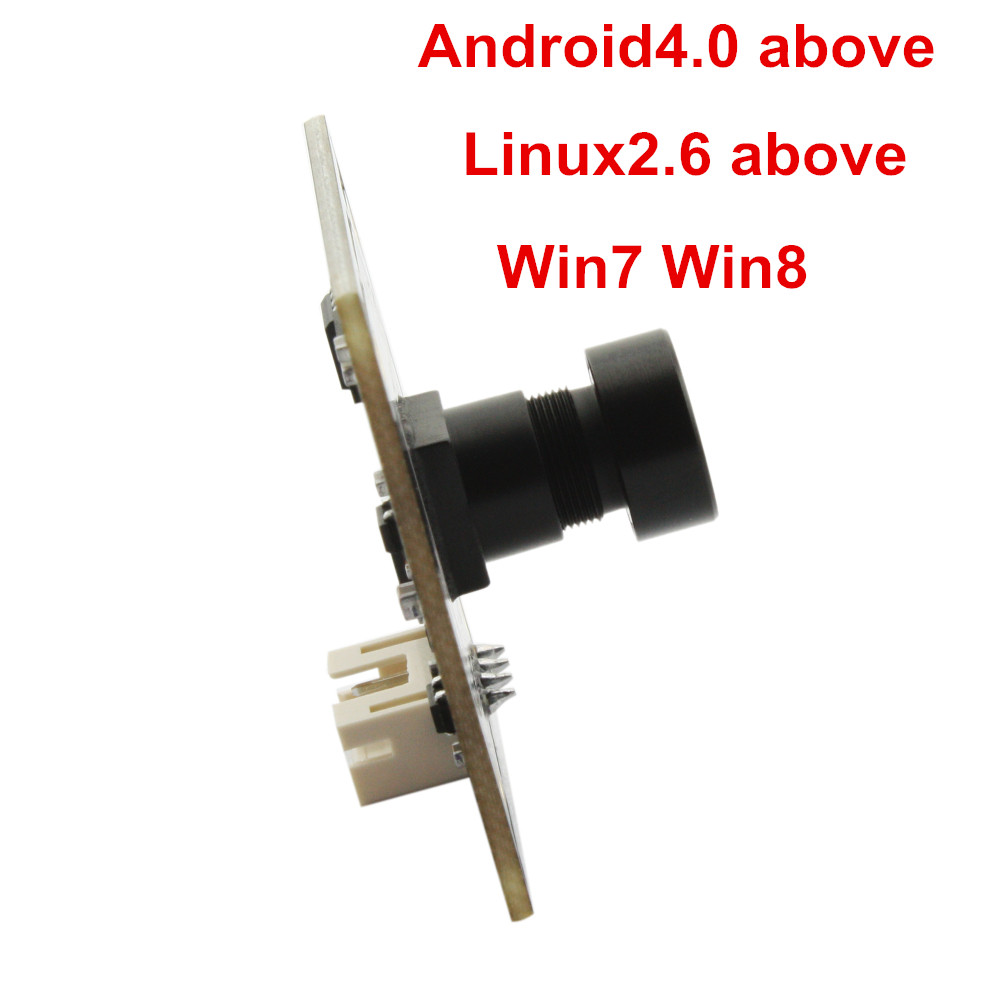

| Support OS | WinXP/Vista/WIN7/WIN8 / Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above |
||
