Name: ELP High Speed 1080P 120FPS Autofocus USB Camera 4K 30FPS IMX577 UHD 12MP Low Light Mini USB Video Camera With No Distortion Lens For PC Computer Laptop
SKU: 2328
Price: 98.70 USD
Availability: InStock

Description

ELP High Speed 1080P 120FPS Autofocus USB Camera 4K 30FPS IMX577 UHD 12MP Low Light Mini USB Video Camera With No Distortion Lens For PC Computer Laptop

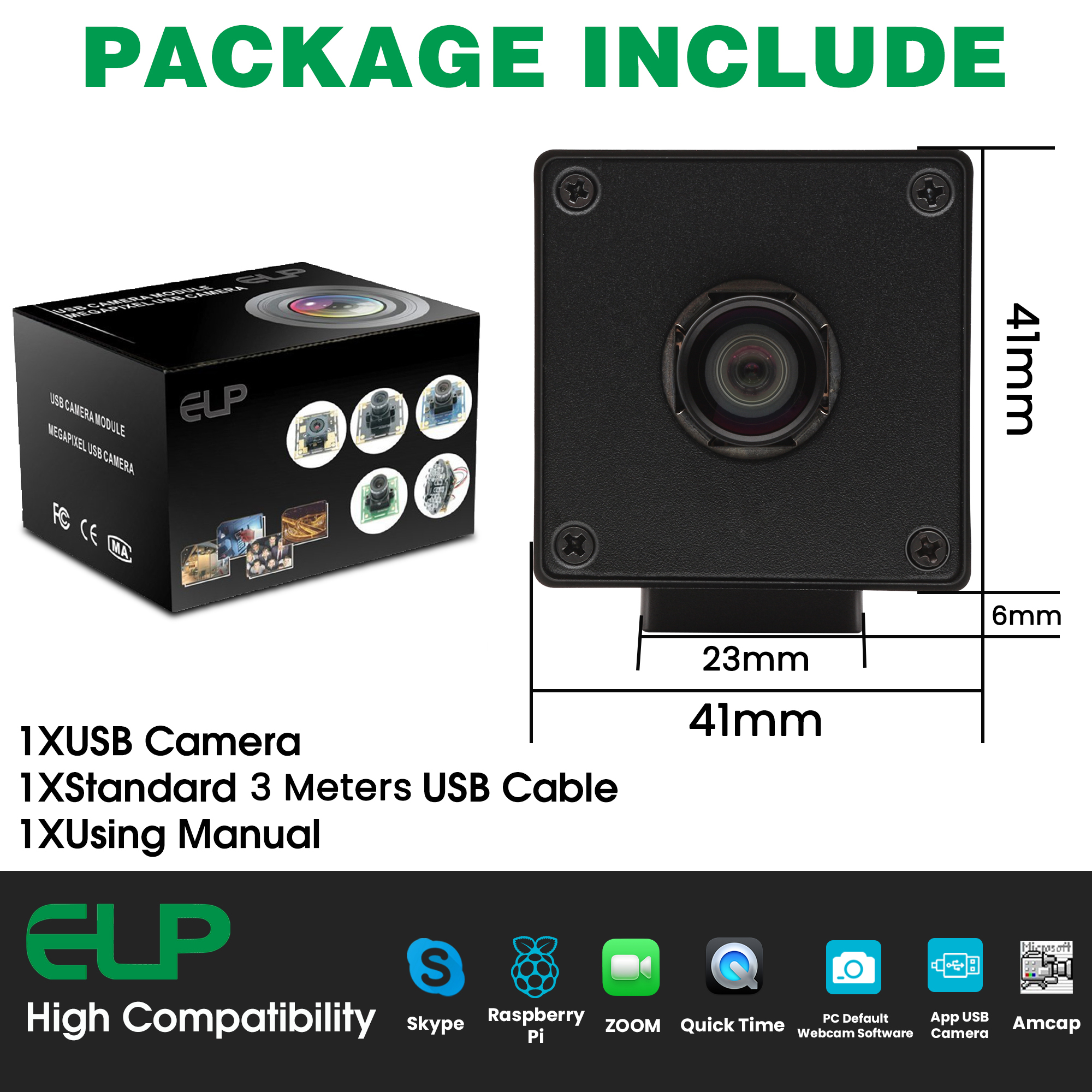

Package included:

1) 1pcs 12mp autofocus usb camera with M12 lens;

2) 1pcs 3m usb cable (1/2/5m length optional).

Description:

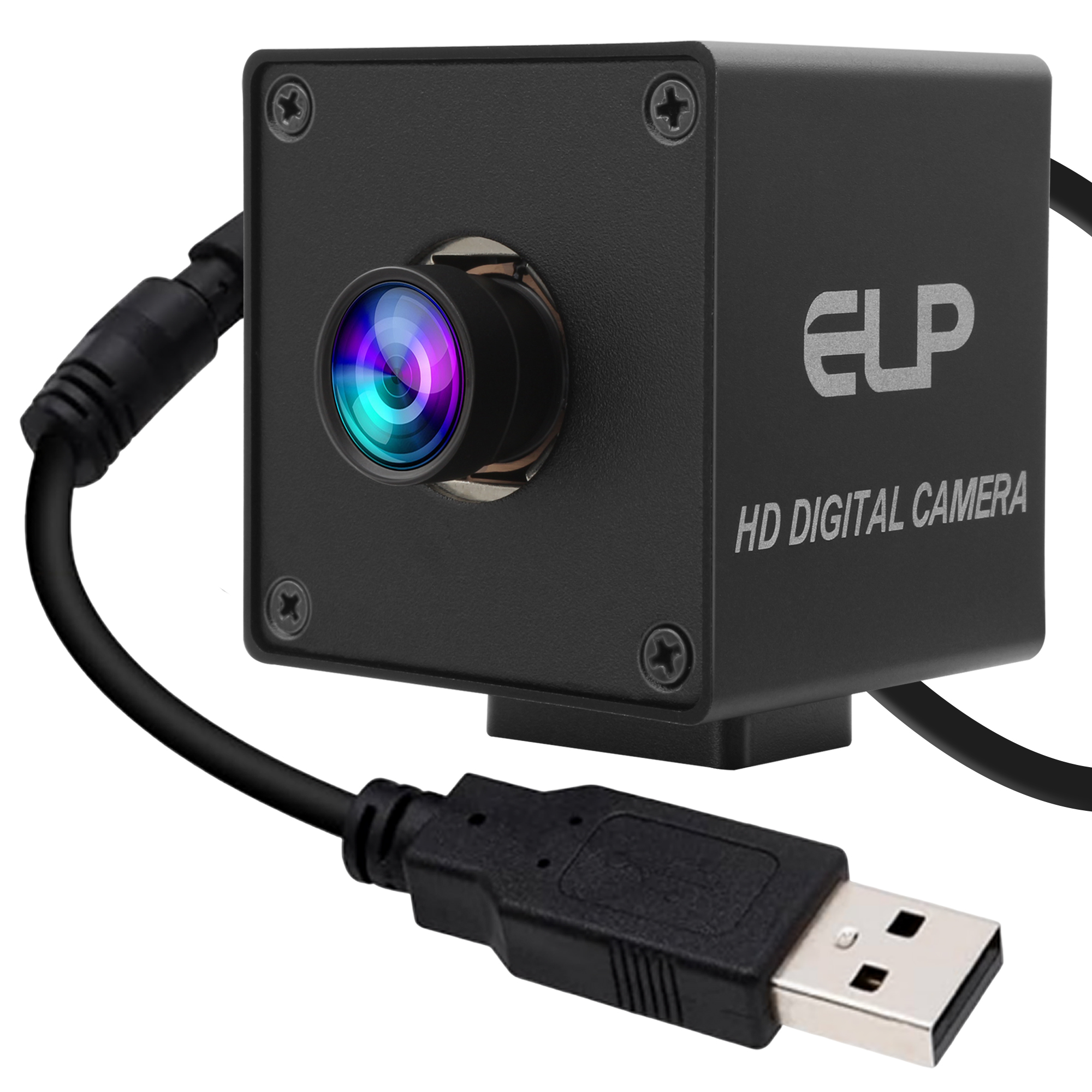

This High Resolution 12MP USB Camera is based on big size 1/2.3” Sony IMX577 image sensor, auto focus, USB 2.0 UVC compliant camera. This is a mini webcam module, Max resolution 11.6 Mega pixel 3840*3040 output. It can work in high frame rate 120fps in 1080P, 30fps in 2160P, without lag. No extra drivers needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera, shoot the images or record videos with super Image reality, real color reproduction. Its ultra 3840*3040 resolution can be used in a wide range of applications where high-resolution images and videos with autofocus capabilities are required.

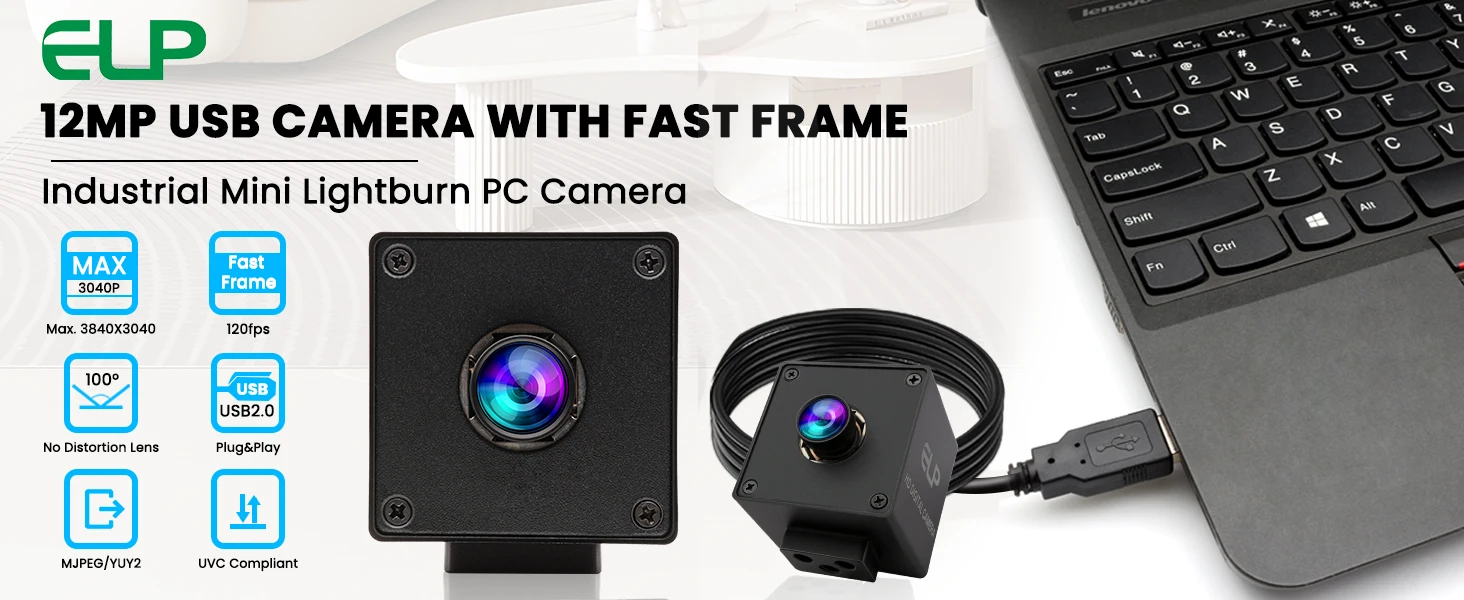

Ultra HD 3840*3040 High Resolution 12MP USB Camera.
With industrial grade high quality sensor Sony IMX577.
High frame rate 30fps 12 megapixel usb camera, can do 120fps@1920*1080.
High quality M12 lens, wide angle no distortion lens or fisheye optional;
Auto Focus, auto control the focusing process to capture the moving object, works like the human eye, and shots the imaging you want.
Low illumination 0.1Lux, work well in low light environment.
Super Image reality, real color reproduction, without interpolation.
UVC Complaint, Free Driver , Plug and Play, easily used on different systems.
Mini size 41*41*36mm, super small outline for embedded applications;
Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…8.OTG Support, can be used on Android smartphone, recommended app “USB Camera”.
11.Wide Application: Well used for High Resolution Document Scanning, High-speed photographic apparatus, Photo scanner, Medical device, Industrial Inspection, Scientific research and development ,Education and Training, Video Conferencing, Live Streaming, Security and so on

Model NO.:	ELP-USB12MP01-AFKV100 (no distortion lens, HFOV 88°) Optional Models: ELP-USB12MP01-AFKV6 (no distortion lens, HFOV 53°) ELP-USB12MP01-AFKLC1100 (no distortion lens, HFOV 71°) ELP-USB12MP01-AFKH110 (no distortion lens, HFOV 118°) ELP-USB12MP01-AFKL170 (fisheye lens, HFOV 165°) ELP-USB12MP01-AFKL185 (fisheye lens, HFOV 205°)
Image Sensor	SONY IMX577 (1/2.3” )
Max. Resolution	3840(H) *3040 (V)
Sensor Size/ Image Size	10.7mmX8.5mm/ 5.95mmX4.71mm
Default. Resolution	3840(H) *2880(V)
Compression Format	MJPEG / YUY2(YUYV)
Resolution & Frame Rate	3840X3040 MJPEG@20fps YUY2@1fps 3840X2880 MJPEG@20fps YUY2@1fps 3840X2160 MJPEG@30fps YUY2@1fps 2592X1944 MJPEG@30fps YUY2@1fps 2048X1536 MJPEG@30fps YUY2@3fps 1600X1200 MJPEG@30fps YUY2@5fps 1920X1080 MJPEG@120fps YUY2@5fps 1280X960 MJPEG@120fps YUY2@5fps 1280X720 MJPEG@120fps YUY2@5fps 1024X768 MJPEG@120fps YUY2@5fps 960X720 MJPEG@120fps YUY2@5fps 800X600 MJPEG@120fps YUY2@20fps 640X480 MJPEG@120fps YUY2@30fps 320X240 MJPEG@120fps YUY2@30fps
Center Definition	1000LW/PH (Center)
S/N Ratio	24dB
Sensitivity	0.65V/lux-sec@550nm
Minimum illumination	0.1lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
AEC/ AWB/ AGC	Support
Auto Focus	Supportoptional
Adjustable Parameters	Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure
Lens Parameter	M12 lens, wide angle no distortion lens or fisheye optional, lens changeable.
Power Supply& Connector	USB BUS POWER 4P-2.0mm socket
Power Voltage	DC 5V
Power Current	240mA
Camera Size	41mm × 41mm x 36mm
Storage Temperature	-20°C to 85°C
Working Temperature	-10°C to 65°C
USB Cable	3M(1M/2M/5M optional)
Operating System Support	Win XP/Vista/Win7/Win8 /Win9/Win10/Win11 etc. Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

12MP Ultra Clear, Max Resolution: 3840(H) X 3040(V) 11.6 Megapixel, super Image reality, real color reproduction, show your best in every video call.

Fast Auto Focus speed, auto control the focusing process to capture the moving object, works like the human eye, and shots the imaging you want.

High frame rate 12mp usb webcam module, can do 120fps@1920*1080, 30fps@3840*2160, provide smooth and fluent streaming

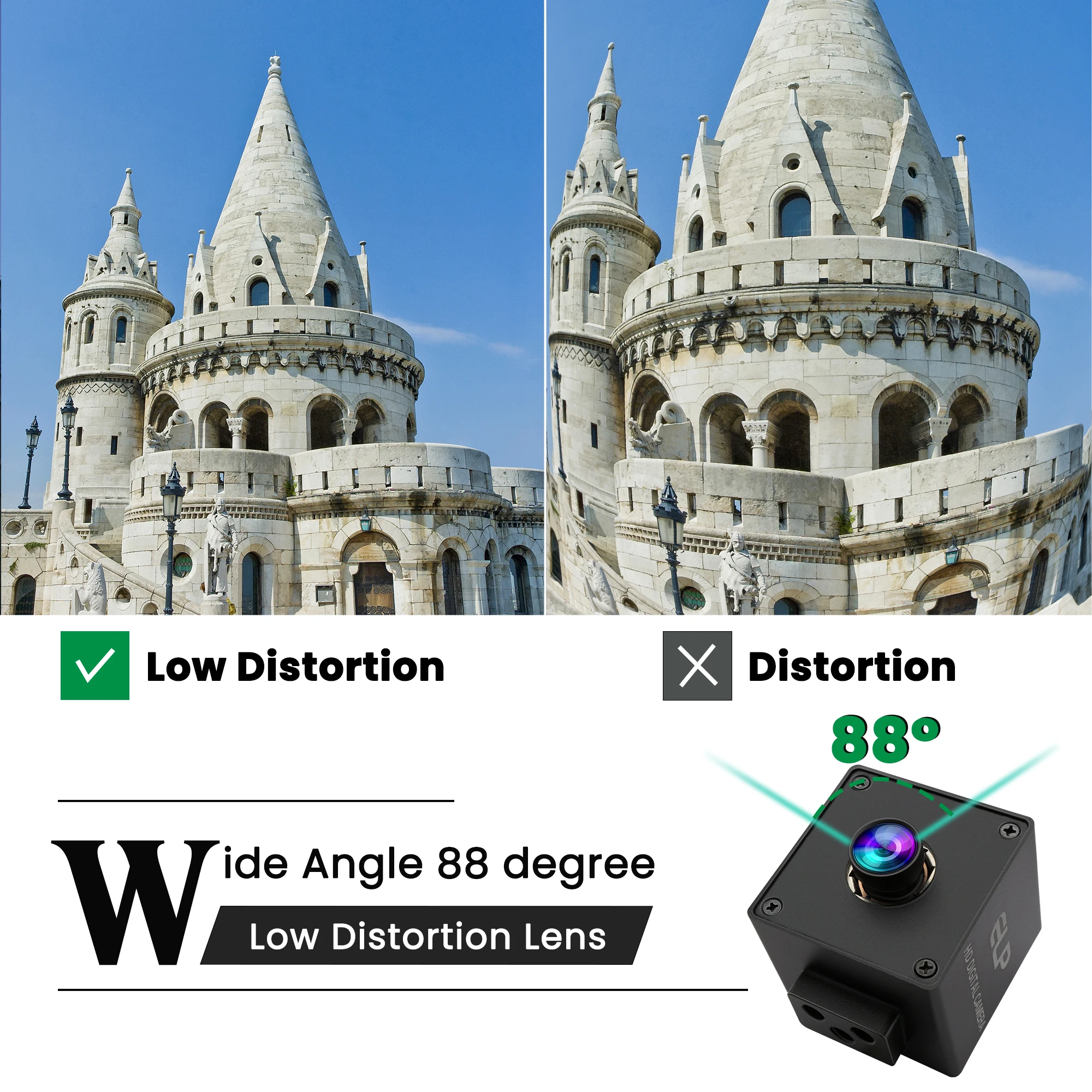

With high quality M12 lens, wide angel no distortion lens with FOV 53°/71°/88°/118°optional, wide angle fisheye lens with FOV 165°/205° optional, lens changeable.

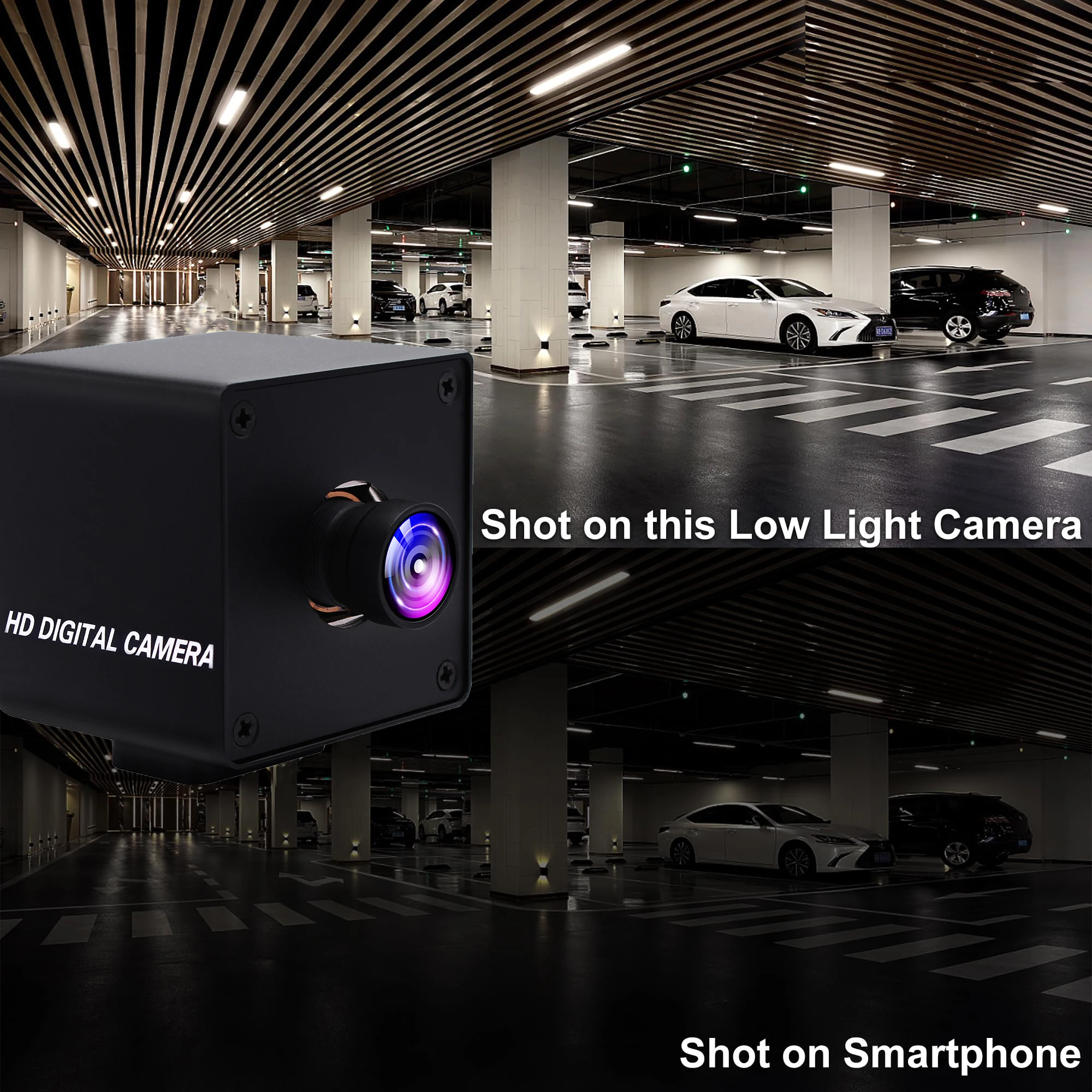

Low illumination 0.1Lux, work well in low light environment.

Mini size 41*41*36mm,light weight. Equipped with 3meters USB cable for wider range of usage.

Wide Compatibility: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…OTG Support, can be used on Android smartphone, recommended app “USB Camera”.

Multi-Platform Support:YOUTUBE / ZOOM / AMCAP / FACETIME / SKYPE

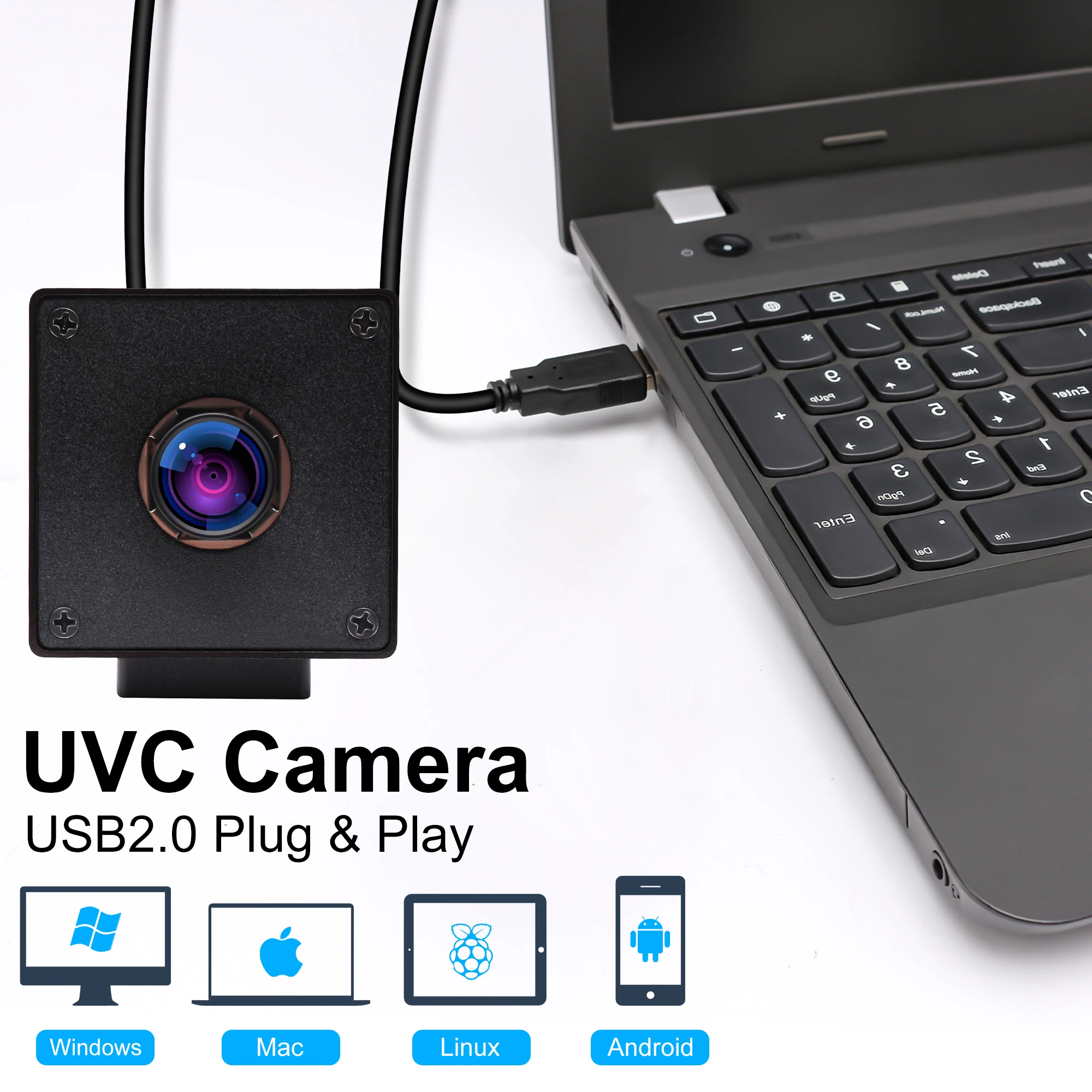

Plug and Play/Free Driver. UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

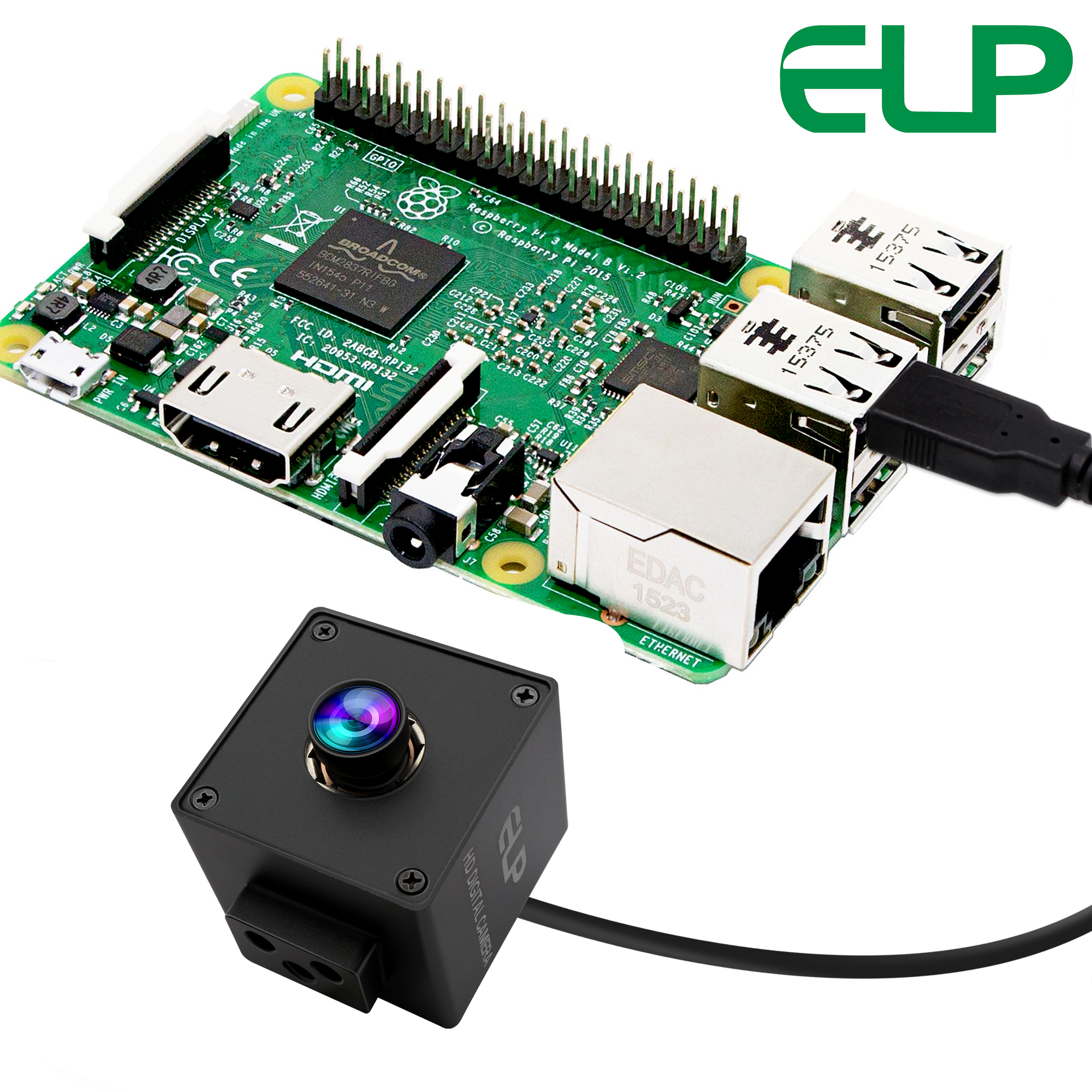

FOR RASPBERRY PI

It can work with already preinstalled camera software instead of builtin camera.

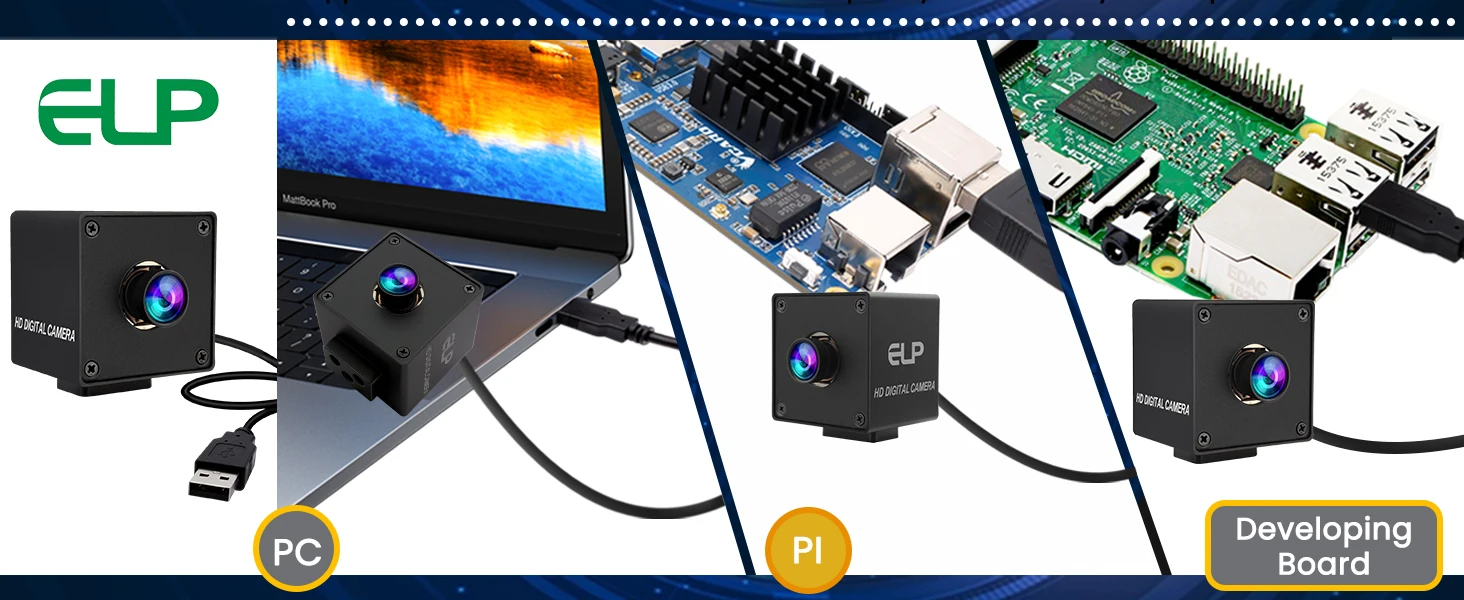

Support Android development board,Raspberry Pi development board,Jetson Nano,etc.
